Видео карта AMD Radeon RX 6800, 16GB, SAPPHIRE NITRO+, PCI-E 4.0, GDDR6, 256-bit, DP, HDMI

NITRO+ AMD Radeon™ RX 6800

• GPU: Boost Clock: Up to 2190MHz
• Memory:   16GB/256 bit DDR6. 16 Gbps Effective
• Stream Processors: 3840
• RDNA™ 2 Architecture
• Ray Accelerator: 60





SAPPHIRE NITRO+ AMD Radeon™ RX 6800

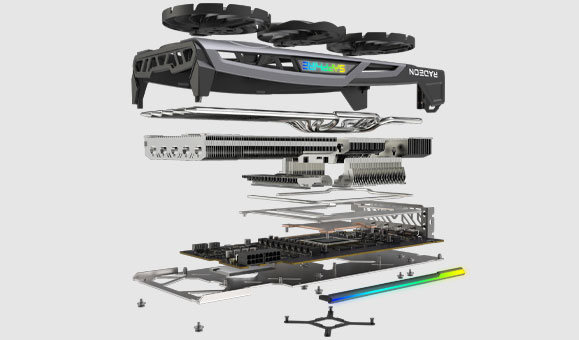

The SAPPHIRE NITRO+ AMD Radeon™ RX 6800 displays powerhouse 4K gaming performance with vivid visuals for an elevated experience. The all-new innovative Wave Fin Design working in tandem with our V-Shape Fin Design for GPU Cooling reduces wind friction and centralizes airflow for optimal heat dissipation and a virtually silent system. Cutting edge Memory & VRM Cooling with Heat-Pipes ensures you can push your performance to new limits while keeping the NITRO+ AMD Radeon™ RX 6800 components icy cool. The brand new Hybrid Fan Design combines the tranquility and strong air pressure features that exhibit ultimate levels of downward air pressure through the fan while keeping fan noise low. Incredible ARGB Lighting across the graphics card using our SAPPHIRE TriXX software fused with beautiful aesthetic styling will ensure the NITRO+ AMD Radeon™ RX 6800 is a stunning addition to every enthusiast gamer’s PC. NITRO Charge your PC with the NITRO+ AMD Radeon™ RX 6800 and boost your gaming experience to the next level!























Specifications:



GPU

Engine Clock

• Boost Clock: Up to 2190 MHz
• Game Clock: Up to 1980 MHz

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

Infinity Cache

Ray Accelerators

Memory Size/Bus

Memory Clock

Displays

Resolution

• HDMI™: 7680×4320
• DisplayPort1.4: 7680×4320

Interface

PCI-Express 4.0

Output

• 1x HDMI
• 3x DisplayPort

BIOS Support

• Dual UEFI

Game Index

Sapphire Features

• Dual BIOS
• Max Boost
• TriXX Software Switch
• Premium Digital Power Design
• Fuse Protection
• Tri-X Cooling Technology
• Intelligent Fan Control
• Precision Fan Control
• Backplate with ARGB
• Two-Ball Bearing Fans
• Hybrid Fan Blade
• Wave Fin Design
• V Shape Fin Design for GPU Cooling
• Integrated Cooling Module
• TriXX Supported
• Fan Check
• Fan Quick Connect
• TriXX Boost
• NITRO Glow
• External RGB LED MB Synchronization

AMD Features

• AMD RDNA™ 2 Gaming Architecture
• DirectX® 12 Ultimate
• Hardware Raytracing
• 7nm GPU
• GDDR6 Memory
• PCI® Express 4.0 Support
• AMD FreeSync™ Technology
• DisplayPort™ 1.4 with DSC
• HDMI™ 2.1 VRR
• Video Streaming up to 8K
• Radeon™ VR Ready Premium
• AMD FidelityFX
• Radeon™ Image Sharpening
• Radeon™ Anti-Lag
• Radeon™ Software
• Game Driver Optimizations
• High Performance 4K Gaming

Cooling

Form Factor

Power Consumption

• 290W

OS

Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit  operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement

• Minimum 750 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
