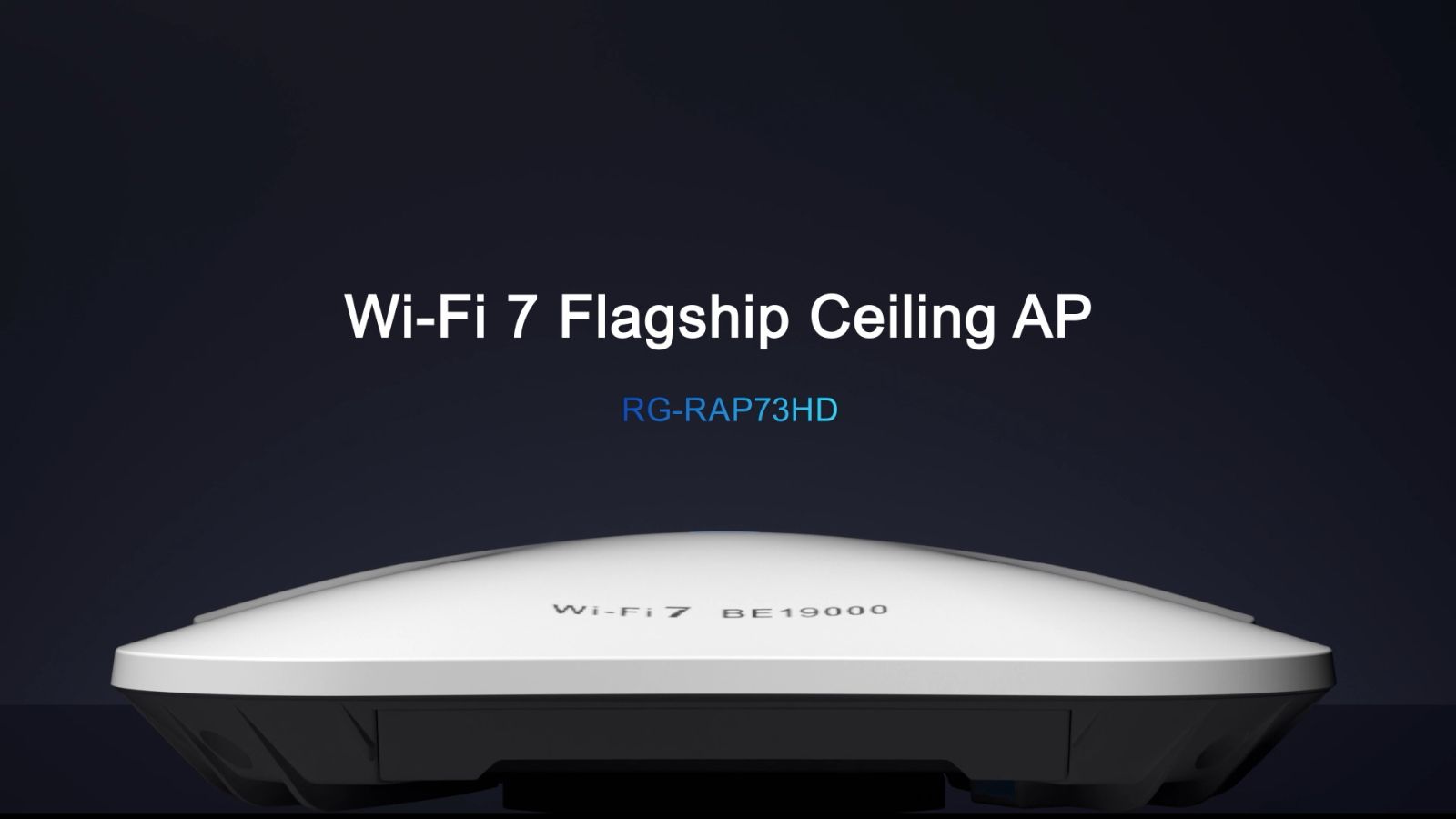

Ruijie RG-RAP73HD
Highlight Features
- Tri-radio performance, 6G/320 MHz brings extre-high wireless rate
- Better Streaming experience with Wi-Fi 7 exclusive feature MLO
- Increase the high-density access capacity up to 1500
- 4K-QAM, deliever data packs better for higher speeds
- Capable of Enterprise Switch to build PRO Office Network
Specifications:
| Category | Details |
|---|---|
| Wi-Fi Protocols | |
| 6 GHz | Wi-Fi 6: IEEE 802.11ax, Wi-Fi 7: IEEE 802.11be |
| 5 GHz | Wi-Fi 4: IEEE 802.11a/n, Wi-Fi 5: IEEE 802.11ac Wave2, Wi-Fi 6: IEEE 802.11ax, Wi-Fi 7: IEEE 802.11be |
| 2.4 GHz | Wi-Fi 4: IEEE 802.11b/g/n, Wi-Fi 6: IEEE 802.11ax, Wi-Fi 7: IEEE 802.11be |
| Operating Frequency Bands (country-specific restrictions apply) | |
| 6 GHz | 5.925 GHz to 7.125 GHz |
| 5 GHz | 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz |
| 2.4 GHz | 2.400 GHz to 2.4835 GHz |
| Spatial Streams | |
| 6 GHz | 4 spatial streams, 4x4 MIMO |
| 5 GHz | 4 spatial streams, 4x4 MIMO |
| 2.4 GHz | 4 spatial streams, 4x4 MIMO |
| Antenna | |
| Omni-directional | Yes |
| 6 GHz Antenna Gain | 5.0 dBi |
| 5 GHz Antenna Gain | 4.0 dBi |
| 2.4 GHz Antenna Gain | 3.0 dBi |
| Channel Width | |
| 6 GHz | Auto/20/40/80/160/320 MHz |
| 5 GHz | Auto/20/40/80/160 MHz |
| 2.4 GHz | Auto/20/40 MHz |
| Data Rate | |
| Max Throughput | 18668 Mbps |
| 6 GHz | 11528 Mbps |
| 5 GHz | 5764 Mbps |
| 2.4 GHz | 1376 Mbps |
| Category | Details |
|---|---|
| Max. Transmit Power | |
| 6 GHz | ≤200 mW (23 dBm) |
| 5 GHz | ≤316 mW (25 dBm) |
| 2.4 GHz | ≤316 mW (25 dBm) |
| Wi-Fi Coverage | Optimal Coverage: 70 |
| Modulation | |
| OFDM | BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps |
| DSSS | DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, CCK @ 5.5/11 Mbps |
| MIMO-OFDM | BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM |
| OFDMA | Supported |
| Receiver Sensitivity | |
| 11b | -91 dBm (1 Mbps), -88 dBm (5.5 Mbps), -85 dBm (11 Mbps) |
| 11a/g | -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps) |
| 11n | -83 dBm (MCS0), -65 dBm (MCS7), -83 dBm (MCS8), -65 dBm (MCS15) |
| 11ac (20MHz) | -83 dBm (MCS0), -57 dBm (MCS9) |
| 11ac (40MHz) | -79 dBm (MCS0), -57 dBm (MCS9) |
| 11ac (80MHz) | -76 dBm (MCS0), -51 dBm (MCS9) |
| 11ac (160MHz) | -76 dBm (MCS0), -50 dBm (MCS9) |
| 11ax (20MHz) | -85 dBm (MCS0), -58 dBm (MCS11) |
| 11ax (40MHz) | -82 dBm (MCS0), -54 dBm (MCS11) |
| 11ax (80MHz) | -79 dBm (MCS0), -52 dBm (MCS11) |
| 11ax (160MHz) | -76 dBm (MCS0), -49 dBm (MCS11) |
| 11be (20MHz) | -85 dBm (MCS0), -52 dBm (MCS13) |
| 11be (40MHz) | -82 dBm (MCS0), -49 dBm (MCS13) |
| 11be (80MHz) | -82 dBm (MCS0), -46 dBm (MCS13) |
| 11be (160MHz) | -79 dBm (MCS0), -44 dBm (MCS13) |
| 11be (320MHz) | -76 dBm (MCS0), -41 dBm (MCS13) |
| Dimensions (W x D x H) | 258 mm x 258 mm x 59.5 mm (10.16 in. x 10.16 in. x 2.34 in.) |
| Weight (excluding mounting kits) | ≤ 2.0 kg (4.41 lbs.) |
| Service Ports | |
| Number of 10/100/1000BASE-T Ports | 1 |
| Number of 100/1000/2.5G/5G/10GBASE-T Ethernet Ports | 1 (supports 802.3bt PoE) |
| Number of 10 Gbps Optical Ports (SFP+) | 1 |
| Category | Details |
|---|---|
| Power Supply | |
| DC (Local Power) | Yes (48V/1.48A) |
| DC Port Dimensions | Outer Diameter: 5.5 mm, Inner Diameter: 2.1 mm, Length: 10 mm |
| 802.3af | No |
| 802.3at | Yes (2T2R) |
| 802.3bt | Yes |
| 48V Passive PoE | Yes (60W) |
| PoE Out Max. PoE Wattage by PSE | No |
| Power Consumption | < 60W |
| Power Adapter | Yes |
| Buttons | 1 × Factory reset |
| LEDs | 1 × System LED indicator (blue) |
| Environment | |
| Operating Temperature | 0°C to +40°C (32°F to +104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| Mounting | |
| Ceiling-mount | Yes |
| Wall-mount | Yes |
| Pole-mount | No |
Виж още Аксеспойнт/Репитер Безжични Ruijie
Виж всички Аксеспойнт/Репитер Безжични в категорията
Технически характеристики
| Тип: | Аксес пойнт |
|---|---|
| Монтаж: | За вътрешен монтаж |
| Безжична скорост: | 18668 Mbps |
| Wi-Fi Стандарт: | Wi-Fi 7 (802.11be) |
| Честота: | 2.4 & 5 & 6 GHz |
| Антени: | Не е указано |
| dBi на антена/и: | Не е указано |
| PoE: | In |
| Интерфейс: | 1x 1000 |
| Други: | Няма |
