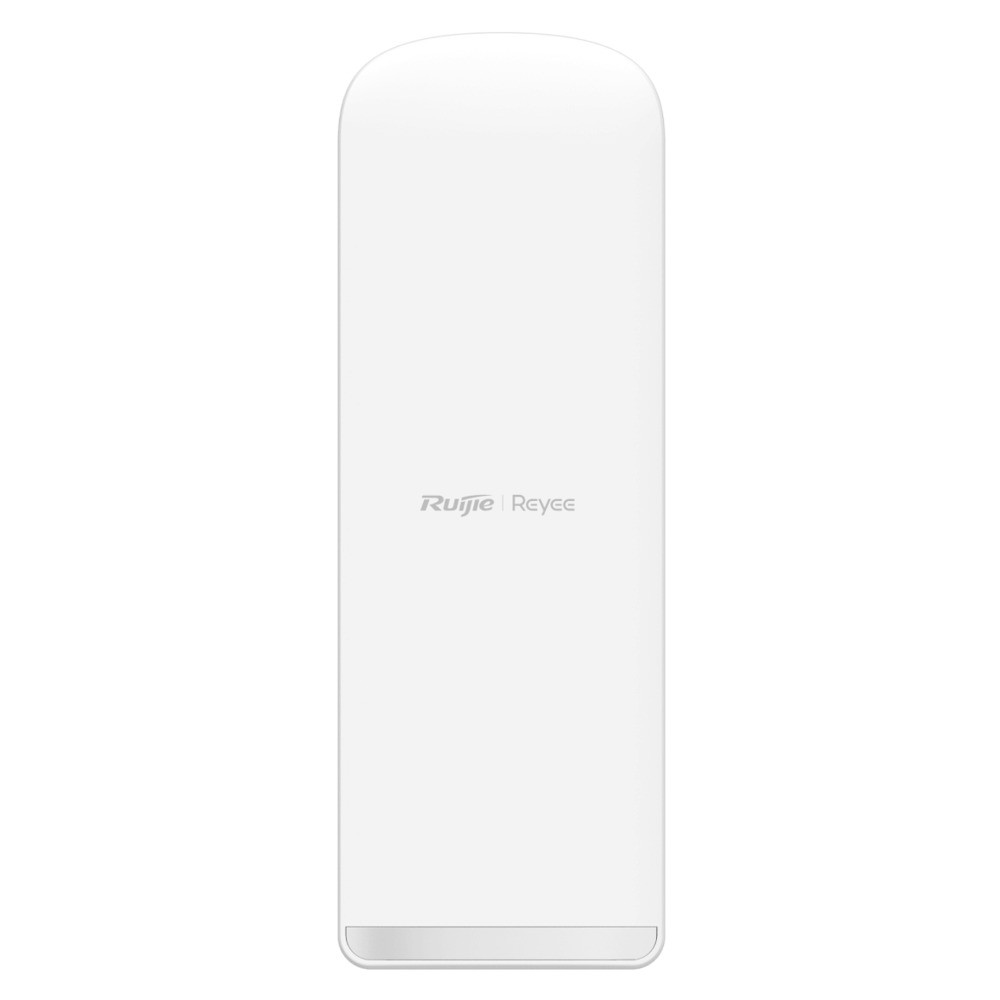

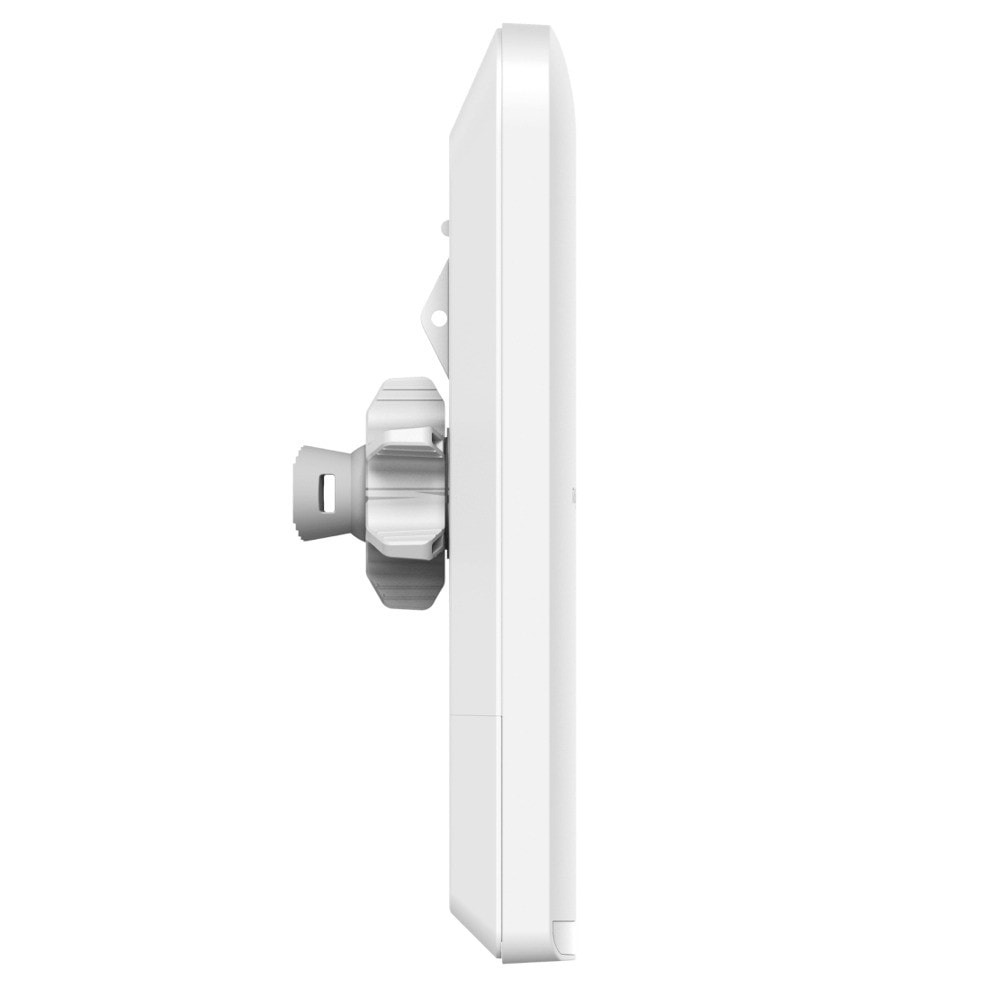

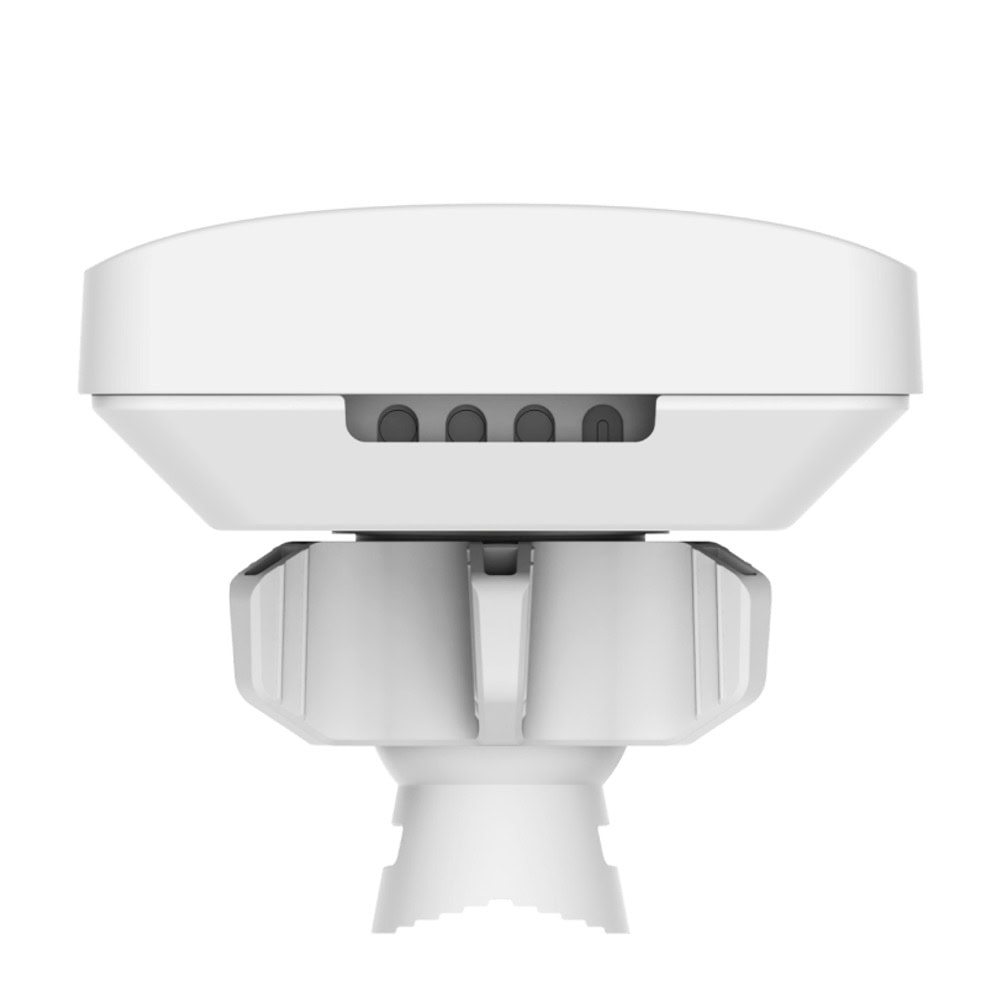

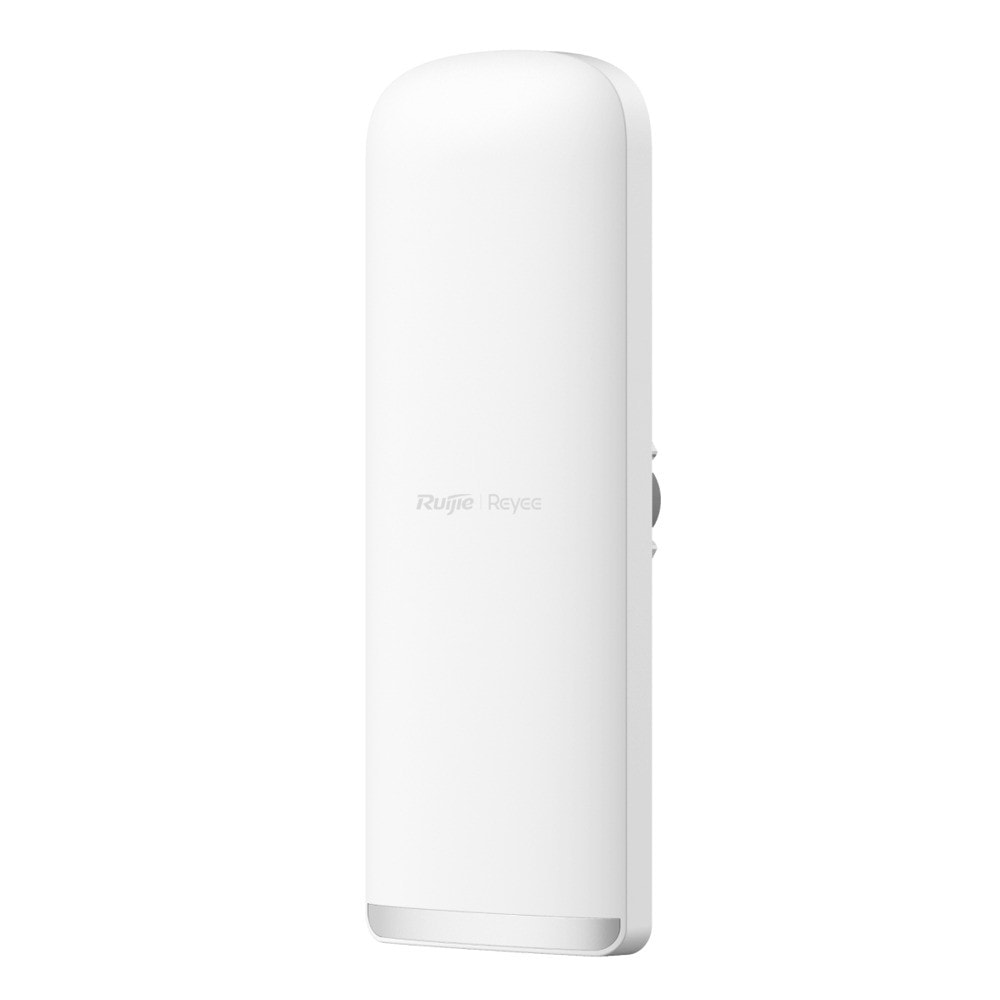

Ruijie RG-EST450G

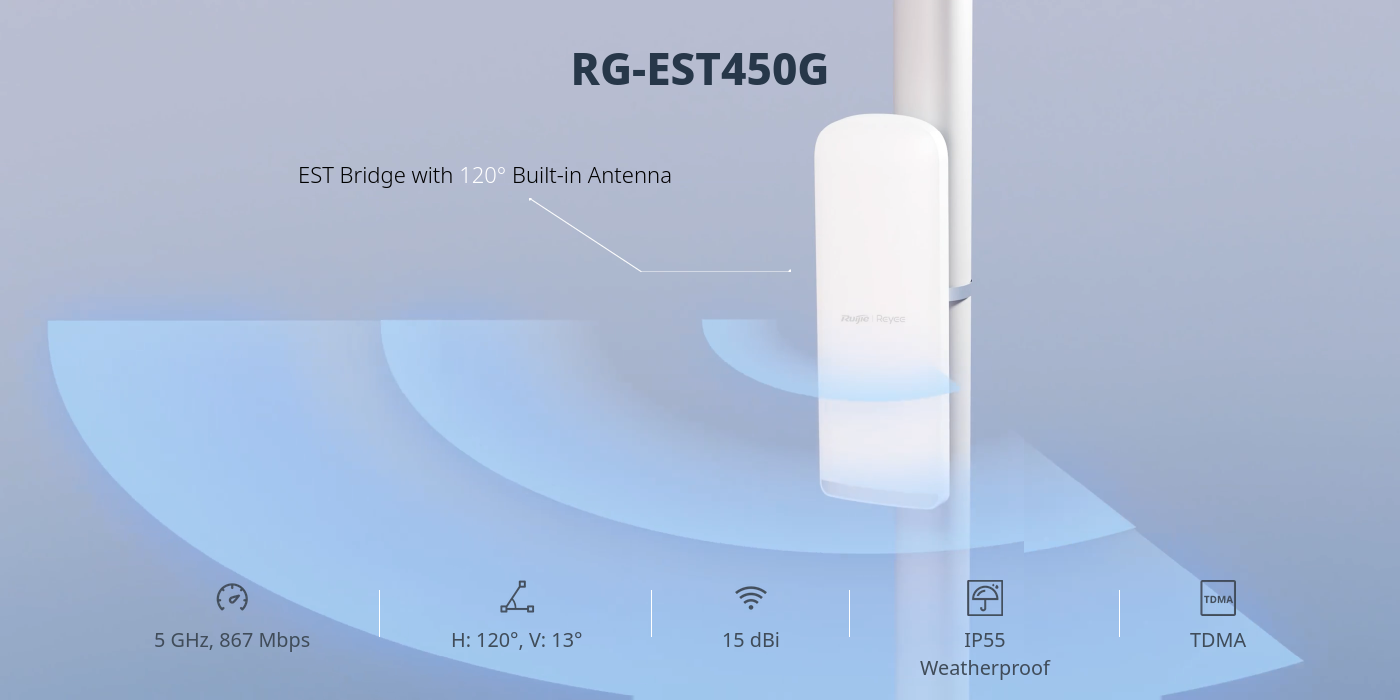

Highlight Features

• H: 120°, V: 13°

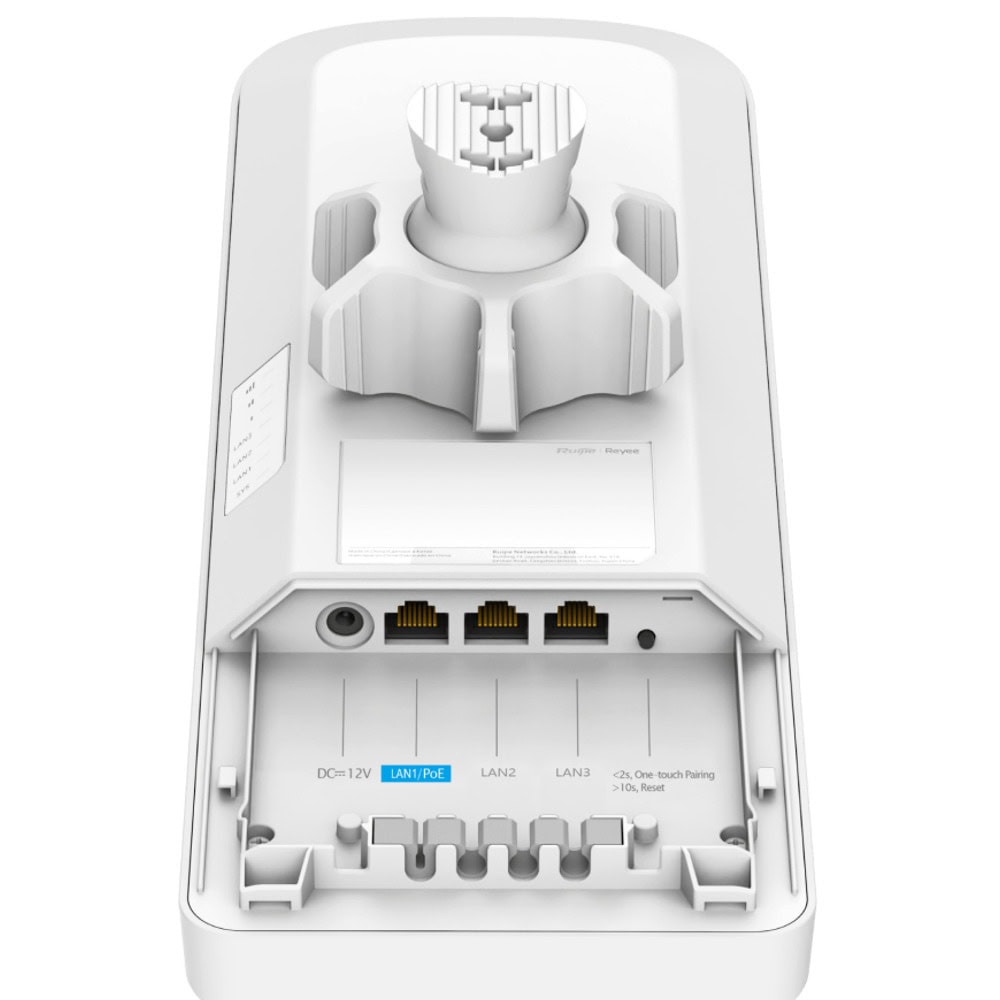

• 3 x GE Ports

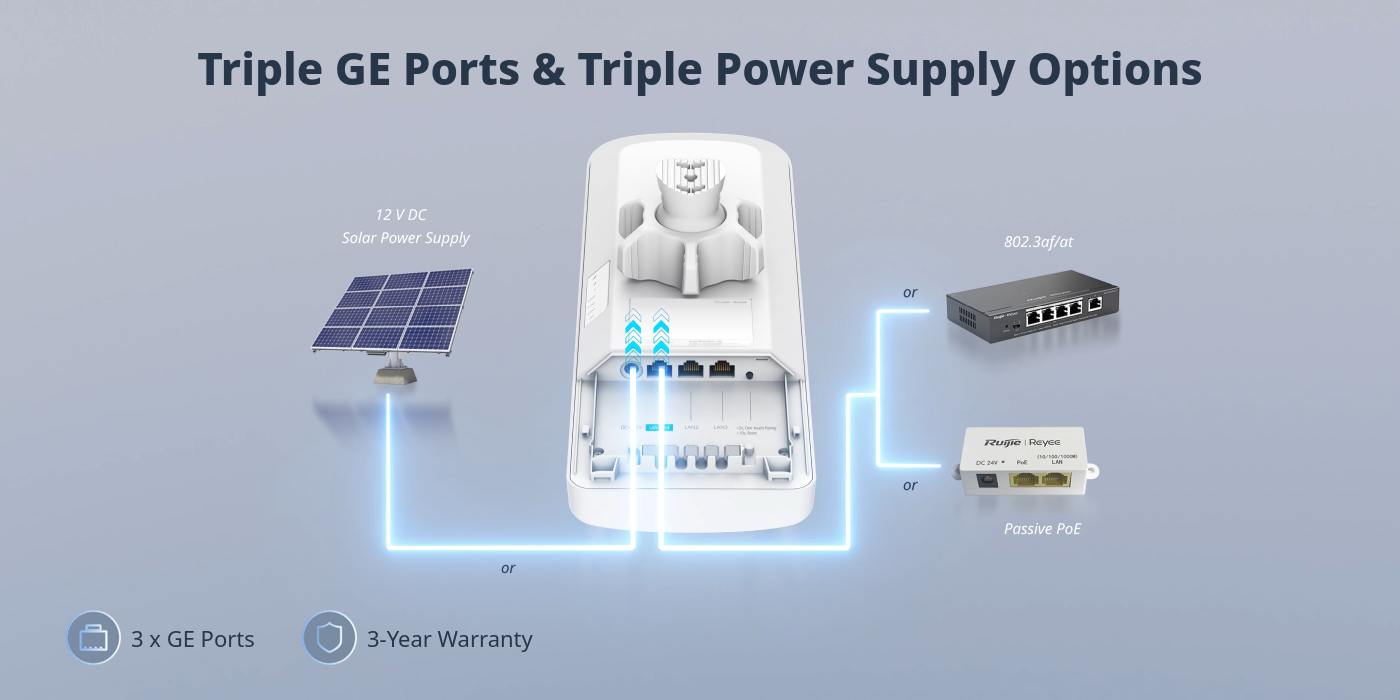

• Support 3 Power Supply Options: 12 V DC, Passive PoE, 802.3af/at
• One-Touch Pairing for PTMP Mode

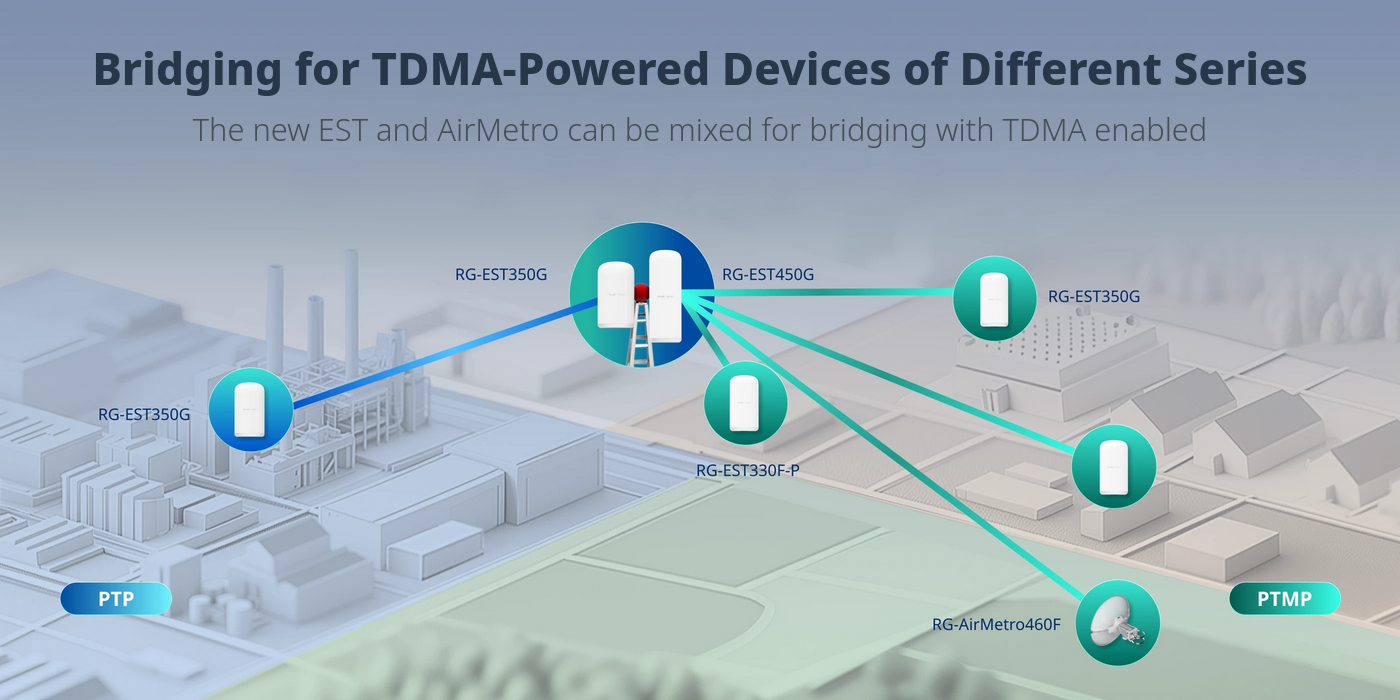

• Support TDMA
• Support SON

Key Specifications

Wi-Fi Radio

Radio design

• Dual-radio
  3 spatial streams
  ● Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO
  ● Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO

2.4 GHz channel width

• Auto/20/40 MHz

5 GHz channel width

• Auto/20/40/80 MHz

Antenna

Antenna horizontal orientation

• 120°

Antenna vertical orientation

• 13°

Dimensions and Weight

Product dimensions (W x D x H)

• 124 mm x 48 mm x 355 mm (4.88 in. x 1.89 in. x 13.98 in.) (excluding mounting bracket)

Power Supply and Consumption

Number of PoE In ports

• 1

Number of PoE/PoE+ In ports

• 1

Environment and Reliability

Operating temperature

• –30°C to +65°C (–22ºF to +149ºF)

Operating humidity

• 5% RH to 95% RH (non-condensing)

MTBF

• 400,000 hours (about 45 years)

IP rating

• IP55

Software Specifications

WLAN

Bridge speed test

• Yes

Network Management and Monitoring

SON

• Yes

AI heatmap

• Yes

Restarting devices through Ruijie Reyee App

• Yes

SNMPv1, v2c, and v3

• Yes
