Qnap TS-233
Build a personal private cloud & home multimedia center with a built-in NPU to boost AI-powered face recognition

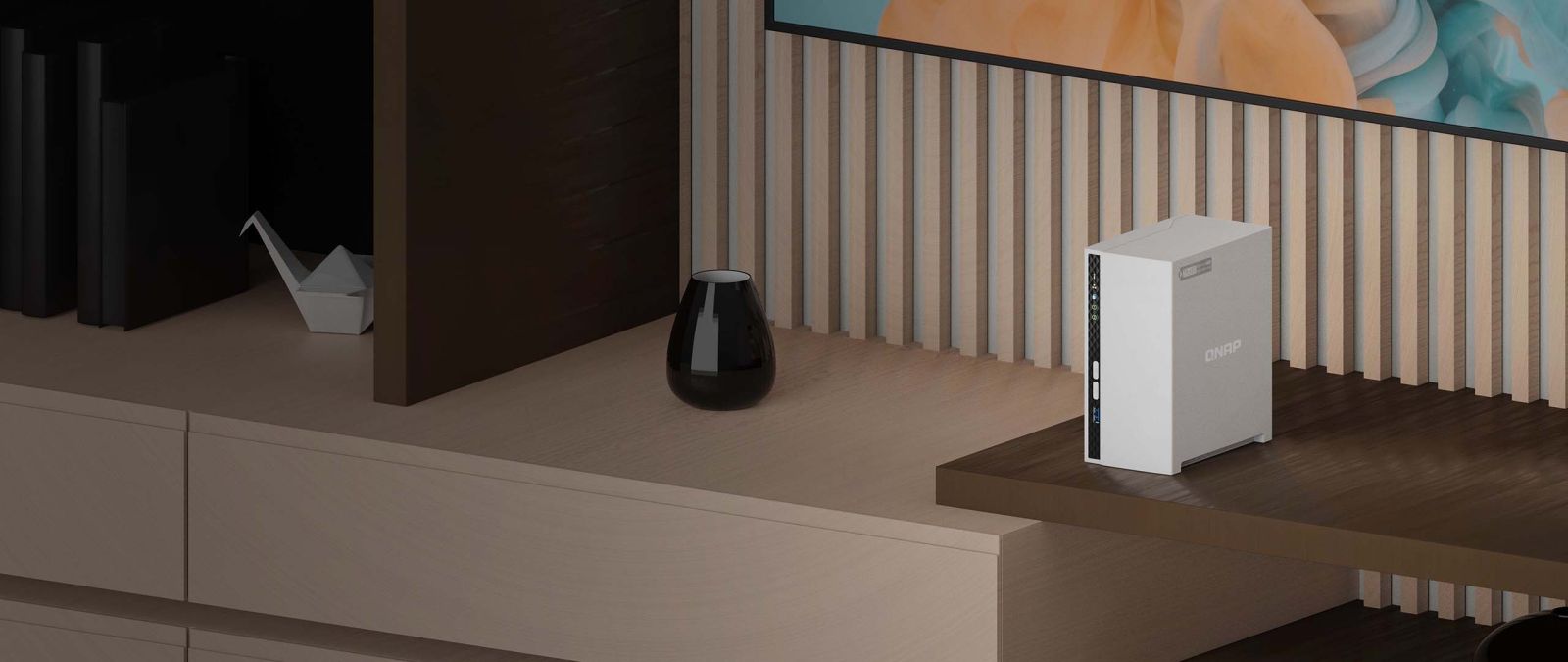

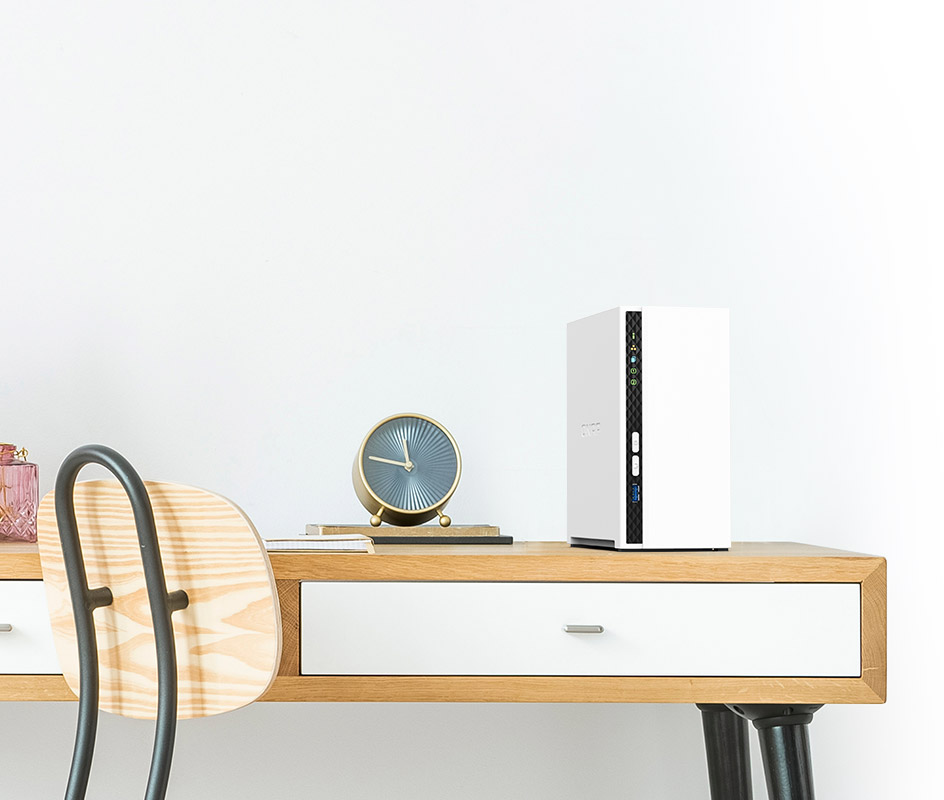

Minimalist design
The compact and slim TS-233 prioritizes a clean and essential design, and perfectly blends into your home or office. The design extends to the hard drives, which can be installed without needing a screwdriver.
Tech specs:
| CPU | ARM 4-core Cortex-A55 2.0GHz processor |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | Yes |
| Encryption Engine | Yes |
| Neural Processing Unit (NPU) | Yes |
| System Memory | 2 GB on board (non-expandable) Note: Reserves some RAM for use as shared graphics memory. |
| Maximum Memory | 2 GB on board (non-expandable) |
| Flash Memory | 4 GB (Dual boot OS protection) |
| Drive Bay | 2 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes |
| Gigabit Ethernet Port (RJ45) | 1 |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| USB 2.0 port | 2 |
| USB 3.2 Gen 1 port | 1 |
| Form Factor | Tower |
| LED Indicators | System Status, LAN, USB, HDD1~2 |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 186 × 91.7 × 157.6 mm Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) |
| Weight (Net) | 1.69 kg |
| Weight (Gross) | 1.89 kg |
| Operating Temperature | 0 - 40 °C |
| Storage Temperature | -20 - 70°C |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C |
| Power Supply Unit | Minimum 48W adapter (12VDC), 100-240VAC |
| Power Consumption: HDD Sleep Mode | 3.43 W |
| Power Consumption: Operating Mode, Typical | 10.81 W Tested with drives fully populated. |
| Fan | 1 x 80mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 2 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 200 |
