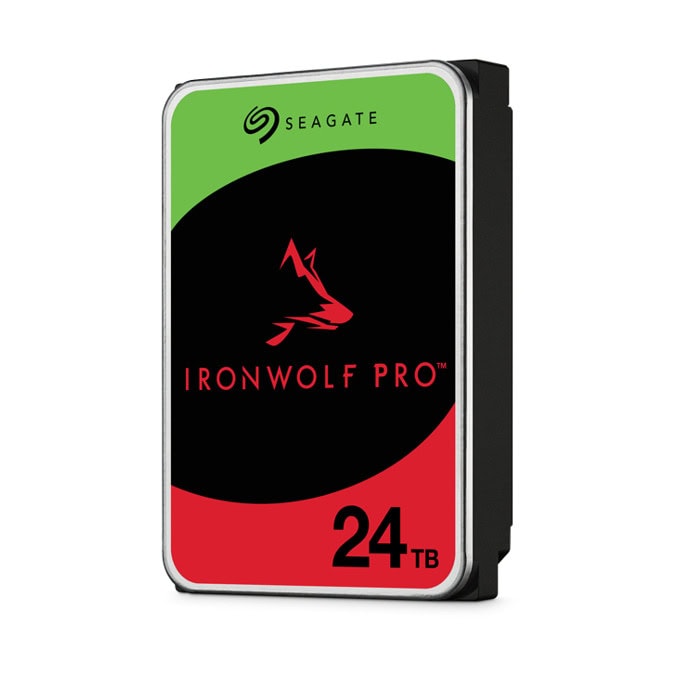

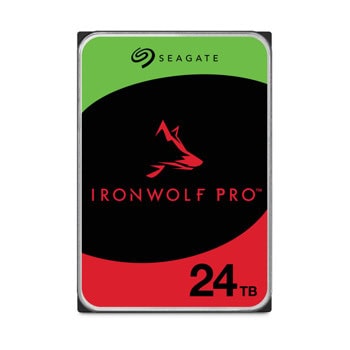

Твърд диск 24TB, Seagate IronWolf Pro, SATA 6Gb/s, 7200 rpm, 512MB кеш, 3.5" (8.89 cm)

Always On, Always Accessible

IronWolf Pro drives are designed for 24x7 usage, allowing users to access their data any time, anywhere.


All-CMR Portfolio

All IronWolf Pro drives utilise conventional magnetic recording (CMR) technology for consistent, best-in-class NAS performance.

Specifications

Features
Drive Bays Supported: Unlimited
Recording Technology: CMR
Drive Design (Air or Helium): Helium
Workload Rate Limit (WRL): 550
Rotational Vibration (RV) Sensors: Yes
Cache (MB): 512


Reliability/Data Integrity
Mean Time Between Failures (MTBF, hours): 2 500 000 hr
Non-recoverable Read Errors per Bits Read, Max: 1 per 10E15
Power-On Hours (per year): 8,760
Sector Size (Bytes per Logical Sector): 512E


Performance
Spindle Speed (RPM): 7200RPM
Interface Access Speed (Gb/s): 6.0, 3.0, 1.5
Max. Sustained Transfer Rate OD (MB/s): 285
Rotational Vibration @ 10-1500 Hz (rad/s): 12.5


Power Consumption
Startup Current, Typical (12V, A): 2.0 A
Idle Power, Average (W): 6.3 W
Average Operating Power (W): 7.8 W
Standby Mode, Typical (W): 1.1 W
Sleep Mode, Typical (W): 1.1 W
Power Supply Requirements: +12 V and +5 V


Environmental/Temperature
Operating Temperature (ambient, min °C):  5°C
Operating Temperature (drive reported, max °C): 65°C
Non-operating Temperature (ambient, min °C): -40°C
Non-operating Temperature (ambient, max °C): 70°C


Environmental/Acoustics
Vibration, Non-operating: 10 Hz to 500 Hz (Grms): 2.27
Acoustics, Idle (typical, measured in Idle 1 state) (dBA): 20
Acoustics, Seek (typical) (dBA): 26


Environmental/Shock
Shock, Operating 2 ms (Read/Write) (Gs): 40/40
Shock, Non-operating, 1 ms and 2 ms (Gs): 200


Physical
Height (mm/in): 26.11 mm/1.028 in
Width (mm/in, max): 101.85 mm/4.01 in
Depth (mm/in, max): 146.99 mm/5.787 in
Weight (g, typical): 685 g
