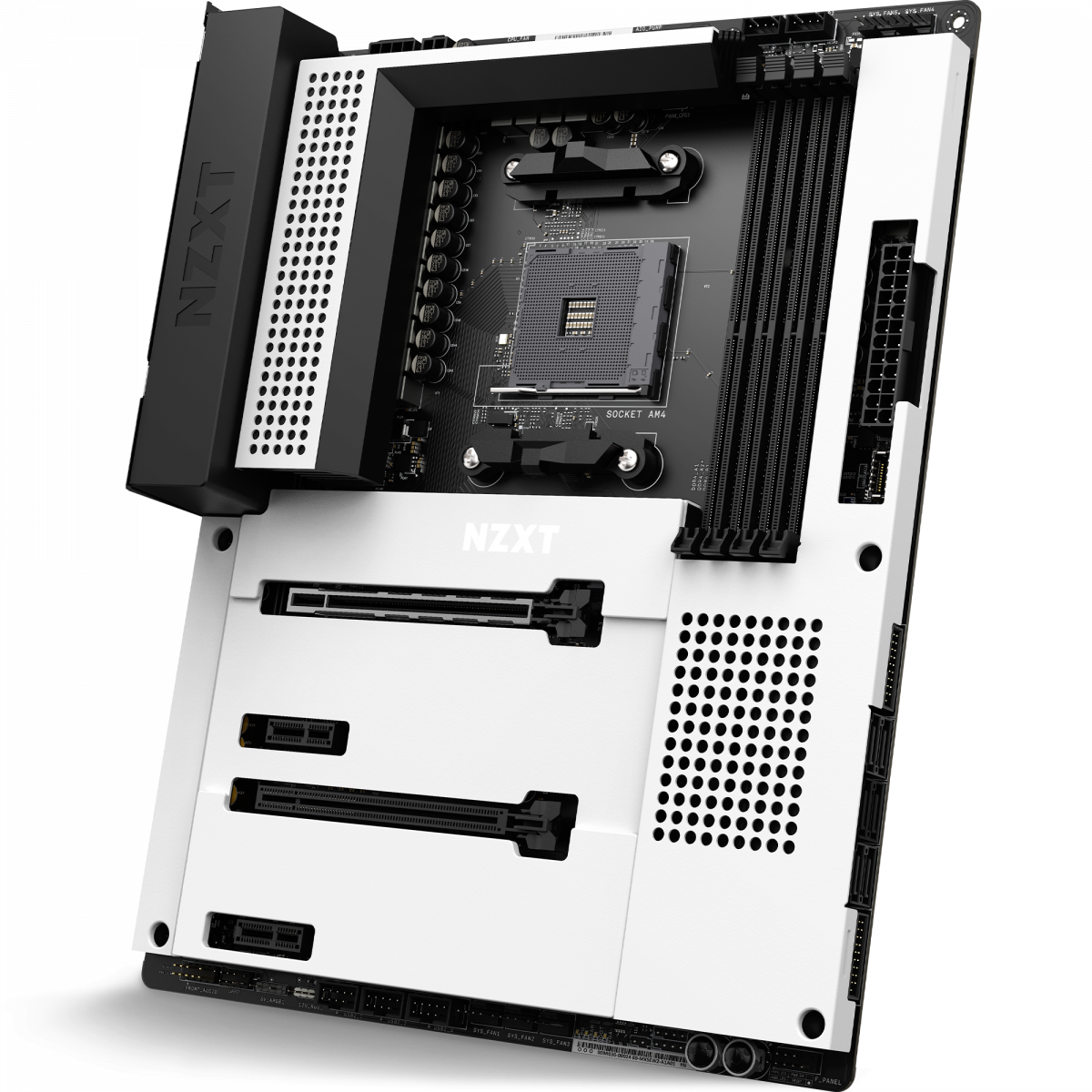

Дънна платка NZXT N7 B550 Wi-Fi (N7-B55XT-W1), B550, AM4, DDR4, PCI-E 4.0 (HDMI)(CFX), 6x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen 2 Type-C, Wi-Fi, Bluetooth, ATX

This motherboard enables a visually seamless backdrop for any build with all the features of the reliable AMD B550 chipset.

• WiFi 6E connectivity
• Digital RGB lighting control through NZXT CAM
• Digital fan control for fan profiles within NZXT CAM for seven independent fan channels
• Integrated rear I/O shield and efficient layout
• Compatible with 3rd Gen AMD™ Ryzen™ processors (3000, 4000, and 5000 Series Processors)
• Intel® Wi-Fi 6E wireless connectivity and Bluetooth V5.2
• Two M.2 connectors for storage devices
• Multi-GPU support with AMD CrossFireX™ Technology
• Supports memory overclocking up to 4600+ MHz and XMP
• 8-channel high-definition audio

Tech Specs

CPU

• AMD Socket AM4 Ryzen™ Processors (3000, 4000, and 5000 Series Processors): Supported

• AMD Ryzen™ 5 3400G and Ryzen™ 3200G: Not Supported

Chipset

• AMD®: B550

Memory

• DIMM Slots: 4

• Max Memory Support: 128GB

• Memory Architecture: Dual-Channel

• OC Frequency (Vermeer CPUs): 4666+ MHz

• OC Frequency (Matisse CPUs): 4666+ MHz

• OC Frequency (Renoir APUs): 4733+ MHz

• Base Frequency: 3200/ 2933/ 2667/ 2400/ 2133

• Type: ECC & non-ECC, un-buffered memory

• XMP Support: Supported

Integrated Graphics

• AMD Radeon™ Vega Series Graphics in Ryzen Series APU: HDMI

• HDMI Max Resolution: 4096x2160@60Hz

• Max Shared Memory: 16GB with 32GB installed

• Microsoft PlayReady®: Supported

Multi-GPU Support

• AMD 2-Way CrossFireX™ Technology: Supported

Expansion Slots

• PCIe x16 (x16 mode): 1 (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0)

• PCIe x16 (x4 mode): 1

• PCIe 3.0 x1: 2

Storage (Chipset)

• M.2 Type 2242/2260/2280 (x4 mode): 1 (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0)

• M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode): 1

• SATA 6Gb/s: 6* (M2_2 and SATA3_5_6 share lanes)

• RAID 0/1/5/10 Support: Supported

LAN

• Realtek®: RTL8125BG 2.5G

Wireless

• Intel® Dual-Band Wireless: AX210 Wi-Fi 6E

• Protocol: 802.11 a/b/g/n/ac/ax

• Frequency Bands: 2.4 / 5 / 6GHz

• MU-MIMO Support: Supported

• Bluetooth: V5.2

Audio

• Realtek®: ALC1220 Codec

• Channels: 8-Channel High Definition Audio

• Playback: 32-bit / 192kHz DAC

• Capacitors: Nichicon Fine Gold Series

Rear I/O

• USB 3.2 Gen 2 (Type-C): 1

• USB 3.2 Gen 2 (Type-A): 3

• USB 3.2 Gen 1 (Type-A): 4

• USB 2.0: 2

• HDMI™ 2.1: 1

• Wireless Antenna: 2 (2T2R)

• LAN (RJ45) Port: 1

• 5.1-Channel Audio Jacks: 1

• Optical S/PDIF: 1

• BIOS Flashback Button: 1

• Clear CMOS Button: 1

Internal I/O

• M.2 (M Key), Type 2242/2260/2280: 1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 & SATA mode)

• M.2 (E Key) (For wireless cards): 1

• SATA 6Gbps Ports: 6

• USB 3.2 Gen 2 Header (Type-C): 1

• USB 3.2 Gen 1 Header: 1 (Up to 2 ports)

• USB 2.0 Header: 3 (Up to 6 ports)

• Front Panel Audio: 1

• CPU_FAN Connector: 1 (Up to 24W)

• AIO_PUMP Connector: 1 (Up to 24W)

• SYS_FAN Connector: 5 (Up to 24W)

• NZXT RGB LED Header: 2

• 5V ARGB Header: 1

• 12V RGB Header: 1

• 24-pin EATX Power: 1

• 8-pin ATX 12V Power: 1

• 4-pin ATX 12V Power: 1

• Power Button: 1

• Reset Button: 1

• POST LEDs: 4

General

• Operating System: Windows® 10 64-bit

• Form Factor: ATX
