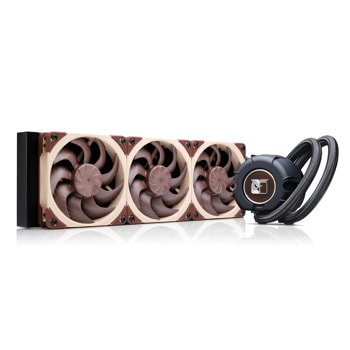

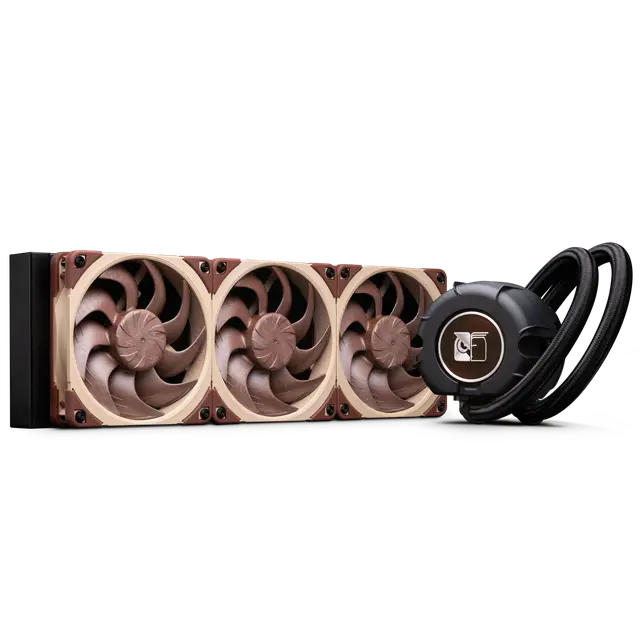

NL-LC1-36
360mm all-in-one liquid cooler
State-of-the-art AIO platform
Asetek Emma V2 system provides industry-leading performance and reliability
Innovative pump noise absorber
Ensures quieter pump operation and lower vibration levels
Triple NF-A12x25 G2 fans
360mm radiator with best-in-class fans for cutting edge performance-to-noise efficiency
With first-class cooling performance, superb quietness of operation and industry-leading reliability, the NL-LC1 series brings classic Noctua virtues to the world of all-in-one liquid coolers.

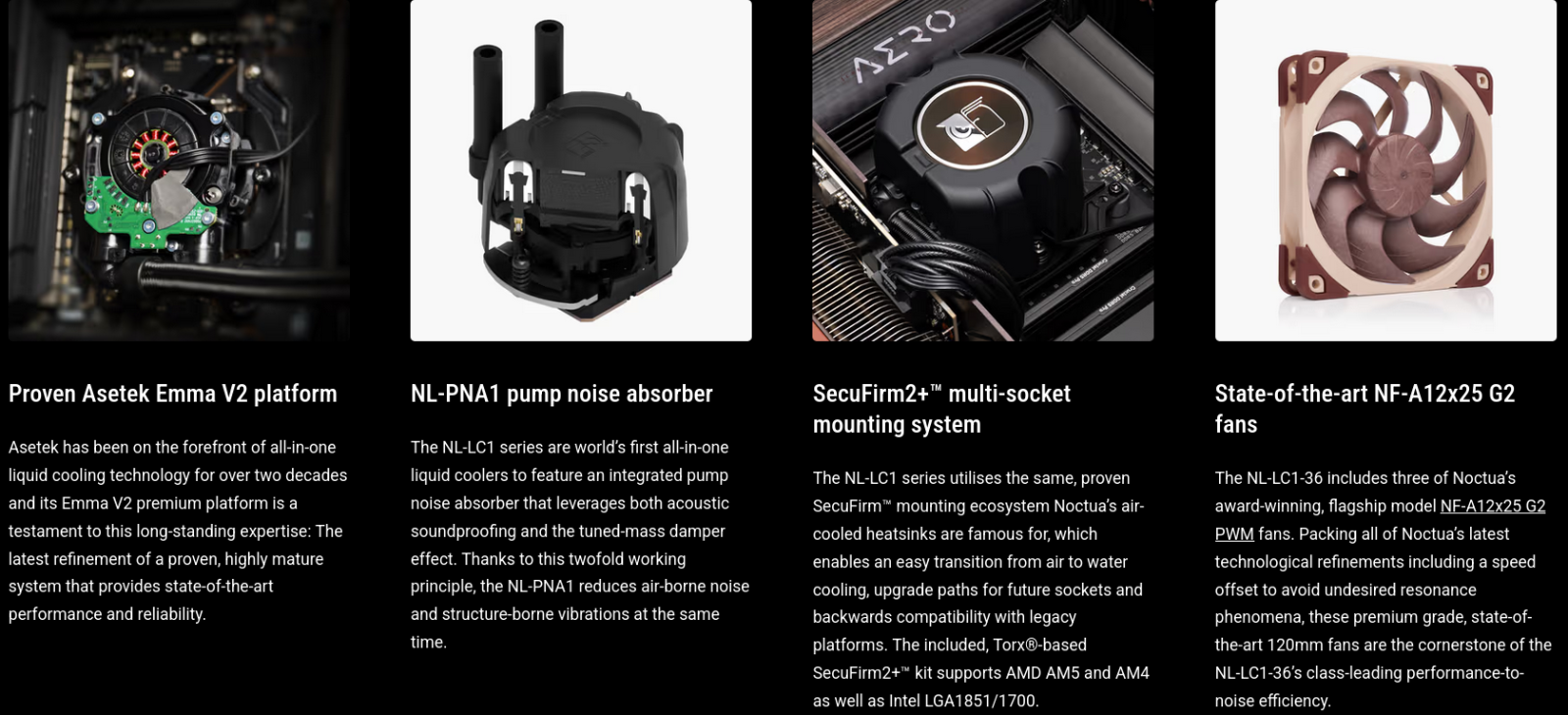

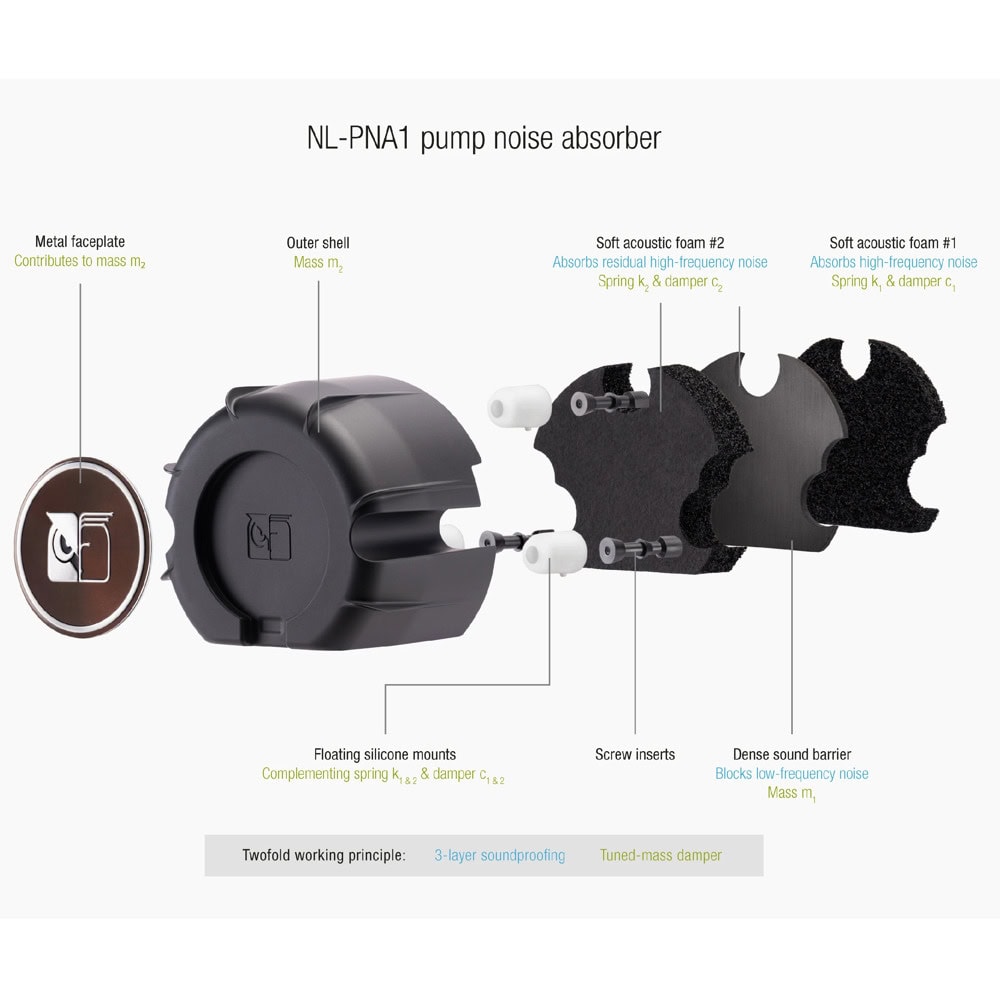

The NL-LC1 series is based on Asetek’s renowned, premium-grade Emma V2 platform, which has established itself as a gold standard for both thermal efficiency and long-term dependability. What makes the NL-LC1 coolers unique is Noctua’s custom-engineered NL-PNA1 pump noise absorber: Leveraging a three-layer acoustic soundproofing structure and the tuned-mass damper effect, the NL-PNA1 reduces both air-borne noise and structure-borne vibrations, which can yield significant improvements in pump acoustics.
For fine-tuning performance-to-noise characteristics, the NL-LC1 series pump integrates a mode switch that allows users to choose between three different pump speed profiles: While the pre-selected quiet mode guarantees that the pump will stay near-inaudible, the balanced mode provides extra performance headroom, and the manual mode gives users full control over the pump’s entire RPM range.
The NL-LC1-36 model combines a large 360mm radiator with three of Noctua’s award-winning NF-A12x25 G2 120mm fans for cutting edge performance-to-noise efficiency. Working in tandem with the pump noise absorber, the NF-A12x25 G2 flagship fans are the second key factor to the NL-LC1-36’s unique capability of delivering first-rate thermals while running extremely quiet. To ensure a smooth, unobtrusive sound signature, the fans utilise a speed-offset to avoid undesirable harmonics phenomena such as periodic humming or vibration build-up due to beat frequencies.
While the NL-PNA1 pump noise absorber comes with a magnetically attaching metal faceplate, users who require extra ventilation for VRMs, RAM modules, M.2 SSDs or other near-socket components have the option of replacing it with the NL-ACF1 auxiliary cooling fan that is available separately.
Noctua’s proven SecuFirm2+™ mounting system not only enables easy installation, broad socket support and future upgradability, but also helps to improve thermal performance through optimised force transfer and offset mounting options.
Topped off with the proven SecuFirm2+™ multi-socket mounting system, renowned NT-H2 thermal paste and Noctua’s usual 6-year manufacturer’s warranty, the NL-LC1-36 is a deluxe choice for customers who are looking for a premium grade 360mm all-in-one liquid cooler that satisfies the highest demands in terms of performance, reliability and quietness of operation.


| Specification | Value |
|---|---|
| Size (Form factor) | 120 × 120 × 25 mm (square) |
| Speed range | 0 – 1800 rpm |
| Airflow (max.) | 107.3 m³/h (63.15 CFM) |
| Acoustical noise (max.) | 22.5 dB(A) |
| Static pressure (max.) | 3.14 mm H₂O |
| Rated voltage | 12 V |
| Connector | 4-pin |
| Colour | Brown |
| Warranty | 6 years |
| Pump model | Asetek Emma V2 |
| Pump block height | 70 mm |
| Motor type (phases) | Three phase |
| Impeller type | Centrifugal (closed) |
| Bearing | Ceramic sleeve and shaft |
| Rated voltage | 12 V |
| Starting voltage | 9.5 V |
| Max. operating voltage | 13.2 V |
| Input power (max.) | 6 W |
| Input power (typical) | 2 W |
| Input current (max.) | 1.7 A |
| Input current (typical) | 0.5 A |
| Max. rotational speed (manual mode) | 3400 rpm |
| Max. rotational speed (balanced mode) | 2600 rpm |
| Max. rotational speed (quiet mode) | 2100 rpm |
| Rotational speed @ 20% PWM | 750 rpm |
| Rotational speed @ 0% PWM | 750 rpm |
| Max. acoustical noise (manual mode) | 14.9 dB(A) |
| Max. acoustical noise (balanced mode) | 7.8 dB(A) |
| Max. acoustical noise (quiet mode) | <5 dB(A) |
| Cable length | 500 mm |
| Connector type | 4-pin PWM |
| Pin 1 | Black: Ground (GND) |
| Pin 2 | Black: Voltage (Vcc) |
| Pin 3 | Black: RPM Signal |
| Pin 4 | Black: PWM Signal |
| Material | Copper CU1100 (99.95% high-purity) |
| Size | 55.5 × 55.5 mm |
| Construction | Skived fin micro channels |
| Mounting system | SecuFirm2+ |
| Mounting hole pitch | 78 mm |
| Pump noise absorber | NL-PNA1 |
| Auxiliary cooling fan | Optional (NL-ACF1) |
| Composition | 22% propylene glycol / 78% water |
| Inhibitors | Anti-freeze |
| Inhibitors | Anti-corrosion |
| Inhibitors | Antibiological |
| Compatibility | Non-toxic |
| Electrical properties | Electrically conductive |
| Material | EPDM (braided) |
| Length | 410 mm |
| Outer diameter | 12.5 mm |
| Inner diameter | 7 mm |
| Minimum bend radius | 26 mm |
| Form factor | 360 mm |
| Material (fins) | Aluminium |
| Material (tubes) | Aluminium |
| Material (frame) | Steel |
| Fins per inch (FPI) | 20 |
| Size | 399.5 × 120 × 30 mm |
| Fan configuration | 3 × 120 × 120 × 25 mm |
| Screw threads | UNC 6-32 |
| Operating temperature | 2°C to 50°C |
| Packaging dimensions | 472 × 224.5 × 145 mm |
| Packaging weight (including product) | 3060 g |
| Unit weight (without packaging) | 1979 g |
