Охлаждане за процесор Noctua NH-D15S, Intel LGA2011-0/2011-3/1156/1155/1151/1150 & AMD AM2(+), AM3(+), FM1, FM2(+)

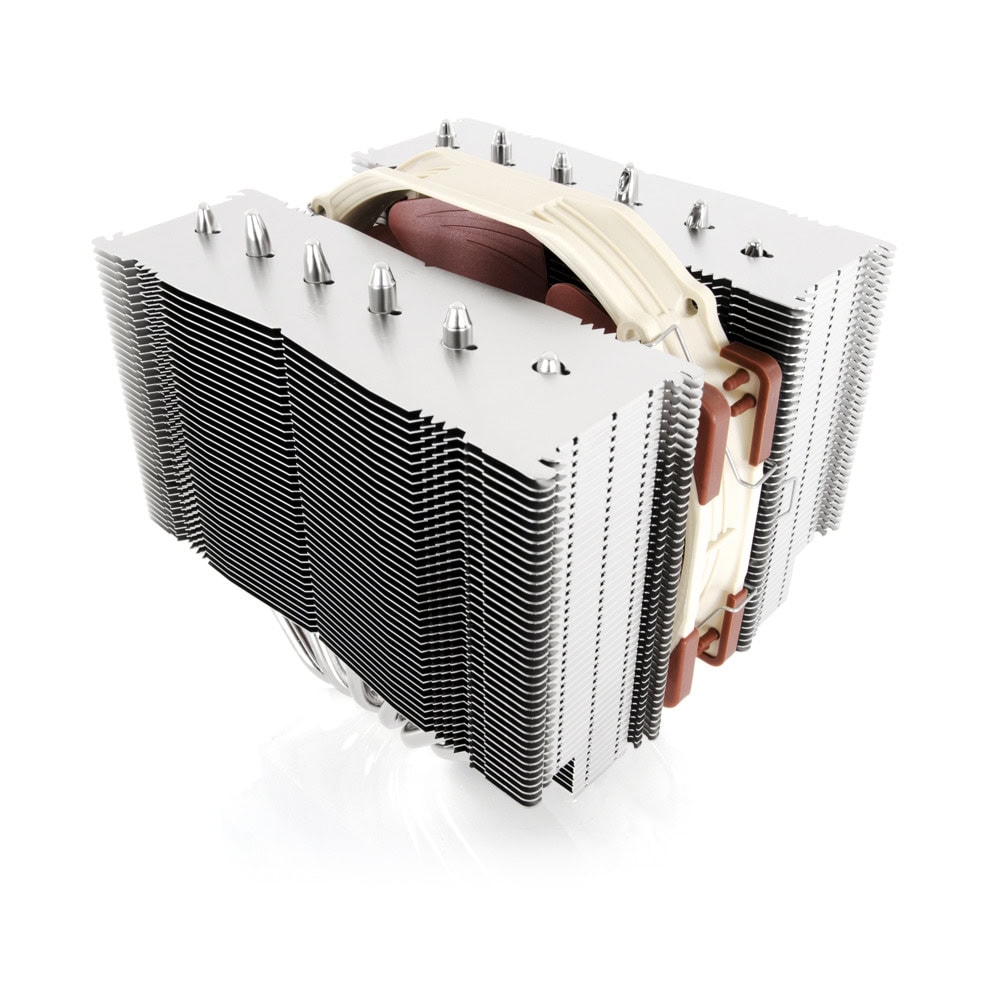

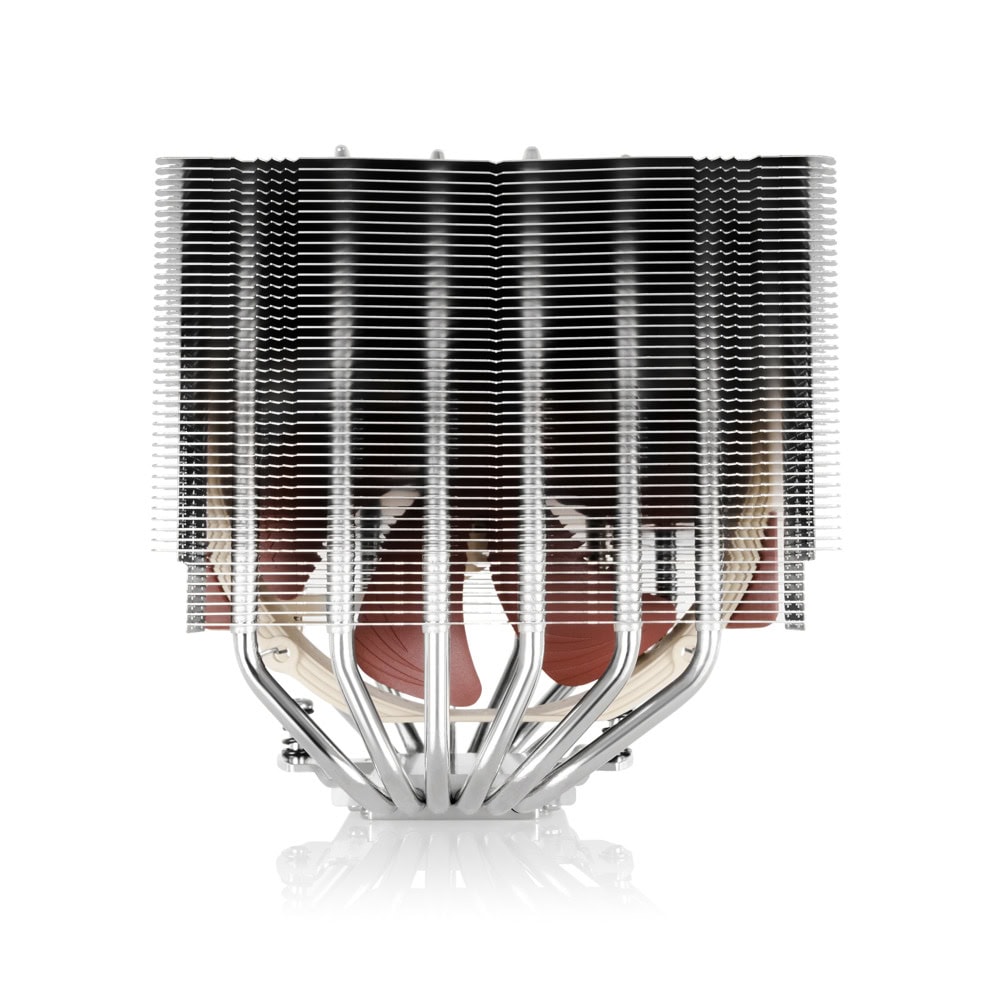

Noctua NH-D15S

Tailored to provide superior RAM and PCIe compatibility, the NH-D15S is an asymmetrical single fan version of Noctua’s award-winning flagship model, the NH-D15. Thanks to its asymmetrical design, the NH-D15S clears the top PCIe slot on most µATX and ATX motherboards. At the same time, the single fan setup and recessed lower fins guarantee 100% RAM compatibility with memory modules of up to 65mm height. Users who have sufficient room can also upgrade the cooler with either a 120mm or round 140mm fan on the front fin stack for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D15S forms a complete premium quality solution that combines dual tower efficiency with excellent compatibility and flexible upgrade options.

Socket compatibility:
Intel LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)

Height (without fan): 160 mm
Width (without fan): 150 mm
Depth (without fan): 135 mm
Height (with fan): 165 mm
Width (with fan): 150 mm
Depth (with fan): 135 mm
Weight (without fan): 980 g
Weight (with fan): 1150 g

Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel platingMax. TDP see TDP guide

Fan compatibility
140x150x25 (with 120mm mounting holes)
140x140x25 (with 120mm mounting holes)
120x120x25

Fan specifications

Model: 1x Noctua NF-A15 PWM
Bearing: SSO2
Max. Rotational Speed (+/- 10%): 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%): 1200 RPM
Min. Rotational Speed (PWM, +/-20%): 300 RPM
Max. Airflow: 140,2 m³/h
Max. Airflow with L.N.A.: 115,5 m³/h
Max. Acoustical Noise: 24,6 dB(A)
Max. Acoustical Noise with L.N.A.: 19,2 dB(A)
Input Power: 1,56 W
Voltage Range: 12 V
MTBF: > 150.000 h
