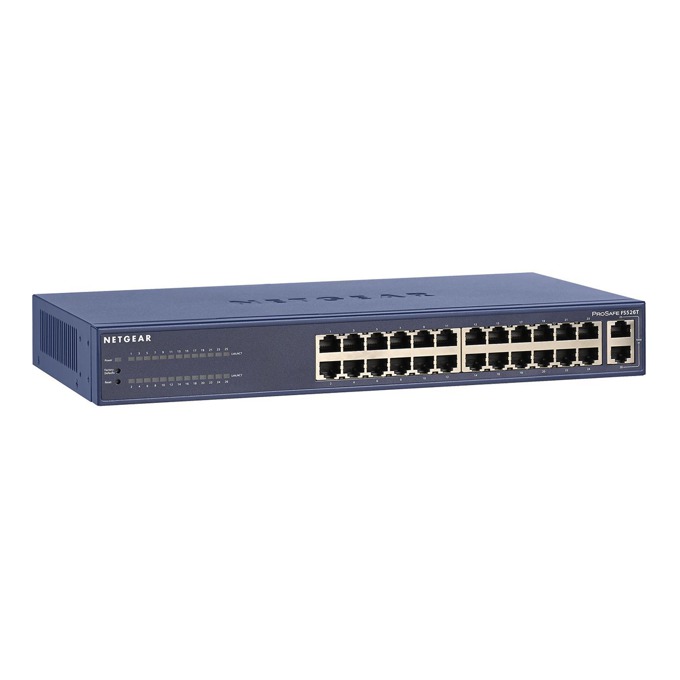

Суич Netgear FS526T-200EUS, 1000Mbps, 26-Port (24x100Mbps, 2x1000Mbps)

Product Specifications
•
Network Protocol and Standards Compatibility:

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x full-duplex flow control
•
Network Ports:

24 10/100 Mbps auto sensing Fast Ethernet
switching ports
2 10/100/1000 Mbps auto-sensing Gigabit Ethernet
switching ports
•
Interface:
26 RJ-45 connectors for 10BASE-T, 100BASE-TX,
and 1000BASE-T (Auto Uplink
on all ports)
•
Port Functions:
Auto-sensing and auto-negotiating capabilities for
all ports
Auto Uplink
on all ports to make the right
connection
Integrated address Look-Up Engine, supports
4K absolute MAC addresses
Full- and half-duplex functions for all ports
•
LEDs:
Per port:
(10/100 and Gigabit): Link/ Activity,
Speed, Collision
Per device:
Power
•
Administrative Switch Management:
IEEE 802.1q Tag VLAN (up to 64 Static
VLAN groups)
Port-based VLAN (up to 26 groups, any one
port can belong to different VLAN groups)
IEEE 802.1p (Class of Service)
Port-based QoS (options High/Normal)
Port Trunking - Manual as per IEEE802.3ad
Link Aggregation
DHCP client
Port setting
Web-based configuration
Configuration Backup/Restore
Password access control
Firmware upgrade
•
Performance Specifications:
Forwarding modes:
Store-and-forward
Bandwidth:
8.8 Gbps
Network latency:
<20μs for 64-byte frames in
store-and-forward mode for 100 Mbps to 100 Mbps
transmission
Buffer memory:
784 KB embedded memory
per unit
Address database size:
4,000 media access control
(MAC) addresses per system
Addressing:
48-bit MAC address
