Кутия MSI MAG PANO 130R PZ, ATX/microATX/Mini-ITX, 1x USB 3.2 Gen 2x2 Type-C, 4x 120mm ARGB вентилаторa, с прозорец, бяла, без захранване

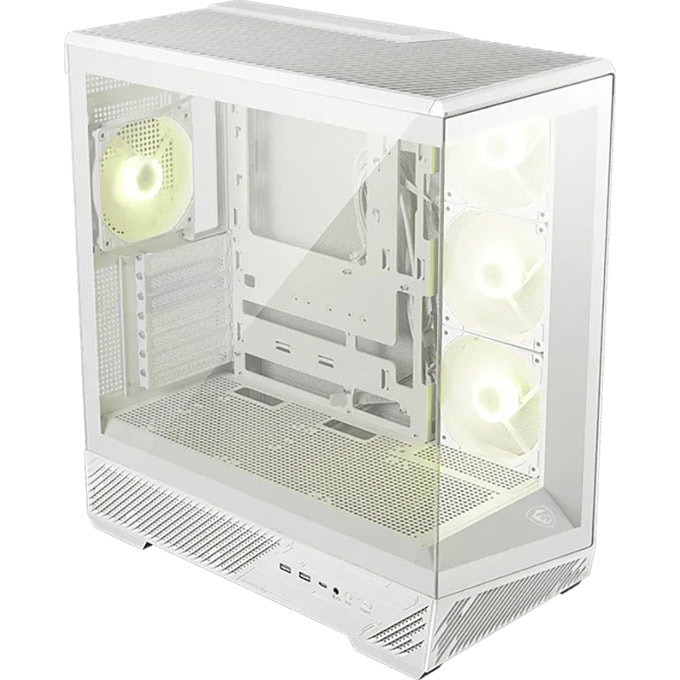

MSI MAG PANO 130R PZ

Panoramic Display To fulfill the desire for showcasing an ARGB PC build, the MAG PANO 130R Series features a 270-degree panoramic display, enhancing aesthetics and maintaining a clean design.

Airflow optimization

Vents around the case

Increase the number of vents on the sides and front of the case to enhance overall heat dissipation.

Cooling support

	Toolless removable glass panels Screwless mounting and tool-free removable panel design on both sides allow for greater setup flexibility.
	Dust protection A magnetic dust filter is installed on the bottom of the case, while a removable filter covers the bottom vents - both designed to prevent dust buildup and allow for easy cleaning.

Support ATX and MicroATX back-connect motherboard (PZ series)

Enable a clean layout by routing cables through the rear, simplifying installation and enhancing the aesthetic appeal of any gaming setup.

Rotatable GPU Bracket One bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations.(Riser cable sold separately)	Built with a unified aesthetic in mind, the design features bold diagonal lines and sharp cut angles—perfectly matching MAG series motherboards, liquid coolers, and power supplies. It brings a cohesive, polished look to your entire PC build.

Specifications

Case Form Factor

Mid-Tower

Motherboard Form Factor Support
Regular:
ATX / Micro-ATX / Mini-ITX
Back-connect:
ATX / Micro-ATX

I/O Ports
2 x USB 5Gbps (Type-A)
1 x USB 20Gbps (Type-C)
1 x Audio-Out / Mic-in
1 x Reset Button
1 x Power Button

Drive Mount Support
Up to 3 x 2.5” SSD
Up to 2 x 3.5” HDD
(Maximum of 3 drives can be mounted at once, depending on configuration)

Expansion Slots

7

Maximum GPU Length

400 mm / 15.75 inches

Maximum CPU Cooler Height

165 mm / 6.50 inches

Power Supply Support

ATX

Maximum PSU Length

180 mm / 7.09 inches

Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: N/A
Rear: 1 x 120 mm
Side: 3 x 120 mm
Bottom: 3 x 120 mm (Above the power shroud)

Pre-installed Fan Type
Rear: 1 x 120 mm ARGB Fan
Side: 3 x 120 mm ARGB Fan (Reverse Blade Fan)

Radiator Size Support
Top: 120 / 140 / 240 / 280 / 360 mm
Front: N/A
Rear: 120 mm
Side: 120 / 240 / 360 mm
Bottom: N/A

Dimensions (DxWxH) & Weight

460 x 232 x 490 mm / 18.11 x 9.25 x 19.29 inches
Net Weight: 8.37 kg / 18.45 lbs
