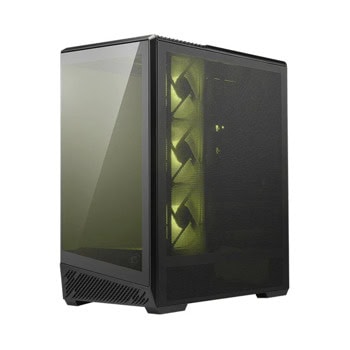

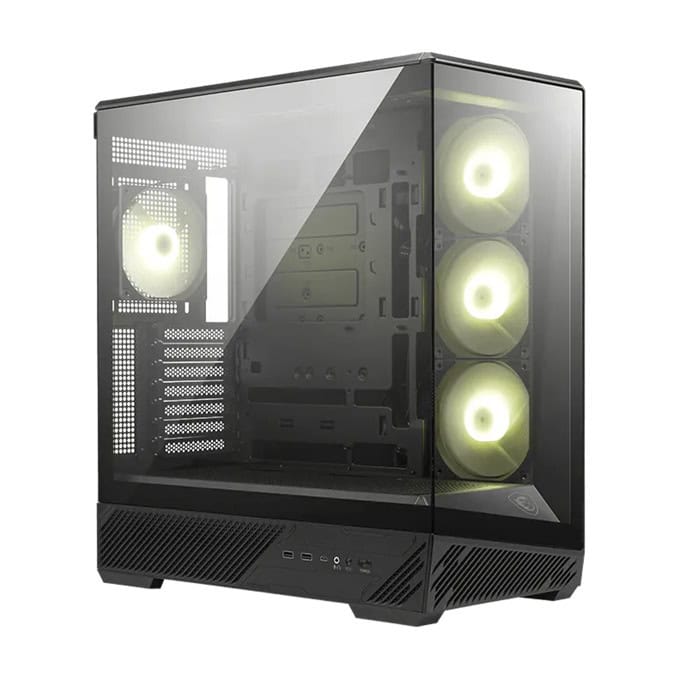

MSI MAG PANO 130R PZ

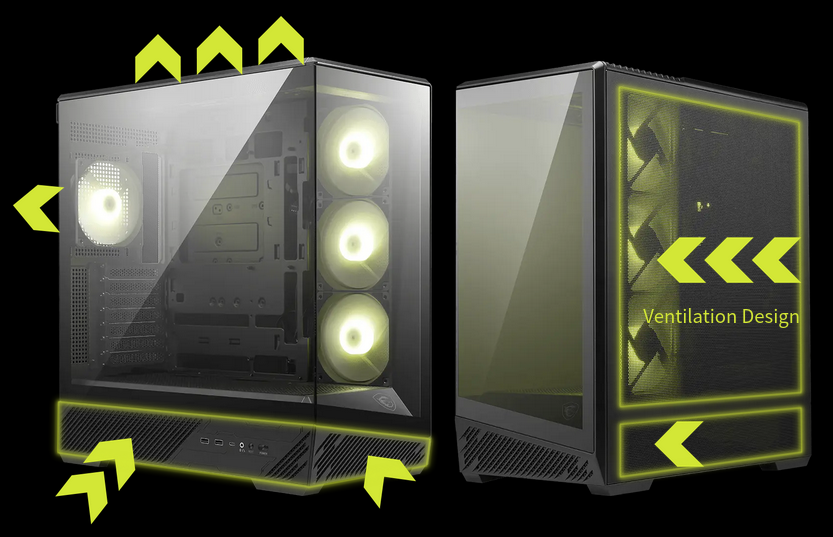

Airflow optimization

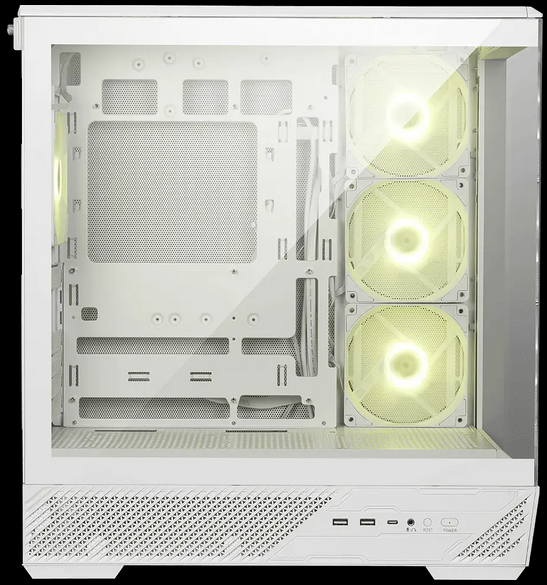

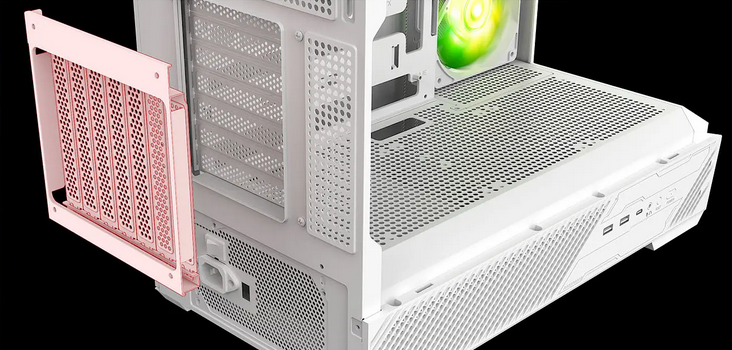

Vents around the case

Increase the number of vents on the sides and front of the case to enhance overall heat dissipation.

Cooling support

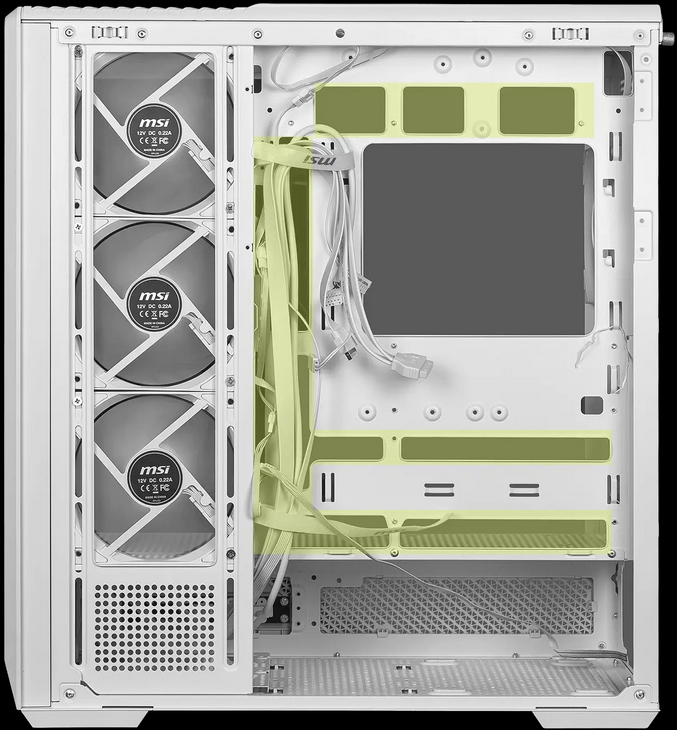

Support ATX and MicroATX back-connect motherboard (PZ series)

Enable a clean layout by routing cables through the rear, simplifying installation and enhancing the aesthetic appeal of any gaming setup.

Specifications

Case Form Factor

Mid-Tower

Motherboard Form Factor Support
Regular:
ATX / Micro-ATX / Mini-ITX
Back-connect:
ATX / Micro-ATX

I/O Ports
2 x USB 5Gbps (Type-A)
1 x USB 20Gbps (Type-C)
1 x Audio-Out / Mic-in
1 x Reset Button
1 x Power Button

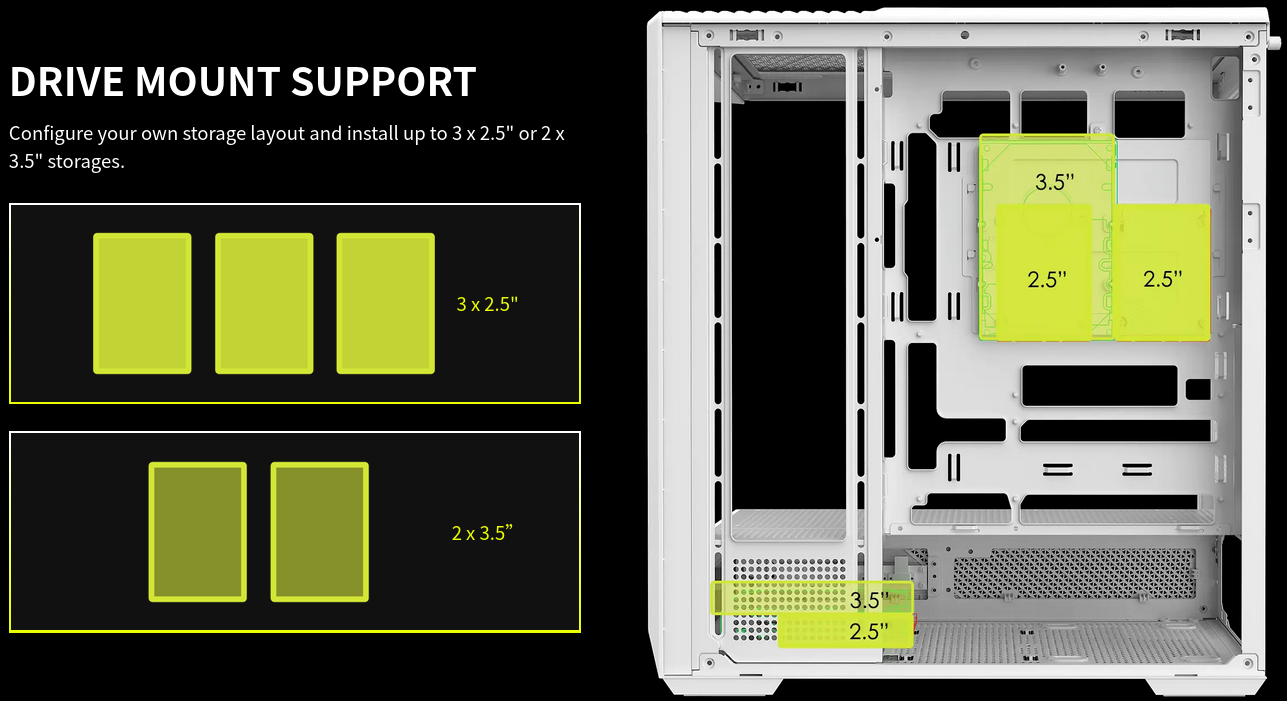

Drive Mount Support
Up to 3 x 2.5” SSD
Up to 2 x 3.5” HDD
(Maximum of 3 drives can be mounted at once, depending on configuration)

Expansion Slots

Maximum GPU Length

400 mm / 15.75 inches

Maximum CPU Cooler Height

165 mm / 6.50 inches

Power Supply Support

ATX

Maximum PSU Length

180 mm / 7.09 inches

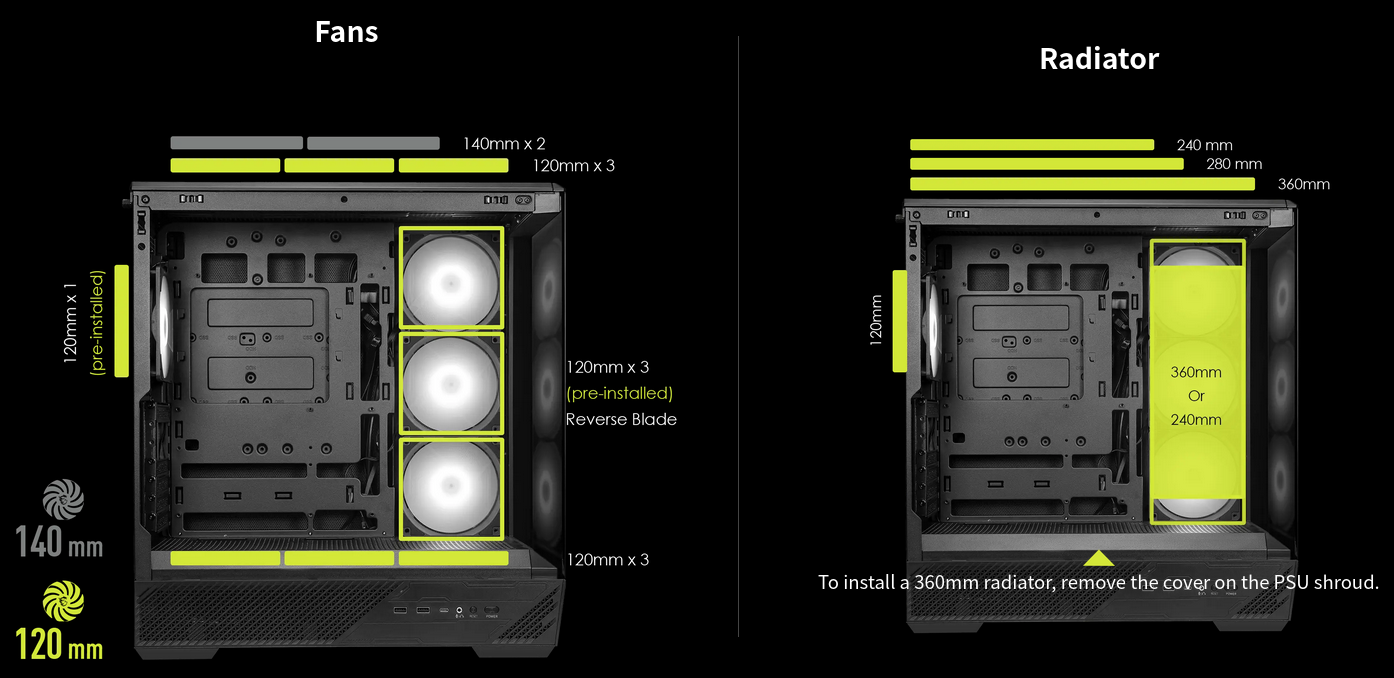

Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: N/A
Rear: 1 x 120 mm
Side: 3 x 120 mm
Bottom: 3 x 120 mm (Above the power shroud)

Pre-installed Fan Type
Rear: 1 x 120 mm ARGB Fan
Side: 3 x 120 mm ARGB Fan (Reverse Blade Fan)

Radiator Size Support
Top: 120 / 140 / 240 / 280 / 360 mm
Front: N/A
Rear: 120 mm
Side: 120 / 240 / 360 mm
Bottom: N/A

Dimensions (DxWxH) & Weight

460 x 232 x 490 mm / 18.11 x 9.25 x 19.29 inches
Net Weight: 8.37 kg / 18.45 lbs
