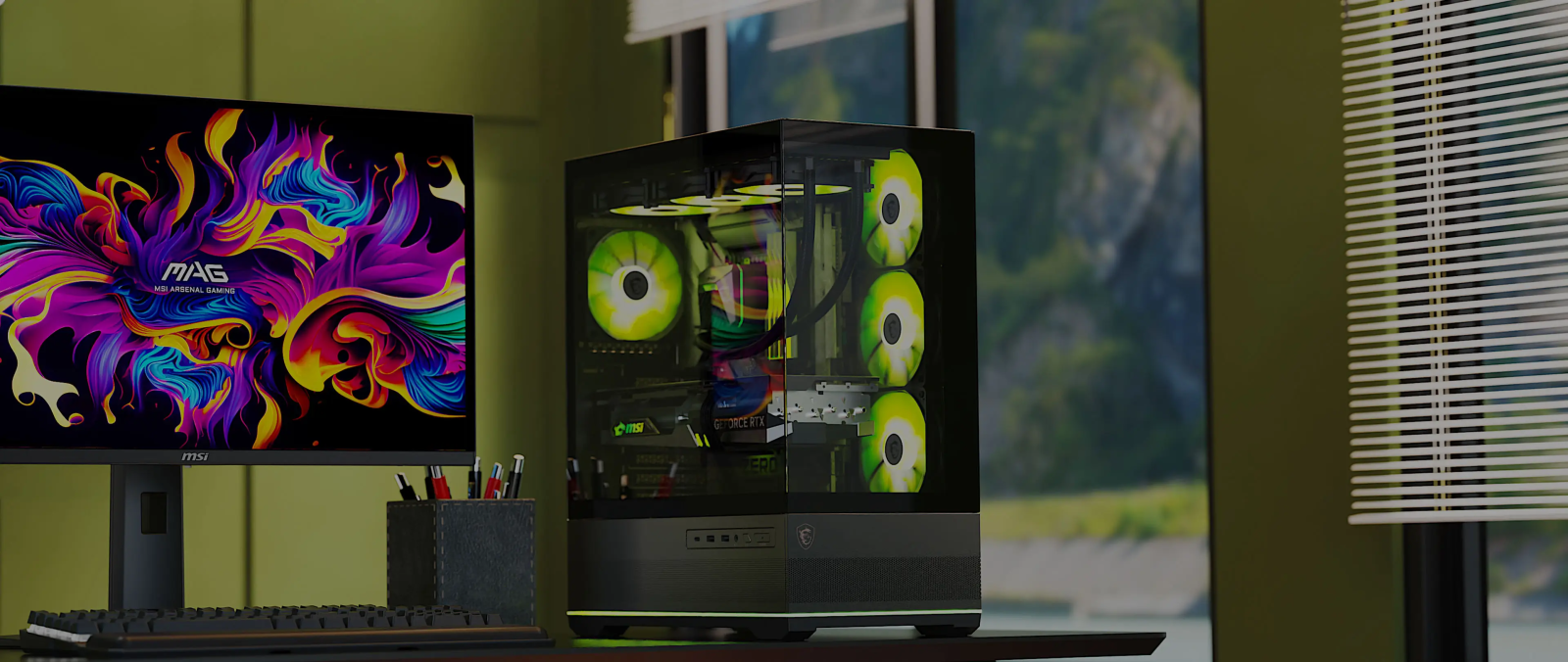

To fulfill the desire for showcasing an ARGB PC build, the MAG PANO 110R Series features a 270-degree panoramic display, enhancing aesthetics and maintaining a clean design.

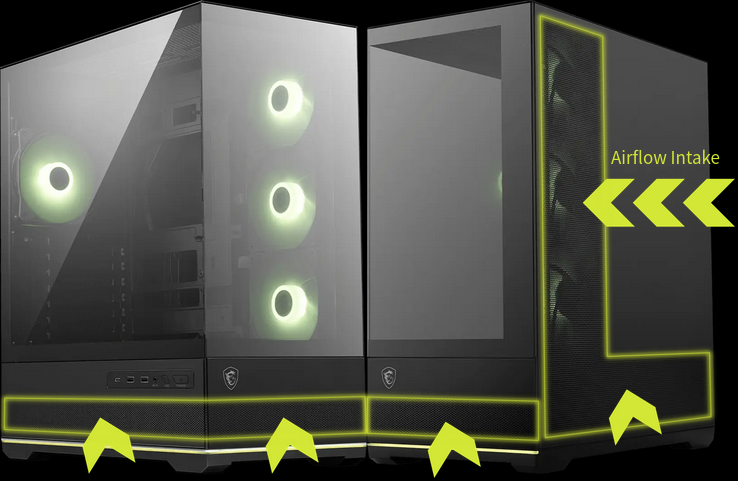

Cooling support

Specifications

Case Form Factor: Mid-Tower

Motherboard Form Factor Support
Regular:
ATX / Micro-ATX / Mini-ITX
Back-connect:
ATX / Micro-ATX

I/O Ports:
1 x USB 20Gbs (Type-C)
2 x USB 5Gbs (Type-A)
1 x Audio-Out / Mic-in
1 x LED Button
1 x Power Button

Drive Mount Support:
2 x 2.5“
2 x 3.5“
2 x 2.5"/3.5" combo

Expansion Slots: 7
Maximum GPU Length: 400 mm / 15.75 inches
Maximum CPU Cooler Height: 160 mm / 6.30 inches
Power Supply Support: ATX
Maximum PSU Length: 200 mm / 7.87 inches

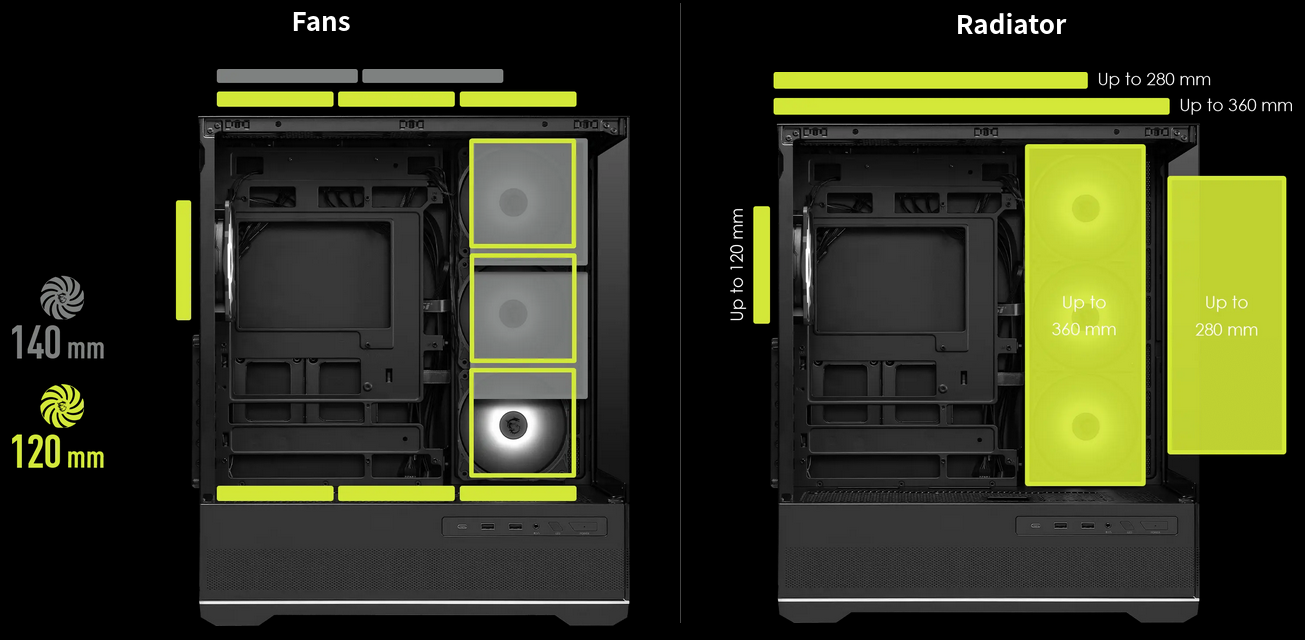

Fan Size Support

Top: 3 x 120 mm / 2 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm (Above the power shroud)

Pre-installed Fan Size

Side: 3 x 120 mm
Rear: 1 x 120 mm

Pre-installed Fan Type
Side: 3 x ARGB Fan (Reverse Blades Fan)
Rear: 1 x ARGB Fan

Radiator Size Support
Top: 120 / 140 / 240 / 280 / 360 mm
Front: NA
Rear: 120 mm
Side: NA
Bottom: NA

Dimensions (DxWxH): 420 x 225 x 485 mm

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.

Виж още Компютърни кутии MSI
Виж всички Компютърни кутии в категорията

Технически характеристики

Захранване:	Не
Прозорец:	Да
Цвят:	Черен

Добави Ревю / Въпрос

Оцени продукта или задай въпрос?

0.00 от 0 ревюта

Добави ревю | Задай въпрос

5

0 ревюта
4

0 ревюта
3

0 ревюта
2

0 ревюта
1

0 ревюта

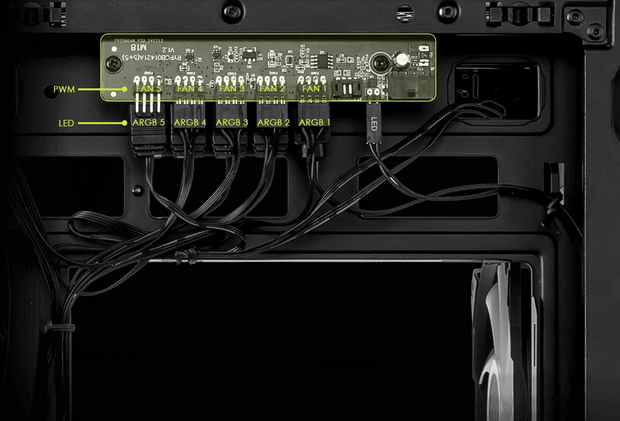

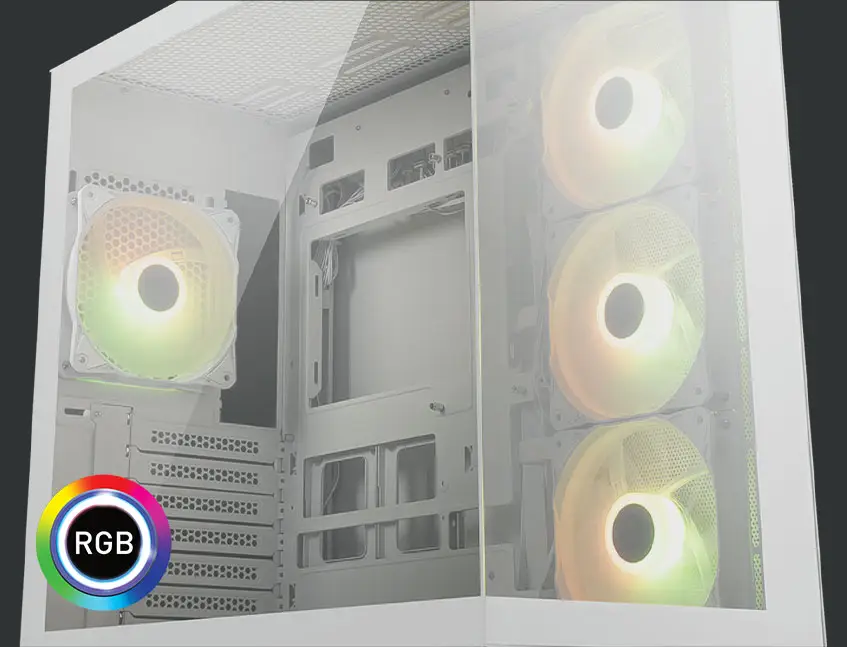

Featuring a 1-to-5 ARGB fan control hub, this system is fully compatible with MSI Mystic Light, allowing for easy sync and customizable ARGB lighting effects.	Pre-installed with 3 x ARGB reverse blade fans at the side and 1 x ARGB fan at the rear for optimal airflow and a clean, stylish design.

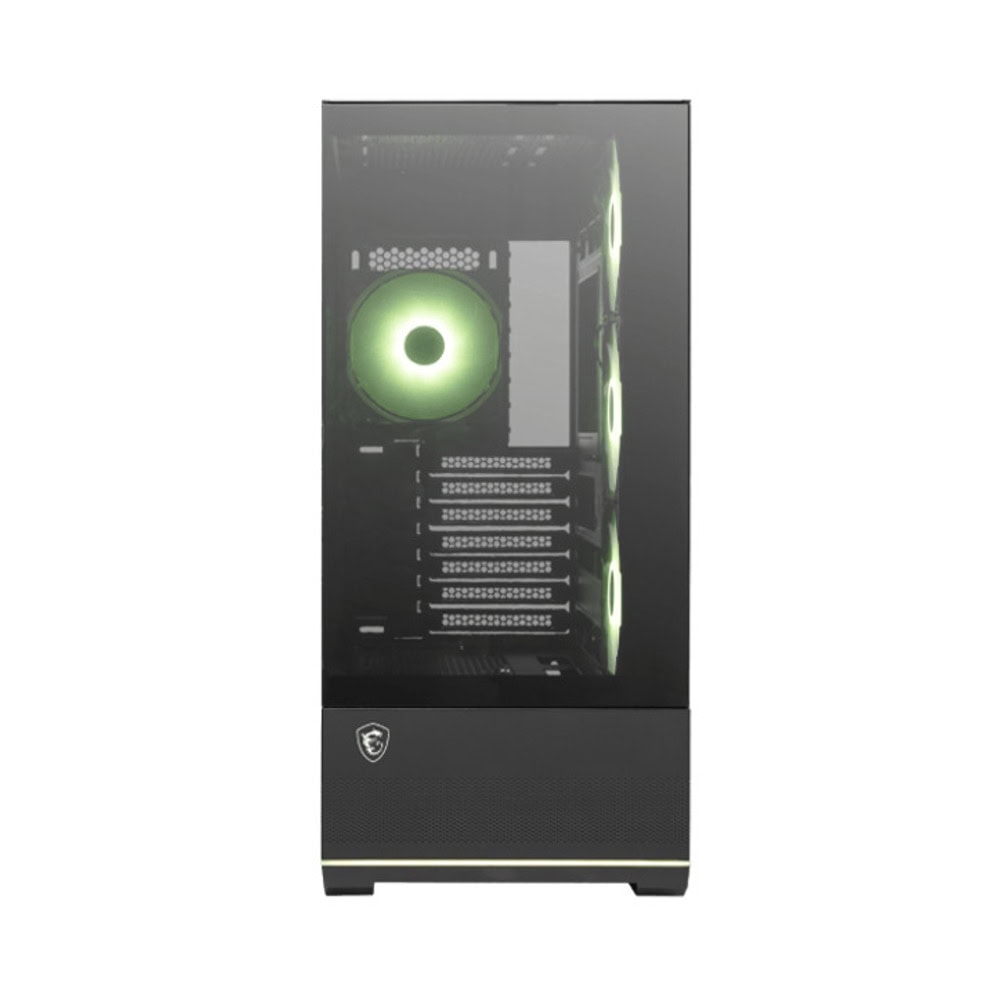

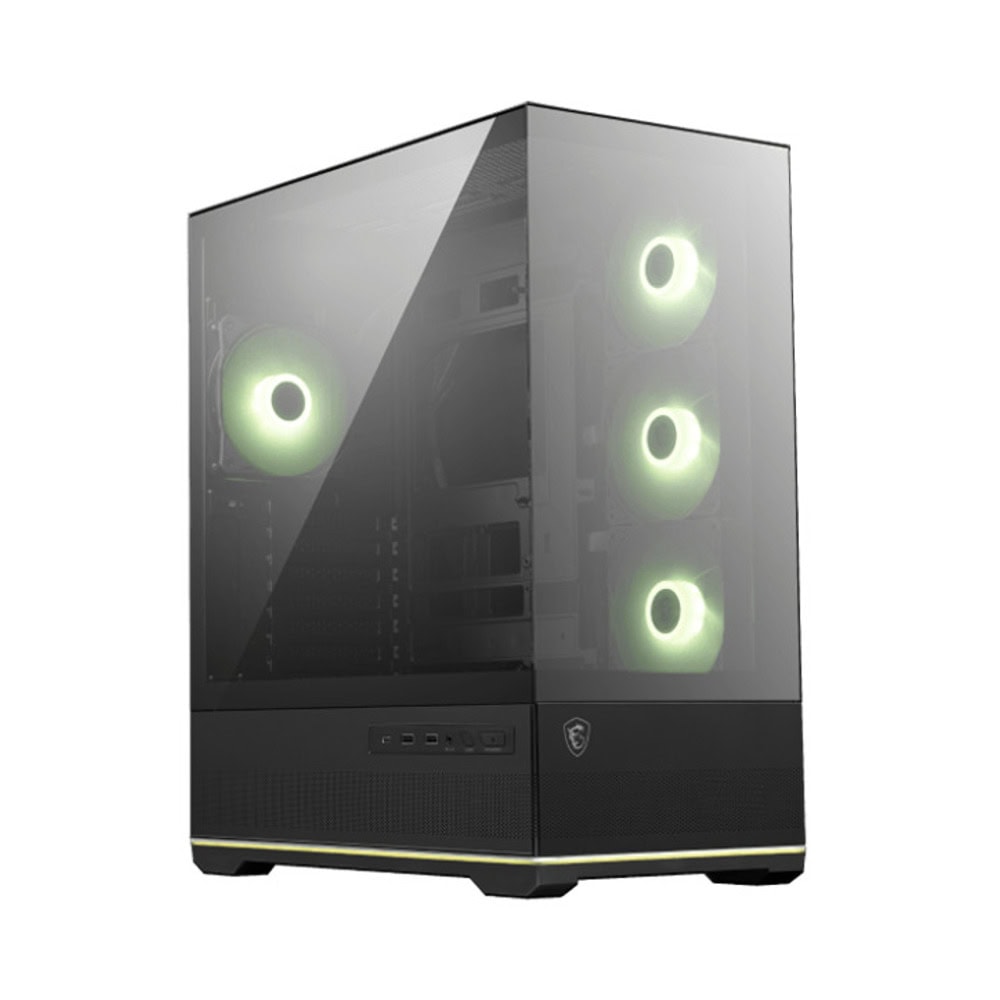

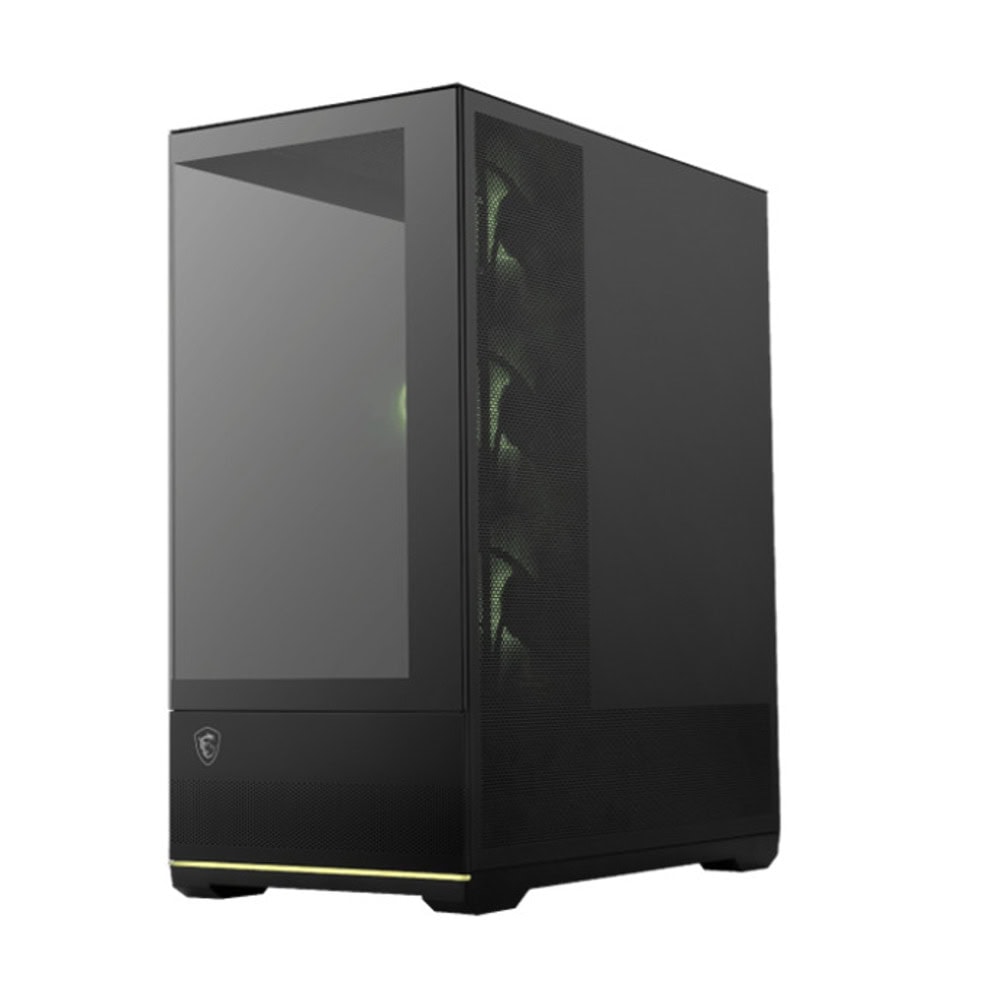

Кутия MSI MAG PANO 110R PZ, ATX/microATX/Mini-ITX, 1x USB 3.2 Gen 2x2 Type-C, 4x 120mm вентилатора, с прозорец, черна, без захранване
