Name: Мрежеста система Cudy M11000, 11000Mbps, 2.4GHz (688Mbps)/5GHz (4324Mbps)/6GHz (5765Mbps), Wireless BE, 3x 10/100/1000/2500Mbps LAN, 1x 10/100/1000/2500Mbps WAN, 6 вътрешни антени
Brand: Cudy
SKU: NTWRCUDYM11000
Price: 141.54 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

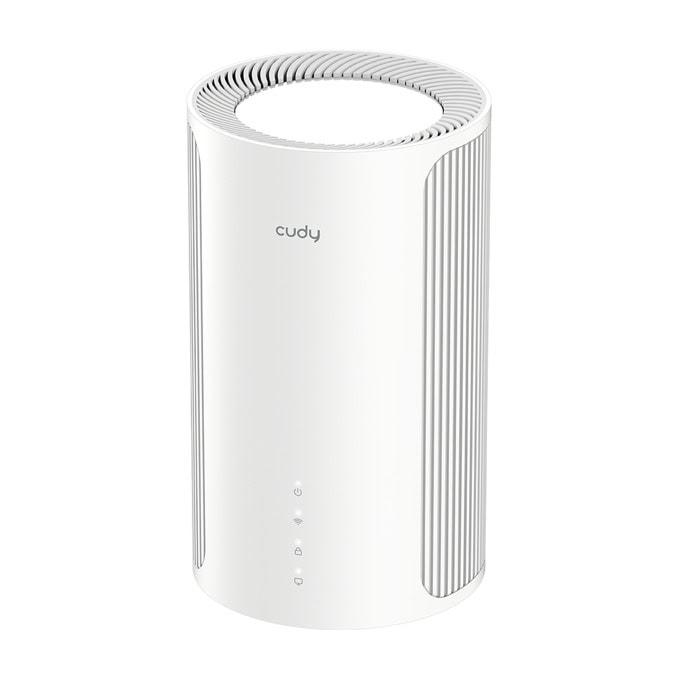

Cudy M11000

All for Faster. Stronger. Wi-Fi 7 Powered by Cutting-Edge Technologies

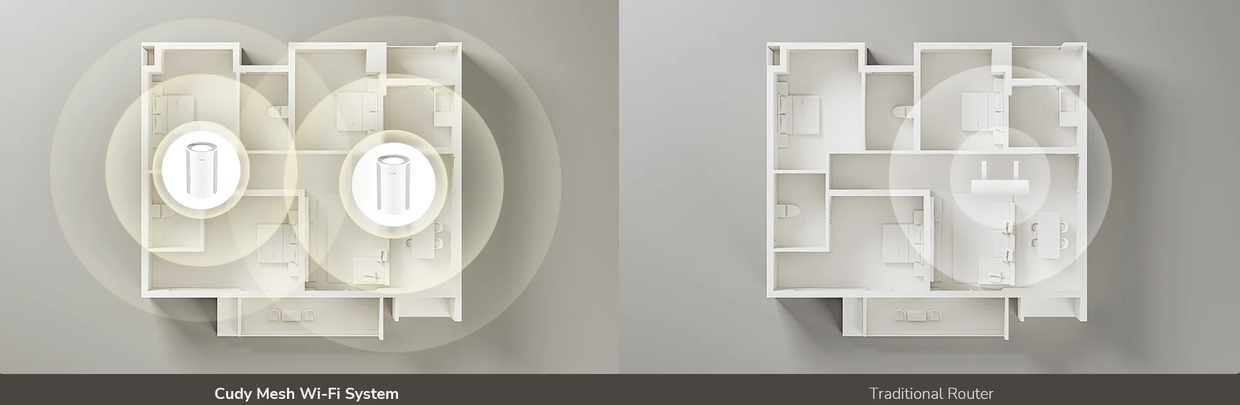

Effortless Whole-Home Coverage with Zero Dead Zones

Say goodbye to dead zones. Unlike traditional routers, the Cudy Mesh Wi-Fi System delivers fast, seamless coverage to every corner of your home.

Specifications

Hardware Specs

CPU	CPU Details	1.5 GHz Quad-Core CPU
Memory/Storage	Flash/ROM	128 MB (1 Gbit) NAND
	DDR/RAM	512 MB (4 Gbit) DDR4

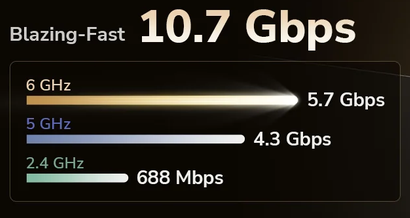

Wireless	MLO Speeds	10777 Mbps (with EHT240 5 GHz) 9335 Mbps (EHT160 5 GHz)
	6 GHz Wi-Fi Speed	5765 Mbps
	5 GHz Wi-Fi Speed	4324 Mbps (240 MHz) 2882 Mbps (160 MHz)
	2.4 GHz Wi-Fi Speed	688 Mbps
	6 GHz Wi-Fi Streams	2 Spatial Streams
	5 GHz Wi-Fi Streams	2 Spatial Streams
	2.4 GHz Wi-Fi Streams	2 Spatial Streams
	Wi-Fi Antennas	6× Fixed
	FEM or PA/LNA	6 GHz: 2× High-Power 5 GHz: 2× High-Power 2.4 GHz: 2× Standard
	Beamforming	Yes
	Range Performance	Max: 260 m (853 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
	Indoor Coverage Reference	2 Pack: 250 m² (2700 sq ft) 3 Pack: 350 m² (3700 sq ft) Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.

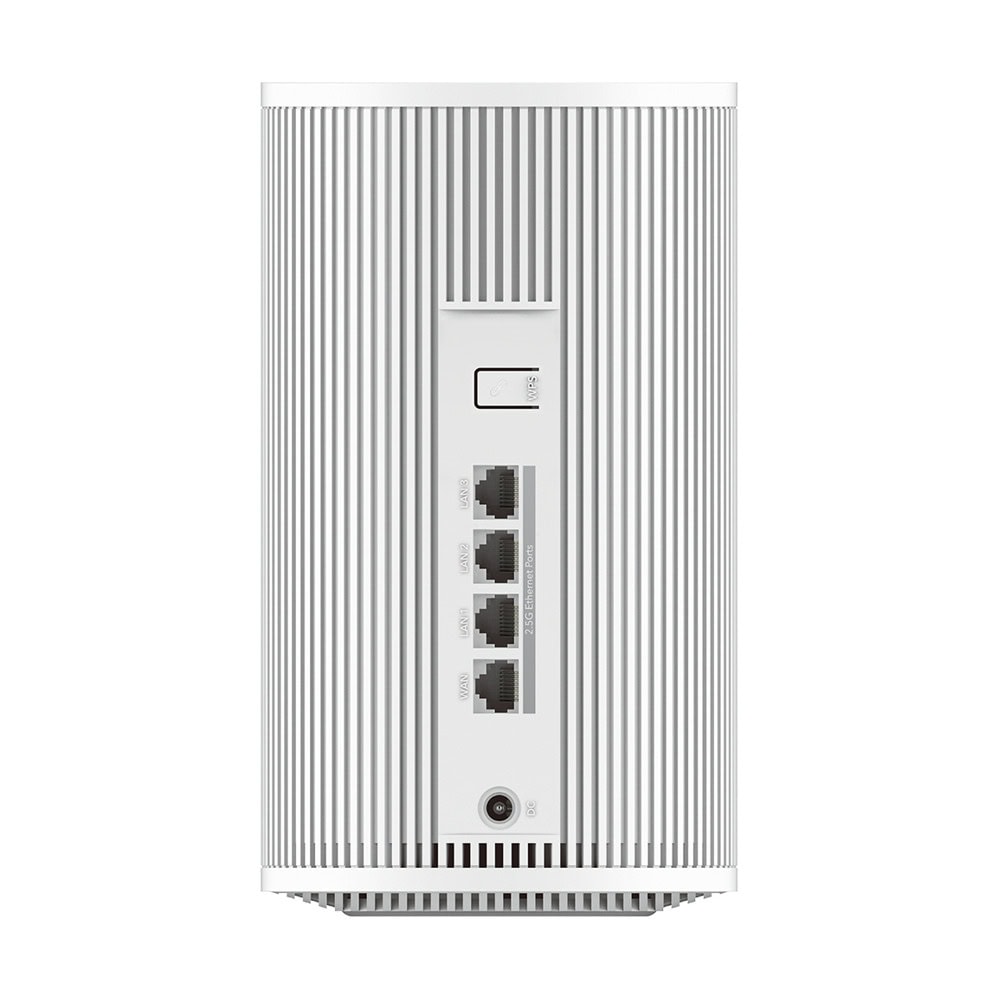

Interfaces	2.5G RJ45 Ports	4
	Ethernet Notes	1× WAN port, the rest are LAN ports
	LED	System LAN Wi-Fi Mesh
	Physical Buttons	WPS Button Reset Button
Power	Power Input Type	DC Jack
	Power Methods	DC
	Power Input	12V⎓2A
	Power Adapter In the Box	Input: 100-240V~, 50/60Hz Output: 12V⎓2A
	Max Power Consumption (W)	22W
	Idle Power Consumption (W)	12W
Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Desktop
	Dimension	Φ116×202 mm Φ4.57×7.95 inches
	Product Weight	852.5 g (30.07 oz.)
Power	Power Output	12W

Software Specs

Wireless	Wi-Fi Standards	Wi-Fi 7
	Max Wi-Fi Modulation	4K-QAM
	Wi-Fi Efficiency	MLO MRU Puncturing OFDMA MU-MIMO BSS Color
	Max Capacity	384
	Recommended Client Upper Limit	200
	Wi-Fi Channel Width	Auto/20/40/80/160/320 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz, 5 GHz, 6 GHz
	WPS
General	Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
Network	QoS	Per-User Rate Limiting Guest Network Rate LImiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	Multicast
	IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Wake on LAN
	Online Detection
Management	Parental Controls	Profiles Settings Offline Time Online Time Pause the Internet Web Filter
	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System	LED Control
	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed

Виж още Рутери Безжични Cudy
Виж всички Рутери Безжични в категорията

Технически характеристики

Безжична скорост:	11000 Mbps
Wi-Fi Стандарт:	Wi-Fi 7 (802.11be)
LAN портове:	3 x 2500 Mbps
WAN портове:	1 x 2500 Mbps
Честота:	2.4 + 5 + 6 GHz
Антени:	6 Вътрешни
USB портове:	Няма
3G/4G:	Не
Преносим:	Не
Други:	Няма
Жична скорост:	10/100/1000/2500 Mbps
