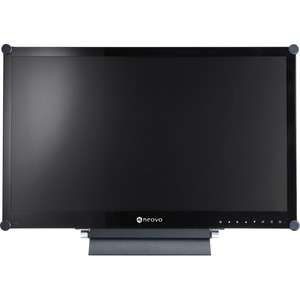

Монитор Ag Neovo HX-24G FHD

The HX-24G is a 24-inch SDI monitor to broadcast live video footage over a long distance in a surveillance environment. With SDI input and output looping functionality, the monitor allows to receive real-time 1080p images from HD-SDI or 3G-SDI cameras and transmit the uncompressed videos in the light of ultra-low latency and signal interruption to multiple SDI monitors. The HX-24G fulfils the need for high-quality image details to real-time video surveillance monitoring such as official authorities, law enforcement, banks, casinos, jewellery and luxury stores, police patrol cars, private properties.

SUPPORT HD-SDI AND 3G-SDI STANDARDS

The HX-24G 24-inch SDI monitor supports both HD-SDI and 3G-SDI standards at Full HD image quality. Users don't need to sacrifice the video quality and image details when zooming in the cameras during live video and playback mode to focus on their specific area of interest.

UNCOMPRESSED AND ULTRA-LOW LATENCY TRANSMISSION VIA LONG DISTANCE

The HX-24G supports multiple SDI video standards, including SD, HD and 3G-SDI formats. These standards support ultra-low latency and uncompressed transmission of HDTV signals up to 300 meters for live video monitoring.

The maximum distances for SD-SDI, HD-SDI and 3G-SDI signal transmission via RG6 cables:
3G-SDI: 100M / RG6 Coaxial Cables
HD-SDI: 150M / RG6 Coaxial Cables
SD-SDI: 300M / RG6 Coaxial Cables

EASY CONNECTION WITH SDI LOOP OUT FOR MULTIPLE MONITOR SETUPS

With HX-24G's SDI loop-out port, CCTV installers can quickly connect the SDI A/V source to extra SDI monitors without the need for a converter. It's an ideal solution for CCTV HD-SDI camera and broadcast monitoring.

SUPER RESOLUTION

To improving the clarity of security footage in real-time, the HX-24G monitor's super-resolution technology can upscale and enhance the images to present more detail in layered texture horizontally and vertically. It essentially makes an image with a higher resolution in a more natural way.

CCTV MODE

AG Neovo's pre-configured CCTV mode can maximise image clarity in low-light footage. Quickly fine-tune your video footage with adjustments for sharpness, saturation, contrast, brightness, and more. Don't waste time testing and re-adjusting constantly, this product already has it all figured out!

NIGHT MODE

While applying to critical surveillance, such as sailing in the dark seas, users have higher image clarity requirements for the monitors in low-light environments. Night Mode features dimming the backlight level in dark environments and remaining the clear viewing with high visibility for reliable navigation.
