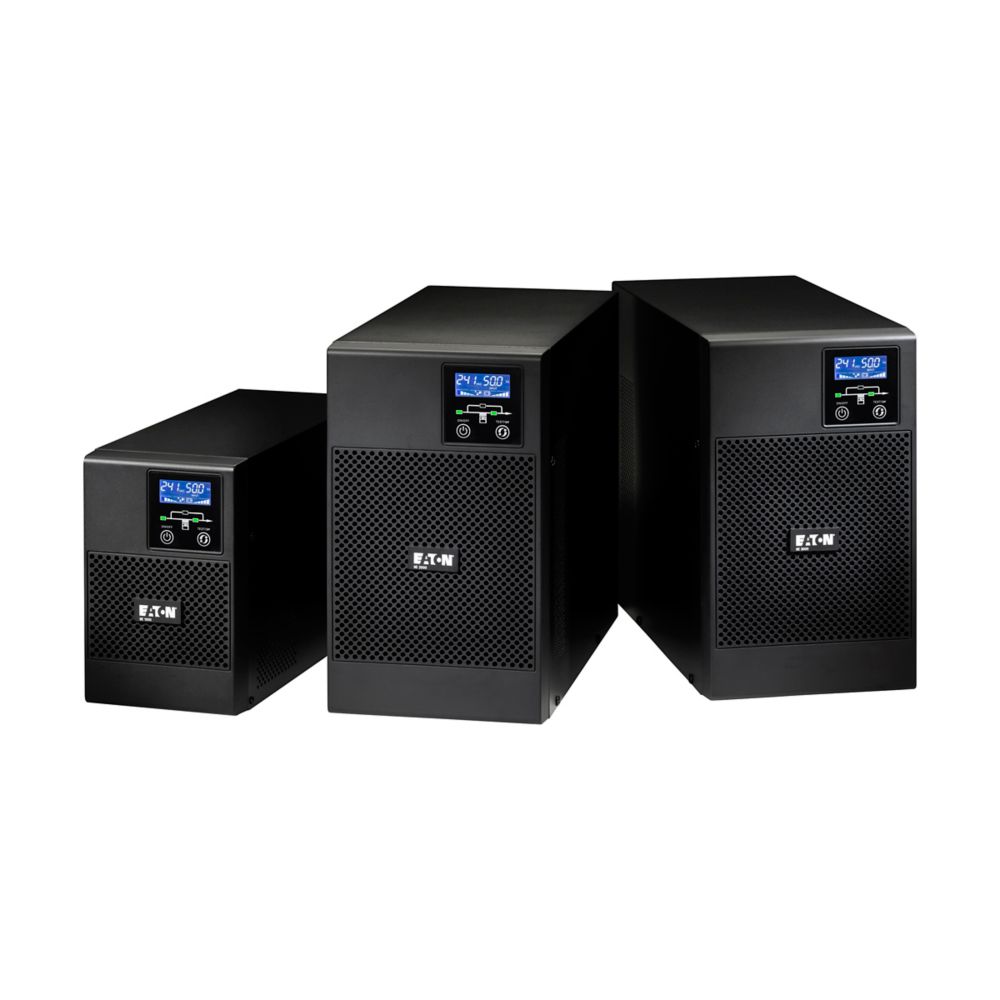

UPS Eaton 9E 1000i, 1000VA/800W, LCD дисплей, On-Line, Tower

Eaton 9E 1000i

General specifications:
Product Length/Depth:  356 mm
Product Height:  228 mm
Product Width:  144 mm
Product Weight:  22.1 kg

Battery
Battery type:  Sealed, lead-acid
Battery replacement:  Replacable batteries
Battery quantity:  2

Battery management

• Automatic battery test
• Deep discharge protection

Battery rating:  12 V / 9 Ah
Extended battery capability:  Yes

Electrical output
Receptacle:  (4) C13
Voltage:  230V
Wattage:  800 W
Output power factor:  0.8
Output voltage range:  220/230/240 V +/- 2%
Output waveform:  Sine wave
Output nominal voltage:  230V default (220/230/240V)
Voltage distortion output (linear load) - max:  3
Feed type:  1
Topology:  Online/Double-conversion
VA rating:  1000 VA

Electrical input
Input connection:  C14
Input nominal voltage:  230V default (220/230/240V)
Nominal frequency:  50/60 Hz
Input power factor:  >.99
Input voltage range:  176-300 V (100 V-300 V with derating)
Input frequency range:  40-70 Hz

Communications

• USB port (HID compliant)
• Serial port (RS232)
• Communication slot
  User interface:  LCD Display
  Expansion slots:  One slot for optional communication card
  Software compatibility:  Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
  Type of interface:  Other

Environmental
Altitude:  3000 m
Noise level:  <37 dB at 1 meter
Temperature range:  0° to 40°C (32° to 104°F)
Relative humidity:  0-95% non-condensing

Additional specifications
Construction type:  Free standing model
Phase (output):  1
Internal bypass:  Yes
Auto shutdown function:  Yes
Color:  Black
Efficiency:  91
