Audio | ||
---|---|---|
Speakers | Yes | |
Number of Speakers | 2 | |
Basic | ||
Product Type | LCD Monitor | |
Pixel Pitch | 0.31 mm | |
Response Time | 5 ms | |
Speakers | Yes | |
Brightness | 350 cd/m² | |
Colour Supported | 1.07 Billion Colors | |
Mount Type | Ceiling Mountable | |
Mount Type | Desk Mountable | |
Mount Type | Wall Mountable | |
Viewable Screen Size | 138.7 cm (54.6) | |
Maximum Resolution | 3840 x 2160 | |
Brand Name | AG Neovo | |
Screen Mode | 4K UHD | |
Number of Screens | 1 | |
Environmentally Friendly | Yes | |
Standard Refresh Rate | 75 Hz | |
USB | Yes | |
HDMI | Yes | |
VESA Mount Compatible | Yes | |
DVI | Yes | |
VGA | Yes | |
Network (RJ-45) | Yes | |
Product Family | HMQ | |
Panel Technology | In-plane Switching (IPS) Technology | |
Screen Size Class | 1397 mm | |
General Information | ||
Product Type | LCD Monitor | |
Manufacturer Part Number | HM551011M0000 | |
Manufacturer Website Address | http://www.agneovo.com | |
Manufacturer | AG Neovo Technology Corporation | |

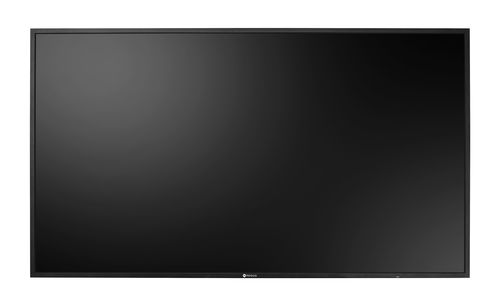

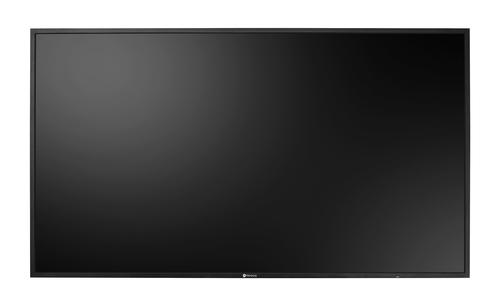

Product Model | HMQ-5501 | |
Product Name | HMQ-5501 55-Inch 4K SDI Display For Live Video Monitoring | |
Product Series | HMQ | |
Brand Name | AG Neovo | |
Marketing Information | The HMQ-5501 is a 55-inch 4K display with SDI that supports live video streaming over long distances in surveillance and monitoring applications. The display technology is future-proof and compatible with analogue and digital surveillance systems. The HMQ-5501 supports up to 8MP image quality through an HDMI connection to present crisp video footage. With SDI loop-through design, the display can receive real-time 1080p images from HD-SDI or 3G-SDI cameras and transmit the uncompressed videos to multiple SDI displays with ultra-low latency. It fulfils the need for high-quality image details to live video monitoring in broadcasting and video surveillance solutions. SEE INTRICATE DETAILS IN 4K The HMQ-5501 features 3840 x 2160 pixels, offering finer video footage. The high resolution enables zoom-in with clear detail as CCTV evidence. As a result, the operator can zoom in on a license plate number or the lines on a face. Furthermore, the panel enables the operator to view smooth 4K video and graphics with a new level of detail and clarity. SUPPORT 3G-SDI 1080P HIGH-DEFINITION VIDEO STREAMING Support for 3G-SDI and HD-SDI at 1080p resolution enables the HMQ-5501 to display live video signals from SDI cameras. The SDI loop-through output terminal allows displaying the same image to a local SDI monitor or other SDI device. UNCOMPRESSED AND ULTRA-LOW LATENCY TRANSMISSION VIA LONG DISTANCE The HMQ-5501 supports multiple SDI video standards, including SD, HD and 3G-SDI formats. These standards support ultra-low latency and uncompressed transmission of HDTV signals up to 300 meters for live video monitoring. The maximum distances for 3G-SDI, HD-SDI and SD-SDI signal transmission via RG6 coaxial cables: FINE-TUNE CCTV IMAGES FOR MAXIMUM CLARITY AND DETAIL A special pre-configured CCTV Mode maximizes image clarity in low-light footage. You can make granular adjustments and quickly fine-tune your video footage with sharpness, saturation, contrast, brightness, and more. As a result, you don't need to waste time constantly testing and re-adjusting because the HMQ-5501 already has it all figured out! ENHANCED GAMMA SELECTION Offering an enhanced gamma selection makes for excellent visual optimization. As a result, you can easily improve the light, shadow, and colour balance quality of your videos. VISIBLE DETAILS IN DARK SCENES The technology lets you make black-level adjustments, which facilitate the display of more details in video surveillance images captured in the nighttime or low-light environments. | |
Interfaces/Ports | ||
USB | Yes | |
HDMI | Yes | |
DVI | Yes | |
VGA | Yes | |
Network (RJ-45) | Yes | |
Number of USB Ports | 1 | |
Number of HDMI Inputs | 1 | |
Number of USB 2.0 Ports | 1 | |
Miscellaneous | ||
Environmentally Friendly | Yes | |
Physical Characteristics | ||
Weight (Approximate) | 15 kg | |
Height | 714 mm | |
Width | 1243.2 mm | |
Depth | 69.6 mm | |
VESA Mount Compatible | Yes | |
VESA Mount Standard | 400 x 400 | |
Power Description | ||
Energy Efficiency Class (SDR) (from 1st March 2021) | G | |
Energy Efficiency Class (SDR) (from 1st March 2021) | G | |
ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021) | 99 kW | |
ON Mode Energy Consumption per 1000Hour (SDR) (from 1st March 2021) | 99 kW | |
Technical Information | ||
Pixel Pitch | 0.31 mm | |
Response Time | 5 ms | |
Response Time | 5 ms | |
Features | On-screen Display (OSD) | |
Features | 3H Surface Hardness | |
Features | Anti-Burn-in Technology | |
Features | Anti-glare | |
Features | Noise Reduction | |
Features | Image Enhance | |
Features | Deinterlace Motion | |
Features | 3D Comb Filter | |
Mount Type | Wall Mountable | |
Mount Type | Desk Mountable | |
Mount Type | Ceiling Mountable | |
Viewable Screen Size | 138.7 cm (54.6) | |
Screen Mode | 4K UHD | |
Number of Screens | 1 | |
Horizontal Viewing Angle | 178° | |
Vertical Viewing Angle | 178° | |
Panel Technology | In-plane Switching (IPS) Technology | |
Horizontal Frequency | 15 kHz to 135 kHz | |
Horizontal Frequency | 15 kHz to 135 kHz | |
Vertical Frequency | 24 Hz to 86 Hz | |
Vertical Frequency | 24 Hz to 86 Hz | |
Screen Size Class | 1397 mm | |
Video | ||
Brightness | 350 cd/m² | |
Brightness | 350 cd/m² | |
Color Supported | 1.07 Billion Colors | |
Maximum Resolution | 3840 x 2160 | |
Standard Refresh Rate | 75 Hz | |
Native Contrast Ratio | 1,200:1 | |
Color Gamut | 68% NTSC | |
Color Gamut | 68% NTSC |
