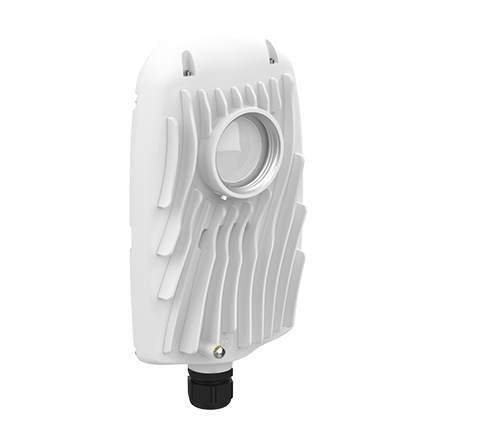

B5x

Unmatched Performance and Versatility

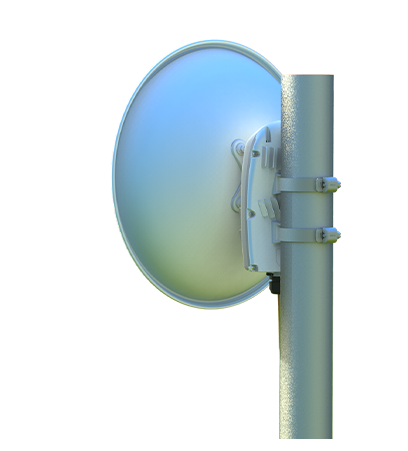

The Mimosa B5x is one of the industry’s fastest unlicensed, point-to-point (PTP), backhaul solutions. It’s ideal for short to medium range relay and tower links, custom-engineered co-location, and licensed 4.9 GHz spectrum. It’s modular, with the ability to connect X-series compatible twist-on antennas (12 dBi horn, 16 dBi horn, 20 dBi dish, 25 dBi dish, or 30 dBi dish).

Exceptional Speed and Flexibility

The Mimosa B5x stands out as one of the industry's fastest unlicensed backhaul solutions, capable of delivering up to 1.5 Gbps (IP). With 160 MHz of aggregate channel capacity and GPS Sync mode, it offers unparalleled flexibility and performance for short to medium-range relay and tower links, as well as licensed 4.9 GHz spectrum applications. This makes it an ideal choice for high-capacity, reliable connections in various network environments at a fraction of the cost of fiber.

Link Planning

Going the Distance

The Mimosa Design Tool streamlines planning and validating PTP and PTMP deployments with a few clicks on a map. This intuitive tool simplifies connectivity evaluation by using visual aids like terrain elevation to estimate performance and reliability, automatically accounting for factors such as weather and tree clutter.

Specifications:

Category	Specification
Performance
Max Throughput	Up to 1.5 Gbps IP aggregate UL/DL (1.7 Gbps PHY)
Low Latency	<1 ms in auto mode
Wireless Protocols	Fixed TDMA and TDMA-FD (Frequency Diversity) with 75:25, 67:33, or 50:50 traffic ratios with 2, 4, or 8 ms timeslots; Auto-TDMA
Radio
MIMO & Modulation	4x4:4 MIMO OFDM up to 256QAM
Bandwidth	Single or dual 20/40/80 MHz channels; Regulations vary by region
Frequency Range	4.90–6.40 GHz; Restricted by country of operation
Max Output Power	30 dBm (1x mode, i.e. single freq), 27 dBm (2x mode, i.e. dual freq)
Sensitivity (MCS 0)	-87 dBm @ 80 MHz, -90 dBm @ 40 MHz, -93 dBm @ 20 MHz
Integrated Antenna Gain	8 dBi (with no optional antenna accessory attached)
Flexible Antenna Options	N5-X compatible twist on antennas—12 dBi horn, 16 dBi horn, 20 dBi dish, 25 dBi dish
Power
Max Power Consumption	20 W
System Power Method	48 VDC passive isolated PoE injector
System Lightning & ESD Protection	6 kV
Recommended Power Supply	50 VDC passive Gigabit PoE injector
Physical
Dimensions (HxWxD)	Height: 241 mm (9.5”), Width: 139 mm (5.5”), Depth: 76 mm (3.0”)
Weight	1.4 kg (3.1 lbs) without mount
Enclosure Characteristics	Die-cast aluminum
Wind Survivability	200 km/h (125 mph)
Mounting	2 standard pole straps required (not included); Compatible with FlexiMount XL
Environmental
Outdoor Ingress Protection	IP67
Operating Temperature	-40°C to +55°C (-40°F to 131°F)
Operating Humidity	5 to 100% condensing
Operating Altitude	4,420 m (14,500’) maximum
Shock and Vibration	ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet	10/100/1000-BASE-T
Dual Link Operation	2 independent dual-stream radios operating on non-contiguous frequencies; Automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM
Management Services	Mimosa management; SNMPv2 & Syslog legacy monitoring; HTTPS; HTML 5 based Web UI
Smart Spectrum Management	Active scan monitors/logs ongoing RF interference across channels (no service impact); Dynamic auto-optimization of channel and bandwidth use
Security	128-bit AES PSK with hardware acceleration
QoS	4 classes of QoS, with user configurable priority queuing, weighted fair queuing, MIR, CIR, and rate limiting
GPS Location	GNSS-1 (GPS + GLONASS)
Collocation Synchronization	1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio
