Name: Рутер Cudy WR3600, 3600 Mbps, 2.4GHz (688Mbps)/ 5GHz (2882Mbps), Wireless BE, 1x 10/100/1000Mbps WAN, 4x 10/100/1000Mbps LAN, 4 външни антени
Brand: Cudy
SKU: NTWRCUDYWR3600
Price: 67.64 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

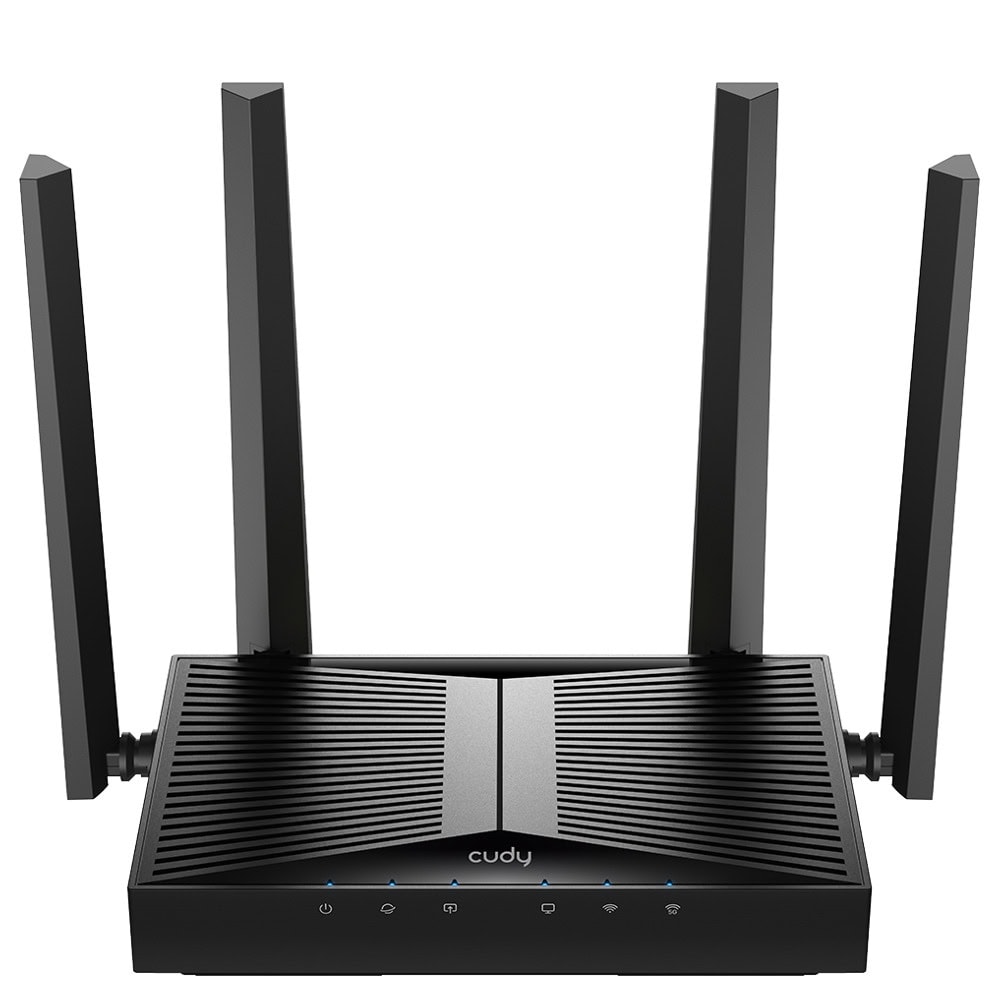

Cudy WR3600

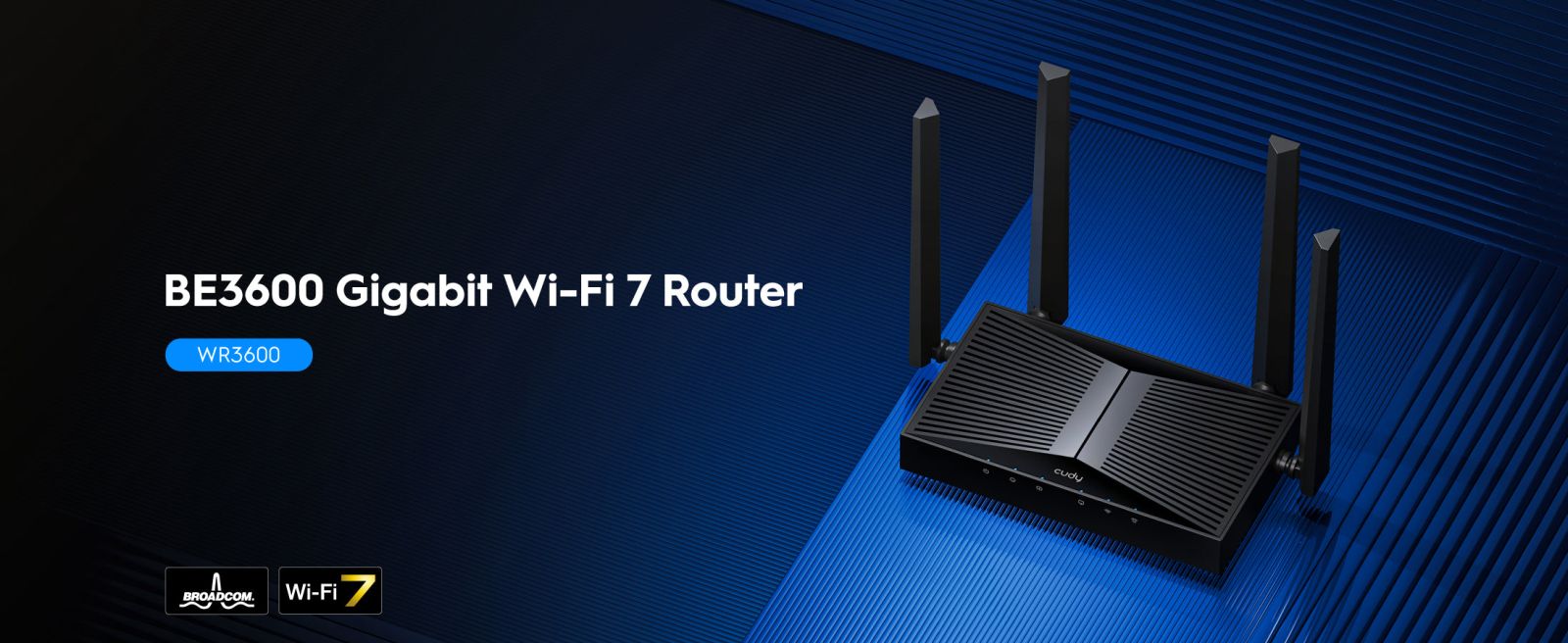

BE3600 Gigabit Mesh Wi-Fi 7 Router

A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed and five Gigabit ports, catering to gaming and entertainment scenarios.

Broadcom 2 GHz Quad-Core CPU
4-Stream Dual-Band Wi-Fi 7
2882 Mbps + 688 Mbps Wi-Fi

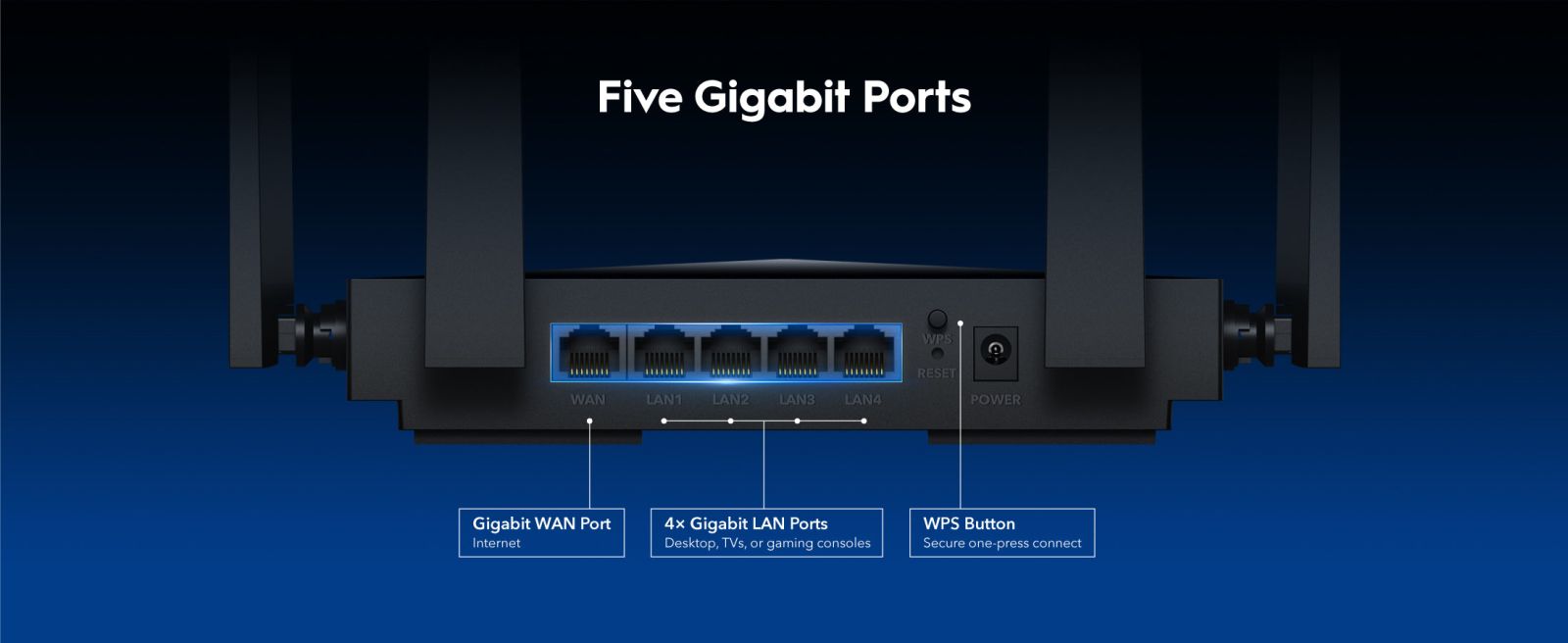

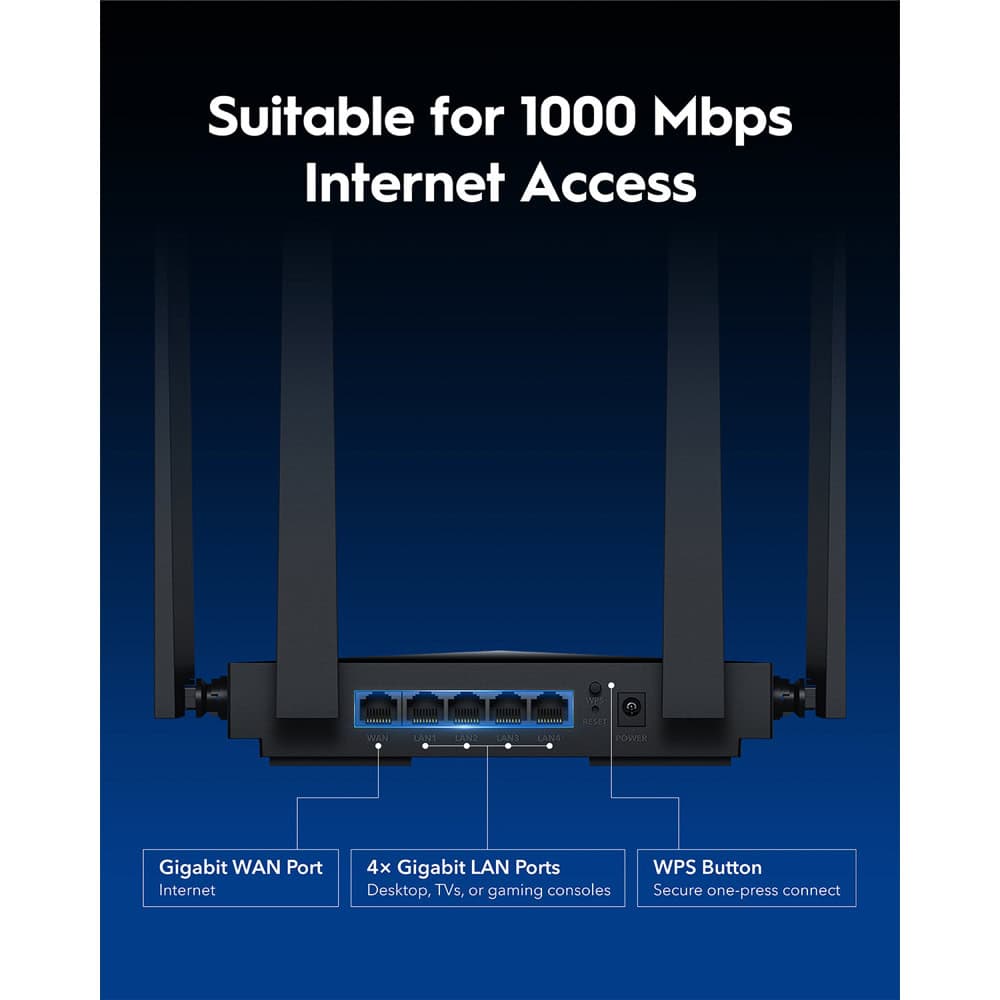

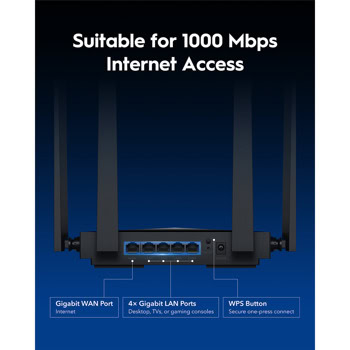

5× Gigabit Ethernet Ports
Covers 130 m² (1,400 ft²)
VPN Server and Client
Cudy App, Cloud Control

Hardware

Specification	Details
Model Version	WR3600 1.0
CPU Details	2.0 GHz Quad-Core, ARM Cortex-A7
Flash/ROM	128 MB (1 Gbit) NAND
DDR/RAM	512 MB (4 Gbit) DDR3L

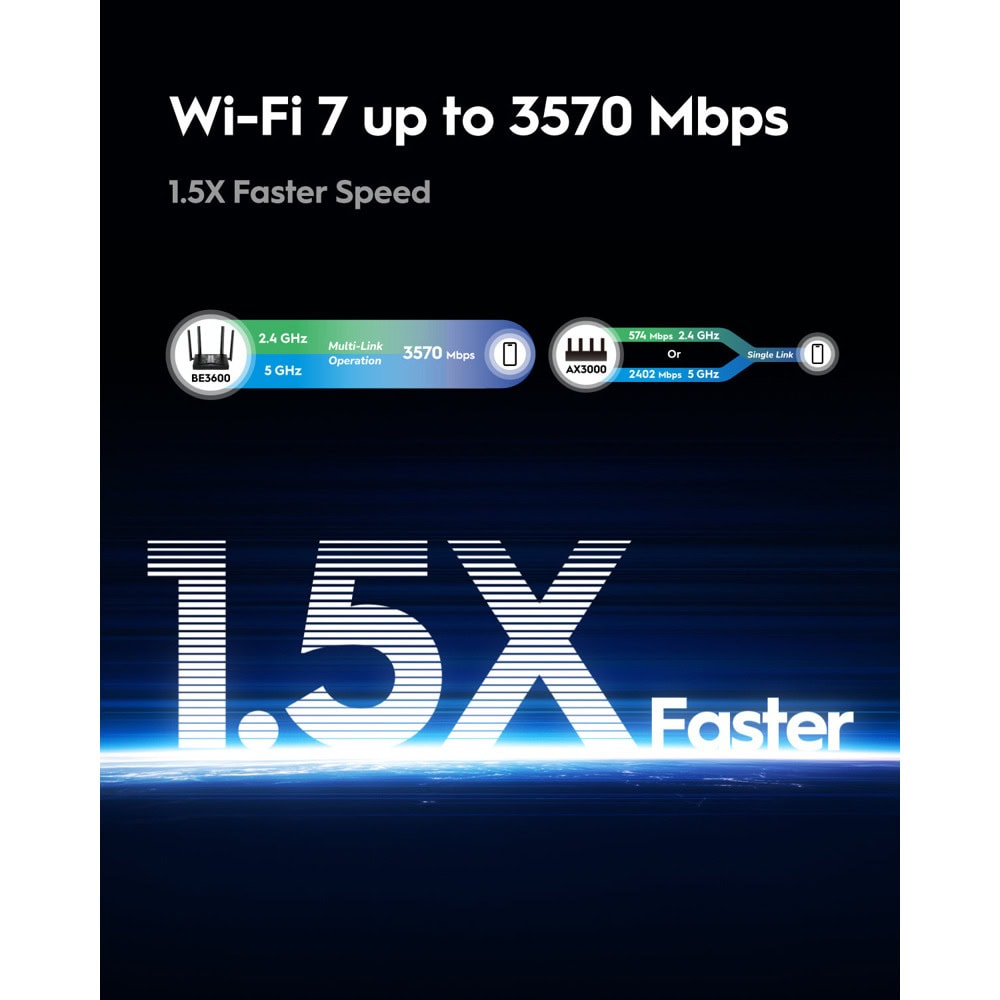

MLO Speeds	3570 Mbps
5 GHz Wi-Fi Speed	2882 Mbps
2.4 GHz Wi-Fi Speed	688 Mbps
5 GHz Wi-Fi Streams	2 Spatial Streams
2.4 GHz Wi-Fi Streams	2 Spatial Streams
Wi-Fi Antennas	4× Fixed
FEM or PA/LNA	5 GHz: 2× External2.4 GHz: 2× Internal
Beamforming	svg
Range Performance	Max: 220 m (722 ft)Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance	Two wooden walls with thickness < 10 cm (4'')One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

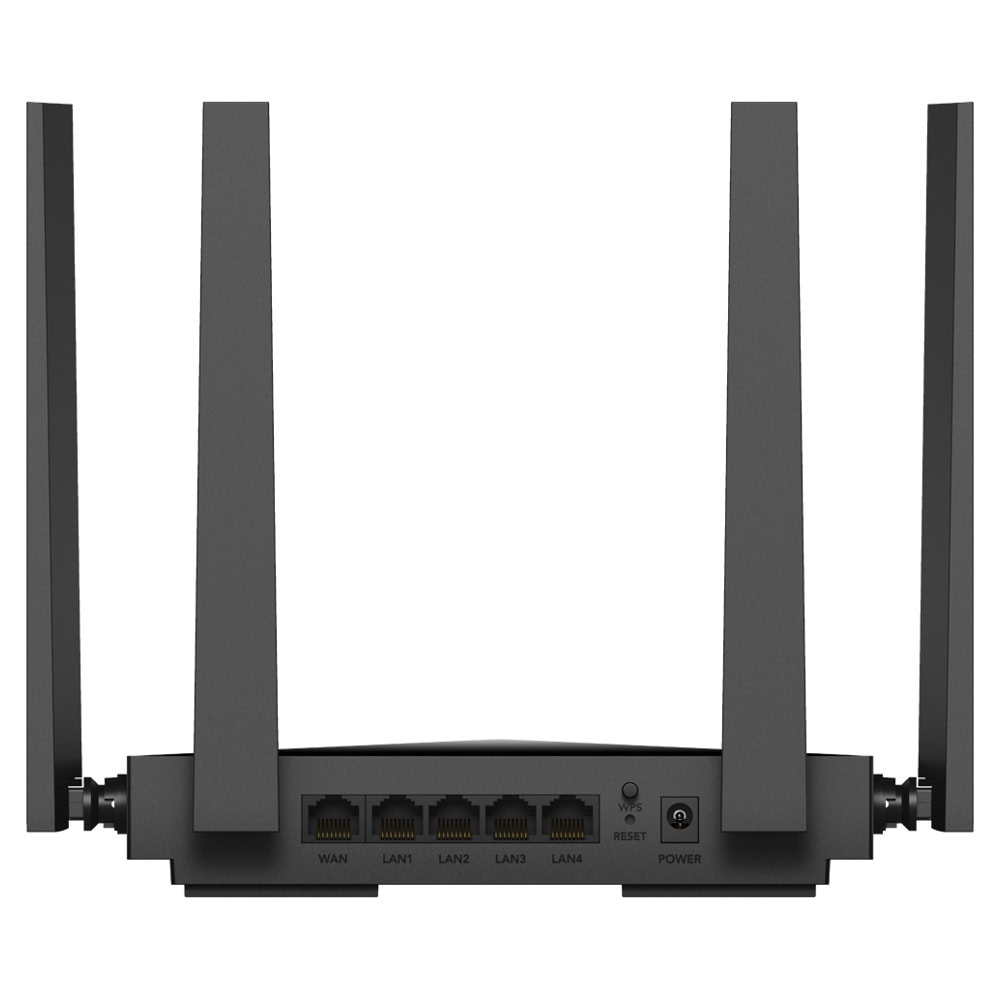

Gigabit RJ45 Ports	5
Ethernet Notes	1× WAN port, the rest are LAN ports
LED	PowerInternetWANLAN2.4 GHz Wi-Fi5 GHz Wi-Fi
Physical Buttons	WPS ButtonReset Button
Power Input Type	DC Jack
Power Methods	DC
Power Input	12V⎓1A
Power Adapter In the Box	Input: 100-240V~, 50/60HzOutput: 12V⎓1A
Max Power Consumption (W)	9W
Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)Humidity: 10% ~ 90% non-condensingStorage Humidity: 5% ~ 95% non-condensing
Certifications	FCC, CE
Installation	DesktopWall-mount
Dimension	Device:183.3×109×38 mm7.22×4.29×1.5 inchesEach Antenna:175 mm6.89 inches
Product Weight	333.5 g (11.76 oz.)

Software

Specification	Details
Model Version	WR3600 1.0
Wi-Fi Standards	Wi-Fi 7
Max Wi-Fi Modulation	4K-QAM
Wi-Fi Efficiency	MLOMRUPuncturingOFDMAMU-MIMOBSS Color
Max Capacity	512
Recommended Client Upper Limit	200
Wi-Fi Channel Width	Auto/20/40/80/160 MHz
Wi-Fi Security	WPA/WPA2/WPA3
Guest Network	2.4 GHz, 5 GHz
WPS	svg
Operation Modes	Wi-Fi RouterAccess PointRange Extender
Mesh	Cudy Mesh
Mesh Backhaul	Wireless BackhaulWired Backhaul
Multi-Band Backhaul	svg
WAN Mode	DHCPStatic IPPPPOEPPTPL2TP
Notes	The Range Extender/WISP/Client modes will be available with later firmware upgrade.Cudy Mesh and related backhaul features will be available with later firmware upgrade.
QoS	Per-User Rate LimitingGuest Network Rate LImiting
DHCP	Address ReservationDHCP Client ListServer
IP Versions	IPv4/IPv6
IPv6 Protocols	RelayDynamic (SLAAC/DHCPv6)Static (Fixed IP)Passthrough464XLATMAP-EDS-Lite
Multicast	svg
IPTV/VLAN	BridgeTag VLANVoIP VLANIPTV VLAN
TTL Customization	ExtendSpoofCustom
IGMP	IGMP ProxyIGMP Snooping
Forwarding	Port ForwardingPort TriggeringUPnPDMZ
Firewall	SPI FirewallDoS ProtectionBlock PING
Application Layer Gateway	IPSec PassthroughL2TP PassthroughPPTP PassthroughFTP PassthroughTFTP PassthroughH323 PassthroughSIP PassthroughRTSP Passthrough
VPN Server	WireGuardOpenVPNIPsecZerotierPPTPL2TP
VPN Client	WireGuardOpenVPNIPsecZerotierPPTPL2TP
VPN Performance	OpenVPN Client (UL/DL): 66 / 66 MbpsOpenVPN Server (UL/DL): 65 / 64 MbpsWireGuard Client (UL/DL): 150 / 223 MbpsWireGuard Server (UL/DL): 251 / 177 Mbps
DNS Options	DNS over TLSManual DNSRebind ProtectionOverride Clients' DNS
DNS over TLS Providers	CloudflareGoogleQuad9Custom
Wake on LAN	svg
Online Detection	svg
Parental Controls	Profiles SettingsOffline TimeOnline TimePause the InternetWeb Filter
All Devices Management	Wi-Fi Time ScheduleMAC FilterIP/MAC Binding
Per-Devices Management	Internet On/OffVPN On/OffOnline Time ScheduleDevice Rename
Content Management	Domain FilterIP Filter
LED Control	svg
Local Control Method	Config Web PageApp Control
Remote Control Method	Config Page via HTTPSApp ControlTR069/TR098/TR111/TR143/TR181
Firmware Upgrade	Local UpdateApp (Over the Air)Online Update
Reliability	Timed RebootBackup and Restore
Diagnostic Tools	DiagnosisPingTracerouteNSLookupSystem Log
Panel	Internet StatusMesh StatusDevices ManagementWAN StatusLAN StatusWi-Fi StatusVPN StatusDHCP Server StatusSystem Version
Charts	Internet SpeedWi-Fi SpeedMesh Topology

Виж още Рутери Безжични Cudy
Виж всички Рутери Безжични в категорията

Документация

Технически характеристики

Безжична скорост:	3600 Mbps
Wi-Fi Стандарт:	Wi-Fi 7 (802.11be)
LAN портове:	4 x 1000 Mbps
WAN портове:	1 x 1000 Mbps
Честота:	2.4 + 5 GHz
Антени:	4 Външни
USB портове:	Няма
3G/4G:	Не
Преносим:	Не
Други:	Няма
Жична скорост:	10/100/1000 Mbps
