Mimosa А6 100-00113
A6
High Throughput
The A6 redefines efficiency, performance, capacity, and interference handling for unlicensed PTMP deployments. With advanced features like 1024-QAM, 8-stream beamforming, and support for up to 160 MHz of bandwidth, it delivers significant improvements in reliability and performance for the unlicensed 5/6 GHz band.

Improved Link Budget
Whether it’s overcoming noise or punching through a bit more near-LOS foliage, who wouldn’t want an improved link-budget? The A6 uses a series of integrated antennas and introduces a set of new baseband features that provide 10 dB signal improvement without an increase in the device form-factor.

Speed and Capacity for Dense Markets and Crowded Towers
Th A6 competes with fiber speed offerings in both urban and rural tower sites. Wi-Fi 6E technologies included within the A6 offer 60 bps/Hz spectral efficiency and high capacity 8x8 multi-user MIMO technology, ensuring sufficient AP capacity to handle large populations at almost any rural tower location, or even in the most dense city urban environments

Category | Specification |
---|---|
Radio | |
MIMO & Modulation | 8x8 MU-MIMO; OFDMA (future release), BPSK-1024QAM |
Bandwidth | Single or dual 20/40/80/160 MHz channels |
Frequency Range | 5150–6425 MHz (Restricted by country) |
Max Output Power | 24 dBm (Restricted by country) |
Rx Sensitivity @ 1024 QAM | -47 dBm @ 160 MHz, -50 dBm @ 80 MHz, -53 dBm @ 40 MHz, -56 dBm @ 20 MHz |
Physical | |
Dimensions | Height: 490 mm (19”), Width: 295 mm (11.6”), Depth: 75 mm (3”) |
Weight | 3.95 kg (8.7 lbs) |
Enclosure Characteristics | Outdoor UV-stabilized, engineered polymer with integrated metal mounting back |
Wind Survivability | 200 km/h (125 mph) |
Wind Loading | 39 kg @ 160 km/h (86 lbs @ 100 mph) |

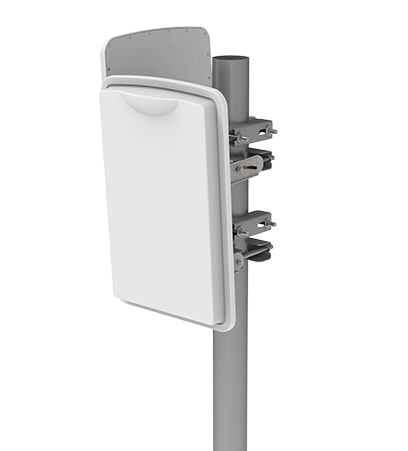

Mounting | Includes dual adjustable mounting brackets for 30 mm (1.18”) to 90 mm (3.54”) OD pipes |
Network Interface | (1) GbE copper PoE, (2) 10 GbE SFP+ (optical) |
Antenna | |
Gain | 16 dBi |
Beamwidth | 90º azimuth, 10º elevation |
Front-to-Back Ratio | >30 dB |
Cross-Polar Isolation | >20 dB |
Polarization | Dual-linear XPIC |
Power | |
Max Power Consumption | 40 W |
System Power Method | PoE port, or via a separate DC port |
System Lightning & ESD Protection | 6 kV |
PoE Power Requirements | Passive, 48-56vdc @ 1200mA |
Environmental | |
Outdoor Ingress Protection Rating | IP67 |
Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
Operating Humidity | 5 to 100% condensing |
Operating Altitude | 4,420 m (14,500’) maximum |
Shock and Vibration | ETS 300-019-2-4 class 4M5 |
Features | |
10 Gigabit Ethernet | (2) SFP+ (optical), MM or SM |
Management Services | MMP support; Netconf (future support); SNMPv2c/v3; Syslog; HTTPS; HTML 5-based Web GUI; IPv4 and IPv6 |
Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across all channels (no service impact); Dynamic auto-optimization of channel and bandwidth use |
Security | WPA3; AES; RADIUS; 802.1x authorization |
QoS | Supports 4 user-configurable QoS levels for SRS (GPS Sync) (CBWFQ); CoS Classifier, with user-configurable precedence |
VLAN | Per subscriber VLAN, Q-in-Q, Management VLAN |
Collocation Synchronization | 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio |
GPS Location | GNSS-1 (GPS + GLONASS) |
Виж още Аксеспойнт/Репитер Безжични Mimosa
Виж всички Аксеспойнт/Репитер Безжични в категорията
Тип: | Аксес пойнт |
---|---|
Монтаж: | За външен монтаж |
Безжична скорост: | Не е указано Mbps |
Wi-Fi Стандарт: | Не е указано |
Честота: | 6 GHz |
Антени: | Не е указано |
dBi на антена/и: | 16 |
PoE: | In |
Други: | Няма |
