MikroTik RBwAPR-2nD&R11e-LR9G
The wAP LR9G kit is a rugged, out-of-the-box LoRa® gateway built into MikroTik’s proven wAP form factor. It features:
• LoRa® 915 MHz support
• Built-in GPS (via MT3337V)
• Improved Rx sensitivity: up to -141 dBm
• 2.4 GHz Wi-Fi (802.11b/g/n dual-chain)
• Passive PoE support and wide voltage input range

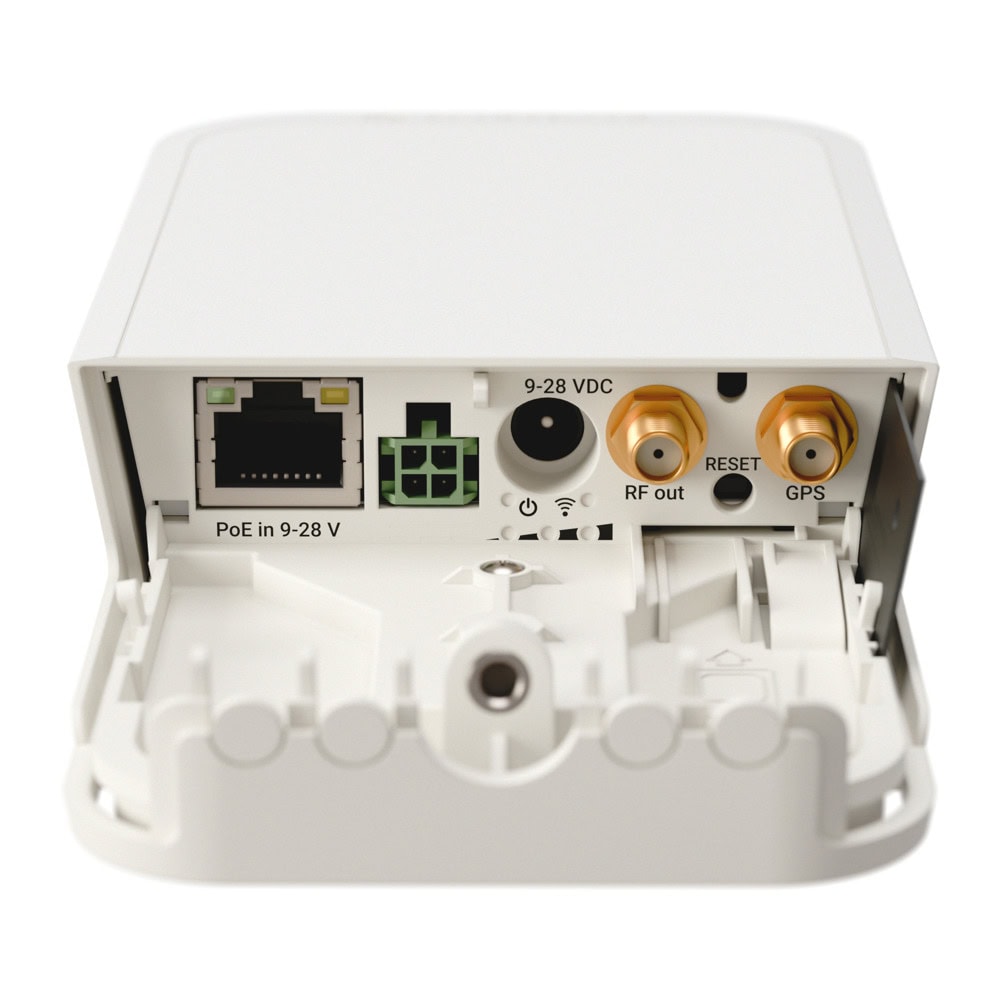

• 3 power input options: PoE, automotive, or DC jack
• SMA female connectors for external antenna options
Pair it with any public or private LoRa® network (including The Things Network or The Things Industries) using the preinstalled UDP packet forwarder. Whether you’re deploying smart irrigation in a field or setting up a LoRa® node on a building rooftop – this device is made to withstand the elements and simplify setup.
| Category | Specification |
|---|---|
| Product Code | RBwAPR-2nD&R11e-LR9G |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU Core Count | 1 |
| CPU Frequency | 650 MHz |
| RouterOS License | 4 |
| Operating System | RouterOS v7 |
| RAM Size | 64 MB |
| Storage Size | 16 MB |
| Storage Type | FLASH |
| MTBF | ~200,000 hours at 25°C |
| Tested Ambient Temperature | -40°C to 60°C |
| Number of DC Inputs | 3 (DC jack, PoE-IN, Automotive) |
| DC Jack Input Voltage | 9–28 V |
| Automotive Input Voltage | 12–30 V |
| Max Power Consumption | 7 W |
| PoE In | Passive PoE |
| PoE In Input Voltage | 9–28 V |
| Cooling Type | Passive |
| Wireless (2.4 GHz) Max Data Rate | 300 Mbit/s |
| Wireless (2.4 GHz) Chains | 2 |
| Wireless Standards (2.4 GHz) | 802.11b/g/n |
| Antenna Gain (2.4 GHz) | 2 dBi |
| Wireless Chip Model (2.4 GHz) | QCA9531 |
| Wireless Generation (2.4 GHz) | Wi-Fi 4 |
| 10/100 Ethernet Ports | 1 |
| SIM Slots | 1 (Mini SIM) |
| MiniPCI-e Slots | 1 |
| PCB Temperature Monitor | Yes |
| Voltage Monitor | Yes |
| GPS RF Connector Type | uUFL |
| Certification | FCC, IC, EAC |
| IP Rating | IP54 |
| 2.4 GHz - 1 MBit/s | Transmit: 22 dBm / Sensitivity: -96 dBm |
| 2.4 GHz - 11 MBit/s | Transmit: 22 dBm / Sensitivity: -89 dBm |
| 2.4 GHz - 6 MBit/s | Transmit: 20 dBm / Sensitivity: -93 dBm |
| 2.4 GHz - 54 MBit/s | Transmit: 18 dBm / Sensitivity: -74 dBm |
| 2.4 GHz - MCS0 | Transmit: 20 dBm / Sensitivity: -93 dBm |
| 2.4 GHz - MCS7 | Transmit: 16 dBm / Sensitivity: -71 dBm |
Виж още Аксеспойнт/Репитер Безжични MikroTik
Виж всички Аксеспойнт/Репитер Безжични в категорията
| Тип: | Аксес пойнт |
|---|---|
| Монтаж: | За външен монтаж |
| Безжична скорост: | 300 Mbps |
| Wi-Fi Стандарт: | Wi-Fi 4 (802.11n) |
| Честота: | 2.4 GHz |
| Антени: | 2 Вътрешни |
| dBi на антена/и: | 2 |
| PoE: | In |
| Интерфейс: | 1x 100 |
| Други: | Sim слот |
