MikroTik RB912R-2nD-LTm&EC200A-EU

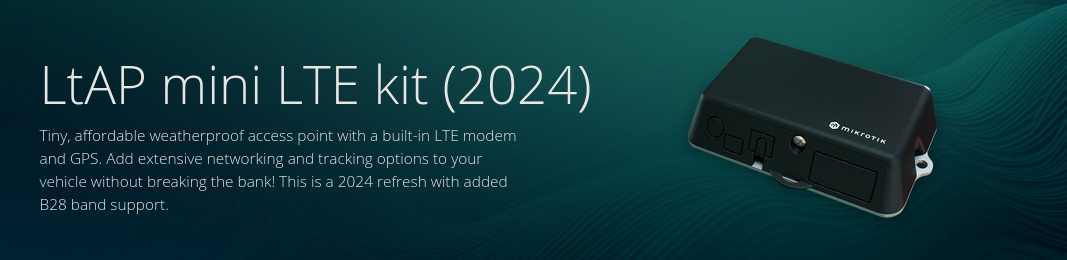

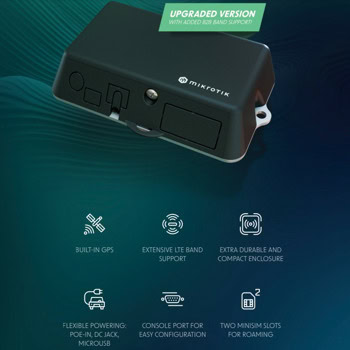

LtAP Mini LTE kit is a compact and rugged wireless access point designed to keep your vehicle connected wherever you go. Whether you’re riding through the Great Outdoors or navigating busy urban streets, this tiny device ensures you’re always online and ready to upload location data.

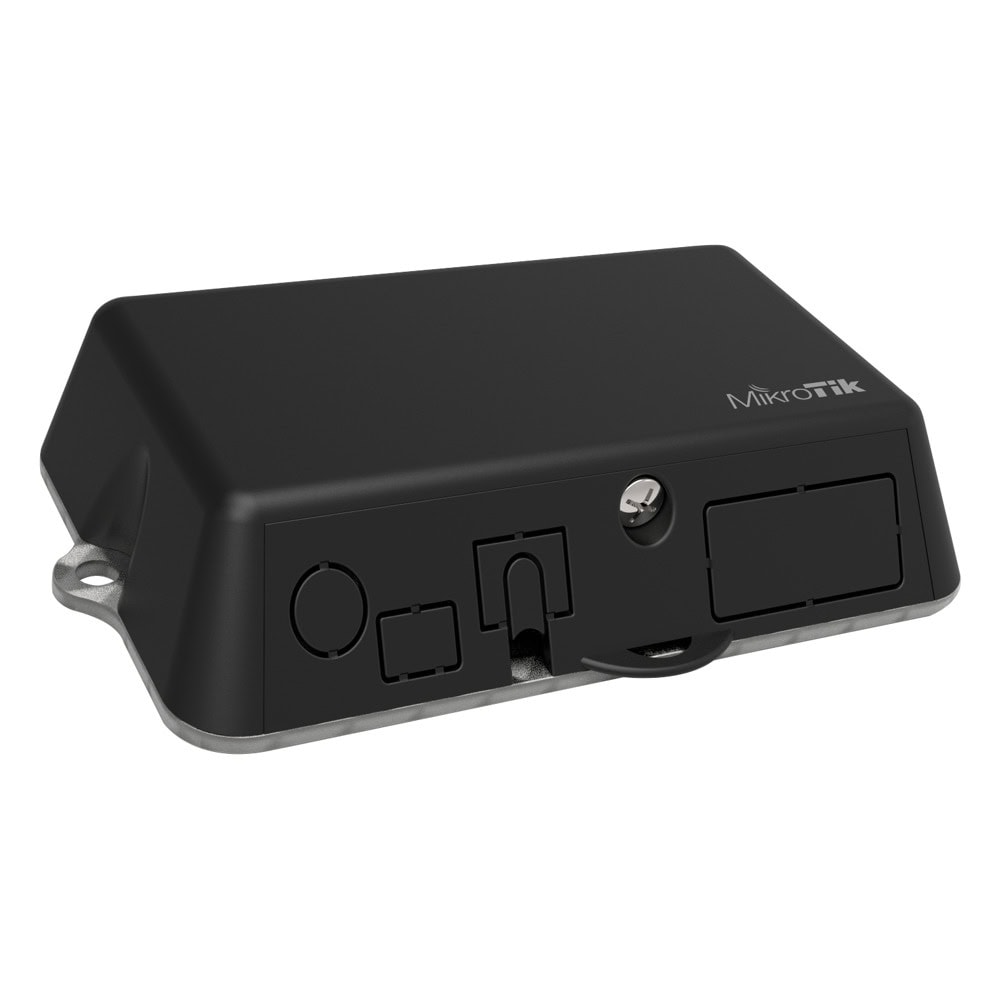

LtAP mini has a special extra-durable enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for tracking moving vehicles like cars, buses or trains.

There’s an Ethernet port for your wired devices and a classic 2.4 GHz wireless radio. The RS232 serial port gives you console access for debugging.

The power options are as flexible as they get. You have the classic DC jack, 802.3af/at PoE-in, and a microUSB option. We have even seen users powering the LtAP mini with a portable power bank throughout the day!

The new LTE card offers a better price and the support of the most popular LTE bands, including the B28 band! It is connected to two internal antennas with u.FL connectors, so you can unplug the connectors and add your own external LTE antenna for even better coverage.

We have provided a simple tracking application example in the RouterOS documentation - to help you start tracking your vehicle’s location in real-time. You will need to connect an external GPS antenna, we recommend using the ACGPSA antenna with IP67 water resistance rating.

Category	Specification	Details
	Architecture	MIPSBE
	CPU	QCA9531
	CPU Core Count	1
	CPU Nominal Frequency	650 MHz
	RouterOS License	4
	Operating System	RouterOS v7
	Size of RAM	64 MB
	Storage Size	16 MB
	Storage Type	FLASH
	MTBF	Approximately 100,000 hours at 25°C
	Tested Ambient Temperature	-40°C to 70°C
Powering	MicroUSB Input Voltage	5 V
	Number of DC Inputs	3 (DC jack, PoE-IN, MicroUSB)
	DC Jack Input Voltage	8-30 V
	Max Power Consumption	8 W
	Cooling Type	Passive

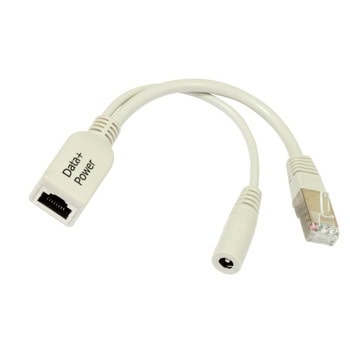

	PoE In	802.3af/at
	PoE In Input Voltage	12-57 V
Mobile	2G Category	Class12
	2G Bands	8 (900MHz) / 3 (1800MHz)
	3G Category	R7 (21Mbps Downlink, 5.76Mbps Uplink)
	3G Bands	5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
	LTE Category	4 (150Mbps Downlink, 50Mbps Uplink)
	MIMO DL	2x2
	MIMO UL	1x1
	LTE FDD Bands	20 (800MHz), 8 (900MHz), 3 (1800MHz), 1 (2100MHz), 7 (2600MHz), 5 (850MHz), 28 (700MHz)
	LTE TDD Bands	40 (2300MHz), 38 (2600MHz), 41n (2500MHz)
	TAC	86314105
Wireless Specifications	Wireless 2.4 GHz Max Data Rate	300 Mbit/s
	Wireless 2.4 GHz Number of Chains	2
	Wireless 2.4 GHz Standards	802.11b/g/n
	Antenna Gain dBi for 2.4 GHz	1.5
	Wireless 2.4 GHz Chip Model	QCA9531
	Wireless 2.4 GHz Generation	Wi-Fi 4
Ethernet	10/100 Ethernet Ports	1
Peripherals	Number of SIM Slots	2 Modem (Mini SIM)
	MiniPCI-e Slots	1
	Serial Console Port	RS232
Other	Mode Button	Yes
	GNSS Standards	GPS
	GPS RF Connector Type	uUFL

12 месеца за юридически, 24 месеца за физически лица
Виж още Аксеспойнт/Репитер Безжични MikroTik
Виж всички Аксеспойнт/Репитер Безжични в категорията

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За външен/вътрешен монтаж
Безжична скорост:	300 Mbps
Wi-Fi Стандарт:	Wi-Fi 4 (802.11n)
Честота:	2.4 GHz
Антени:	2 Вътрешни
dBi на антена/и:	1.5
PoE:	In
Интерфейс:	1x 100
Други:	Sim слот
