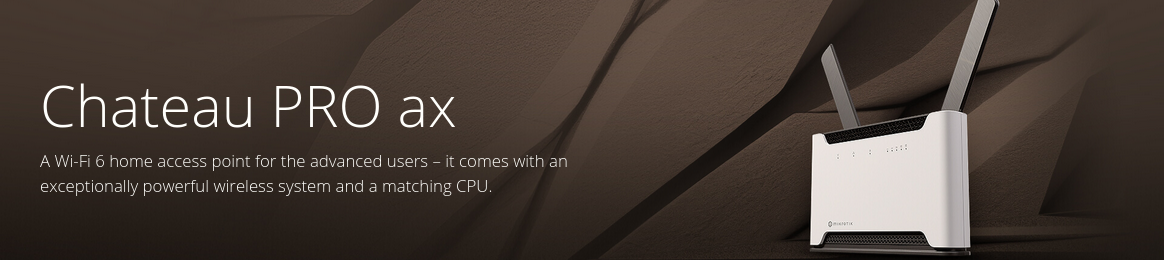

Mikrotik Chateau PRO ax H53UiG-5HaxQ2HaxQ
Mikrotik Chateau PRO ax H53UiG-5HaxQ2HaxQMikrotik Chateau PRO ax H53UiG-5HaxQ2HaxQMikrotik Chateau PRO ax H53UiG-5HaxQ2HaxQempty image 3

Рутер Mikrotik Chateau PRO ax, 3600Mbps, 2.4GHz (1148 Mbps), 5GHz (2400Mbps), Wireless AX, 5x 10/100/1000Mbps, 1x USB 3.0, 2x външни антени

id 286267 Код: NTWRMIKROTIKH53UIG5HAXQ2HAXQ
  • Безплатна доставка
ОписаниеХарактеристикиРевюта / Въпроси



Designed with professional users in mind, the Chateau PRO ax Wi-Fi 6 home access point is engineered to squeeze out maximum performance, handling more traffic than ever before. With its unstoppable quad-core ARM CPU running at 2.2 GHz and our latest cutting-edge wireless chip, Chateau PRO ax leverages 4 spatial streams to achieve double the data rate of the usual dual-chain devices, ensuring that your network is always fast, reliable, and ready to support even the most demanding tasks. Remember – you will need a device that supports 4 spatial streams on the other side of the connection to fully utilize the Chateau PRO ax.

With 5x Gigabit Ethernet ports and a USB 3.0 port, you can transform this Chateau into a home media server by plugging in an additional SSD storage. Or you could use the USB to add an LTE modem for backup!

Advanced container setups, bonding, or high-speed 4x4 MIMO wireless setups – that’s where the Chateau PRO ax can really shine! Also, its increased number of radio transceivers provides significantly improved wireless coverage and beamforming performance.



Specifications

Details
ArchitectureARM 64bit
CPUIPQ-8072A
CPU core count4
CPU nominal frequency2208 MHz
Switch chip modelIPQ-8072
RouterOS license6
Operating SystemRouterOS v7
Size of RAM1 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 70°C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate1148 Mbit/s
Wireless 2.4 GHz number of chains4
Wireless 2.4 GHz standards802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz5
Wireless 2.4 GHz chip modelQCN-5024
Wireless 2.4 GHz generationWi-Fi 6
Wireless 5 GHz Max data rate2400 Mbit/s
Wireless 5 GHz number of chains4
Wireless 5 GHz standards802.11a/n/ac/ax
Antenna gain dBi for 5 GHz6
Wireless 5 GHz chip modelQCN-5054
Wireless 5 GHz generationWi-Fi 6
WiFi speedAX3600

Ethernet

Details
10/100/1000 Ethernet ports5
Number of 1G Ethernet ports with PoE-out1

Peripherals

Details
Number of USB ports1
USB Power ResetYes
USB slot typeUSB 3.0 type A
Max USB current (A)1.5

Powering

Details
Number of DC inputs1 (DC jack)
DC jack input Voltage18-57 V
Max power consumption55 W
Max power consumption without attachments18 W
Cooling typePassive

PoE-out

Details
PoE-out portsEther5
PoE outPassive PoE up to 57V
Max out per port output (input 18-30 V)600 mA
Max out per port output (input 30-57 V)500 mA
Max total out (A)0.600 A
Total output current0.600
Total output power22.8





12 месеца за юридически, 24 месеца за физически лица
Виж още Рутери Безжични MikroTik
Виж всички Рутери Безжични в категорията
Технически характеристики
Безжична скорост:  3600 Mbps
Wi-Fi Стандарт:  Wi-Fi 6 (802.11ax)
Честота:  2.4 + 5 GHz
LAN портове:  5 x 1000 Mbps
WAN портове:  Няма Mbps
Антени:  2 Външни
USB портове:  1 x 3.0
3G/4G:  Не
Преносим:  Не
Други:  PoE
Жична скорост:  10/100/1000 Mbps
