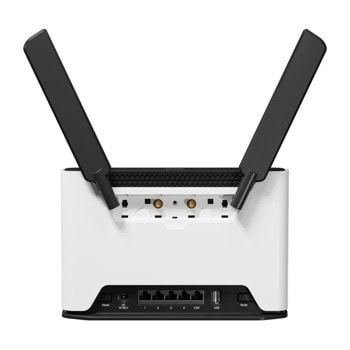

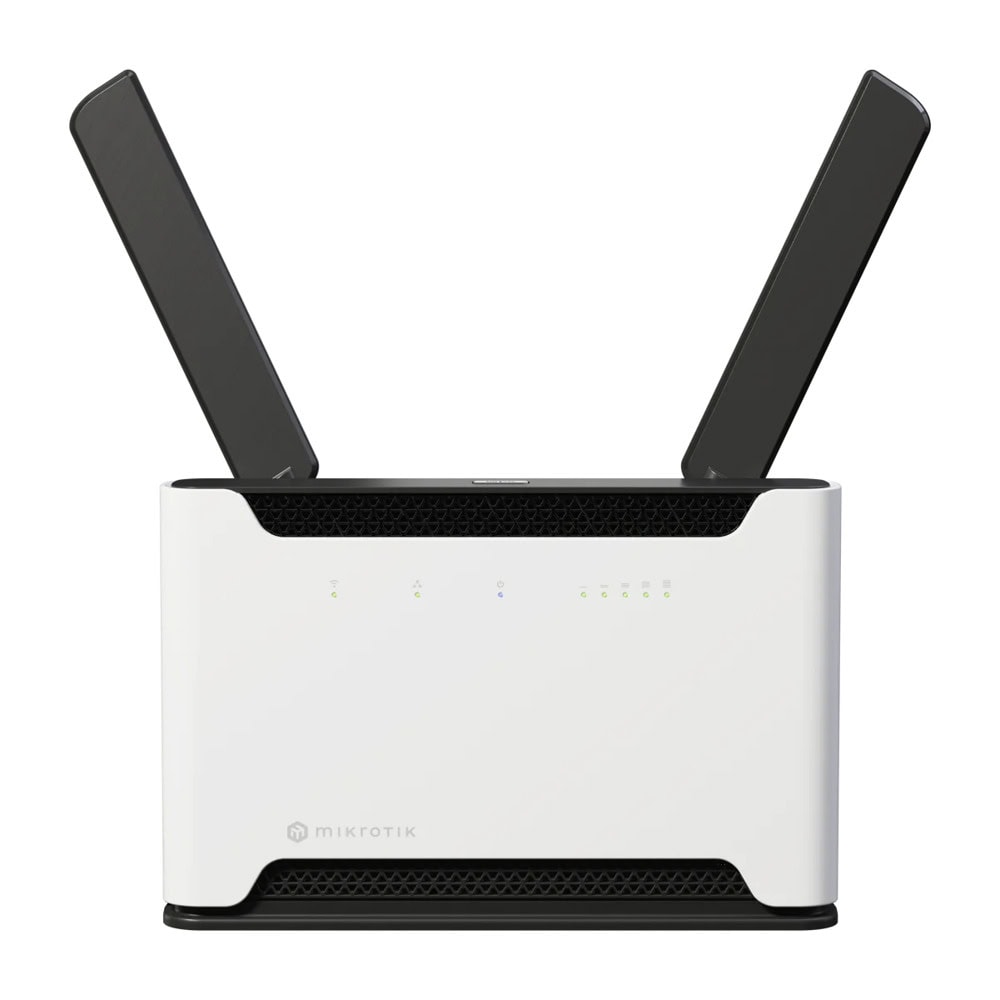

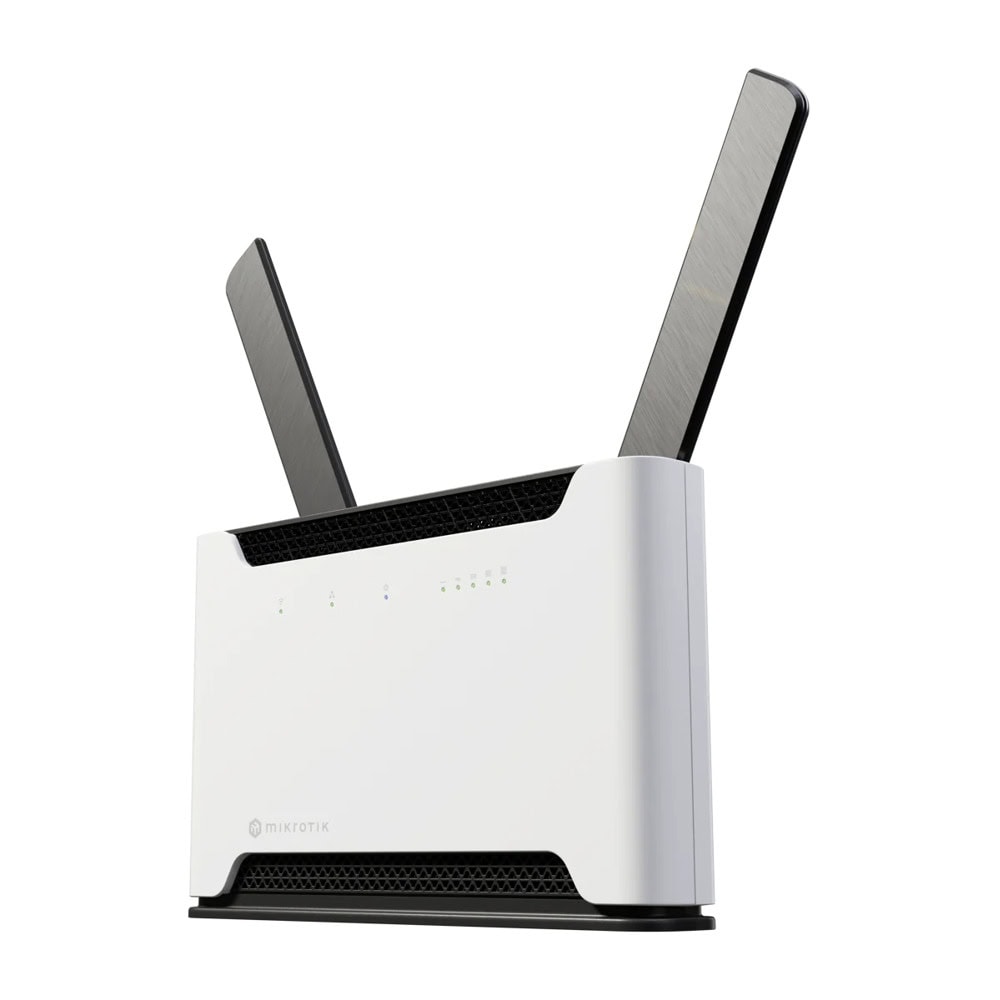

Рутер MikroTik Chateau LTE18 ax, 1800Mbps, 4G/LTE, 2.4GHz(574Mbps) / 5GHz(1200Mbps), Wireless AX, 4x 10/100/1000Mbps, 1x 100/1000/2500Mbps, 1x microSIM слот, 1x USB-A, 1GB RAM, 128MB Flash памет, 2x външни антени

On the surface, the new Chateau is very similair to the previous models. We had a fantastic LTE18 launch with our partners at LMT – the leading mobile operator in Latvia. Our Chateau replaced the usual brands – and the client satisfaction skyrocketed. Most users appreciated better speed and stability, as well as the abundance of useful RouterOS features and general flexibility. And don’t forget the elegant look that fits right in anywhere – from traditional homes and luxury residences to modern office and corporate environments.

The next obvious step in the Chateau series was perfecting the wireless capabilities. With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau LTE18 ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! We’ve made massive improvements to the wireless radio and antennas. Chateau LTE18 ax supports MIMO 4x4 on LTE. There are 4 built-in LTE antennas and 2 optional external network antennas for exceptional coverage in your whole home!

With speeds like that, the ports also had to rise to the occasion. We kept four Gigabit Ethernet ports and added a 2.5 Gigabit Ethernet port on top. And let’s not forget the USB which can be handy for storage purposes.

The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.

The most advanced software on the market - RouterOS

We have been making our own software since 1996. And over the years, we’ve managed to create the most powerful and flexible networking software on the market. With each new version, our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job. Run a secure VPN from the office directly to your home, enable parental control, QoS (traffic prioritization for certain needs, such as streaming), complex firewall rules, IPsec hardware acceleration, VLAN, e-mail or SMS notifications.. You can even automate complex trigger notifications (“Your bandwidth has reached X for Y minutes!”) and modify queues based on bandwidth usage. If you can imagine it – RouterOS can achieve it.

Specifications

• Architecture ARM 64bit
• CPU IPQ-6010
• CPU core count 4
• CPU nominal frequency auto (864 -1800) MHz
• CPU Threads count 4
• Switch chip model IPQ-6010
• Dimensions 240 x 156 x 44 mm
• RouterOS license 4
• Operating System RouterOS v7
• Size of RAM 1 GB
• Storage size 128 MB
• Storage type NAND
• MTBF Approximately 200'000 hours at 25C
• Tested ambient temperature -40°C to 65°C

Powering

• Number of DC inputs 1 (DC jack)
• DC jack input Voltage 12-28 V
• Max power consumption 19 W
• Max power consumption without attachments 16 W
• Cooling type Passive

Mobile

• 3G Category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
• 3G bands 1 (2100MHz)
  3 (1800MHz)
  5 (850MHz)
  8 (900MHz)
• LTE Category 18 (1.2Gbps Downlink, 150Mbps Uplink)
• MIMO DL 4x4
• MIMO UL 1x1
• LTE FDD bands 1 (2100MHz)
  3 (1800MHz)
  5 (850MHz)
  7 (2600MHz)
  8 (900 MHz)
  20 (800MHz)
  28 (700MHz)
• LTE TDD bands 38 (2600MHz)
  40 (2300MHz)
  41 (2500MHz)
• TAC 86981604

Wireless specifications

• Wireless 2.4 GHz Max data rate 574 Mbit/s
• Wireless 2.4 GHz Number of chains 2
• Wireless 2.4 GHz standards 802.11b/g/n/ax
• Antenna gain dBi for 2.4 GHz 3
• Wireless 2.4 GHz chip model QCN-5022
• Wireless 2.4 GHz generation Wi-Fi 6
• Wireless 5 GHz Max data rate 1200 Mbit/s
• Wireless 5 GHz Number of chains 2
• Wireless 5 GHz standards 802.11a/n/ac/ax
• Antenna gain dBi for 5 GHz 6
• Wireless 5 GHz chip model QCN-5052
• Wireless 5 GHz generation Wi-Fi 6

Ethernet

• 10/100/1000 Ethernet ports 4
• Number of 2.5G Ethernet ports 1

Peripherals

• Number of SIM slots 1 Modem (Micro SIM)
• Number of USB ports 1
• USB Power Reset Yes
• USB slot type USB type A
• Max USB current (A) 1

Other

• PCB temperature monitor Yes
• Voltage Monitor Yes
• Mode button Yes

Certification & Approvals

• Certification CE, EAC, ROHS
• IP 20
