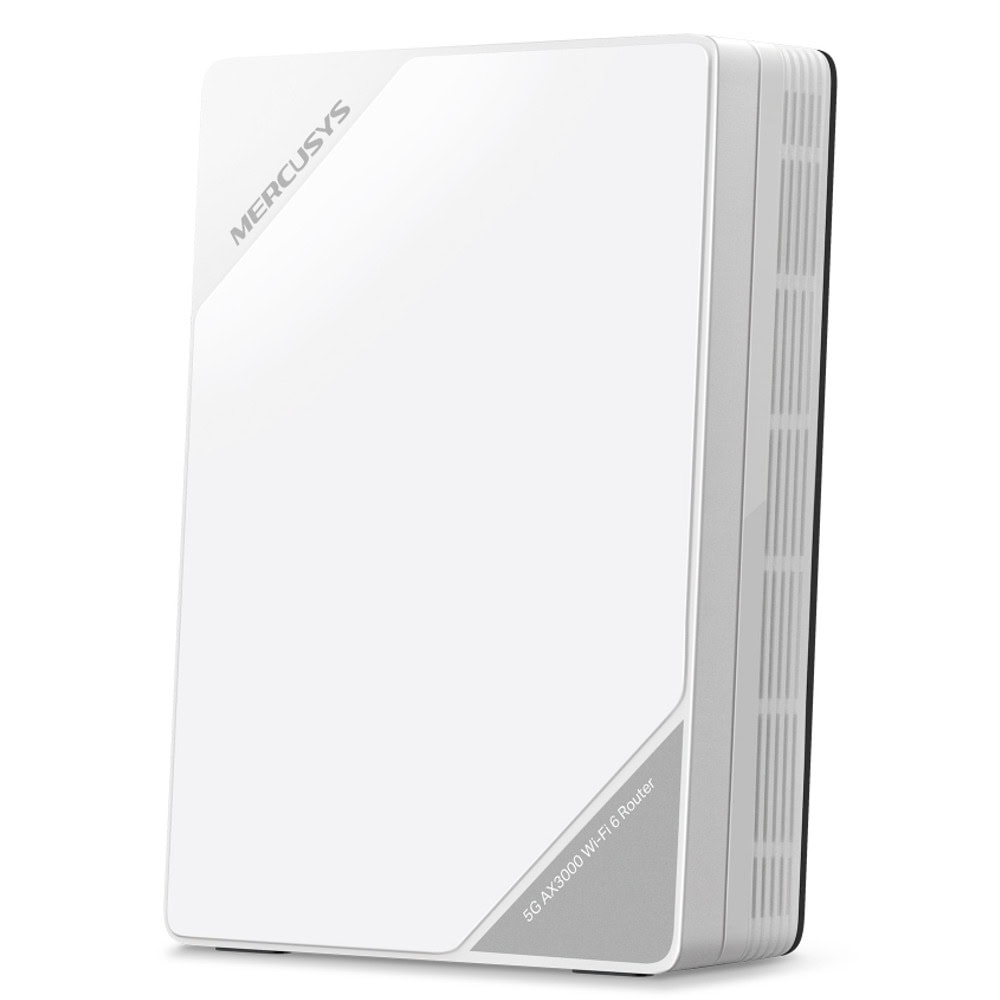

MB520-5G
5G AX3000 Wireless Dual Band Router
- Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Convert your 5G network into WiFi and share it with multiple WiFi devices.§
- AX3000 Dual Band WiFi 6 – Speeds up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.‡

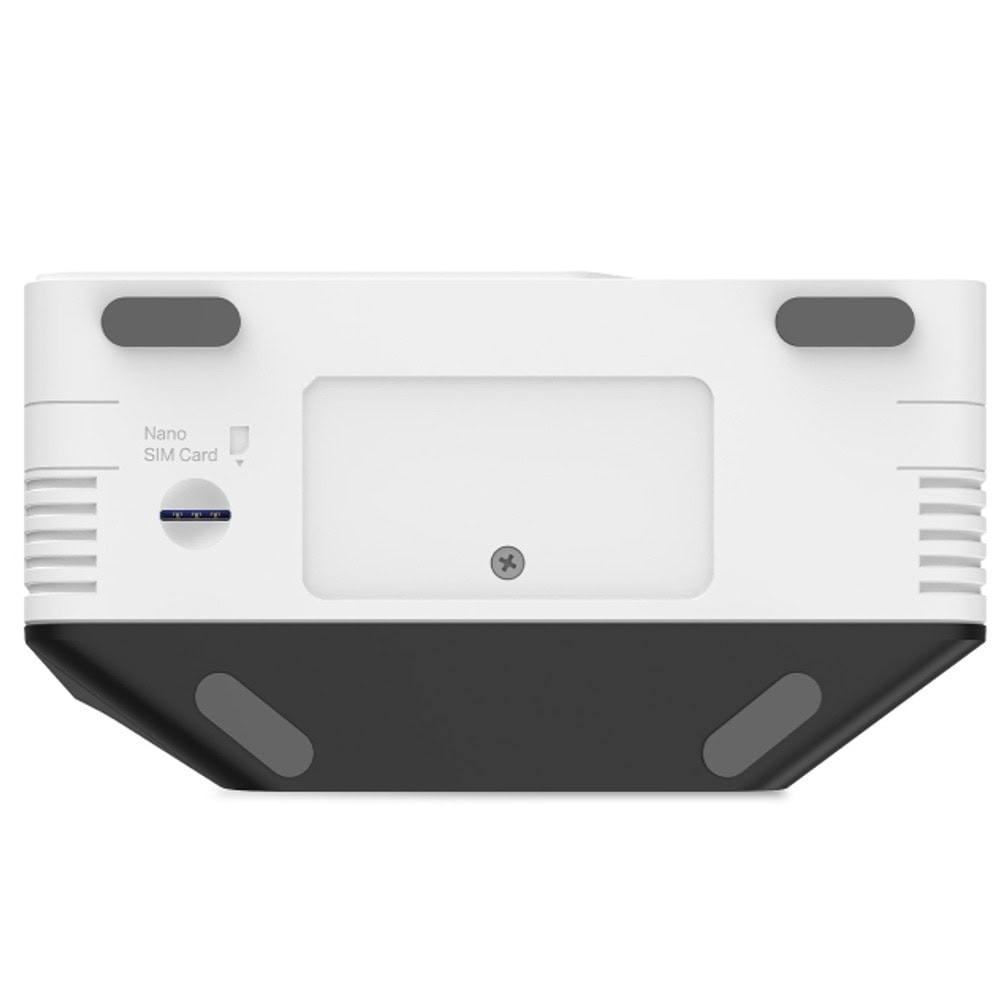

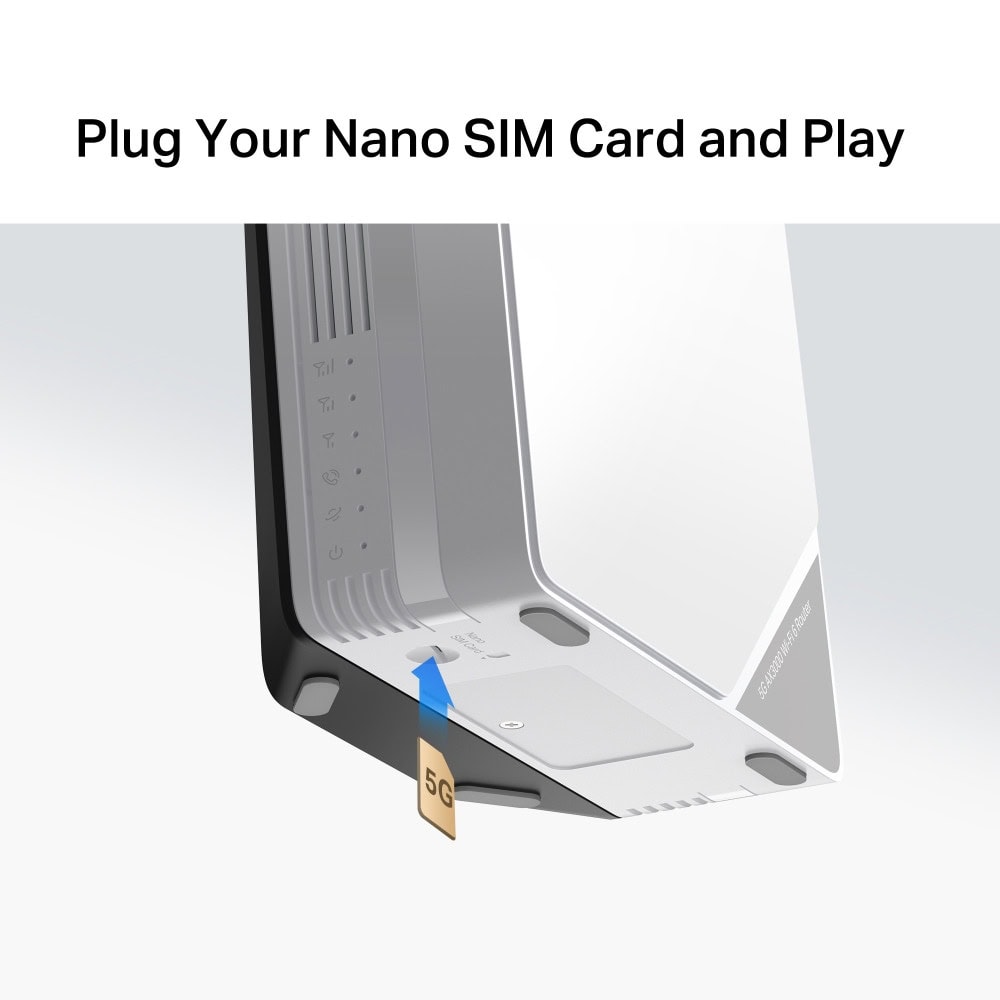

- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.△
- Simultaneous Connection – Enjoy sharing internet access with up to 256 WiFi devices.

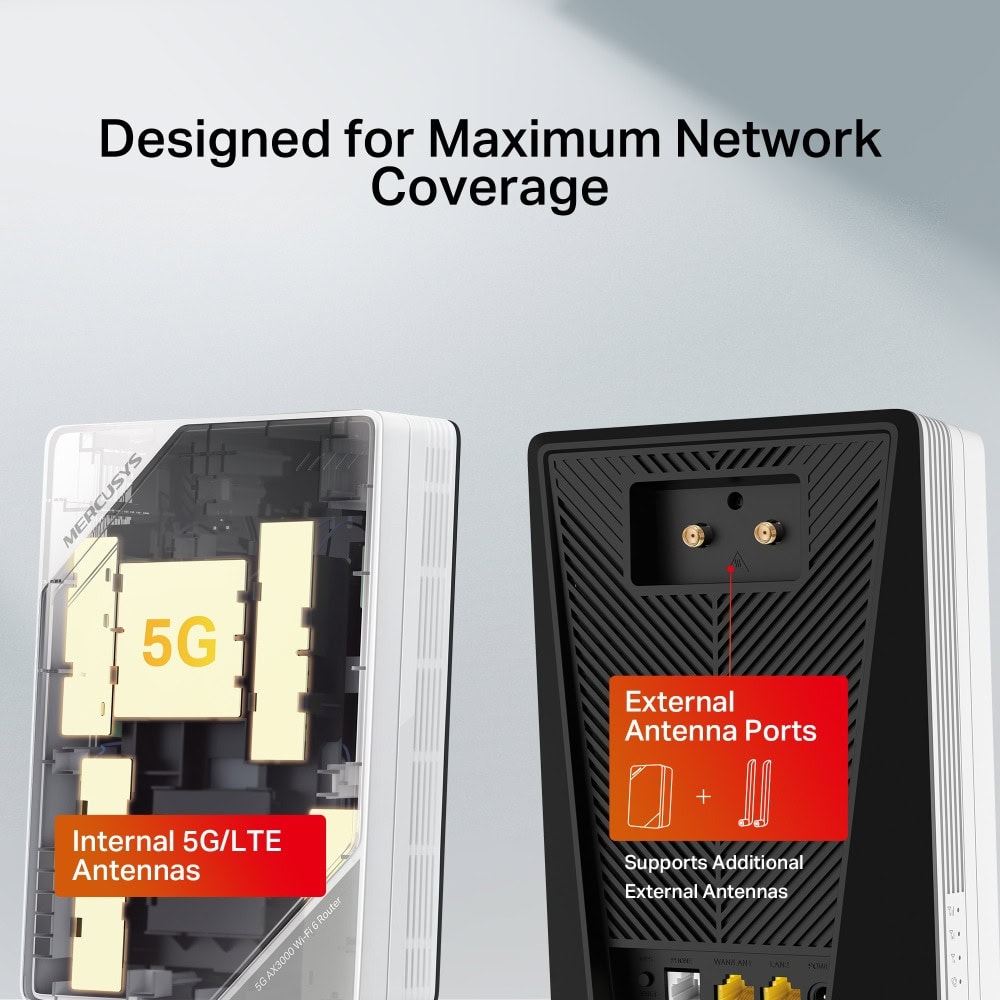

- Maximized Coverage – Advanced internal antennas deliver fast, stable connections, while external ports support additional antennas for extended range.

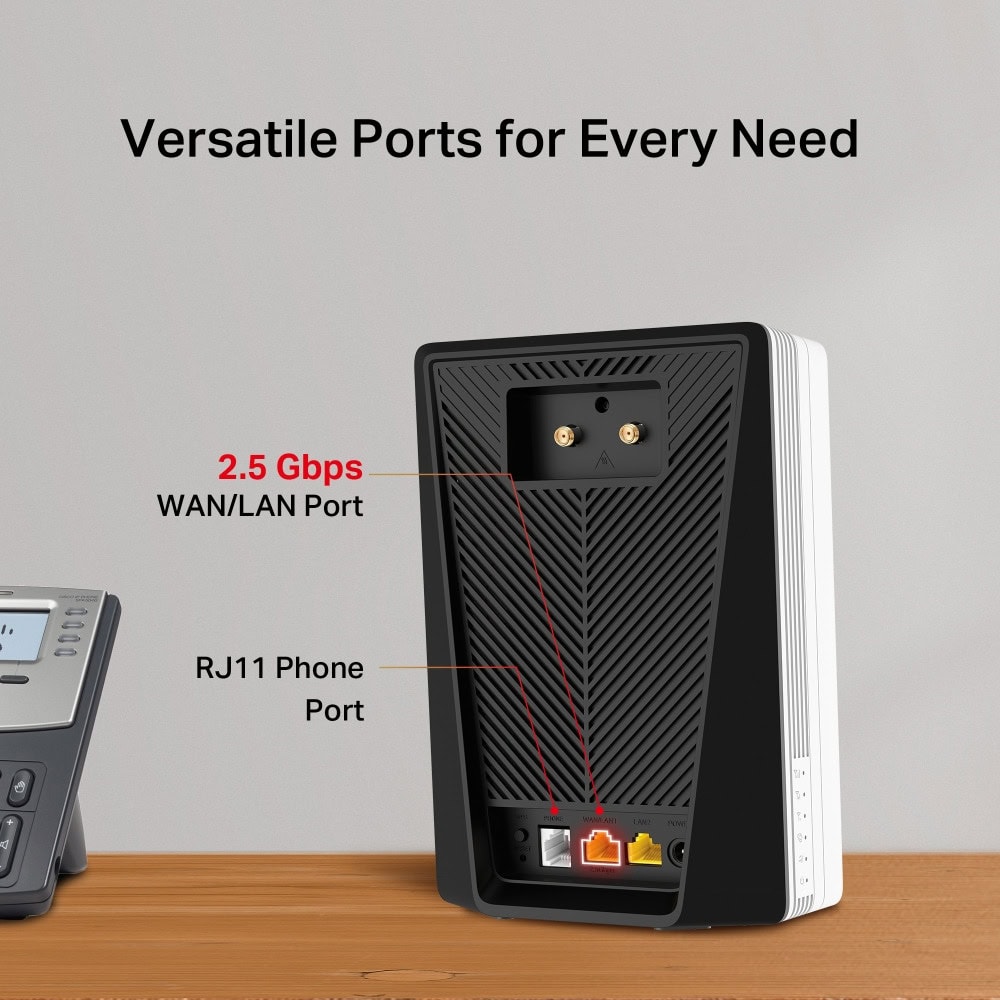

- 2.5 Gbps WAN/LAN Port – Plug an Ethernet cable into the WAN/LAN port for flexible access if you can't get a 5G connection.*

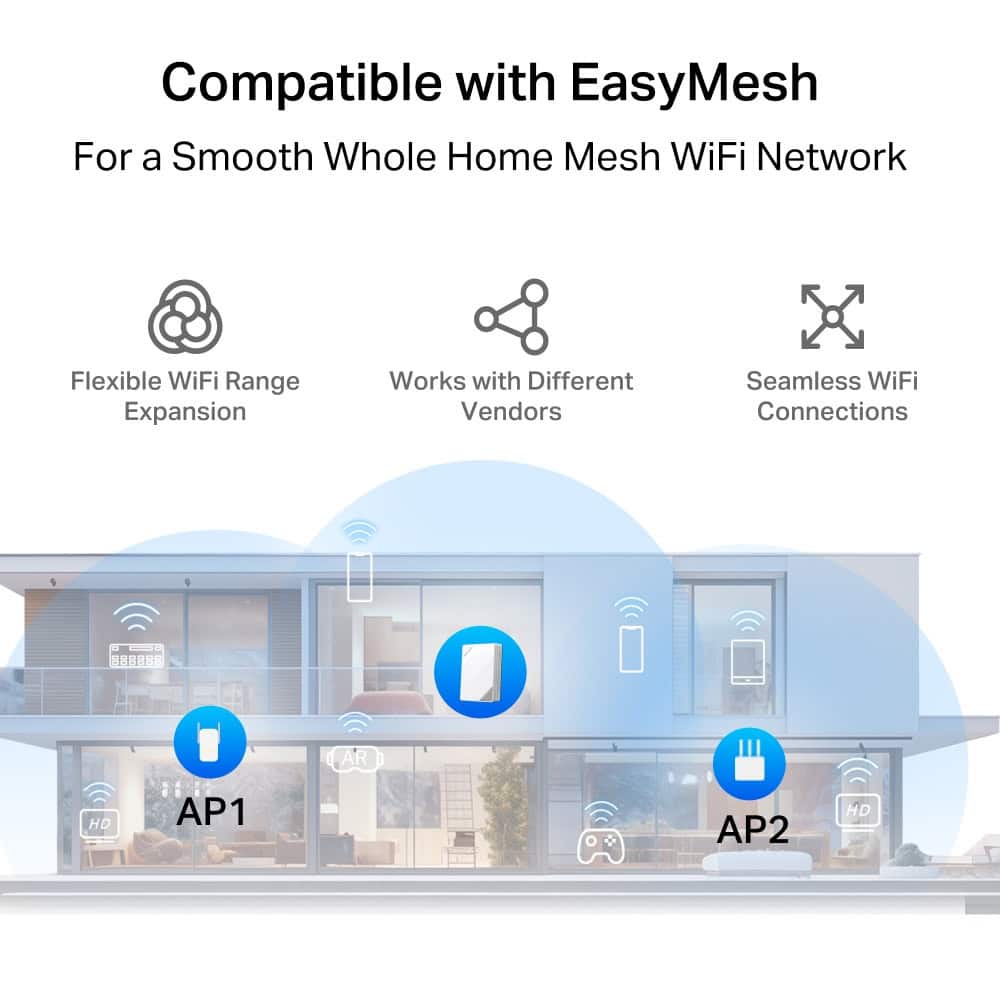

- EasyMesh-Compatible – Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
- High-Quality Telephony – Features a phone port for landline use, enabling simultaneous calling and internet access via VoLTE.
- Easy App Control – The MERCUSYS app helps you set up in minutes. Manage your WiFi at home or away through your iOS or Android devices.
5G Cellular Networks - Pioneering the Next Wave of Innovation
With massive MIMO, optimized OFDM, and more, 5G technology delivers higher multi-Gig peak data speeds, ultra low latency, more reliability, and increased network capacity. Join the pros and experience the sheer performance of next-gen cellular networks.
Superior 5G Speed and WiFi 6 for Reliable WiFi
Working as a 5G router, MB520-5G effortlessly converts a 5G/4G signal into WiFi and share it with multiple devices. Whether you're streaming, gaming, or attending video conferences, enjoy a seamless and uninterrupted online experience!
Unmatched Convenience and Versatility
Ideal for homes without fiber, this device offers fast, stable WiFi with no rewiring required. No need for professional installation teams. Just insert a SIM card and power on. Perfect for both home and remote work setups.
| Category | Specification |
|---|---|
| Wireless | |
| Network Type (EU) | 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz) FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| Wi-Fi Class | AX3000 |
| Wi-Fi (2.4 GHz) | 574 Mbps |
| Wi-Fi (5 GHz) | 2402 Mbps |
| Frequency | 2.4 GHz, 5 GHz |
| Wireless Standards | IEEE 802.11 ax/ac/a/b/g/n |
| Reception Sensitivity | 5 GHz:11ax HE20: -64 dBm11ax HE40: -61 dBm11ax HE80: -59 dBm11ax HE160: -56 dBm11ac VHT20: -70 dBm11ac VHT40: -67 dBm11ac VHT80: -64 dBm 2.4 GHz:11ax HE20: -66 dBm11ax HE40: -62 dBm11ac VHT20: -71 dBm11ac VHT40: -67 dBm |
| Transmission Power | 2.4 GHz < 20 dBm (EIRP)5 GHz band 1, 2 < 23 dBm (EIRP)5 GHz band 3 < 30 dBm (EIRP) |
| Wireless Security | WPA-PSK / WPA2-PSK / WPA3-SAE |
| Wireless Functions | Smart Connect, WPS, Wireless Schedule, Wireless Clients Statistics, EasyMesh, Multi-SSID |
| Hardware | |
| Dimensions | 190 × 130 × 69.7 mm (7.5 × 5.1 × 2.7 in) |

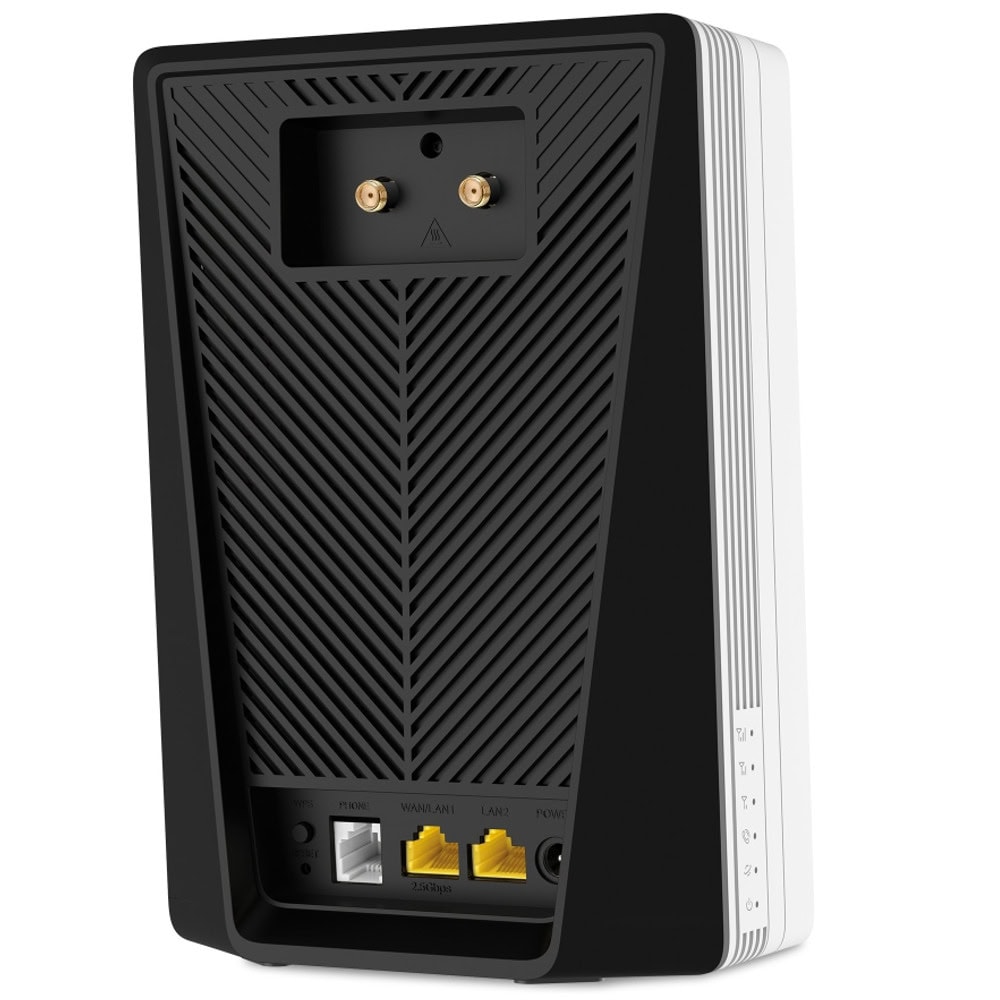

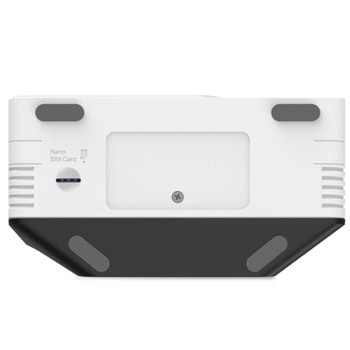

| Interfaces | 1× 2.5 Gbps LAN/WAN Port 1× Gigabit LAN Port 1× RJ11 Phone Port 2× 5G/4G External Antenna Ports 1× Nano SIM Card Slot |
| Antenna | Internal |
| Button | WPS, Reset Button |
| External Power Supply | 12 V / 2 A |
| LED Indicators | 1× Power, 1× Internet, 1× Phone, 3× Signal |
| NR Standard | 4.67 / 1.25 Gbps DL/UL |
| LTE Standard | Cat 19 (1.6 Gbps/200 Mbps DL/UL) |
| Software | |
| Operation Mode | 5G/4G/3G Router, Wireless Router |
| Cellular Mode | 5G Preferred, 5G Only, 4G Preferred, 4G Only, 3G Only |
| Cellular APN Functions | Data Roaming, Network Search, Band Search, Profile Create, APN Settings, ISP File Upgrade, PIN Management |
| WAN Mode | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| NAT Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Protocols | IPv4, IPv6 |
| Data Settings | Data Statistics, Data Limit |
| Parental Controls | Time Control, Website Filtering |
| Guest Network | 2.4 GHz Guest Network, 5 GHz Guest Network |
| DHCP | Server, DHCP Client List, Address Reservation |
| DDNS | DynDNS, NO-IP |
| VPN Server | OpenVPN, PPTP VPN, IPSec VPN |
| SMS | Inbox, New Message, Outbox, Drafts |
| QoS | Supported (√) |
| Security | IPv4 SPI Firewall, Service Filtering, Access Control, IP & MAC Binding, IPv6 Firewall |
| System Settings | Time Settings, LED Control, Diagnostics, Firmware Upgrade, Backup & Restore, Reboot Schedule, Administration, System Log, Traffic Statistics |
| Device Management | MERCUSYS App, Web GUI |
| System Language | Czech, Danish, English, Spanish, French, Italian, Polish, Romanian, Russian, Turkish, Hungarian, Indonesian, Chinese (Taiwan) |
Виж още Рутери Безжични Mercusys
Виж всички Рутери Безжични в категорията
Технически характеристики
| Безжична скорост: | 3000 Mbps |
|---|---|
| Wi-Fi Стандарт: | Wi-Fi 6 (802.11ax) |
| LAN портове: | 1 x 2500 Mbps |
| WAN портове: | 1 x 2500 Mbps |
| Честота: | 2.4 + 5 GHz |
| Антени: | 2 Външни |
| USB портове: | Няма |
| 3G/4G: | 5G |
| Преносим: | Не |
| Други: | Няма |
| Жична скорост: | 10/100/1000/2500 Mbps |
Добави Ревю / Въпрос
Оцени продукта или задай въпрос?
- 5
0 ревюта
- 4
0 ревюта
- 3
0 ревюта
- 2
0 ревюта
- 1
0 ревюта
Въпроси
Georgi N******
2025-12-08
Здравейте,
В описанието пише 2 слота за външни антени, на снимката се виждат, но в техн. характеристики не са описани конекторите. Ако може да потвърдите, дали има SMA портове? Благодаря!
(0)
+ Добави отговор
JAR Computers
2025-12-08
Здравейте, продукта се предлага без външни антени.
