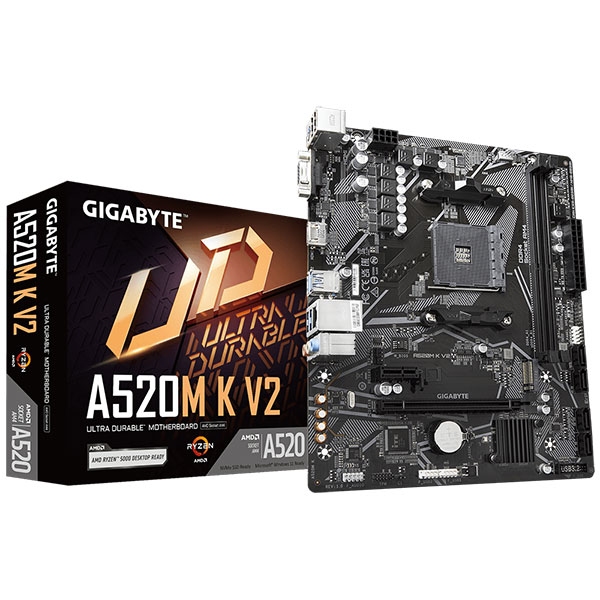

MB GB A520M K V2, HDMI/VGA, 2xD4, 1xM.2
Икона нов продукт
empty image 1empty image 2empty image 3

MB GB A520M K V2, HDMI/VGA, 2xD4, 1xM.2

id s4715609
  • Марка: Gigabyte
  • Наличност: Не е наличен
    Продукта вече не се предлага Виж подобни предложения Абонирай се за бюлетина
    Описание
    {
    AMD A520 Ultra Durable Motherboard with GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5, Anti-Sulfur Resistors Design

    • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors​
    • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs​
    • PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support​
    • GbE LAN with Bandwidth Management​
    • 8-Channel HD Audio with High Quality Audio Capacitors​
    • Rear HDMI and D-sub for Multi-display Support
    • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​
    • GIGABYTE APP Center, Simple and Easy Use​​
    • CPU
      1. AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. AMD A520
    • Memory
      1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
      2. Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
      3. Dual channel memory architecture
      4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      6. Support for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
      Integrated Graphics Processor:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
      Maximum shared memory of 16 GB
    • Audio
      1. Realtek® Audio CODEC
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    • LAN
      1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
    • Expansion Slots
      CPU:
      1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
      Chipset:
      1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    • Storage Interface
      CPU:
      1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
      Chipset:
      1. 4 x SATA 6Gb/s connectors
      Support for RAID 0, RAID 1, and RAID 10
    • USB
      CPU:
      1. 4 x USB 3.2 Gen 1 ports on the back panel
      Chipset:
      1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
      2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x CPU fan header
      4. 1 x system fan header
      5. 1 x M.2 Socket 3 connector
      6. 4 x SATA 6Gb/s connectors
      7. 1 x front panel header
      8. 1 x front panel audio header
      9. 1 x USB 3.2 Gen 1 header
      10. 2 x USB 2.0/1.1 headers
      11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
      12. 1 x speaker header
      13. 1 x Clear CMOS jumper
      14. 1 x chassis intrusion header
    • Back Panel Connectors
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x HDMI port
      4. 4 x USB 3.2 Gen 1 ports
      5. 2 x USB 2.0/1.1 ports
      6. 1 x RJ-45 port
      7. 3 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Fan fail warning
      5. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        @BIOS
        EasyTune
        Smart Backup
        System Information Viewer
      2. Support for Q-Flash
      3. Support for Xpress Install
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. LAN bandwidth management software
    • Operating System
      1. Support for Windows 11 64-bit
      2. Support for Windows 10 64-bit
    • Form Factor
      1. Micro ATX Form Factor; 23.3cm x 19.8cm



    }
