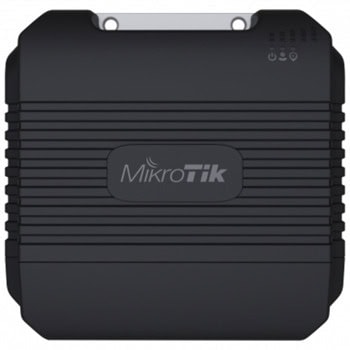

Точка за достъп Mikrotik LtAP LtAP-2Hnd&FG621-EA

Описание Характеристики Ревюта / Въпроси

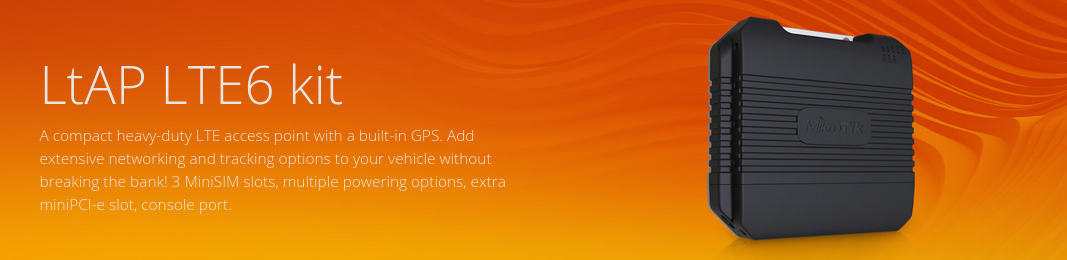

Mikrotik LtAP LTE6 kitrc

In a world where connectivity knows no boundaries, and the roughest terrain meets the need for reliable networks, affordable location tracking, and other extensive features, one device stands out: the LtAP LTE6 kit! It is a compact wireless access point with built-in GPS in our most durable weatherproof case ever.

Perfect for logistics and tracking

There are 3 MiniSIM slots – you can use them to set up automatic roaming, switching the mobile operators as you cross the border. The device features two internal LTE antennas, but you can use the U.FL connectors to add external antennas of your choice for even better coverage. The same principle goes for the GPS – you need an external antenna via SMA.

The power options are as flexible as it gets. You have the classic DC jack, passive PoE-in, and an automotive connector. We have even seen users powering the LtAP with a 20 000 mAh power bank throughout the day!

Customize – and achieve even more!

LtAP LTE6 kit comes with two miniPCI-e slots. One of these slots is reserved by the LTE modem, while the other one can be used as an expansion slot. You could add a 5 GHz interface, for example. Or a second LTE modem – for redundancy. It’s your call, adapt the LtAP to your needs!

Our latest Cat6 LTE modem – cut costs, not speed

This LtAP features a brand new Category 6 LTE modem – the same modem you’ve seen in our bestselling Chateau ax series. It supports a variety of popular LTE frequencies, like the B28 band. You can reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT6 allows devices to use two bands simultaneously. That is a huge advantage in areas with many LTE users. LtAP LTE6 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation.

Specifications:

Details
Architecture	MMIPS
CPU	MT7621AT
CPU core count	2
CPU nominal frequency	880 MHz
CPU Threads count	4
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes

Powering

Details
Number of DC inputs	3 (DC jack, Automotive, PoE-IN)
DC jack input Voltage	12-30 V
Automotive input Voltage	12-27 V
Max power consumption	24 W
Max power consumption without attachments	12 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	12-30 V

Mobile

Details
3G Category	R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
3G bands	1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category	6 (300Mbit/s Downlink, 50Mbit/s Uplink)
MIMO DL	2x2
MIMO UL	1x1
LTE FDD bands	8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz)
LTE TDD bands	38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
TAC	86335904

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	2.5
Wireless 2.4 GHz chip model	AR9342
Wireless 2.4 GHz generation	Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports	1

Peripherals

Details
Number of SIM slots	3 Modem (Mini SIM)
MiniPCI-e slots	2
Serial console port	RS232
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
GNSS standards	GPS

12 месеца за юридически, 24 месеца за физически лица
Виж още Аксеспойнт/Репитер Безжични MikroTik
Виж всички Аксеспойнт/Репитер Безжични в категорията

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За външен монтаж
Безжична скорост:	300 Mbps
Wi-Fi Стандарт:	Wi-Fi 4 (802.11n)
Честота:	2.4 GHz
Антени:	1 Вътрешна
dBi на антена/и:	2.5
PoE:	In
Интерфейс:	1x 1000
Други:	LTE
