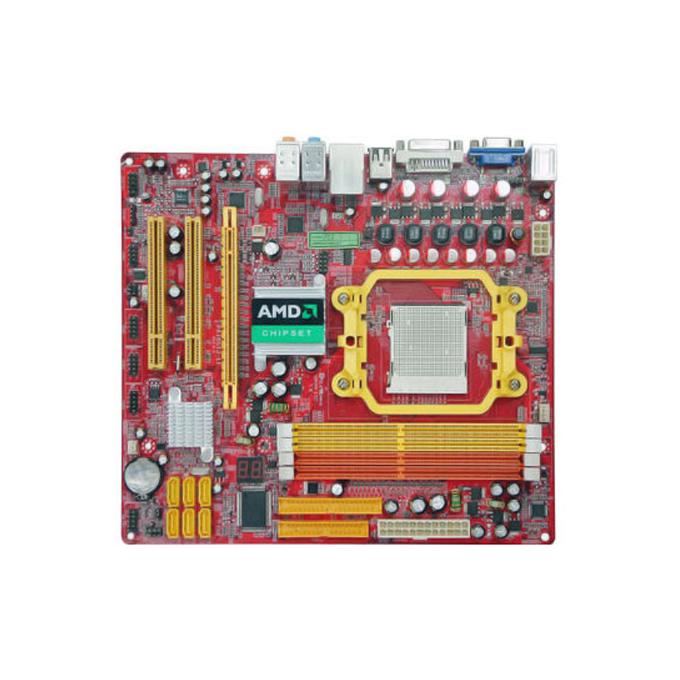

Jetway PA78GT3-DG
CPU
Socket AM2+ HT3.0 AMD Phenom With HyperTransport Technology
Compatible with 64-bit Dual Core AMD® Athlon64 X2 Processor
Chipset
AMD 780G Chipset + AMDSB700 Chipset
Memory
4 * 240-pin DIMM Sockets for unbuffered Dual DDR2 800 SDRAM up to 8 GB
Expansion Slots
2* 32-bit PCI Slots / 1 * PCI EXPRESS x16
Storage
2 * Ultra DMA 133 / 100 / 66 IDE Devices Support
Embedded AMDSB700 Southbridge Chipset Supports 6 Serial ATA2 HDDs with RAID 0, 1 Functions
Audio
Realtek ALC883 8-Channel HD Audio CODEC
Ethernet LAN
Marvell 88E8056 PCI Express Gigabit NIC
USB
Embedded 10 * High Speed USB @ 480 Mbit / s
Special Features
Advanced Power Design that supports the latest Socket-AM2 + K10 CPU
Rear Panel I / O
4 * High Speed USB Connectors @ 480 Mbit / s
1 * PS / 2 Mouse & 1 * PS/2 Keyboard
1 * D-Sub 15-pin Connector & 1 * DVI Connector
1 * RJ45 Over USB2.0 Connector
1 * Audio I / O
Internal I / O
3 * High Speed USB Connectors @ 480 Mbit / s for 6 USB 2.0 Ports
CPU / Chassis Fan Connectors
1 * 12V 8-pin ATX Power Connector and 1 * 24-pin ATX Power Connector
1 * Serial Port of 9-pin Block
CD / AUX Audio in
1 * Floppy Connector
SPDIF header
BIOS
Award 8MB SPI Flash ROM
Form Factor
Micro ATX Form Factor
