Дънна платка за сървър Intel W2600CR2L, LGA2011 (до 150W), поддържа ECC DDR3, 4x PCI-E 3.0 x16, 2x Lan1000, Software RAID

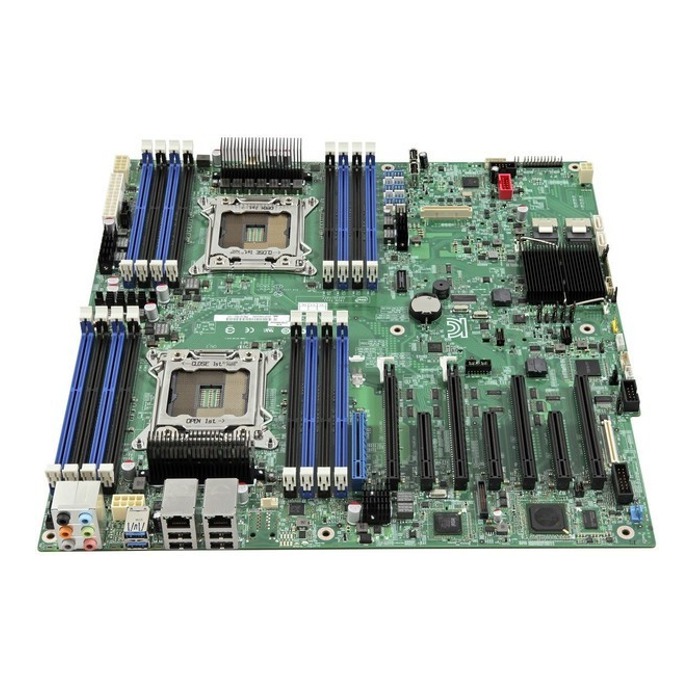

Intel Workstation Board W2600CR2L

# of QPI Links 2
Compatible Product Series Intel® Xeon® Processor E5-2600 Series
Board Form Factor Custom 14.2" x 15"
Chassis Form Factor Pedestal
Socket Socket R
Integrated Systems Available Yes
Integrated BMC with IPMI IPMI 2.0
Rack-Friendly Board No
Embedded Options Available No
Max TDP 150 W
Included Items (1)General Purpose Intel® Workstation Board W2600CR2L supporting 16 DIMMs with two 1Gb Ethernet ports, and 9 I/O slots supporting up to 4 GPUs.
Board Chipset Intel® C602 Chipset (Intel® BD82C602 PCH)
Description Intel® Workstation Board W2600CR2L supports 2x E5-2600 CPUs, 16 DIMMs, 2x 1GbE ports, 10 I/O slots supports up to 4 double width cards (x16), a x4 (in x8 slot) and a SAS connector (x8), plus up to 8 SCU ports and 2 SATA3 ports. See TPS for details.

Memory Specifications

Max Memory Size (dependent on memory type) 512 GB
Memory Types DDR3 ECC UDIMM 1600, RDIMM 1600, LRDIMM 1333
# of Memory Channels 8
Max Memory Bandwidth 819 GB/s
Physical Address Extensions 40-bit
# of DIMMs 16
ECC Memory Supported ‡ Yes

Graphics Specifications

Integrated Graphics ‡ Yes
Graphics Output 15-pin VGA
Discrete Graphics Supported

Expansion Options

PCI Express Revision 2.0 and 3.0
PCIe x16 Gen 3 4
PCIe x4 Gen 2.x 1
Connector for Intel® I/O Expansion Module 1

I/O Specifications
USB Revision USB 2.0, USB 3.0
# of USB Ports 8
Total # of SATA Ports 10
RAID Configuration Up to SW Raid 5 (LSI RSTE)
# of Serial Ports 1
# of LAN Ports 2
Integrated LAN 2x 1GbE
Firewire 1394b
Embedded USB (eUSB) Solid State Drive Option Yes
Integrated SAS Ports 8

Package Specifications

Max CPU Configuration 2
Low Halogen Options Available See MDDS

Advanced Technologies

Intel® Remote Management Module Support TRUE
Intel® Node Manager Yes
TPM Version 1.2
Intel® Quick Resume Technology No
Intel® Quiet System Technology No
Intel® HD Audio Technology Yes
Intel® Matrix Storage Technology Yes
Intel® Fast Memory Access Yes
Intel® Flex Memory Access Yes
Intel® I/O Acceleration Technology TRUE

Intel® Data Protection Technology

AES New Instructions Yes

Intel® Platform Protection Technology

Trusted Execution Technology ‡ Yes
