Дънна платка за сървър Intel S2600CP4, LGA2011(до 135W), поддържа ECC DDR3, 1x PCI-E 3.0 x16, 4x LAN1000, Software RAID 5, SSI EEB

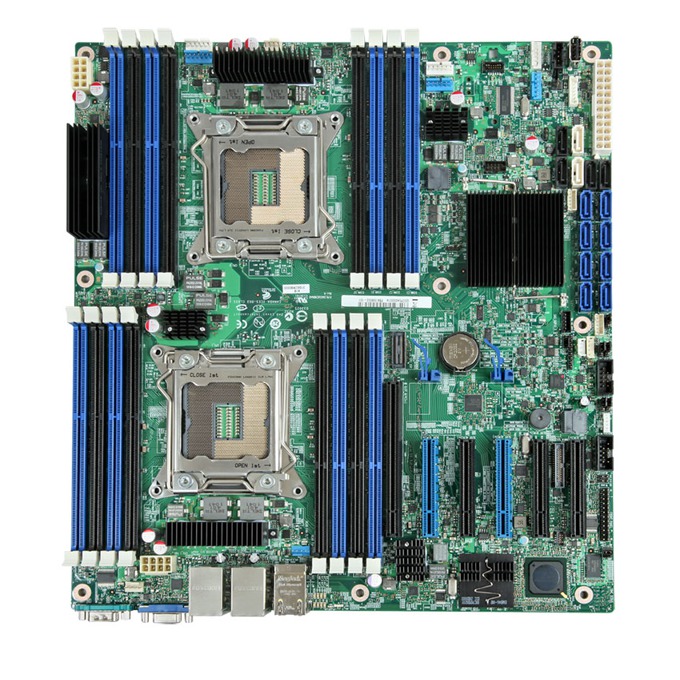

Intel Server Board S2600CP4

# of QPI Links 2
Compatible Product Series Intel® Xeon® Processor E5-2600 Product Family & Intel® Xeon® Processor E5-2600 v2 Product Family
Board Form Factor SSI EEB 12" x 13"
Chassis Form Factor 4U Rack or Pedestal
Socket Socket R
Integrated Systems Available Yes
Integrated BMC with IPMI IPMI 2.0
Rack-Friendly Board Yes
Embedded Options Available Yes
Max TDP 135 W
Included Items (1) Intel® Server Board S2600CP4. Also available in a 10-pack, 5-pack, or integrated in a system. The 5-pack also includes (5) DVDs and (5) Quick Start Guides.
Board Chipset Intel® C602 Chipset (Intel® BD82C602 PCH)
Description A mainstream server board supporting two Intel® Xeon® processor E5-2600,16 DIMMs, four 1Gb Ethernet ports, six x8 electrical PCIe Gen3 IO slots, up to 8 SCU ports plus 2 SATA 6Gb ports and 4 SATA 3Gb ports with storage activation key.

Memory Specifications

Max Memory Size (dependent on memory type) 512 GB
Memory Types DDR3 ECC UDIMM 1333, 1600/ RDIMM 1066,1333,1600,1866/ LRDIMM 1333, 1600, 1866
# of Memory Channels 8
Max Memory Bandwidth 119.5 GB/s
Physical Address Extensions 46-bit
# of DIMMs 16
ECC Memory Supported ‡ Yes

Graphics Specifications

Integrated Graphics ‡ Yes
Graphics Output VGA
Discrete Graphics Supported

Expansion Options

PCI Express Revision 3.0
Max # of PCI Express Lanes 48
PCIe x8 Gen 3 5
PCIe x16 Gen 3 1

I/O Specifications

USB Revision 2.0
# of USB Ports 5
Total # of SATA Ports 14
RAID Configuration Up to SW Raid 5 (LSI + RSTE)
# of Serial Ports 2
# of LAN Ports 4
Integrated LAN 4x 1GbE
Firewire Yes
Embedded USB (eUSB) Solid State Drive Option Yes
Integrated SAS Ports 8
Integrated InfiniBand* No

Package Specifications

Max CPU Configuration 2
Low Halogen Options Available See MDDS

Advanced Technologies

Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Remote Management Module Support Yes
Intel® Node Manager Yes
TPM Version 1.2
Intel® Quick Resume Technology No
Intel® Quiet System Technology No
Intel® HD Audio Technology No
Intel® Matrix Storage Technology No
Intel® Rapid Storage Technology No
Intel® Rapid Storage Technology enterprise Yes
Intel® Fast Memory Access Yes
Intel® Flex Memory Access Yes
Intel® I/O Acceleration Technology Yes
Intel® Advanced Management Technology Yes
Intel® Server Customization Technology Yes
Intel® Build Assurance Technology Yes
Intel® Efficient Power Technology Yes
Intel® Quiet Thermal Technology Yes

Intel® Data Protection Technology

AES New Instructions Yes

Intel® Platform Protection Technology

Trusted Execution Technology ‡ Yes
