Дънна платка за сървър Intel S2600COE, LGA2011 (до 150W), поддържа ECC DDR3, 4x PCI-E 3.0 x16, 4x Lan1000, Software RAID, SSI EEB

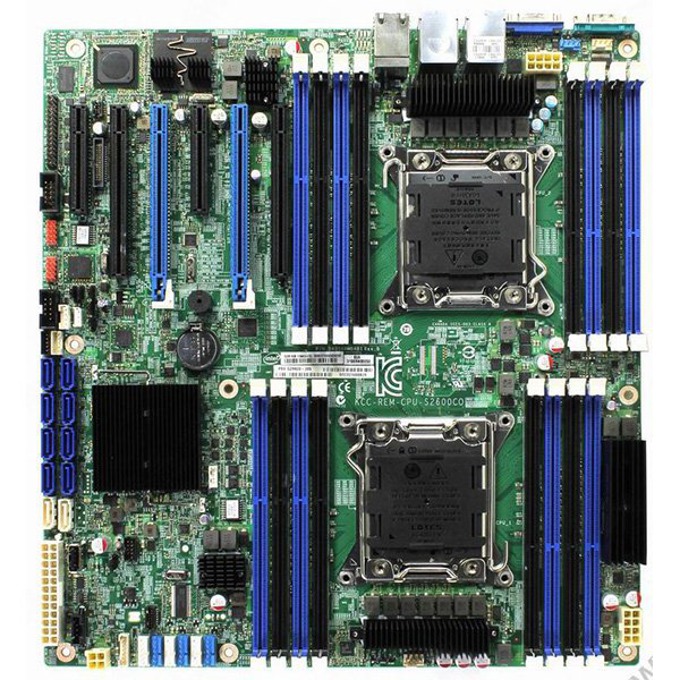

Intel Server Board S2600COE

# of QPI Links 2
Compatible Product Series Intel® Xeon® Processor E5-2600 Product Family & Intel® Xeon® Processor E5-2600 v2 Product Family
Board Form Factor SSI EEB 12" x 13"
Chassis Form Factor 4U Rack or Pedestal
Socket Socket R
Integrated Systems Available No
Integrated BMC with IPMI IPMI 2.0
Rack-Friendly Board Yes
Embedded Options Available Yes
Max TDP 150 W
Included Items (1) Intel® Server Board S2600COE and Attention document. Below items are included In Disti 5 Pack ony: I/O shield, cables, configuration labels, Intel® Server Deployment & Management DVD, Quick Start User’s Guide.
Board Chipset Intel® C602 Chipset (Intel® BD82C602 PCH)
Description Extreme Server supporting two Intel® Xeon® processor E5-2600 family up to 150W and 16 DIMMs with four 1Gb Ethernet ports and Firewire.

Memory Specifications

Max Memory Size (dependent on memory type) 512 GB
Memory Types DDR3 ECC UDIMM 1333, 1600/ RDIMM 1066,1333,1600,1866/ LRDIMM 1333, 1600, 1866
# of Memory Channels 8
Max Memory Bandwidth 119.5 GB/s
Physical Address Extensions 46-bit
# of DIMMs 16
ECC Memory Supported ‡ Yes

Graphics Specifications

Integrated Graphics ‡ Yes
Graphics Output VGA
Discrete Graphics Supported

Expansion Options

PCI Express Revision 3.0
Max # of PCI Express Lanes 84
PCIe x8 Gen 3 1
PCIe x16 Gen 3 4
PCIe x4 Gen 2.x 1

I/O Specifications

USB Revision 2.0
# of USB Ports 5
Total # of SATA Ports 10
RAID Configuration Up to SW Raid 5 (LSI + RSTE)
# of Serial Ports 2
# of LAN Ports 4
Integrated LAN 4x 1GbE
Firewire Yes
Embedded USB (eUSB) Solid State Drive Option Yes
Integrated SAS Ports 8
Integrated InfiniBand* No

Package Specifications

Max CPU Configuration 2
Low Halogen Options Available See MDDS

Advanced Technologies

Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Remote Management Module Support Yes
Intel® Node Manager Yes
TPM Version 1.2
Intel® Quick Resume Technology No
Intel® Quiet System Technology No
Intel® HD Audio Technology No
Intel® Matrix Storage Technology No
Intel® Rapid Storage Technology No
Intel® Rapid Storage Technology enterprise Yes
Intel® Fast Memory Access Yes
Intel® Flex Memory Access Yes
Intel® I/O Acceleration Technology Yes
Intel® Advanced Management Technology Yes
Intel® Server Customization Technology Yes
Intel® Build Assurance Technology Yes
Intel® Efficient Power Technology Yes
Intel® Quiet Thermal Technology Yes

Intel® Data Protection Technology

AES New Instructions Yes

Intel® Platform Protection Technology

Trusted Execution Technology ‡ Yes
