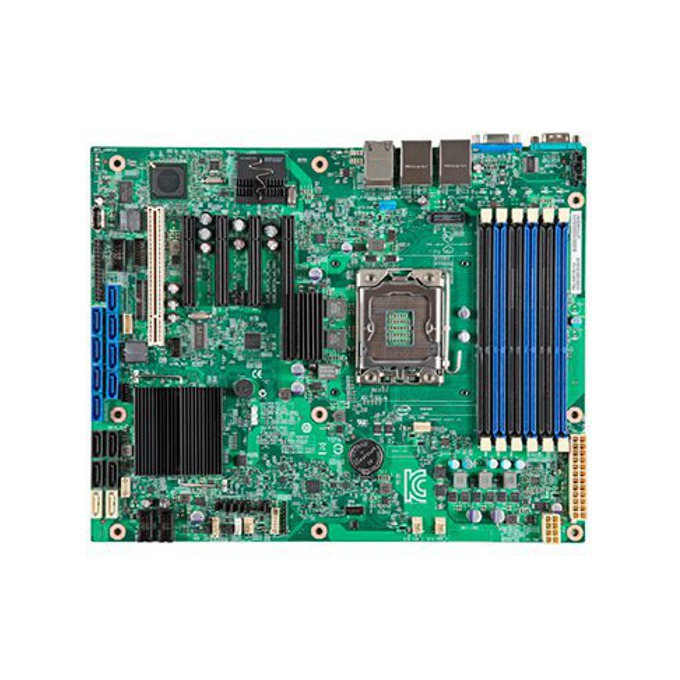

Дънна платка за сървър Intel S1400FP4, LGA1356 (до 95W), поддържа ECC DDR3, PCI-E 3.0 x16, 4x Lan1000, Software RAID (0,1,10,5), SSI ATX

Intel Server Board S1400FP4

# of QPI Links 1
Compatible Product Series Intel® Xeon® Processor E5-2400 Product Family & Intel® Xeon® Processor E5-2400 v2 Product Family
Board Form Factor SSI ATX 12" X 9.6"
Chassis Form Factor 4U Rack or Pedestal
Socket Socket B2
Integrated Systems Available Yes
Integrated BMC with IPMI IPMI 2.0
Rack-Friendly Board Yes
Embedded Options Available No
Max TDP 95 W
Included Items (1) Intel® Server Board S1400FP4, (1) I/O Shield, (2) SATA cables, (1) DVD contains Intel® Multi-Server Manager Software and Intel® Deployment Assistant, and (1) Quick Start Guide.
Board Chipset Intel® C602 Chipset (Intel® BD82C602 PCH)
Description A mainstream one socket board supporting one Intel® Xeon® processor E5-2400 family, six DIMMs, 14 onboard SATA/SAS ports and four NICs.

Memory Specifications

Max Memory Size (dependent on memory type) 96 GB
Memory Types DDR3 ECC UDIMM 1333, 1600/ RDIMM 1333,1600
# of Memory Channels 3
Max Memory Bandwidth 307.2 GB/s
Physical Address Extensions 46-bit
# of DIMMs 6
ECC Memory Supported ‡ Yes

Graphics Specifications

Integrated Graphics ‡ Yes
Graphics Output D-sub
Discrete Graphics Supported

Expansion Options

PCI Express Revision 3.0
PCIe x4 Gen 3 1
PCIe x8 Gen 3 1
PCIe x16 Gen 3 1
Connector for Intel® I/O Expansion Module 1

I/O Specifications

USB Revision 2.0
# of USB Ports 6
Total # of SATA Ports 6
RAID Configuration SW Raid 0/1/10/5 (LSI + RSTE)
# of Serial Ports 2
# of LAN Ports 4
Integrated LAN 4x 1GbE
Firewire No
Embedded USB (eUSB) Solid State Drive Option Yes
Integrated SAS Ports 8
Integrated InfiniBand* No

Package Specifications

Max CPU Configuration 1
Low Halogen Options Available See MDDS

Advanced Technologies

Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Remote Management Module Support Yes
Intel® Node Manager Yes
TPM Version 1.2
Intel® Quick Resume Technology No
Intel® Quiet System Technology No
Intel® HD Audio Technology No
Intel® Matrix Storage Technology No
Intel® Rapid Storage Technology No
Intel® Rapid Storage Technology enterprise Yes
Intel® Fast Memory Access Yes
Intel® Flex Memory Access Yes
Intel® I/O Acceleration Technology Yes
Intel® Advanced Management Technology Yes
Intel® Server Customization Technology No
Intel® Build Assurance Technology No
Intel® Efficient Power Technology Yes
Intel® Quiet Thermal Technology Yes

Intel® Data Protection Technology

AES New Instructions Yes

Intel® Platform Protection Technology

Trusted Execution Technology ‡ Yes
