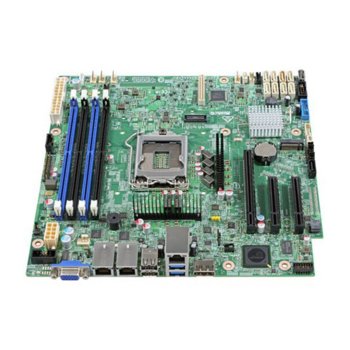

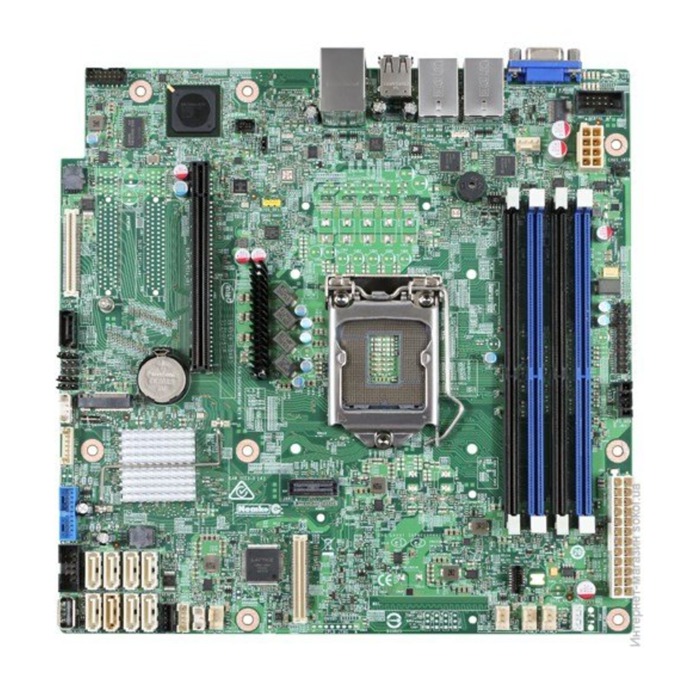

Дънна платка за сървър Intel DBS1200SPL, LGA 1151, поддържа ECC UDIMMs/DDR4 RAM, 2x Lan1000, 8x SATA 6Gb/s RAID (0,1,10,5), 1x M.2 2242, Diplay Port, 2x USB 3.0, uATX

Intel® Server Board S1200SPL
DBS1200SPL

Specifications

-Essentials
# of QPI Links 0
Compatible Product Series Intel® Xeon® Processor E3-1200 v5 Family
Board Form Factor uATX
Chassis Form Factor Pedestal
Socket x1
Integrated Systems Available No
Integrated BMC with IPMI IPMI 2.0
Embedded Options Available No
TDP 80 W
Included Items (1) Server Board; (4) SATA Data Cables; (1) I/O Shield; (1) Attention Document; (1) Quick Start User’s Guide; (1) Quick Configuration Label

Board Chipset (Intel® GL82C236 PCH)

Description
An entry-level single socket board with Intel® C236 chipset supporting one Intel® Xeon® Processor E3-1200 v5 family, 4 UDIMMs, Dual integrated 1GBaseT Ethernet. Supports eight SATA3 ports, M.2 SATA SSD (42mm) and Intel® Integrated RAID Module.
Target Market Small and Medium Business
Additional Information URL Link

-Memory Specifications
Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4 ECC UDIMM
Max # of Memory Channels 2
Max Memory Bandwidth 68.256 GB/s
Physical Address Extensions 40-bit
Max # of DIMMs 4
ECC Memory Supported ‡ Yes
DIMM Type UDIMM

-Graphics Specifications
Integrated Graphics ‡ Yes
Graphics Output Display Port, VGA

-Expansion Options
PCI Express Revision 3.0
Max # of PCI Express Lanes 20
PCIe x4 Gen 3 1
PCIe x8 Gen 3 1
PCIe x16 Gen 3 1
Connector for Intel® I/O Expansion Module x8 Gen 3 1
Connector for Intel® Integrated RAID Module 1

-I/O Specifications
USB Revision 2.0 & 3.0
# of USB Ports 9

Total # of SATA Ports 8
RAID Configuration Software RAID RST (0,1,10,5) and ESRT2 (0,1,10)
# of Serial Ports 1
# of LAN Ports 2

Integrated LAN 2x 1GbE
Embedded USB (eUSB) Solid State Drive Option No
Integrated InfiniBand* No

-Package Specifications
Max CPU Configuration 1
Low Halogen Options Available See MDDS

-Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Remote Management Module Support Yes
Intel® Node Manager Yes
Intel® Rapid Storage Technology enterprise Yes
Intel® I/O Acceleration Technology Yes

-Intel® Platform Protection Technology
Trusted Execution Technology ‡ Yes

-Intel® Transparent Supply Chain
TPM Version 1.2
