Дънна платка за сървър Intel S1200BTLR, LGA1155 (до 95W), поддържа ECC DDR3, 1x PCI-E 3.0 x16, 2x LAN1000, Software RAID RST (0,1,10,5) & ESRT2 (0,1,10), ATX

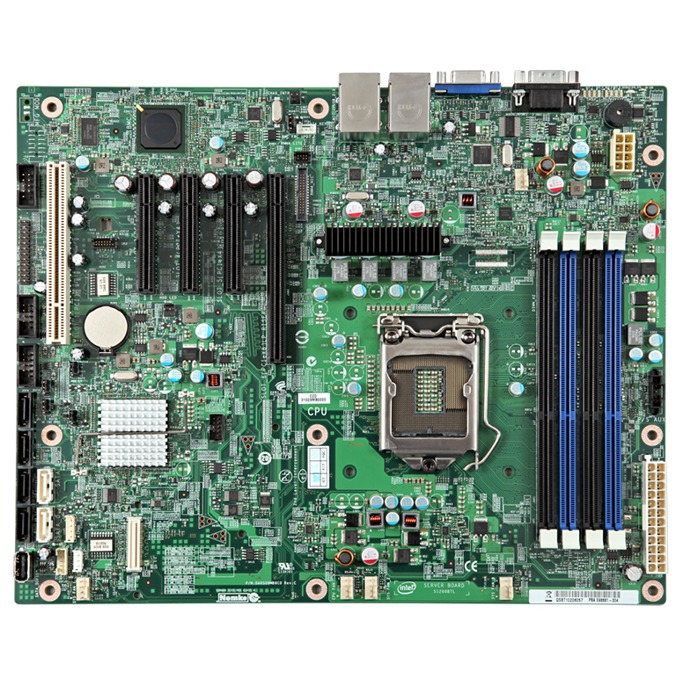

Intel Server Board S1200BTLR

# of QPI Links 1
Compatible Product Series Intel® Xeon® Processor E3-1200/E3-1200 V2 Family; Intel® Core™ i3 2100/i3-3200 Processor Series
Board Form Factor ATX
Chassis Form Factor Rack or Pedestal
Socket LGA1155
Integrated Systems Available Yes
Integrated BMC with IPMI IPMI 2.0
Rack-Friendly Board Yes
Embedded Options Available No
Max TDP 95 W
Included Items (1) Intel® Server Board S1200BTLR and Attention document. Below items are not included in 10 pack sku, but included In Disti 5 Pack only: I/O shield, (4) SATA cables, configuration labels, Intel® Server Deployment & Management DVD, and Quick Start User’s Guide.
Datasheet Link
Board Chipset Intel® C204 Chipset (Intel® BD82C204 PCH)
Description An entry level UP server board for pedestal or rack chassis. This single socket board supports Intel® Xeon® E3-1200 processors and 4 DIMMs, and has the highly integrated single-chip baseboard management controller based on ServerEngines* Pilot III.
Target Market Small Business/1st Server

Memory Specifications

Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3 ECC UDIMM 1333, 1600
# of Memory Channels 2
Max Memory Bandwidth 1600 GB/s
# of DIMMs 4
ECC Memory Supported ‡ Yes

Graphics Specifications

Integrated Graphics ‡ Yes
Graphics Output VGA
Discrete Graphics Supported

Expansion Options

PCI Express Revision 3.0
Max # of PCI Express Lanes 4
PCIe x8 Gen 3 2
PCIe x16 Gen 3 1
PCIe x8 Gen 2.x 1

I/O Specifications

USB Revision 2.0
# of USB Ports 9
Total # of SATA Ports 6
RAID Configuration Intel® RST (0, 1, 10, 5); ESRT2 (0, 1, 10)
# of Serial Ports 2
# of LAN Ports 2
Integrated LAN 2x 1GbE
Firewire No
Embedded USB (eUSB) Solid State Drive Option No
Integrated SAS Ports 0
Integrated InfiniBand* No

Package Specifications

Max CPU Configuration 1
Low Halogen Options Available See MDDS

Advanced Technologies

Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® Remote Management Module Support Yes
Intel® Node Manager Yes
TPM Version 1.2
Intel® Quick Resume Technology No
Intel® Quiet System Technology No
Intel® HD Audio Technology No
Intel® Matrix Storage Technology No
Intel® Rapid Storage Technology Yes
Intel® Rapid Storage Technology enterprise No
Intel® Fast Memory Access No
Intel® Flex Memory Access Yes
Intel® I/O Acceleration Technology No
Intel® Advanced Management Technology No
Intel® Server Customization Technology Yes
Intel® Build Assurance Technology Yes
Intel® Efficient Power Technology No
Intel® Quiet Thermal Technology No

Intel® Data Protection Technology

AES New Instructions Yes

Intel® Platform Protection Technology

Trusted Execution Technology ‡ Yes
