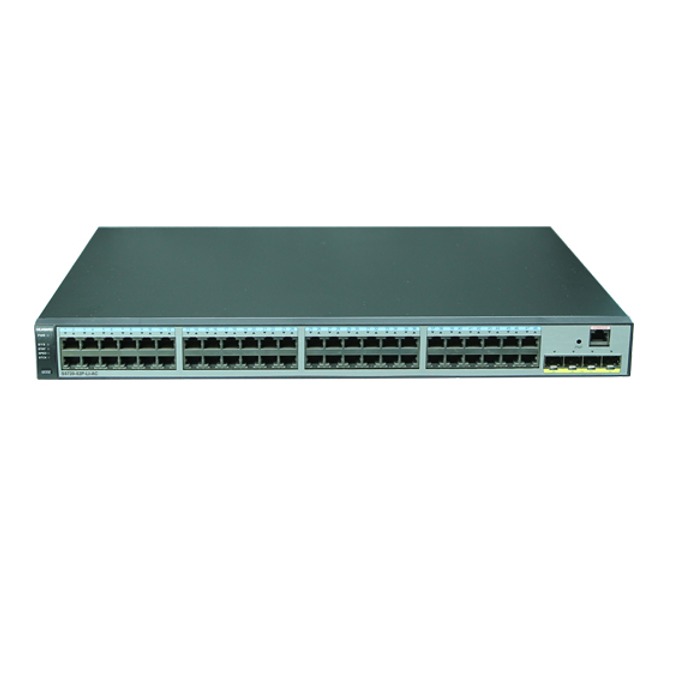

Суич Huawei S5720-52P-LI-AC, 1000Mbps, 48x 10/100/1000Mbps, 4x SFP

Item

Description

Fixed port

48 Ethernet 10/100/1000 ports, 4 Gig SFP ports

Forwarding performance

87 Mpps

MAC address table

Interface-based MAC learning limiting

16K MAC address entries

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

VLAN

4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN Mapping

Wireless AC

AP access control, AP domain management, and AP configuration template
management
Radio management, unified static configuration, and dynamic centralized management
WLAN basic services, QoS, security, and user management
CAPWAP, Tag/terminal location, and spectrum analysis

Jumbo frame

10K

IP routing

Static routes, RIP, RIPng, OSPF

IPv6 features

Neighbor Discovery (ND)

Path maximum transmission unit (PMTU)

IPv6 Ping, IPv6 Tracert, and IPv6 Telnet

ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports
or protocol types

Multicast Listener Discovery (MLD) v1/v2 snooping

Multicast forwarding

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics collection

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Broadcast storm control

Port-based traffic policing and two-rate and three-color CAR

Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms

Weighted random early detection (WRED)

Re-marking of the 802.1p priority and DSCP priority

Packet filtering on Layer 2 to Layer 4, filtering out invalid fr ames based on the source
MAC address, destination MAC address, source IP address, destination IP address,
TCP/UDP source/destination port number, protocol number, and VLAN ID

Rate limiting in each queue and traffic shaping on interfaces

Security features

Hierarchical user management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface number, and VLAN ID of a user

Port isolation, port security, and sticky MAC

MAC Forced Forwarding (MFF)

Blackhole MAC address entries

Limit on the number of learned MAC addresses

IEEE 802.1x authentication and the limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC
SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense; Blacklist and whitelist; MACSec ready; DHCP relay, DHCP server,DHCP snooping DHCPv6 relay, DHCPv6 server, DHCPv6 snooping

Reliability

VRRP,VRRP for BFD,VRRP6

EFM OAM (802.3ah)

CFM OAM (802.1ag)

ITU-Y.1731

DLDP

LACP

Super Virtual Fabric (SVF)

Working as an SVF client that is plug-and-play with zero configuration

Automatically loading the system software package and patches of clients One-click,and automatic delivery of service configurations

Supports independent running client

Management and
Maintenance

iStack

Virtual Cable Test (VCT)

Remote configuration and maintenance using Telnet

SNMPv1/v2c/v3

RMON

web-based NMS

HTTPS

LLDP/LLDP-MED

System logs and multi-level alarms

802.3az EEE

Dying Gasp (S5720-X-LI, S5720-TP-LI series)

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP

Supports VCMP (Similar to VTP)

Operating environment

Operating temperature: 0-1800 m altitude: 0-45℃
1800-5000m altitude: The operating temperature reduces by 1℃ every time the
altitude increases by 220m.
Relative humidity: 5% to 95% (noncondensing)

Input voltage

AC:
Rated voltage range: 100 V to 240 V AC, 50/60 Hz
Maximum voltage range: 90 V to 264 V AC, 50/60 Hz
DC:Rated voltage range: –48 V to –60 V, DC
Maximum voltage range: –36 V to –72 V, DC

Dimensions (mm)

442 (W) x 220 (D)x 43.6 (H)

Typical power consumption

47.3W
