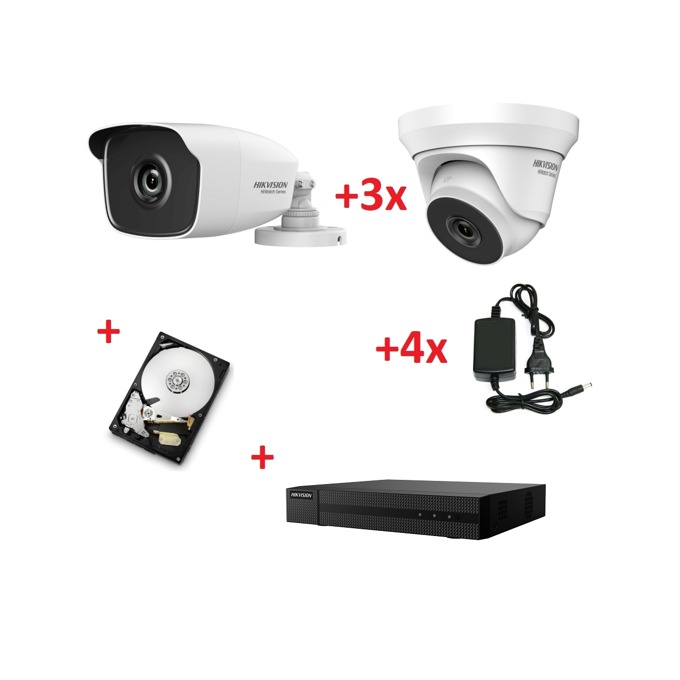

HWT-B240-M
4 MP EXIR Bullet Camera
-
4 MP high-performance CMOS
-
2560 × 1440 resolution
-
2.8 mm, 3.6 mm, 6 mm fixed lens
-
Day/Night switch
-
EXIR 2.0, smart IR, up to 40 m IR distance
-
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
-
IP66
Product properties
|
Camera |
|
|
Appearance |
Bullet |
|
Image Sensor |
4MP CMOS image sensor |
|
Signal System |
PAL/NTSC |
|
Video Frame Rate |
PAL: 1080p@25fps, 4 MP@25fps |
|
Effective Pixels |
2560 (H) × 1440 (V) |
|
Min. illumination |
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
|
Shutter Time |
1/25 (1/30) s to 1/50,000 s |
|
Lens |
2.8 mm, 3.6 mm, 6 mm |
|
Angle of view |
100.2° (2.8 mm), 88° (3.6 mm), 56.9° (6 mm) |
|
Lens Mount |
M12 |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
|
Synchronization |
Internal synchronization |
|
Material |
Metal |
|
Menu |
|
|
AGC |
High/Medium/Low/Off |
|
D/N Mode |
Auto/Color/BW (Black and White) |
|
BLC |
Support |
|
WDR |
DWDR |
|
Language |
English |
|
Functions |
Brightness, Sharpness, DNR, Mirror, Smart IR |
|
Interface |
|
|
Video Output |
1 Analog HD output |
|
Switch Button |
TVI/AHD/CVI/CVBS |
|
General |
|
|
Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) |
|
Power Supply |
12 VDC ±15% |
|
Power Consumption |
Max. 4 W |
|
Protection Level |
IP66 |
|
IR Range |
Up to 40m |
|
Dimensions |
75.4mm × 230.8 mm × 87.2 mm (2.97" ×9.09" × 3.43") |
|
Weight |
545 g (1.20 lb.) |
HWT-T240-M
4 MP EXIR Turret Camera
-
4 MP high-performance CMOS
-
2560 × 1440 resolution
-
2.8 mm, 3.6 mm, 6 mm fixed lens
-
Day/Night switch
-
EXIR 2.0, smart IR, up to 40 m IR distance
-
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
-
IP66
Product properties
|
Camera |
|
|
Appearance |
Turret |
|
Image Sensor |
4 MP CMOS image sensor |
|
Signal System |
PAL/NTSC |
|
Video Frame Rate |
PAL: 1080p@25fps, 4 MP@25fps |
|
Effective Pixels |
2560 (H) × 1440 (V) |
|
Min. illumination |
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
|
Shutter Time |
1/25 (1/30) s to 1/50,000 s |
|
Lens |
2.8 mm, 3.6 mm, 6 mm |
|
Angle of view |
100.2° (2.8 mm), 88° (3.6 mm), 56.9° (6 mm) |
|
Lens Mount |
M12 |
|
Day & Night |
IR cut filter |
|
Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
|
Synchronization |
Internal synchronization |
|
Material |
Metal |
|
Menu |
|
|
AGC |
High/Medium/Low/Off |
|
D/N Mode |
Auto/Color/BW (Black and White) |
|
BLC |
Support |
|
WDR |
DWDR |
|
Language |
English |
|
Functions |
Brightness, Sharpness, DNR, Mirror, Smart IR |
|
Interface |
|
|
Video Output |
1 HD analog output |
|
Switch Button |
TVI/AHD/CVI/CVBS |
|
General |
|
|
Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) |
|
Power Supply |
12 VDC ±15% |
|
Power Consumption |
Max. 4 W |
|
Protection Level |
IP66 |
|
IR Range |
Up to 40 m |
|
Dimensions |
Ø 127.92 mm × 102.26 mm (Ø 5.04" × 4.03") |
|
Weight |
450 g (0.99 lb.) |
HWD-7104MH-G2
HWD-7100MH SERIES TURBO HD DVR
-
5 in 1
-
H.265+
-
Support 5MP resolution input
-
1 HDD
-
Simultaneous HDMI/VGA output at up to 1920×1080 resolution
-
4-ch Analog Video input
Product properties
|
Video/Audio input |
|
|
Video compression |
H.265+/H.265/H.264+/H.264 |
|
Analog video input |
4-ch |
|
HDTVI input |
5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
|
AHD input |
5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
|
HDCVI input |
4 MP, 1080p25, 1080p30, 720p25, 720p30 |
|
CVBS input |
PAL/NTSC |
|
IP video input |
4-ch (up to 8-ch) |
|
Audio compression |
G.711u |
|
Video/Audio output |
|
|
HDMI/VGA output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
Encoding resolution |
5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
|
Main stream Frame rate |
5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
|
Sub-stream Frame Rate |
WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
Video bit rate |
32 Kbps to 10 Mbps |
|
Audio output |
1-ch, RCA (Linear, 1 KΩ) |
|
Audio bit rate |
64 Kbps |
|
Dual stream |
Support |
|
Stream type |
Video, Video & Audio |
|
Synchronous playback |
4-ch |
|
Network management |
|
|
Remote connections |
32 |
|
Network protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
|
Hard disk |
|
|
SATA Interface |
1 SATA interface |
|
Hard Disk Capacity |
Up to 8 TB capacity for each disk |
|
External interface |
|
|
Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input) |
|
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
|
USB interface |
2 × USB 2.0 |
|
General |
|
|
Power supply |
12 VDC |
|
Consumption (without HDD) |
≤ 10 W |
|
Working temperature |
-10 ºC to +55 ºC (+14 ºF to +131 ºF) |
|
Working humidity |
10% to 90% |
|
Dimensions (W × D × H) |
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
|
Weight (without HDD) |
≤1 kg (2.2 lb) |
