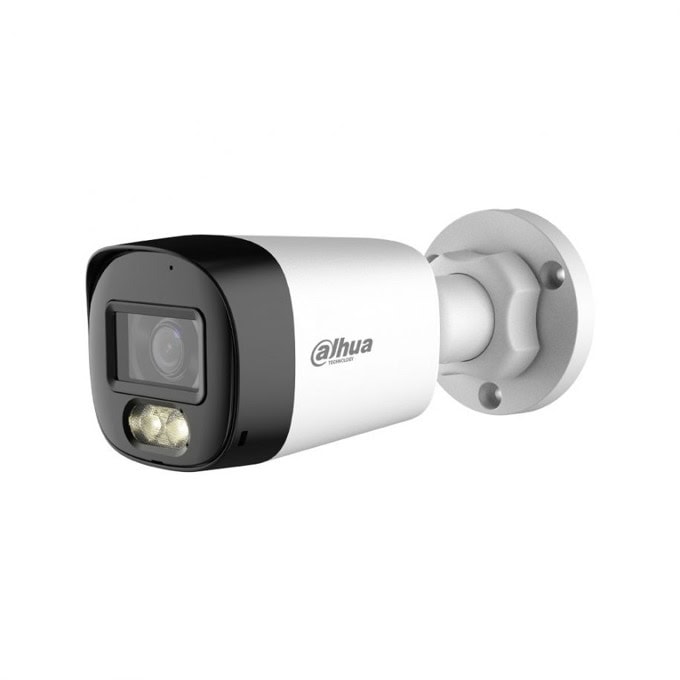

HDCVI камера Dahua DH-HAC-HFW1500RLP-IL-A, насочена "bullet" камера, 5MPix (2880x1620@25fps), 2.8mm обектив, IR осветление (до 30m), външна IP67, вграден микрофон

The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as full-color and starlight, providing various solutions for different scenarios.

Smart Light+

Equipped with advanced LEDs and beam processing technology, the camera effectively reduces interference of stray light, ensuring concentrated illumination within the lens's field of view. This allows the camera to easily produce clear images that reveal the fine details of targets even in low light conditions.


Built-in Mic

Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.


Smart Dual Light

With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution.

Super Adapt

With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.


Advanced 3DNR

Dahua’s advanced 3DNR technology reduces image noise with little to
no impact on image sharpness, especially in poor lighting conditions.
It detects the noise, and compares the sequential frames to effectively
reduce the noise. It also makes efficient use of bandwidth, saving on
storage space.

Protection (IP67, Wide Voltage)

IP67: The camera passed a series of rigorous dust and immersion tests. Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes.
Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios.

Specifications

Camera

Image Sensor 5 MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Scanning System Progressive
Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s
Min. Illumination: 0.05 [email protected] (Color, 30 IRE) ; 0.005 [email protected] (B/W, 30 IRE) ; 0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance IR: 30 m (98.43 ft)
Warm Light: 30 m (98.43 ft)
Illuminator On/Off Control Auto
Illuminator Number 2 (Multi-core light)
Angle Adjustment: Pan: 0°–360° ; Tilt: 0°–90° ; Rotation: 0°–360°

Lens

Lens Type Fixed-focal
Auto Focus No
Lens Mount M12
Focal Length 2.8 mm
Max. Aperture F1.6
Field of View - 2.8 mm: H: 113.3°; V: 62.1°; D: 134.3°
Iris Control Fixed
Close Focus Distance - 2.8 mm: 0.8 m (2.62 ft)

DORI Distance

*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video Frame Rate

CVI: 5M@25 fps; [email protected] fps; 4M@25 fps; 1080p@25 fps
AHD: 4M@25 fps
TVI: 5M 16:9@20 fps
CVBS: 960H
Resolution
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
Day/Night Auto(ICR)/Color/B/W
BLC: BLC; HLC; WDR
WDR: DWDR
White Balance: Auto;Area white balance
Gain Control: Auto
Noise Reduction: 3D NR
Motion Detection: Yes
Illumination Mode: Smart IR&WL; WL Mode; IR Mode
Mirror: Yes
Privacy Masking: Off/On (8 areas, rectangle)

Certification

Certifications CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035

Audio

Built-in Mic: Yes
Camera Audio: CVI; TVI

Port

Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Power

Power Supply: 12 VDC (±30%)
Power Consumption: Max 4.3 W (12 VDC, WLED on)

Environment

Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity: <95% (RH), non-condensing
Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity: <95% (RH), non-condensing
Protection: IP67
Anti-corrosion Level: Basic Protection

Structure

Casing Material Plastic
Product Dimensions 161.6 mm × 70.0 mm × 69.7 mm (6.36" × 2.76" × 2.74") (L × W × H)
Net Weight 0.20 kg (0.44 lb)
Installation Wall mount; ceiling mount; vertical pole mount
