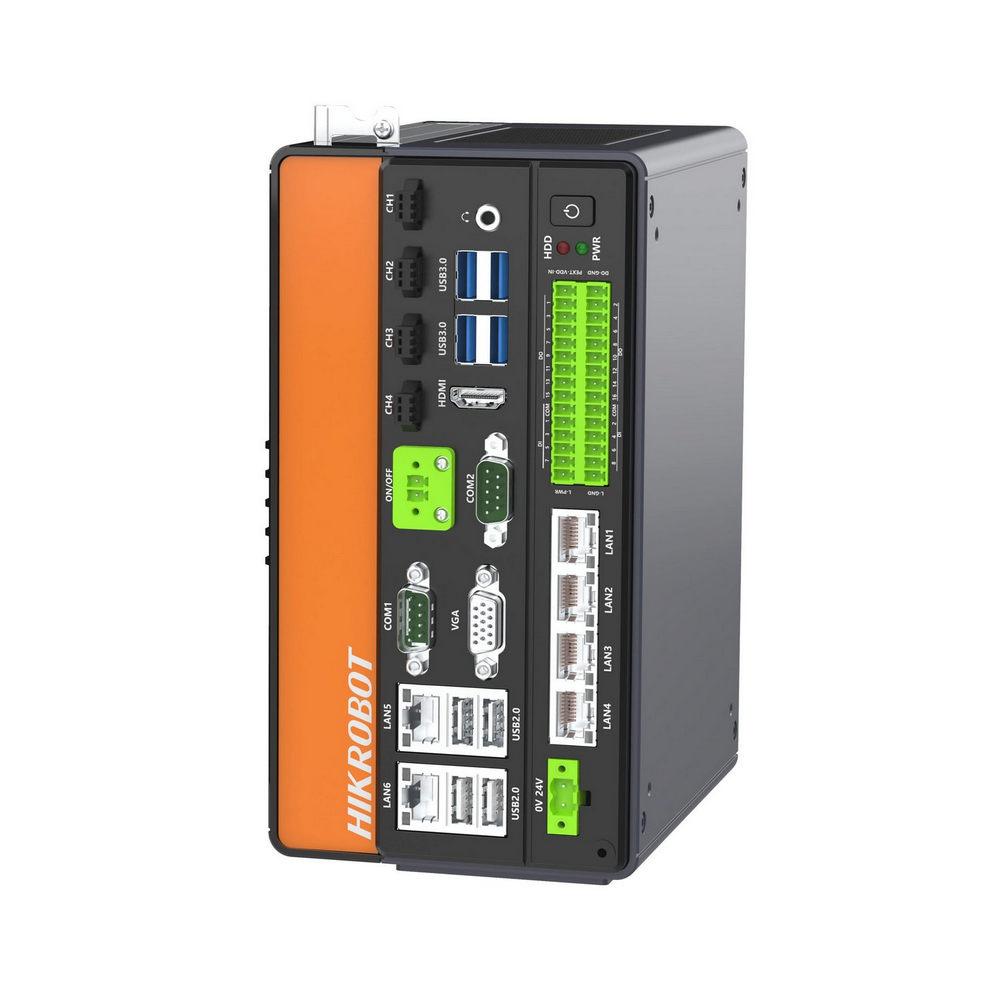

Name: HIKROBOT MV-VC3101H-128G60 :: Vision индустриален PC, 128 GB SSD, 8 GB RAM, G4900 CPU, mSATA×1, SATA×1, Win10 x64
Brand: HIKROBOT
Availability: OutOfStock

Описание

Model	Model	MV-VC3101H-128G60
Model	Name	G4900, 8GB+128G SSD, no POE, support PCIE expansion;
Performance	Processor	Intel® CeleronTM G4900
	Memory	8GB
	Storage	128G SSD
	Graphics Processor	Intel® HD Graphics 610
	Operating System	Windows 10 64-bit, not activated
Encryption	Encryption method	None
External interface	Video output	1 HDMI port, 1 VGA port Support simultaneous independent display output Maximum support 1920 × 1080 @60Hz
	Digital I/O	Support 8-way optocoupler isolation input Support 16-way optocoupler isolation output (support NPN/PNP switching)
	Network interface	6 Intel Network port
	USB port	4 USB2.0 ports 4 USB3.0 ports 1 built-in USB2.0 port
	Serial port	2 full-function RS-232, support RS-485 and RS-422 switching
	Light source interface	4-channel 24 V constant voltage light source drive, single-channel maximum power consumption 72 W, four-channel maximum power consumption 80 W
	Expansion interface	1 PCIE3.0 x16 port
Electrical characteristics	Power supply	24 VDC
Electrical characteristics	Typical power consumption	95 W
Structure	Dimensions	161.4 mm × 208.5 mm × 105.5 mm
	Weight	Approx. 2.1 kg
	Temperature	0 ~ 50 °C
	Humidity	20%~95% RH non-condensing
General Specifications	Certification	CE, KC

Model	Model	MV-VC3101H-128G60
Model	Name	G4900, 8GB+128G SSD, no POE, supports PCIE expansion;
Performance	Processor	Intel® CeleronTM G4900
	Memory	8GB
	Storage	128G SSD
	Graphics Processor	Intel® HD Graphics 610
	Operating System	Windows 10 64-bit, not activated
Encryption	Encryption Method	None
External Interface	Video Output	1 HDMI port, 1 VGA port Supports simultaneous independent display output Maximum support 1920 × 1080 @60Hz
	Digital I/O	Support 8-way optocoupler isolation input Support 16-way optocoupler isolation output (support NPN/PNP switching)
	Network Interface	6 Intel Network port
	USB port	4 USB2.0 ports 4 USB3.0 ports 1 built-in USB2.0 port
	Serial port	2 full-function RS-232, support RS-485 and RS-422 switching
	Light source interface	4-channel 24 V constant voltage light source drive, single-channel maximum power consumption 72 W, four-channel maximum power consumption 80 W
	Expansion interface	1 PCIE3.0 x16 port
Electrical characteristics	Power supply	24 VDC
Electrical characteristics	Typical power consumption	95 W
Structure	Dimensions	161.4 mm × 208.5 mm × 105.5 mm
	Weight	Approx. 2.1 kg
	Temperature	0 ~ 50 °C
	Humidity	20%~95% RH non-condensing
General Specifications	Certification	CE, KC
