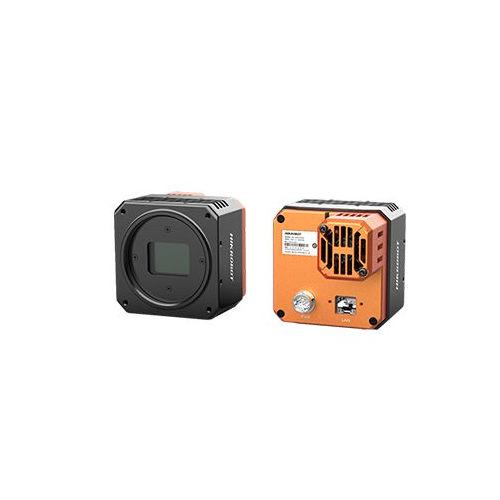

Name: HIKROBOT MV-CH250-60TM-M58S-NF :: Machine-Vision камера, Area Scan, CH Series, 10 Gigabit, 31.7 fps @ 5120×5120, 4.5 μm, M58-mount, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 5120 × 5120, pixel size 4.5 μm × 4.5 μm
Поддържа автоматично или ръчно регулиране на времето на експозиция, ръчно регулиране на усилването, гама корекция, LUT и др.
10 GigE интерфейс, осигуряващ максимално разстояние на предаване от 100 метра
Компактен дизайн с монтажни отвори на панелите за гъвкав монтаж
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH250-60TM-M58S-NF
Model	Type	25MP Area Scan Camera, 10GigE
Performance	Sensor type	CMOS, global shutter
	Pixel size	4.5 μm × 4.5 μm
	Sensor size	23 mm × 23 mm
	Resolution	5120 × 5120
	Max. frame rate	31.7 fps @5120 × 5120 Mono 8
	Dynamic range	66 dB
	SNR	40 dB
	Gain	0 dB to 15.6 dB
	Exposure time	15 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Not support
	Decimation	Not support
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	10GigE
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 15.1 W@12 VDC
Mechanical	Lens mount	M58-mount, flange back focal length: 11.48 mm (0.5")
	Dimension	74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1")
	Weight	Approx. 550 g (1.2 lb)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS, KC
