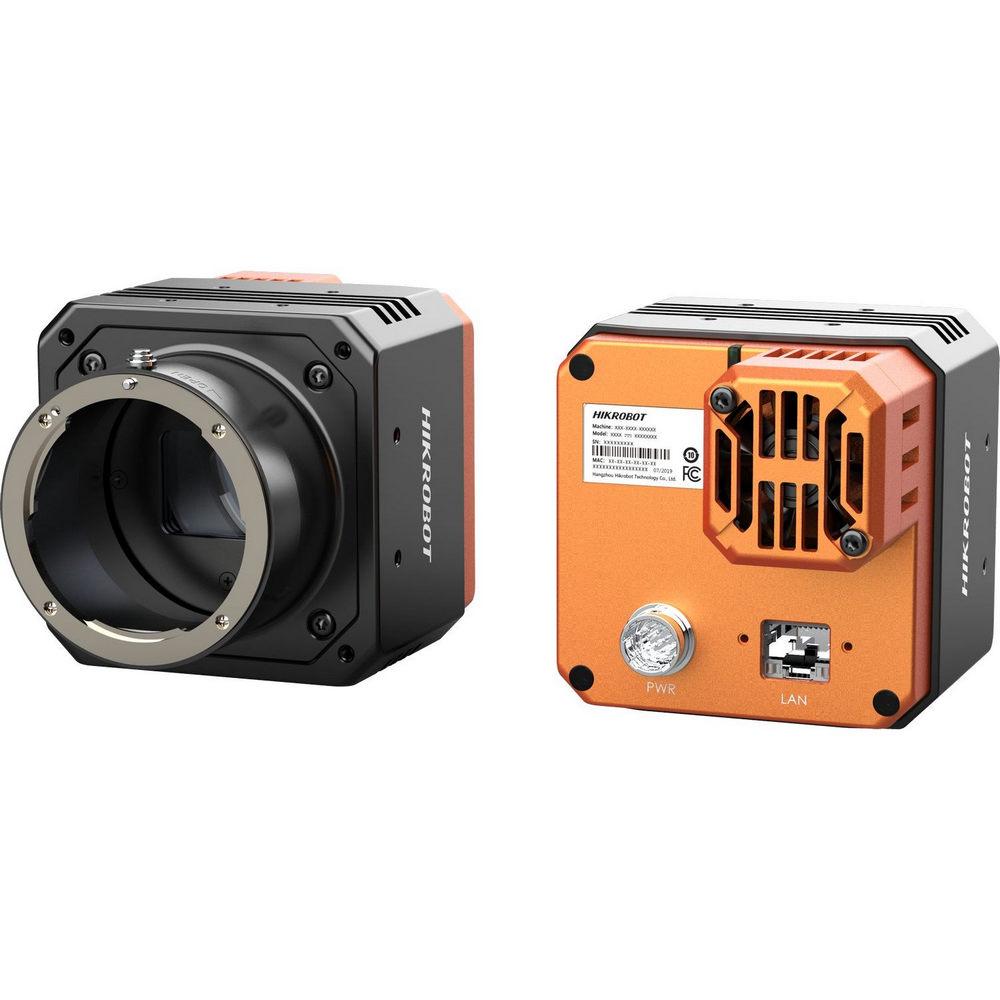

Name: HIKROBOT MV-CH250-25TM-F-NF :: Machine-Vision камера, Area Scan, CH Series, 10 Gigabit, 4.5 μm, 40 fps @ 5120×5120, F-mount, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 5120 × 5120 pixel size 4.5 μm × 4.5 μm
10 GigE интерфейс, осигуряващ максимално разстояние на предаване от 100 метра
Поддържа автоматично или ръчно регулиране на усилването и времето на експозиция, и ръчно регулиране на LUT и гама корекция
Съвместим с GigE Vision Protocol V2.0, GenICam Standard и софтуер на трети страни, базиран на протокола/стандарта

Model	Product Model	MV-CH250-25TM-F-NF
Model	Type	25MP Area Scan Camera, 10GigE, PYTHON25K, Mono, F-mount
Performance	Sensor type	CMOS, global shutter
	Sensor model	PYTHON25K
	Pixel size	4.5 µm × 4.5 µm
	Sensor size	23 mm × 23 mm
	Resolution	5120 × 5120
	Max. frame rate	40 fps @5120 × 5120
	Dynamic range	58 dB
	SNR	41 dB
	Gain	0 dB to 15 dB
	Exposure time	45 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	10GigE
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
	Power supply	9 VDC to 24 VDC
	Power consumption	Typ. 11.5 W@24 VDC
Mechanical	Lens mount	F-mount, optical back focal length 46.5 mm (1.8")
	Dimension	F-mount with fan: 74 mm × 74 mm × 78.7 mm (2.9" × 2.9" × 3.1")
	Weight	F-mount with fan: approx. 600 g (1.3 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS, KC
