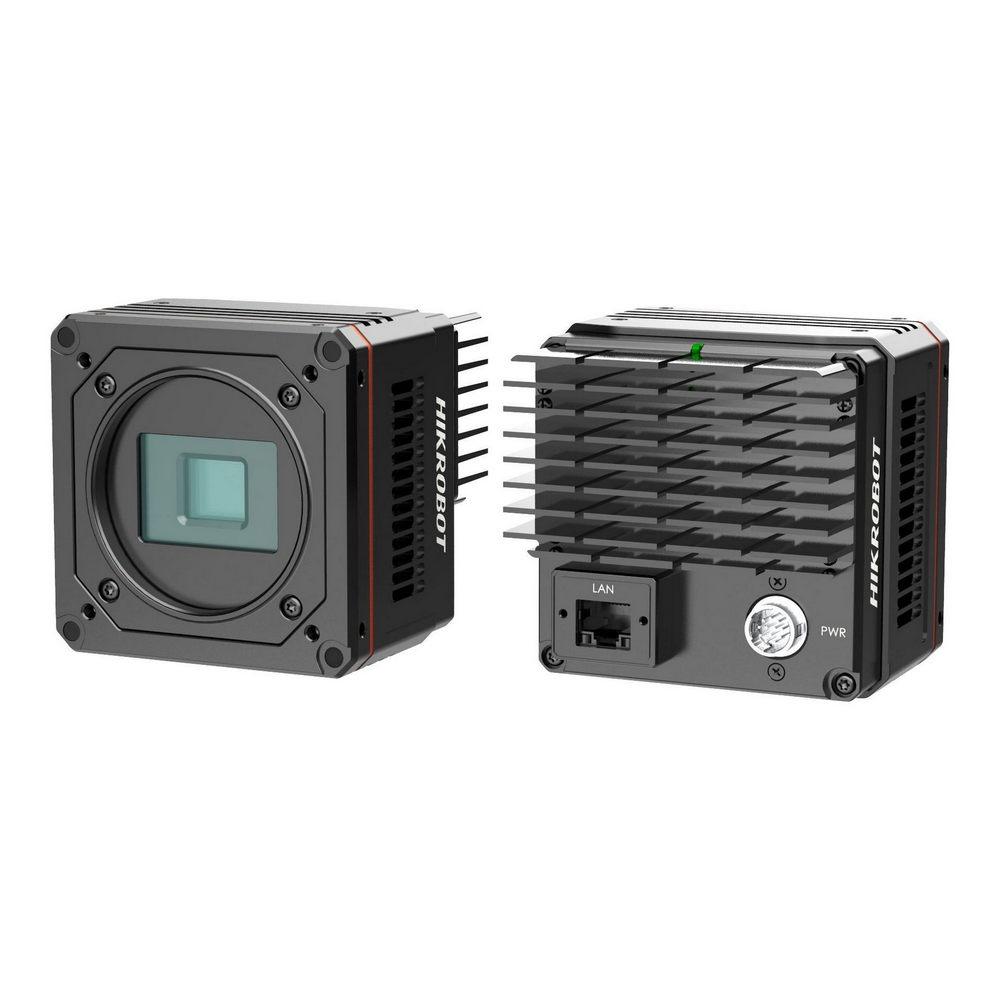

Name: HIKROBOT MV-CH240-10TM-C-NN :: Machine-Vision камера, Area Scan, CH Series, 10 Gigabit, 2.74 μm, 35.1 fps @ 5328×4600, C-Mount, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 5328 × 4600, pixel size 2.74 μm × 2.74 μm
Поддържа автоматично или ръчно регулиране на усилване, време на експозиция, и ръчна настройка на корекция на гама, LUT и др.
10 GigE интерфейс, осигуряващ максимално разстояние на предаване от 100 метра
Компактен дизайн с монтажни отвори на панелите за гъвкав монтаж
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH240-10TM-C-NN
Model	Type	24MP Area Scan Camera, 10GigE, IMX530, Mono, C-mount, fanless
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX540
	Pixel size	2.74 μm × 2.74 μm
	Sensor size	1.2"
	Resolution	5328 × 4600
	Max. frame rate	35.1 fps @5328 × 4600
	Dynamic range	71 dB
	SNR	40 dB
	Gain	0 dB to 24 dB
	Exposure time	UltraShort exposure mode: 1 μs to 7 μsStandard exposure mode: 8 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	10GigE
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
	Power supply	9 VDC to 24 VDC
	Power consumption	Typ. 10 W@12 VDC
Mechanical	Lens mount	C-mount, flange back focal length: 17.52 mm (0.7")
	Dimension	84 mm × 84 mm × 62.5 mm (3.3" × 3.3" × 2.5")
	Weight	< 600 g (1.3 lb)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows 7/10
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
