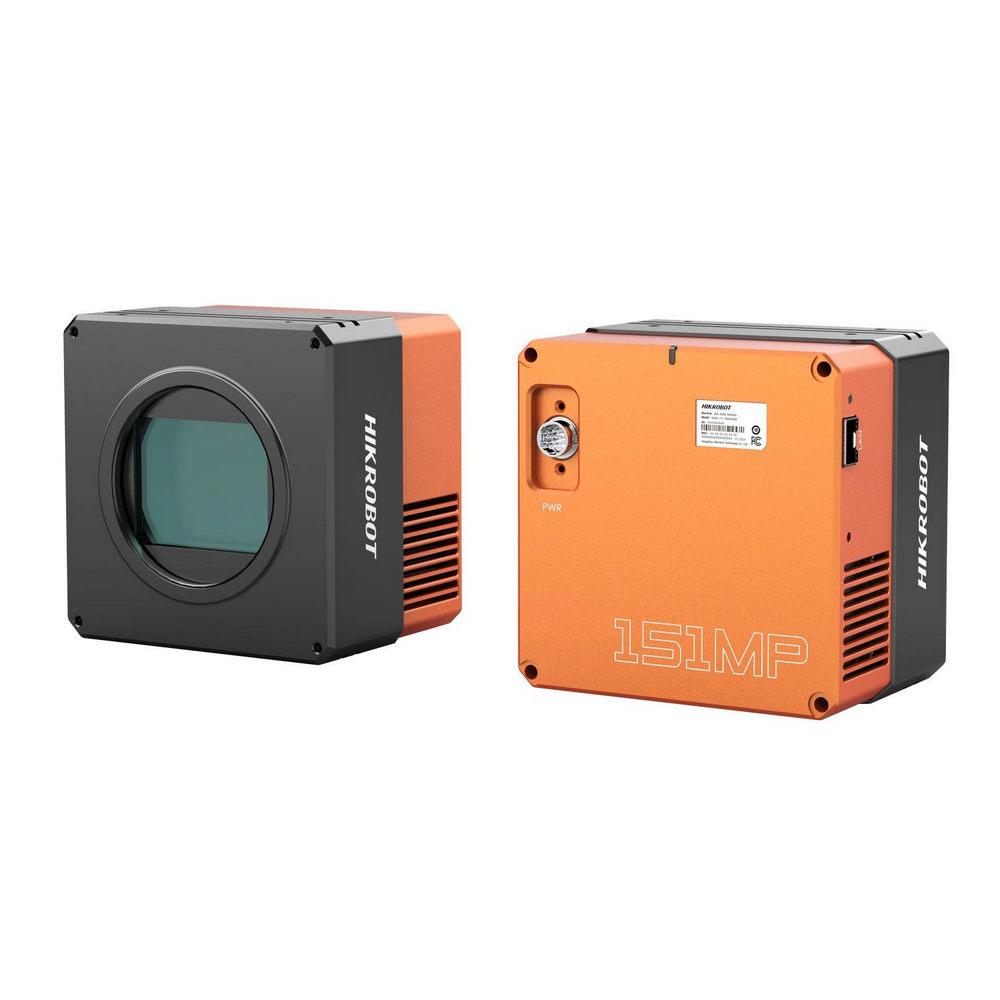

Name: HIKROBOT MV-CH1510-10FM-M72-TF :: Machine-Vision камера, Area Scan, CH Series, 10 Gigabit, 3.76 μm, 6.2 fps @ 14208×10640 Mono 8, M72*0.75, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа Binning, LSC Sequencer, FFC и други ISP функции
Използва 10GigE през оптичен интерфейс за предаване на данни, като максималното разстояние на предаване достига 300 м
Използва TEC технология за намаляване на температурата на сензора и осигурява висококачествени изображения при условия на продължителна експозиция
Съвместимост с GigE Vision V2.0 протокол, GenlCam стандарт и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH1510-10FM-M72-TF
Model	Type	151MP Area Scan Camera, 10G BASE-X, IMX411
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	IMX411
	Pixel size	3.76 μm × 3.76 μm
	Sensor size	66.7 mm
	Resolution	14208 × 10640
	Max. frame rate	6.2 fps @14208 × 10640
	Dynamic range	78.7 dB
	SNR	45 dB
	Gain	0 dB to 36 dB
	Exposure time	30 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset and Rolling mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10p/12/12p/16
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
Electrical feature	Data interface	10GigE
	Digital I/O	12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
	Power supply	24 VDC
	Power consumption	Typ. 11.3 W@24 VDC (non-TEC mode)Typ. 49 W@24 VDC (TEC mode)
Mechanical	Lens mount	M72*0.75, optical back focal length 19.55 mm (0.8")
	Dimension	120 mm × 120 mm × 89 mm (4.7" × 4.7" × 3.5")
	Weight	Approx. 2.5 kg (5.5 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
