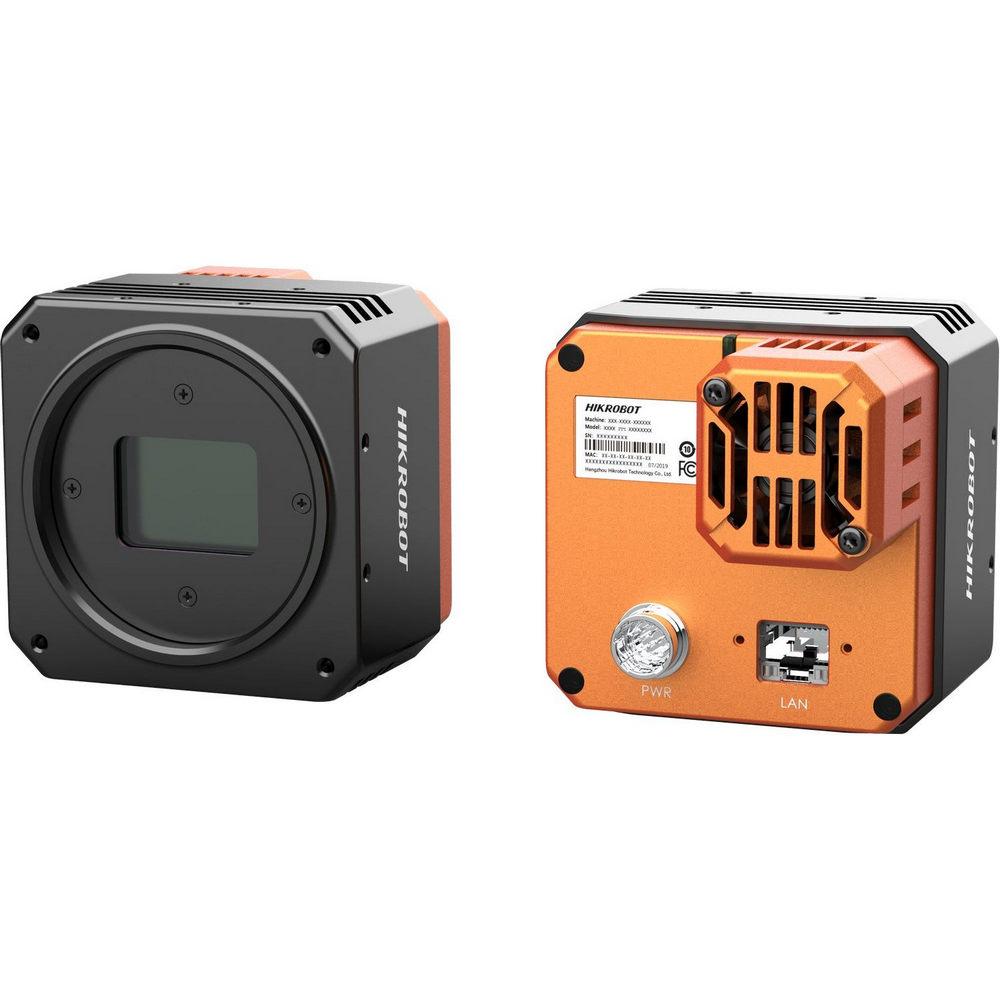

Name: HIKROBOT MV-CH120-15TC-M58S-NF :: Machine-Vision камера, Area Scan, CH Series, 10 Gigabit, 3.45 μm, 68.3 fps @ 4096×3000, цветна, M58-mount
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 4096 × 3000, pixel size 3.45 μm × 3.45 μm
Поддържа автоматично или ръчно регулиране на усилването и времето на експозиция, и ръчно регулиране на LUT и гама корекция
10 GigE интерфейс, осигуряващ максимално разстояние на предаване от 100 метра
Компактен дизайн с монтажни отвори на панелите за гъвкав монтаж
Съвместим с GigE Vision Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CH120-15TC-M58S-NF
Model	Type	12MP Area Scan Camera, 10GigE, IMX253, Color, M58-mount
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX253
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1.1"
	Resolution	4096 × 3000
	Max. frame rate	68.3 fps @4096 × 3000
	Dynamic range	71.6 dB
	SNR	39.7 dB
	Gain	0 dB to 18 dB
	Exposure time	UltraShort exposure mode: 2 μs to 14 μsStandard exposure mode: 15 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8, Bayer RG 8, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	10GigE
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
	Power supply	9 VDC to 24 VDC
	Power consumption	Typ. 10.1 W@24 VDC
Mechanical	Lens mount	M58-mount, optical back focal length: 11.48 mm (0.5")
	Dimension	74 mm × 74 mm × 72.4 mm (2.9" × 2.9" × 2.9")
	Weight	Approx. 550 g (1.2 lb)
	Ingress protection	IP40 ( under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
