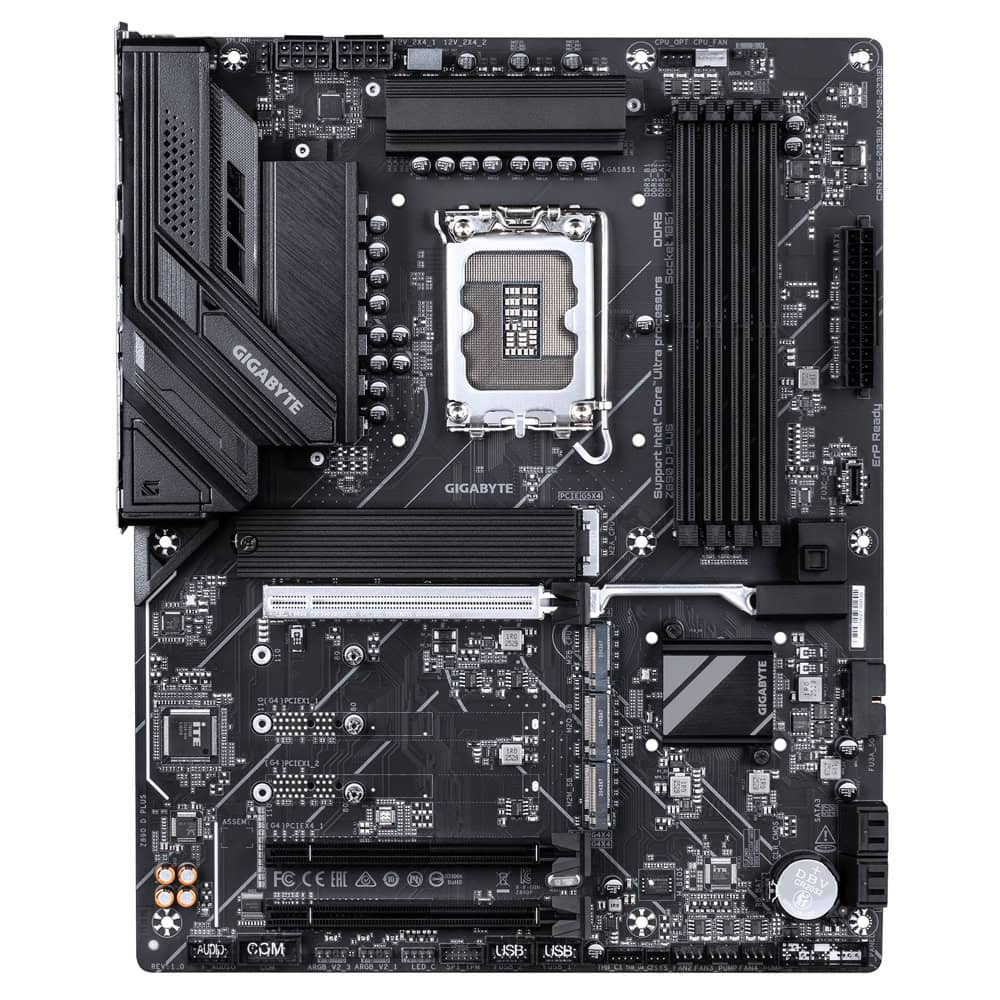

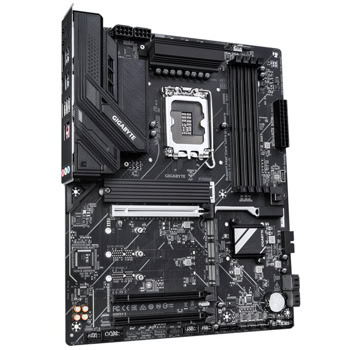

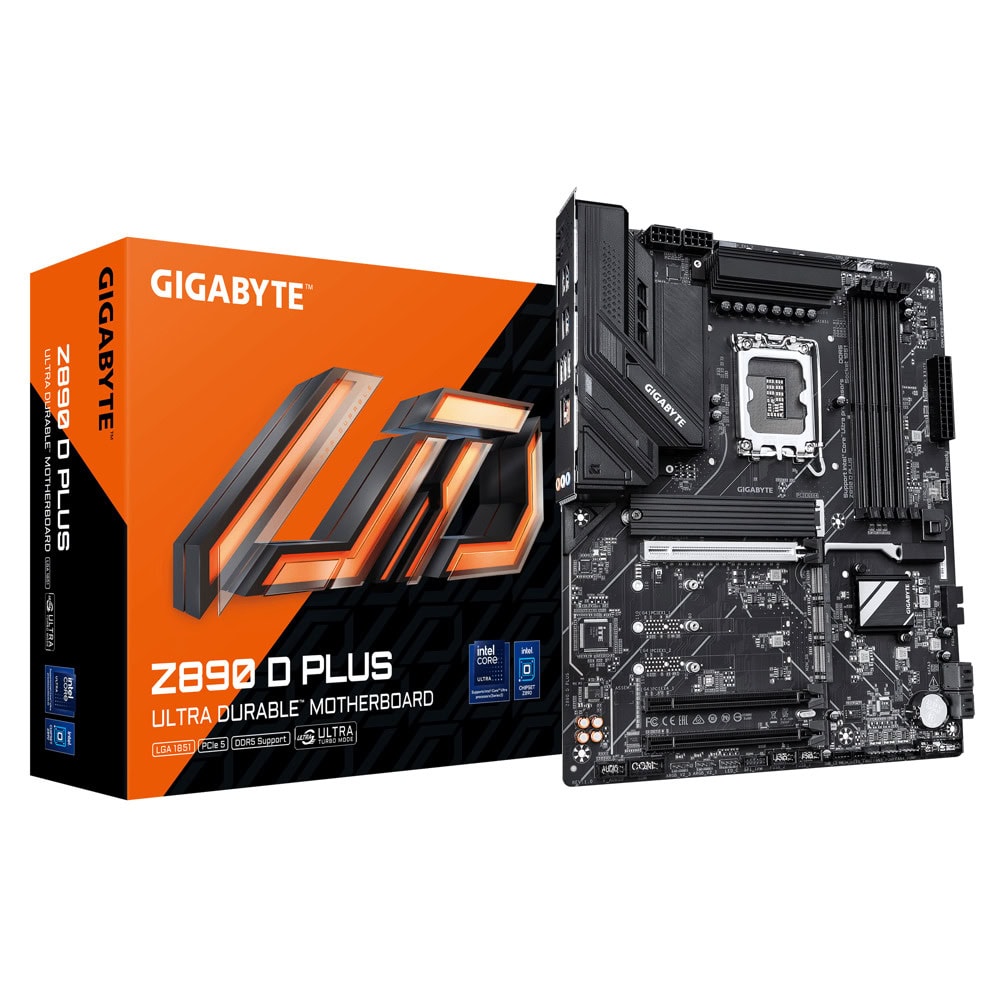

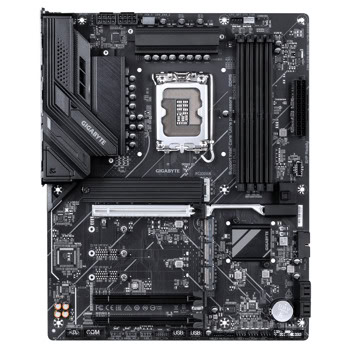

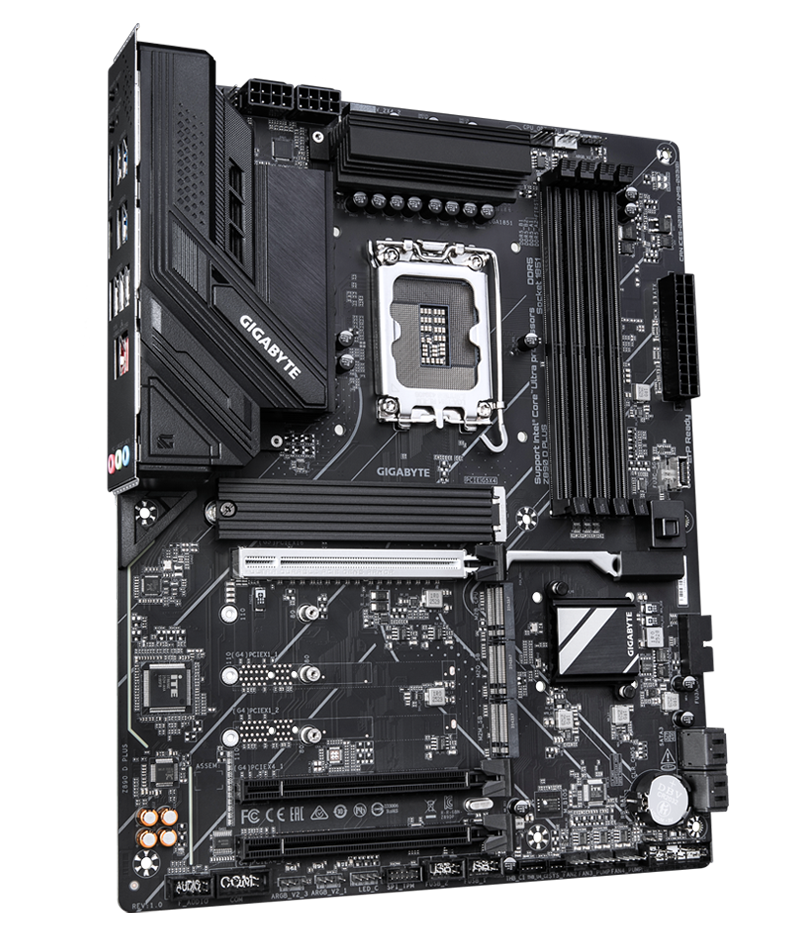

Дънна платка Gigabyte Z890 D PLUS, Z890, LGA1851, DDR5, PCI-E 5.0 (DP), 4x SATA 6Gb/s, 4x M.2, 1x USB-C 3.2 Gen 1, 2.5GbE LAN, ATX

Gigabyte Z890 D PLUS

FEATURES

• Ultra Turbo Mode: Unlock the Hidden performance
• Supports Intel® Core™ Ultra processors (Series 2)
• Digital twin 12+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• Premium Compatibility: 4*DDR5 with XMP Memory Module Support
• PCIe EZ-Latch Plus: PCIe slots with Quick Release & Screwless Design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage: 4*M.2 slots, including 1* PCIe 5.0 x4
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
• Fast Networking: 2.5GbE LAN
• Extended Connectivity: DisplayPort

Infinite Memory Performance

UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

• CPU
• LGA1851 socket: Support for Intel® Core™ Ultra Processors
  (Go to GIGABYTE's website for the latest CPU support list.)
  L3 cache varies with CPU
• Chipset
• Intel® Z890 Express Chipset
• Memory
• Support up to DDR5 9466+MT/s (OC)
  4 x DDR5 DIMM slots, Dual Channel
  Max. Capacity 256 GB
  Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
  Supports Intel® Extreme Memory Profile (XMP) memory module
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
• Onboard Graphics

• Integrated Graphics Processor-Intel® HD Graphics support:
  - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz


  * Support for DisplayPort 2.1 version and HDCP 2.3


  (Graphics specifications may vary depending on CPU support.)

• Audio

• Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.

• LAN
• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Expansion Slots

• CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


  Chipset:
  - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

• Storage Interface
• CPU:
  - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
  Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  - 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB
• Chipset:
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  Chipset+2 USB 2.0 Hubs:
  - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
  2 x 8-pin ATX 12V power connectors
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  3 x system fan headers
  1 x system fan/water cooling pump header
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  4 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x reset jumper
  1 x Clear CMOS jumper

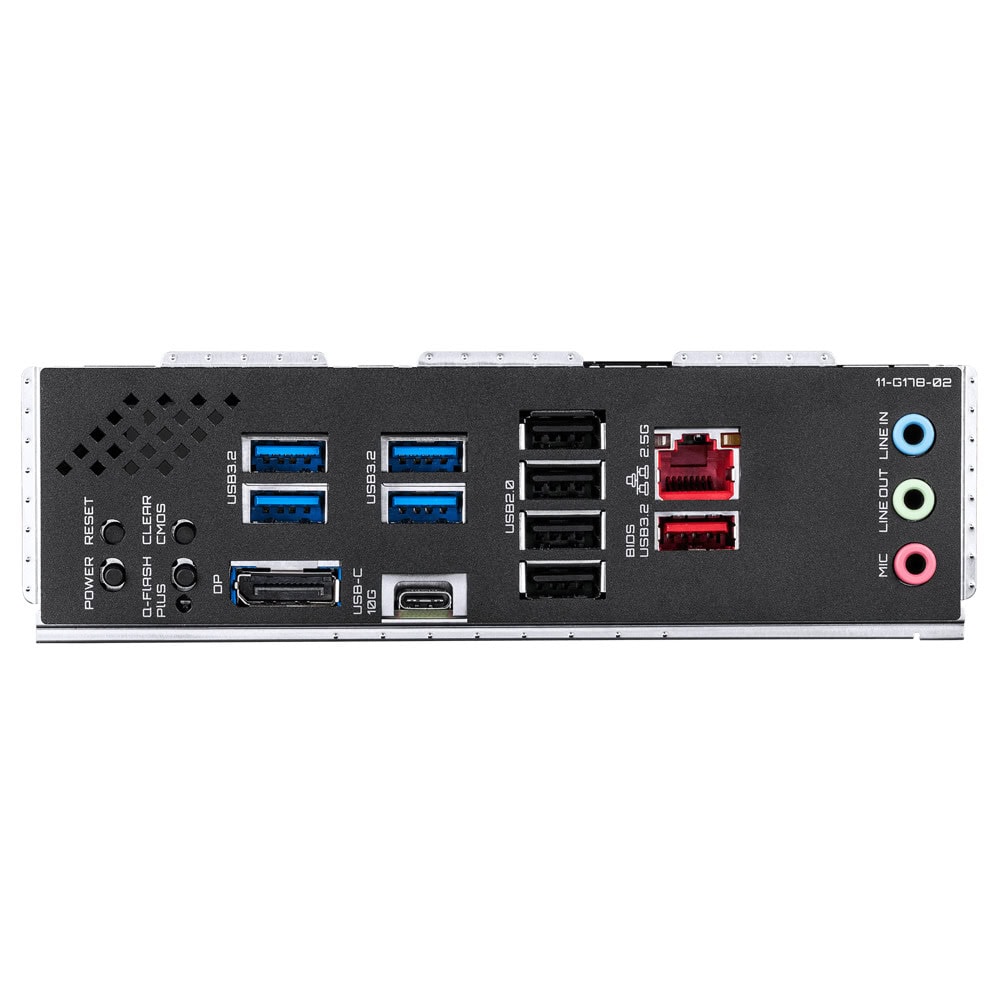

• Back Panel Connectors
• 1 x reset button
  1 x power button
  1 x Clear CMOS button
  1 x Q-Flash Plus button
  1 x DisplayPort (Note)
  1 x USB Type-C® port, with USB 3.2 Gen 2 support
  1 x USB 3.2 Gen 2 Type-A port (red)
  4 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks

  (Note) Actual support may vary by CPU.
• I/O Controller
• iTE® I/O Controller Chip
• H/W Monitoring

• Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS
• 1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features

• Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software
• Norton® Internet Security (OEM version)
• Operating System
• Support for Windows 11 64-bit
  Support for Windows 10 64-bit
  * The Intel® NPU driver and Intel® 800 Platform Performance Package Installer are only supported on Windows 11.
• Form Factor
• ATX Form Factor; 30.5cm x 24.4cm
