Дънна платка Gigabyte G1.SNIPER 3, Z77, LGA1155, DDR3, PCI-E (HDMI & DVI), SB5.1, Lan1000, 2x SATA 6Gb/s, 4x SATA 3Gb/s, 1x mSATA RAID 0, 1, 5, 10, 6x USB 3.0, E-ATM

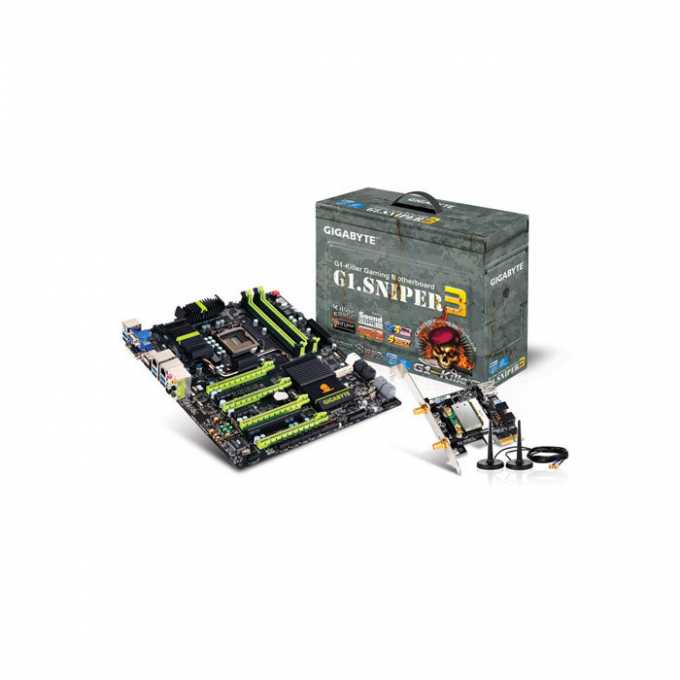

GIGABYTE G1.Sniper 3

• CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package

• Chipset
Intel® Z77 Express Chipset

• Memory
4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR3 2666(OC)/1600/1333/1066 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules

• VGA
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 1920x1200
1 x DisplayPort, supporting a maximum resolution of 2560x1600

• Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
(The PCI Express x16 slots conform to PCI Express 3.0 standard.)
* PCIE Gen.3 is dependent on CPU and expansion card compatibility.
2 x PCI Express x1 slots
1 x PCI slot

Support for 4-Way/3-Way/2-Way AMD CrossFireX™/NVIDIA SLI technology™

• Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x PCIe power connector
6 x SATA 6Gb/s connectors
4 x SATA 3Gb/s connectors
1 x mSATA connector
1 x CPU fan header
4 x system fan headers
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
2 x USB 3.0/2.0 headers
2 x IEEE 1394a headers
1 x Clear CMOS jumper
1 x power button
1 x Clear CMOS button
1 x reset button
Voltage measurement points
1 x BIOS switch
1 x Trusted Platform Module (TPM) header

• Storage Interface
Chipset:
2 x SATA 6Gb/s connectors (SATA3 0/1)
4 x SATA 3Gb/s connectors (SATA2 2/3/4/5)
1 x mSATA connector
Support for RAID 0, RAID 1, RAID 5, and RAID 10

2 x Marvell 88SE9172 chips:
4 x SATA 6Gb/s connectors (GSATA3 6/7/8/9)
Support for RAID 0 and RAID 1

• Audio
Creative CA0132 chip
Support for Sound Blaster Recon3Di
High Definition Audio
2/5.1-channel
Support for S/PDIF Out

• LAN
1 x Qualcomm Atheros Killer E2200 LAN chip (10/100/1000 Mbit) (LAN1)
1 x Intel GbE LAN phy (10/100/1000 Mbit) (LAN2)
* Teaming is not supported.

• Wireless connectivity
Exclusive Bluetooth 4.0/WiFi Expansion Card IEEE 802.11 a/b/g/n

• Rear Panel I/O Ports
1 x PS/2 keyboard/mouse port
6 x USB 3.0/2.0 ports
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x DisplayPort
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)

• BIOS
2 x 64 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

• Form Factor
E-ATX

• Dimensions
30.5cm x 26.4cm

• Package
Box
