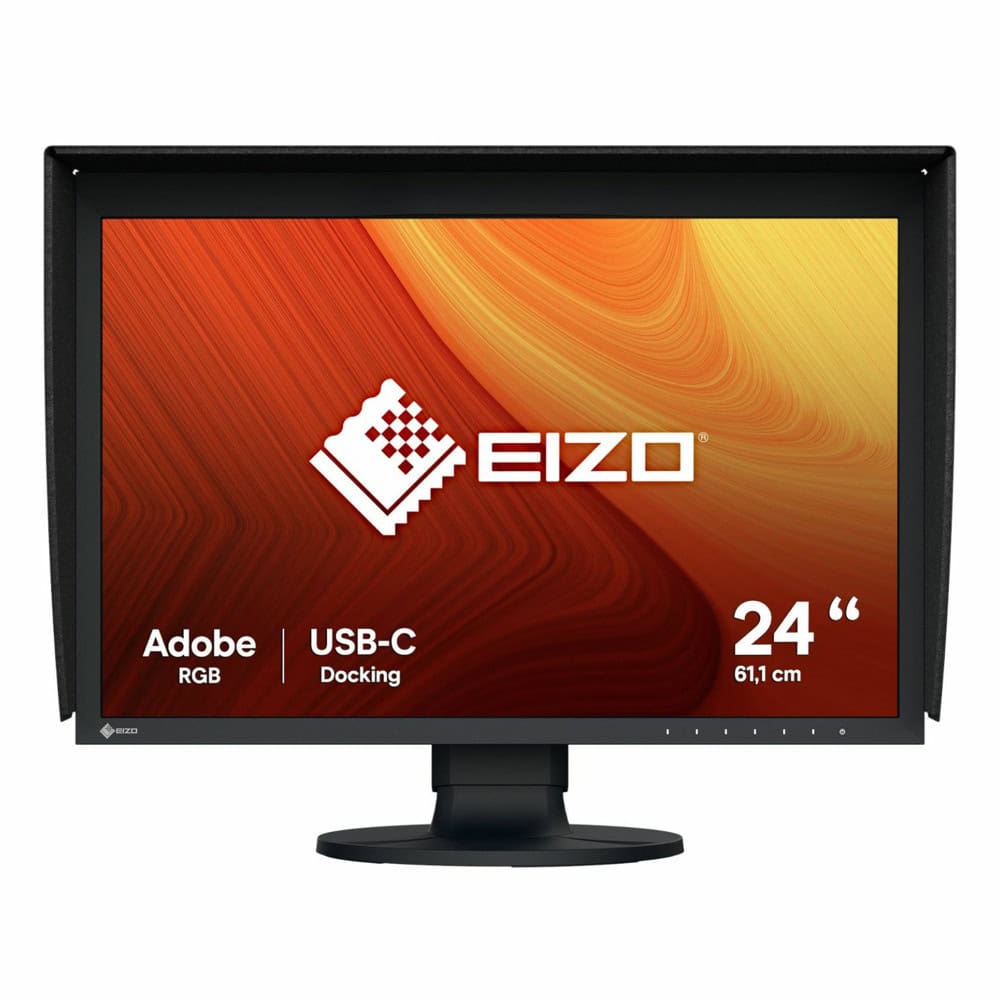

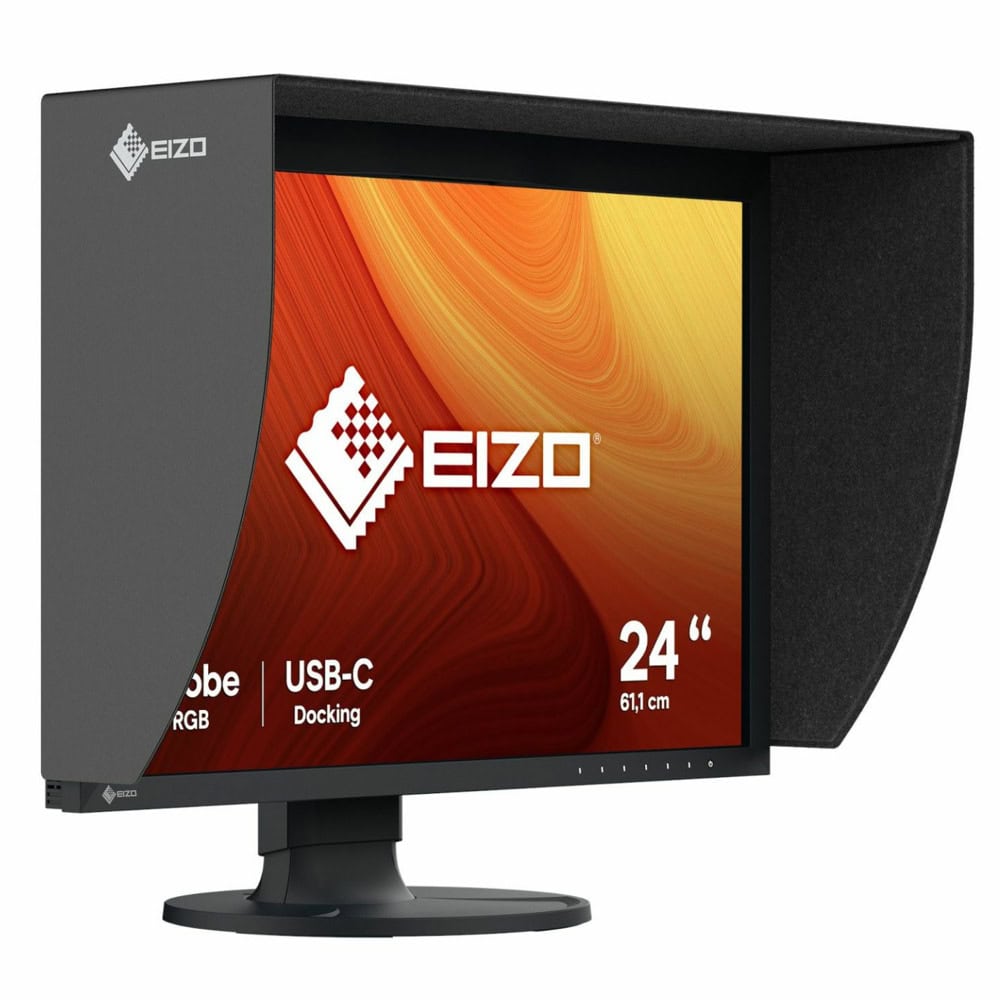

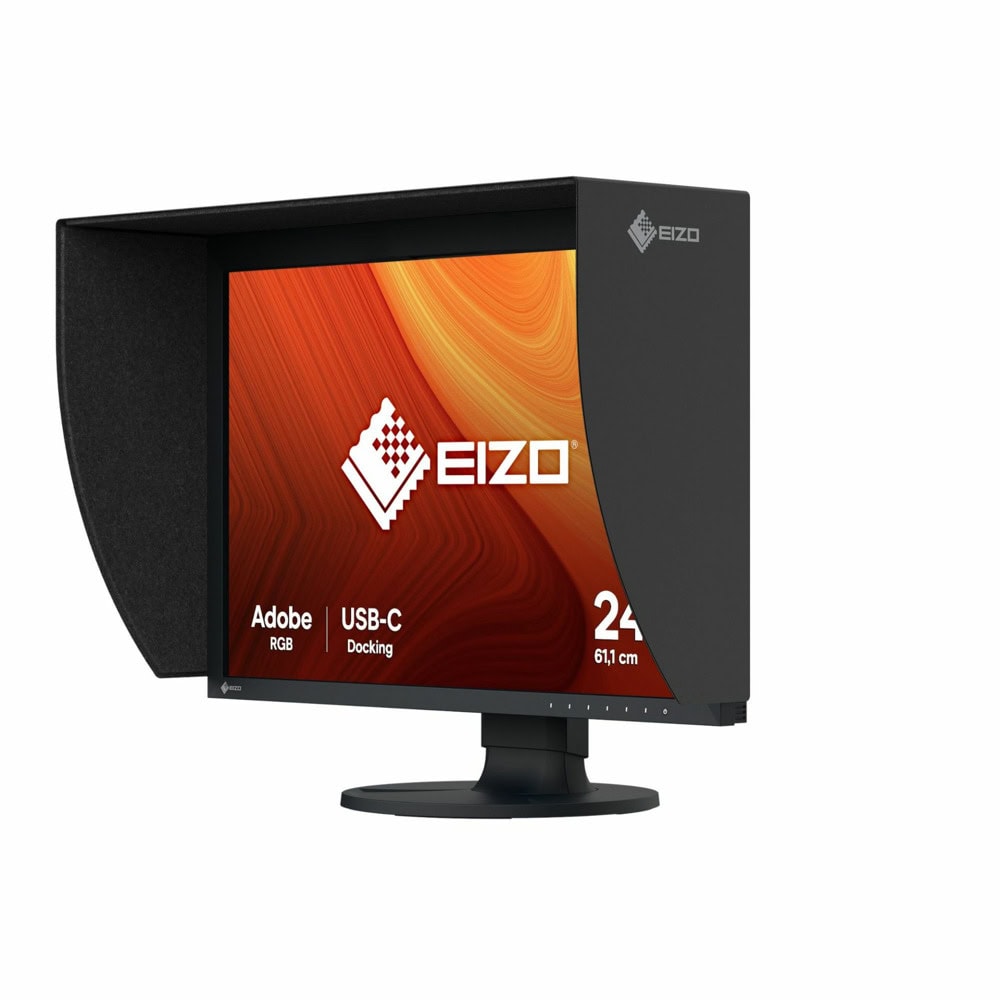

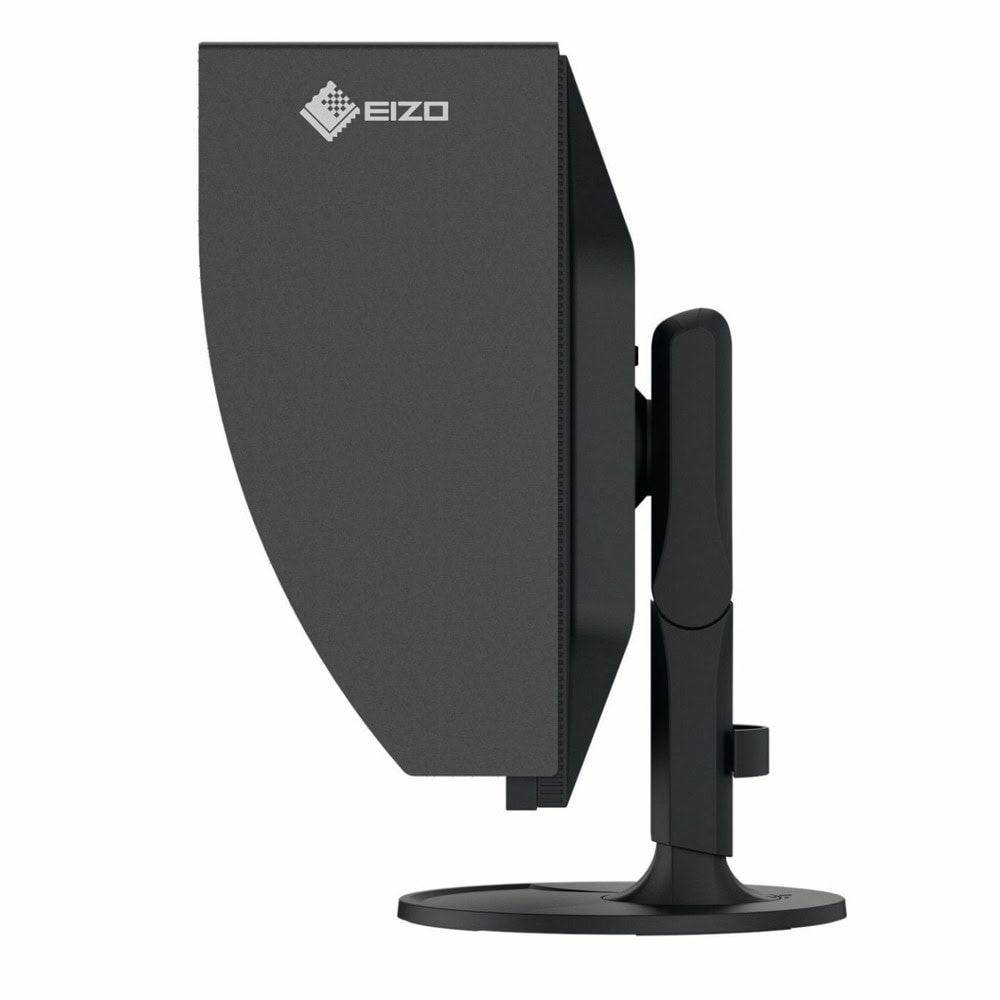

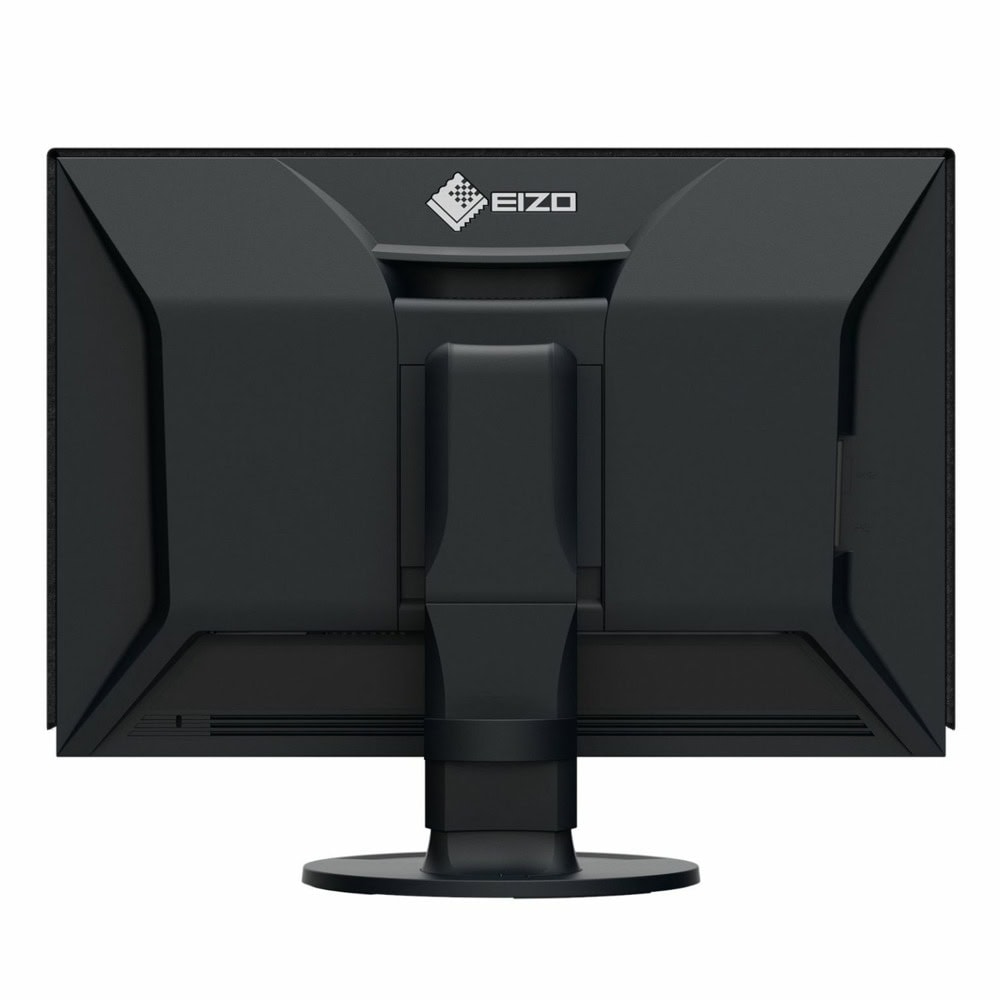

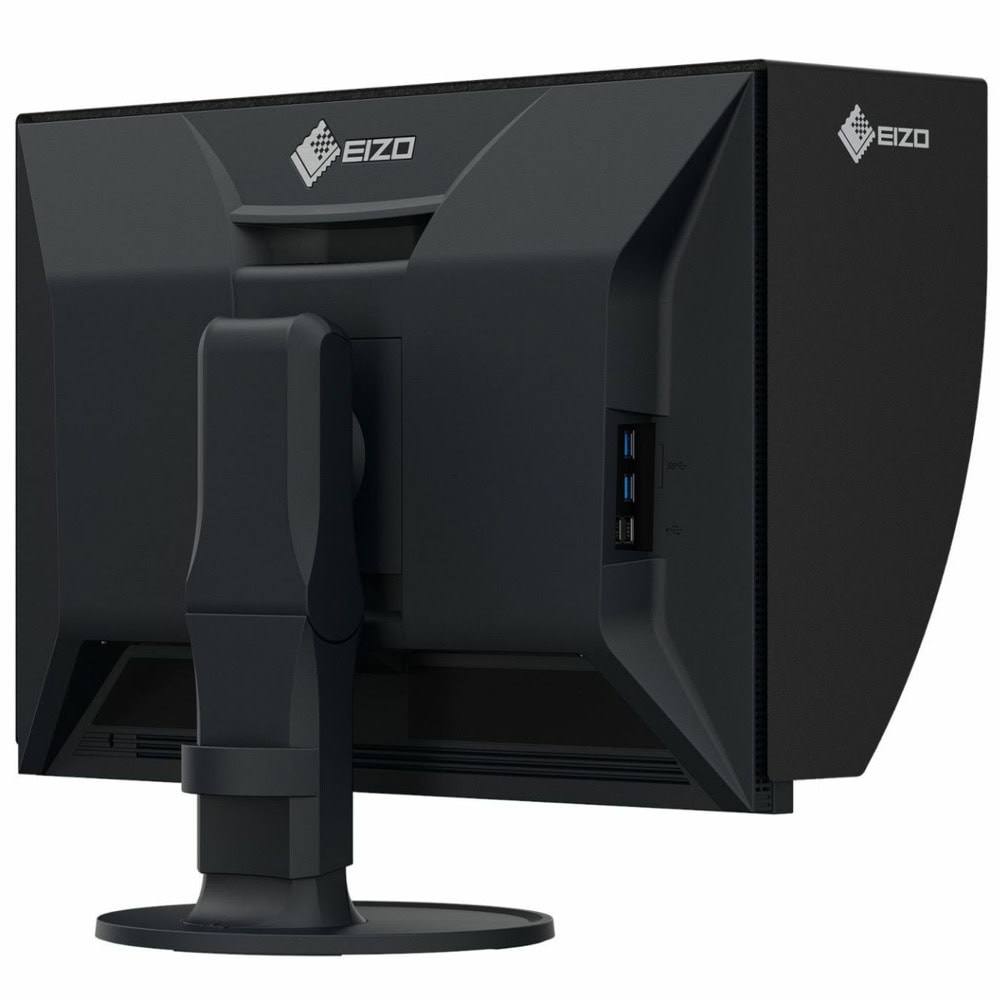

Name: Монитор EIZO CG2400S, 24.1 (61.21 см) IPS панел, WUXGA, 11ms, 400 cd/m2, DisplayPort, HDMI, USB, USB-C
Brand: Eizo
SKU: MNLCEIZOCG2400S
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси Документация

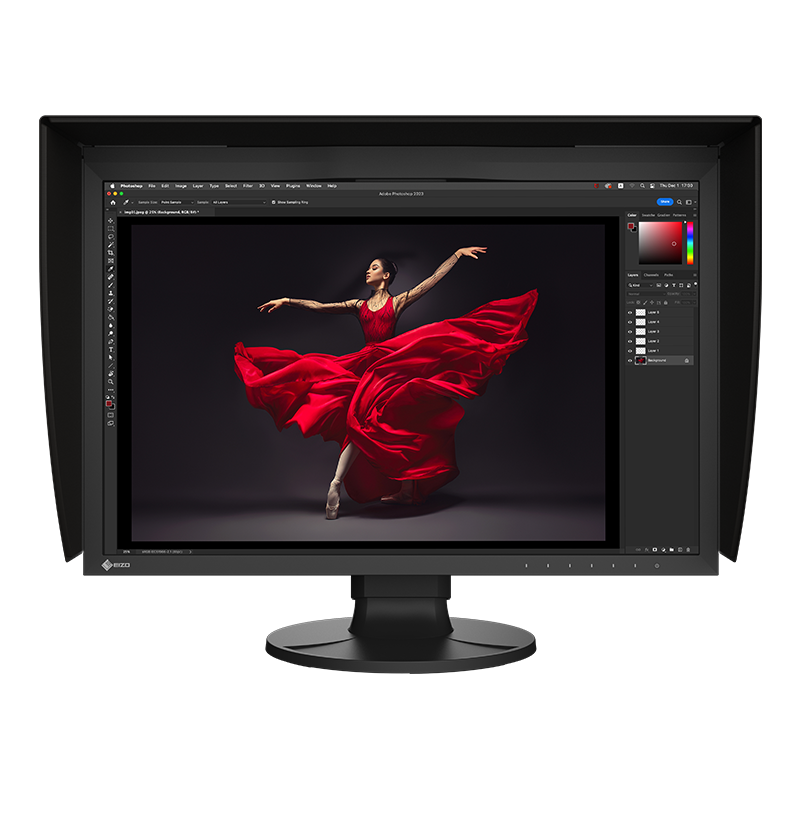

EIZO CG2400S

Make an Impact

This 24.1-inch monitor features WUXGA (1920 x 1200) resolution and HDR gamma support to bring creative visions to life with stunning detail. With a built-in self-calibration sensor and USB Type-C® connectivity, it offers a seamless workflow for professional creatives in any field. Whether your focus is photography, video editing, design, or print, empower your creativity and make a lasting impact.

Streamlined Connection

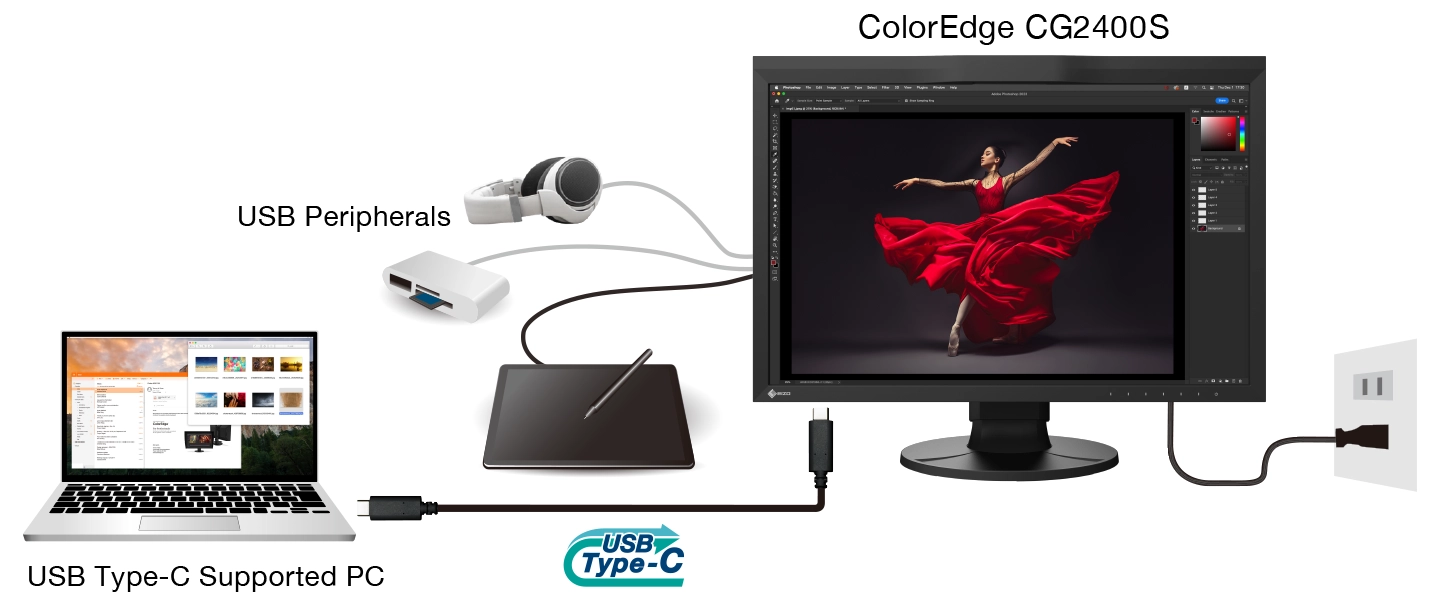

Single Cable Connection with USB Type-C

The monitor features USB Type-C connectivity that allows you to display video, transmit USB signals, and supply power to a connected device such as a tablet or notebook PC. This convenient multi-purpose connectivity makes it faster and easier to connect when moving between creative work areas, when working remotely, or when working in a home studio.

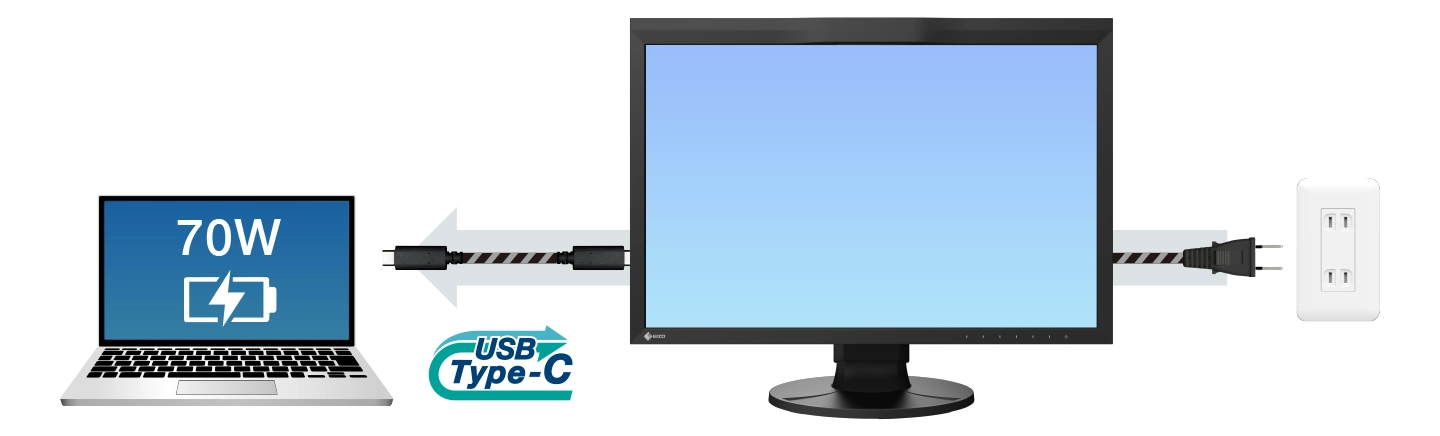

70 W Power Delivery

The USB Type-C terminal reliably charges a connected tablet or laptop with 70 W power delivery. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk.

Specifications:

Panel
Type	IPS
Backlight	Wide-Gamut LED
Size	24.1" (61.1 cm)
Native Resolution	1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V)	518.4 x 324.0 mm
Pixel Pitch (H x V)	0.270 x 0.270 mm
Pixel Density	94 ppi
Display Colors	1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT)
Viewing Angles (H / V, typical)	178°, 178°
Brightness (typical)	400 cd/m2
Contrast Ratio (typical)	1800:1
Response Time (typical)	11 ms (gray-to-gray)
Color Gamut (typical)	Adobe RGB: 99%, DCI-P3: 98%
Video Signals
Input Terminals	USB Type-C (DisplayPort Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3)
Digital Scanning Frequency (H / V)	USB Type-C, DisplayPort: 26 - 76 kHz / 23 - 61 Hz HDMI: 15 - 76 kHz / 23 - 61 Hz
USB
Upstream	USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 70 W max.), USB 5Gbps: Type-B
Downstream	USB 5Gbps: Type-A x 2 USB 2.0: Type-A x 2
Power
Power Input	AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption	17 W
Maximum Power Consumption	150 W
Power Save Mode	0.5 W or less
Built-in Calibration Sensor	Yes
Features & Functions
Brightness Stabilization	Yes
Digital Uniformity Equalizer	Yes
Preset Modes	User, BT.2020, BT.709, DCI-P3, PQ_DCI-P3, HLG_BT.2100, Adobe RGB, sRGB, Calibration (CAL), SYNC_SIGNAL
HDR Gamma	HLG, PQ curve
OSD Languages	English, German, French, Spanish, Italian, Swedish, Simplified Chinese, Traditional Chinese, Japanese
Others	Color Adjustment, PQ Option, HLG Option, SelfCalibration, Input Color Format, YUV Color Matrix, Input Range, I/P Conversion, Picture Expansion, BT.709 Gamut warning, Luminance Warning, Marker, Menu Rotation, Power Save, Input Skip, Mode Skip, Custom Key, Information Display, Key Lock, DUE Priority, Pixel Inspection
Physical Specifications
Dimensions (Landscape, W x H x D)	554.4 x 408.1 - 563.1 x 245 mm
Dimensions (Without Stand, W x H x D)	554.4 x 374.1 x 70.2 mm
Dimensions (Landscape with Hood, W x H x D)	564.4 x 413.1 - 568.1 x 330 mm
Net Weight	8.5 kg
Net Weight (Without Stand)	5.5 kg
Net Weight (With Hood)	9.0 kg
Height Adjustment Range	155 mm
Tilt	35° Up, 5° Down
Swivel	344°
Pivot	90°
Hole Spacing (VESA Standard)	100 x 100 mm
Environmental Requirements
Operating Temperature	0 - 35°C
Operating Humidity (R.H., non condensing)	20 - 80%

Виж още Монитори Eizo
Виж всички Монитори в категорията

Документация

Технически характеристики

Портове
DisplayPort:	Да
HDMI:	Да
DVI:	Не
Mini DisplayPort:	Не
Thunderbolt:	Не
USB Type-C:	Да
USB Type-А:	Да
VGA (D-Sub):	Не

Гама:	Професионален
Екран размер:	24.1" (61.21 cm)
Разделителна способност (max):	1920 x 1200
Аспект изображение:	16:10
Тип матрица:	IPS
Честота на опресняване:	60 Hz
Време за реакция:	11 ms
Яркост:	400 cd/m²
TV Тунер:	Не
Тъчскрийн:	Не
Вградени колони:	Не
3D:	Не
Цвят:	Черен
Формат екран:	Wide
Извит:	Не
Преносим:	Не
