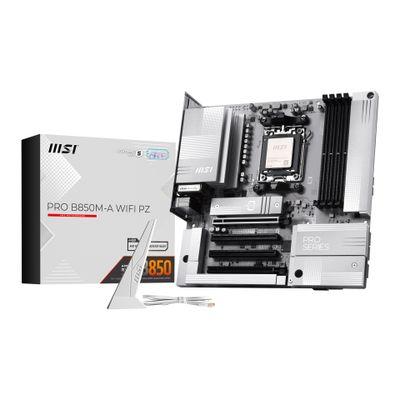

Name: Дънна платка MSI Mainboard PRO B850M-A WIFI PZ - Micro ATX - Socket AM5 - AMD B850
Price: 272.16 EUR
Availability: InStock

Описание

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	Micro ATX
Compatible Processors	Ryzen
Chipset Type	AMD B850
Supported RAM Technology	DDR5 SDRAM
Supported RAM Integrity Check	Non-ECC, On-die ECC
Supported RAM Speed	5600 MT/s, 4800 MT/s, 8200 MT/s (O.C.), 6400 MT/s (O.C.), 5600 MT/s (O.C.), 6000 MT/s (O.C.)
Processor Socket	Socket AM5
Power Connectors	24-pin main power connector, 2 x 8-pin ATX12V connectors
Supported RAM (Registered or Buffered)	Unbuffered
RAM Slots	4 DIMM slots
Интерфейси
Internal Interfaces	1 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features	AMD EXPO technology, Dual channel memory architecture
Max Supported Size	256 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio
Audio Codec	Realtek ALC897
Audio	High Definition Audio (8-channel)
Работа в мрежа
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network Controller	Realtek RTL8126VB
Network	802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet
Слотове за разширение
Expansion Slots	1 x CPU, 2 x PCIe 3.0 x16 (x1 mode), 1 x PCIe 5.0 x16, 2 x M.2 socket (2260/2280 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 4.0 x16 (x4 mode)
Интерфейси
Storage Interfaces	PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1, PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage	Serial ATA-600 (RAID), M.2 socket
USB / FireWire	USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2
Storage Ports	4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)	2 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1
USB / FireWire Ports Configuration (Headers)	1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Софтуер
Software Included	MSI Center
Размери и Тегло
Width	24,384 cm
Depth	24,384 cm
