Охлаждане за процесор DeepCool ASSASSIN VC ELITE, съвместимост със сокети Intel LGA1851/1700/1200/115X/20XX & AMD AM5/AM4

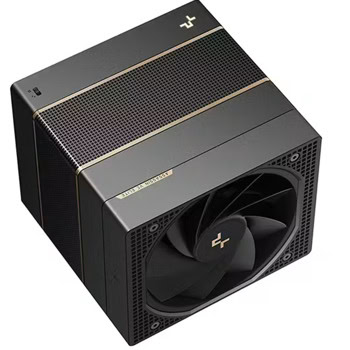

DeepCool ASSASSIN VC ELITE

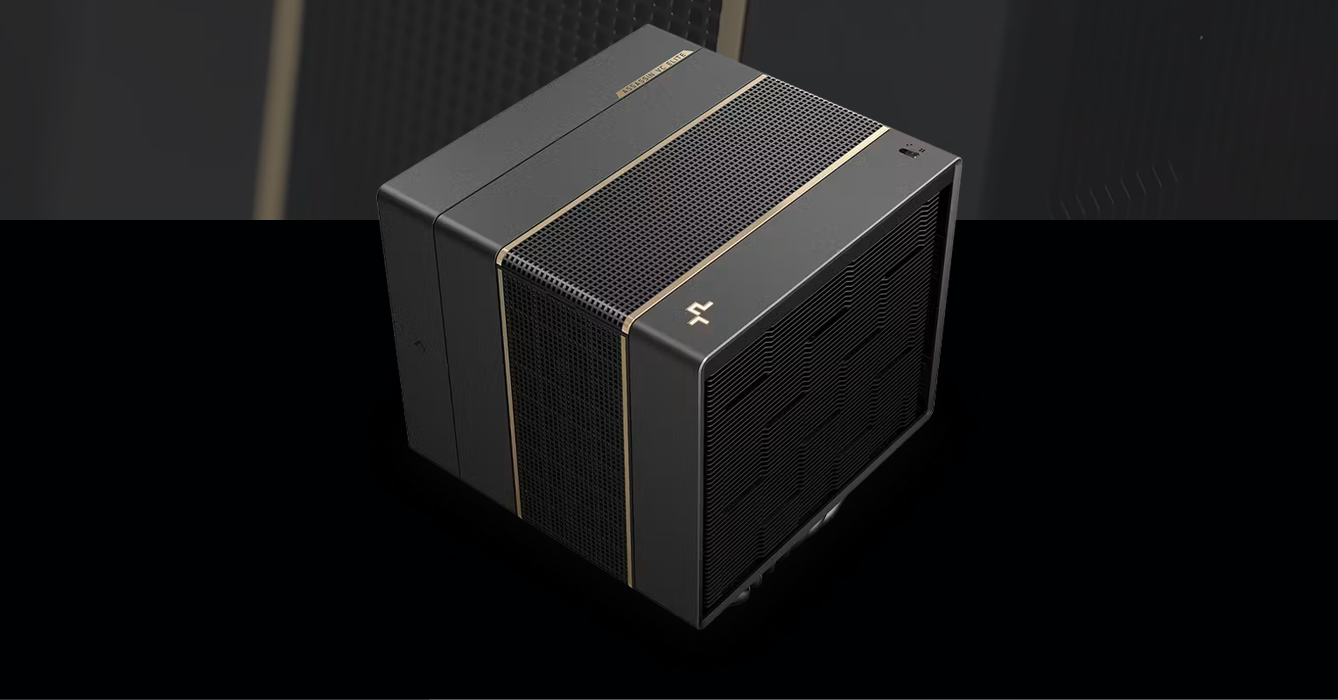

The ASSASSIN series adds to its impeccable cooling line with the ASSASSIN VC ELITE. With the new black-gold aesthetic, the ASSASSIN VC ELITE includes a vapor chamber at the base that improves heat transfer dramatically while increasing the TDP to 300 watts!

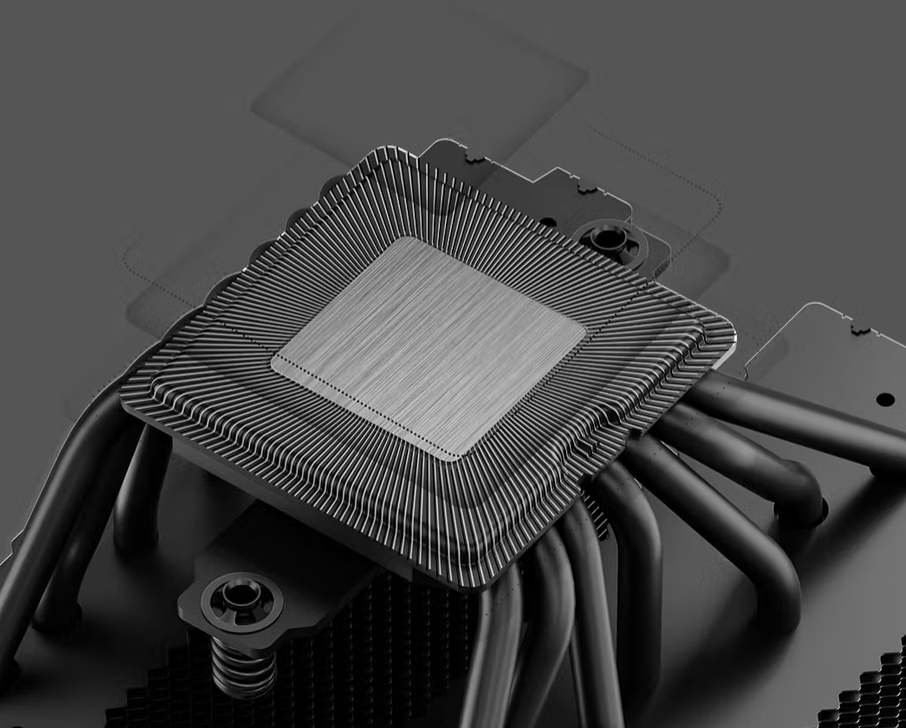

VAPOR CHAMBER-ENHANCED

Vapor chambers are essentially large, flattened heatpipes with high thermal conductance. In the ASSASSIN IV VC series, the heat is extracted through the coldplate, which starts the cooling process in the planar chamber. The heat gets equalized and sent up the heatpipes to get cooled further by the fin stacks. This solution raises the cooling capacity to an astounding 300W of TDP!

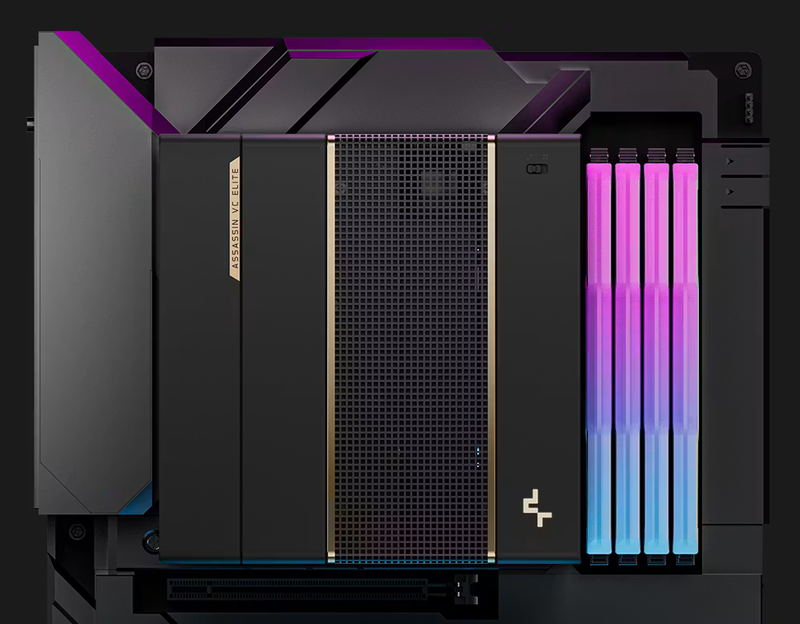

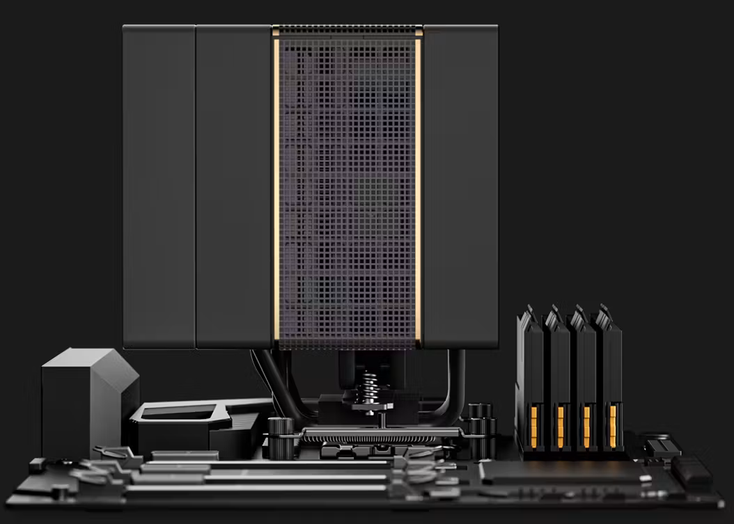

ALL CLEAR!

The ASSASSIN VC ELITE's case is clean, sleek, and helps channel air through the fin towers, while the relocatable 120mm fan provides unobstructed clearance for high-profile RGB RAM.

WIDE RANGE OF MODERN CPU SOCKET COMPATIBILITY

The ASSASSIN VC ELITE supports virtually all modern mainstream CPU sockets from AMD and Intel, including the LGA1851 and AM5.

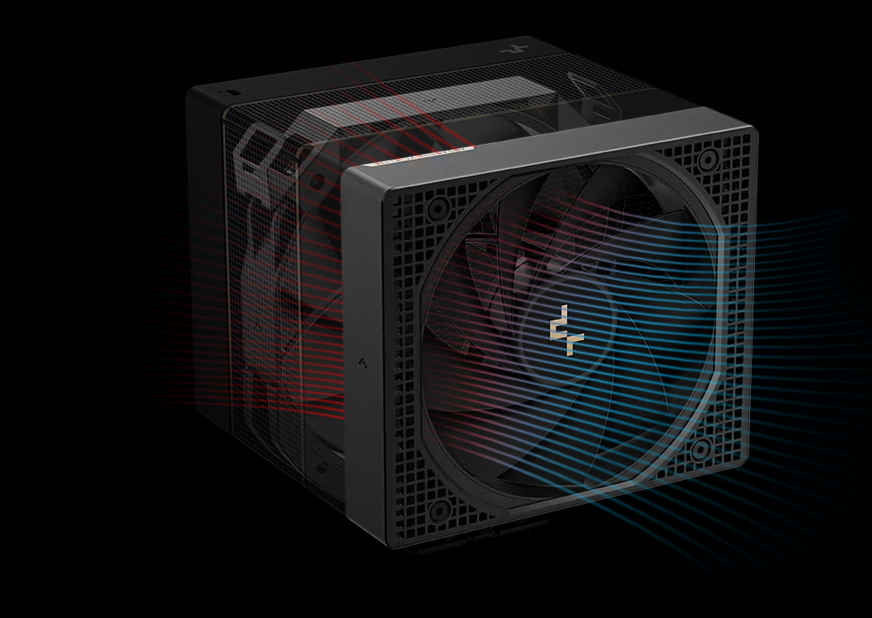

THE FLOW BELOW

Due to the center 140mm fan sitting deep into the heart of the ASSASSIN VC ELITE, there is a lower flow of air that provides additional cooling to the toasty surrounding VRMs.

Application For

Intel LGA1851/1700/1200/115X/20XX

AMD AM5/AM4

Product Dimensions
144×147×164 mm(L×W×H)

Heatsink Dimensions
140×110×160 mm(L×W×H)

Net Weight
1772 g

Heatpipe
Ø6 mm×7 pcs

Fan Dimensions
140×140×25 mm(L×W×H) / 120×120×25 mm(L×W×H)

Fan Speed
500~1800 RPM±10% / 500~1700 RPM±10%

Fan Airflow (Performance Mode)
61.25 CFM / 58.06 CFM

Fan Air Pressure (Performance Mode)
3.76 mmAq / 2.1 mmAq

Overall Noise (Performance Mode)
≤29.3 dB(A)

Fan Speed (Quiet Mode)
500~1450 RPM±10% / 500~1350 RPM±10%

Fan Airflow (Quiet Mode)
48.55 CFM / 46.75 CFM


Fan Air Pressure (Quiet Mode)
2.46 mmAq / 1.35 mmAq

Overall Noise (Quiet Mode)
≤22.6 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Motor Type
6-Pole Fan Motor

Fan Rated Voltage
12 VDC

Fan Rated Current
0.2 A / 0.2 A

Fan Power Consumption
2.4W / 2.4 W

Rated Voltage
12 VDC

Power Consumption(Performance Mode)
4.8 W

Power Consumption(Quiet Mode)
3.6 W
