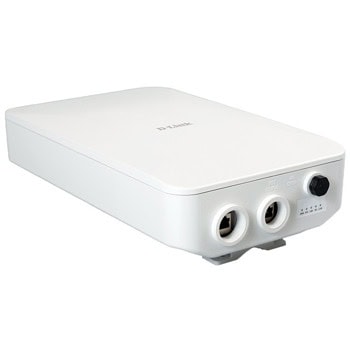

Точка за достъп D-Link Nuclias Connect DAP-E3620OU, 3600Mbps, 2.4 GHz (688Mpbs)/5GHz (2882Mbps), 1x 10/100/1000 LAN, 1x 10/100/1000/2500 LAN PoE

BE3600 Wi-Fi 7 Outdoor Access Point

DAP-E3620OU

• Product Status (A1_v1.00(WW)): Live
• High-speed BE3600 dual-band Wi-Fi 7 connectivity
• OFDMA + MU-MIMO boosts multi-user efficiency
• 2.5GbE uplink eliminates wired bottlenecks
• Single-cable PoE+ deployment for faster installation
• Optimized RF design for stable outdoor coverage
• Enterprise-grade WPA3 security protection
• Traffic segmentation via SSID-to-VLAN mapping
• Rugged weather-resistant for harsh environments
• Centralized management through Nuclias Unity
• Easy management via Nuclias HW/SW controllers

Faster Wireless,
Better Business Experiences

• Experience next-generation dual-band Wi-Fi 7 (BE3600 class) built for modern business networks, delivering faster speeds, lower latency, and more reliable connectivity.

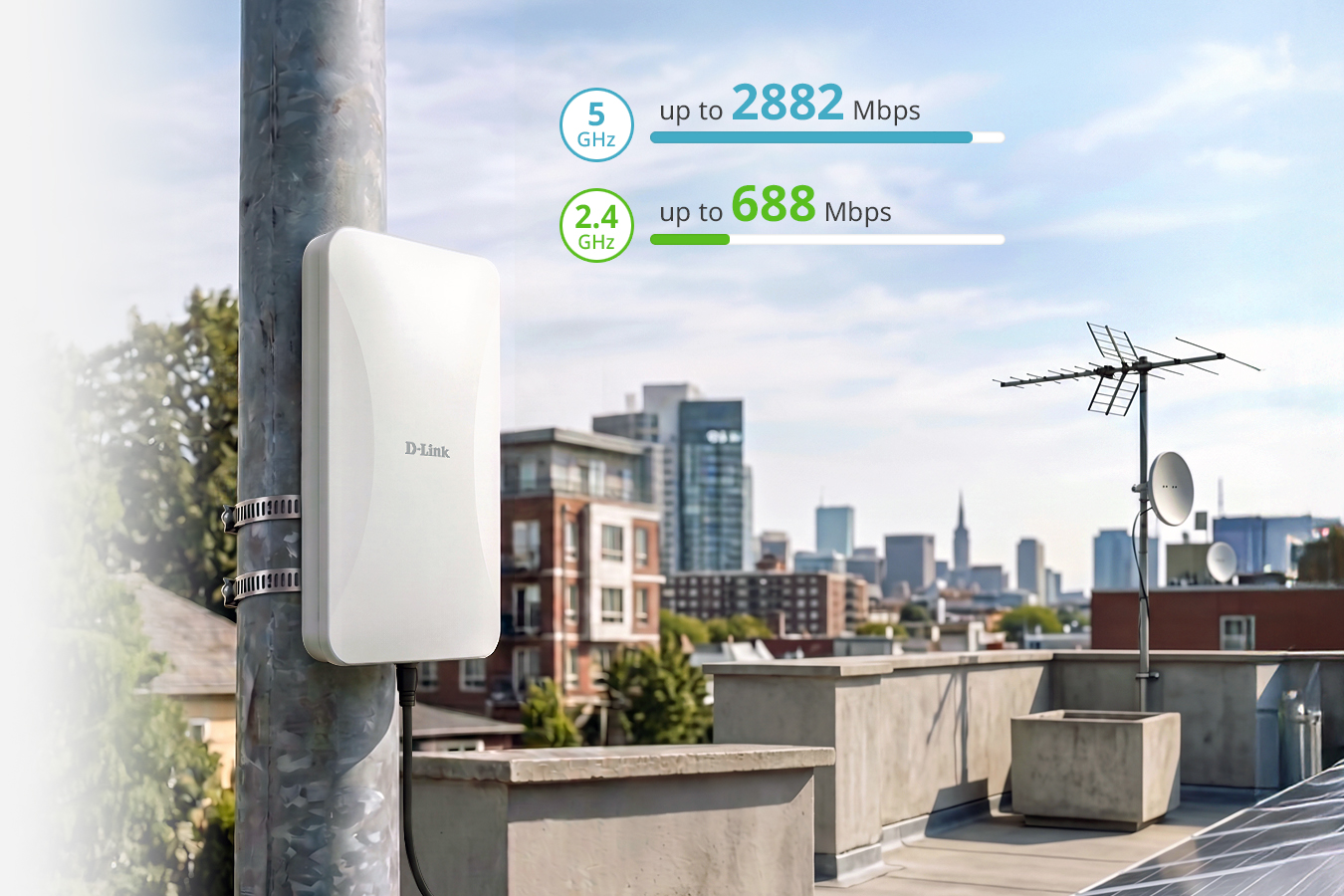

• With up to 5 GHz up to 2882 Mbps and 2.4 GHz up to 688 Mbps, businesses gain high-capacity performance for productivity, collaboration, and everyday wireless connectivity.
• Advanced 4K-QAM improves throughput and device capacity, while Multi-Link Operation (MLO) enhances responsiveness and reliability in busy environments.
• Designed for resort garden, school campus, public square and outdoor application,
  it provides stable, scalable wireless performance for staff, guests, and connected
  devices-helping improve productivity, user experience, and operational efficiency.

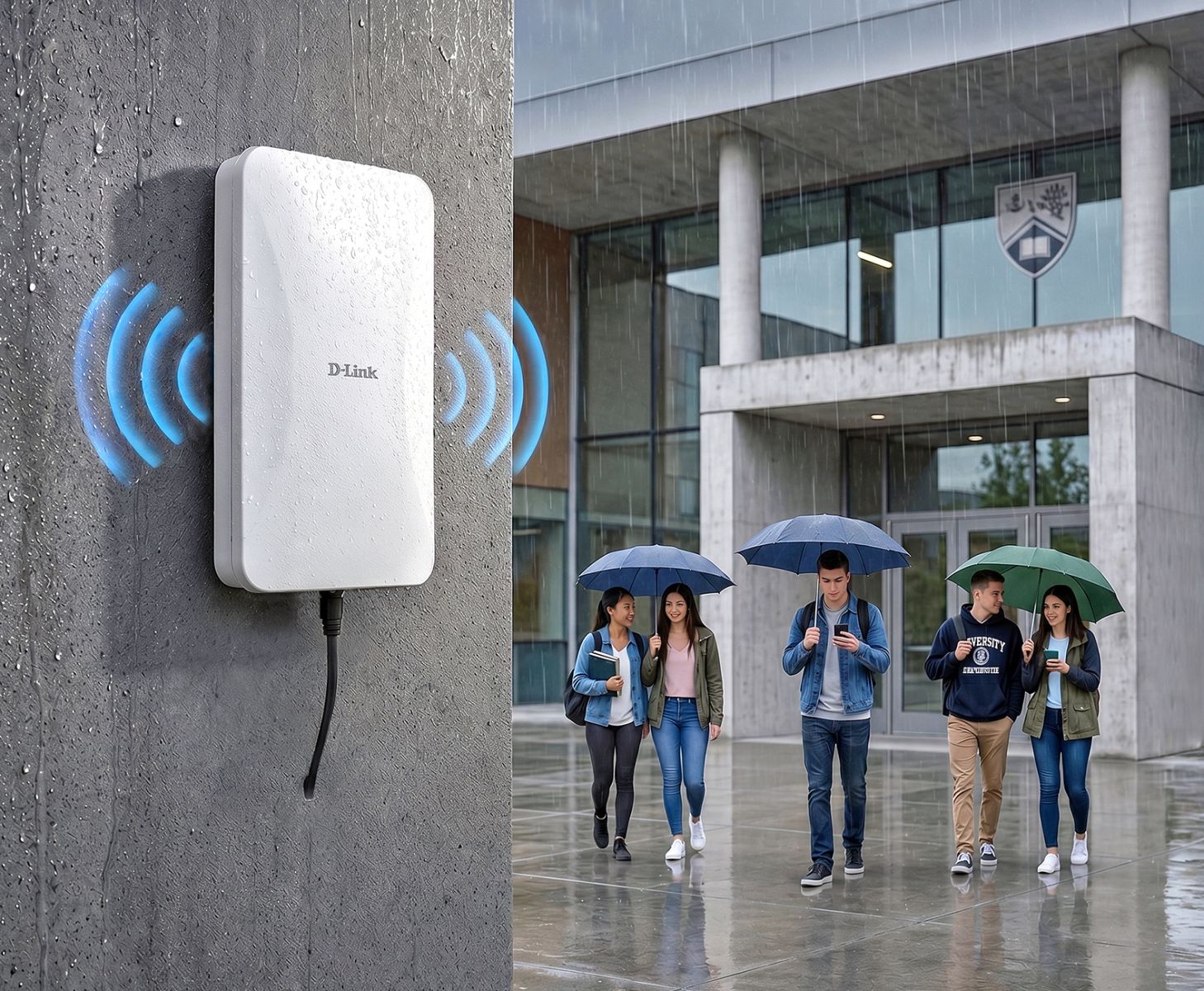

Outdoor Wi-Fi 7 That Braves the Elements

Engineered for harsh environments, the DAP-E3620OU delivers blazing Wi-Fi 7 (BE3600) speeds inside a fully weatherproof chassis built for year-round reliability. Its IP67-rated enclosure and wide temperature tolerance keep connections stable through pouring rain, scorching heat, and freezing cold. With a 2.5GbE PoE uplink, you can place it anywhere without worrying about power outlets—perfect for campuses, factories, public plazas, and outdoor dining areas.

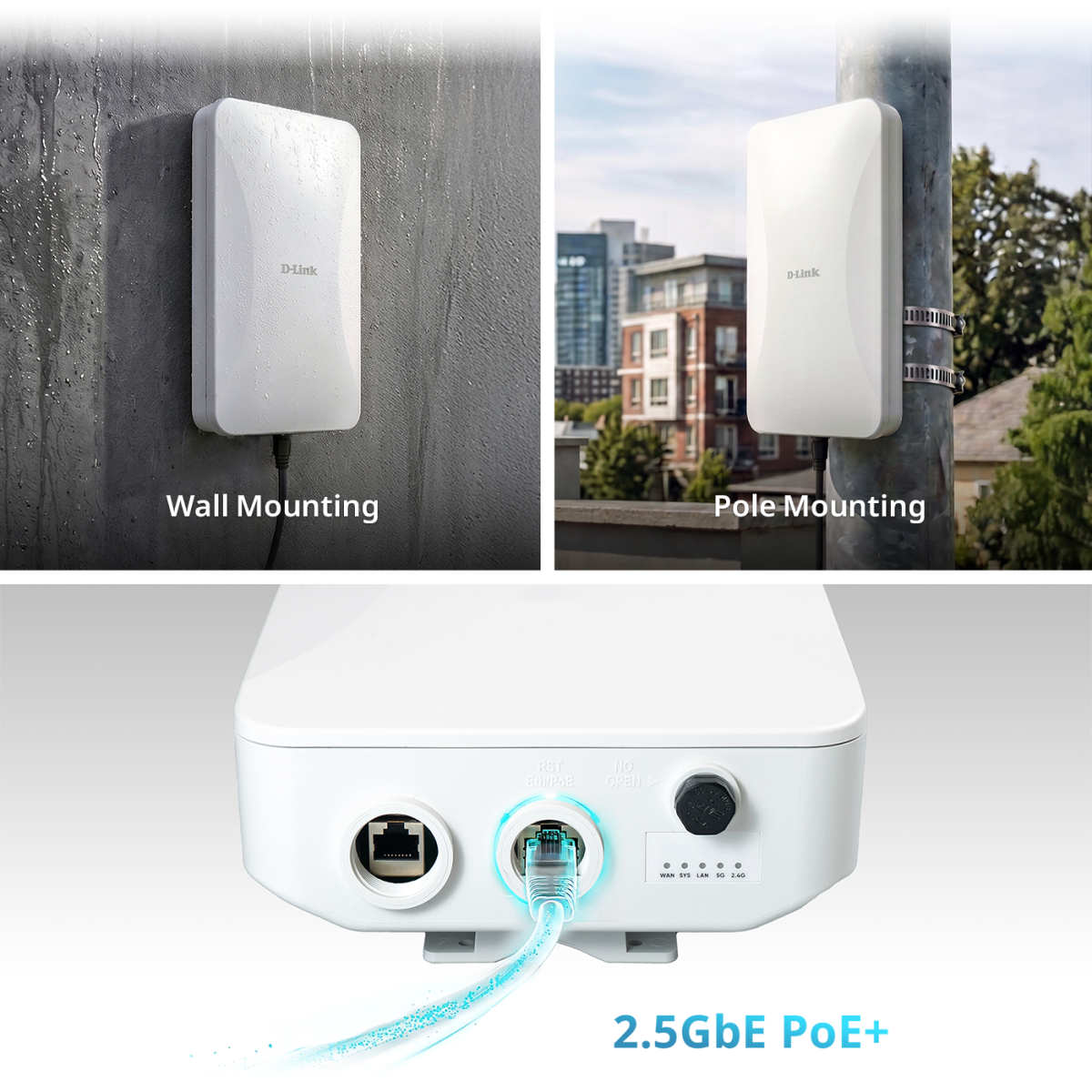

Easy Installation & High-Speed Deployment

The DAP-E3620OU features a single-cable 2.5GbE and PoE+ connection, delivering both power and high-speed data through one Ethernet cable. This simplifies installation, reduces cabling complexity, and enables more flexible device placement in outdoor environments where power access may be limited.

With high-speed 2.5GbE backhaul support, the wired network can fully support Wi-Fi 7 performance without bottlenecks, ensuring smooth connectivity for bandwidth-intensive applications and wireless deployments.

Category

Outdoor

Interfaces

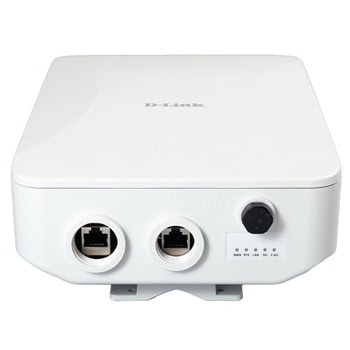

1 x 2.5-Gigabit Ethernet PoE LAN port
1 x Gigabit Ethernet LAN port

Antenna type

2 x 2.4 GHz internal antennas
2 x 5 GHz internal antennas

Antenna gain

2.4 GHz: 3.5 dBi
5 GHz: 6 dBi

Maximum Output Power

2.4 GHz: 25 dBm
5 GHz: 25 dBm

Data Signal Rate

2.4 GHz: Up to 688 Mbps
5 GHz: Up to 2882 Mbps

IEEE Standard

IEEE 802.11be/ax/ac/n/g/b/a
IEEE 802.3u/ab/bz
IEEE 802.3at PoE

Operating Frequency

2.4 - 2.483 GHz
5.15 - 5.35 GHz
5.47 - 5.85 GHz

Security Protocol

WPA/WPA2/WPA3™ Personal/Enterprise
SSID broadcast disable
MAC address access control
WEP 64/128-bit
Enhanced Open
Internal RADIUS server

Network Management

Web
Nuclias Unity
Nuclias hardware and software controller
SNMP

Power Supply

IEEE 802.3at PoE

Max. Power Consumption

17.04 W

Operating Temperature

-30˚ C to 55 ˚C (-22°F to 131°F)

Storage Temperature

-40 to 70 °C (-40 to 158 °F)

Operating Humidity

10% to 90%

Storage Humidity

5% - 95%

Dimensions

304 x 181 x 88 mm
