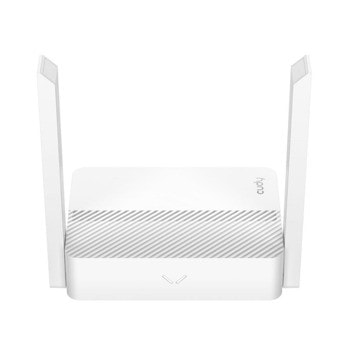

Cudy WR300 WR300_EU V1.0
НазадCudy WR300 WR300_EU V1.0Cudy WR300 WR300_EU V1.0Cudy WR300 WR300_EU V1.0Cudy WR300 WR300_EU V1.0Напред

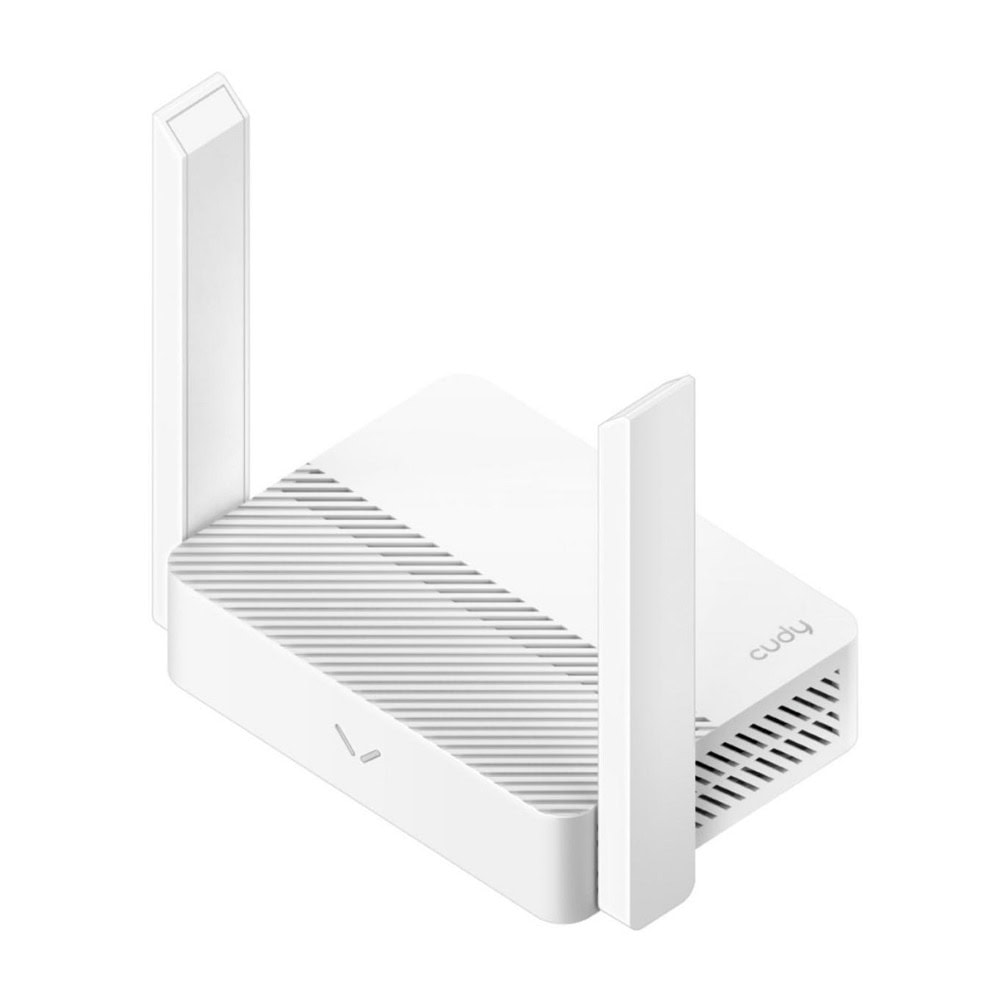

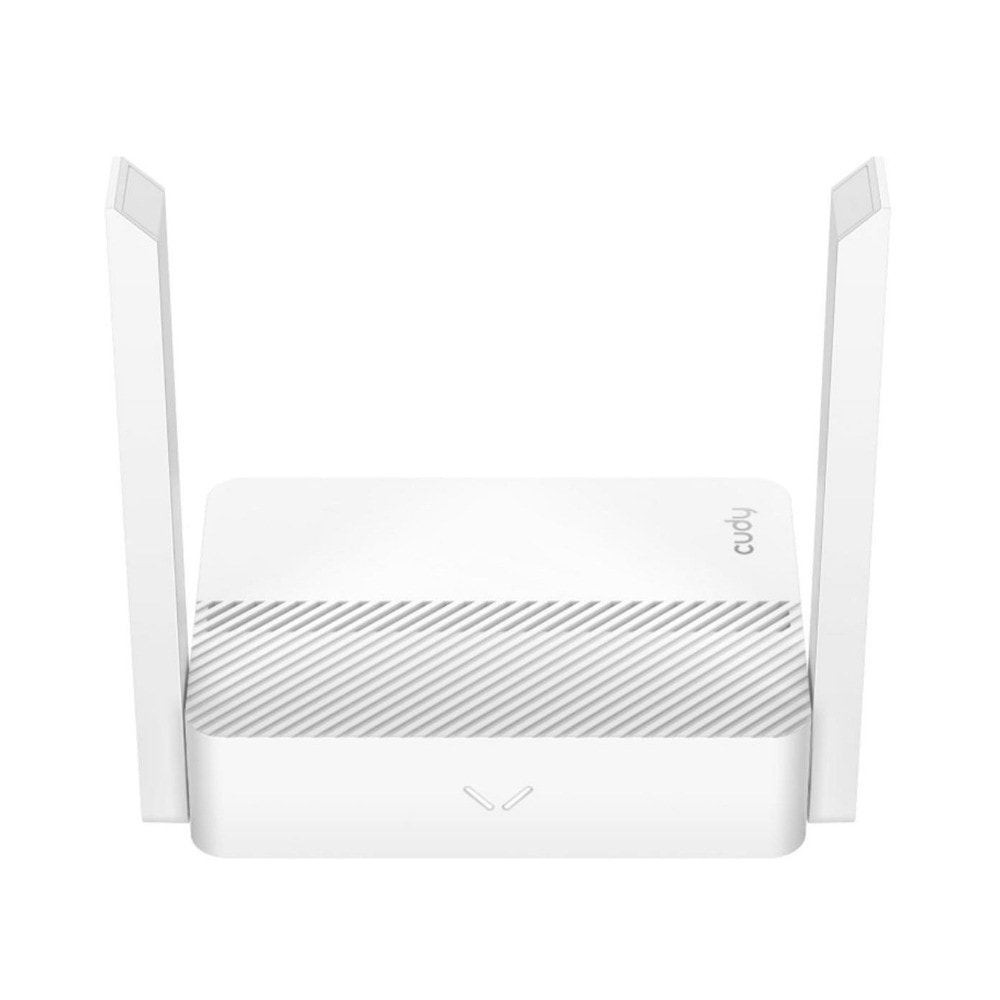

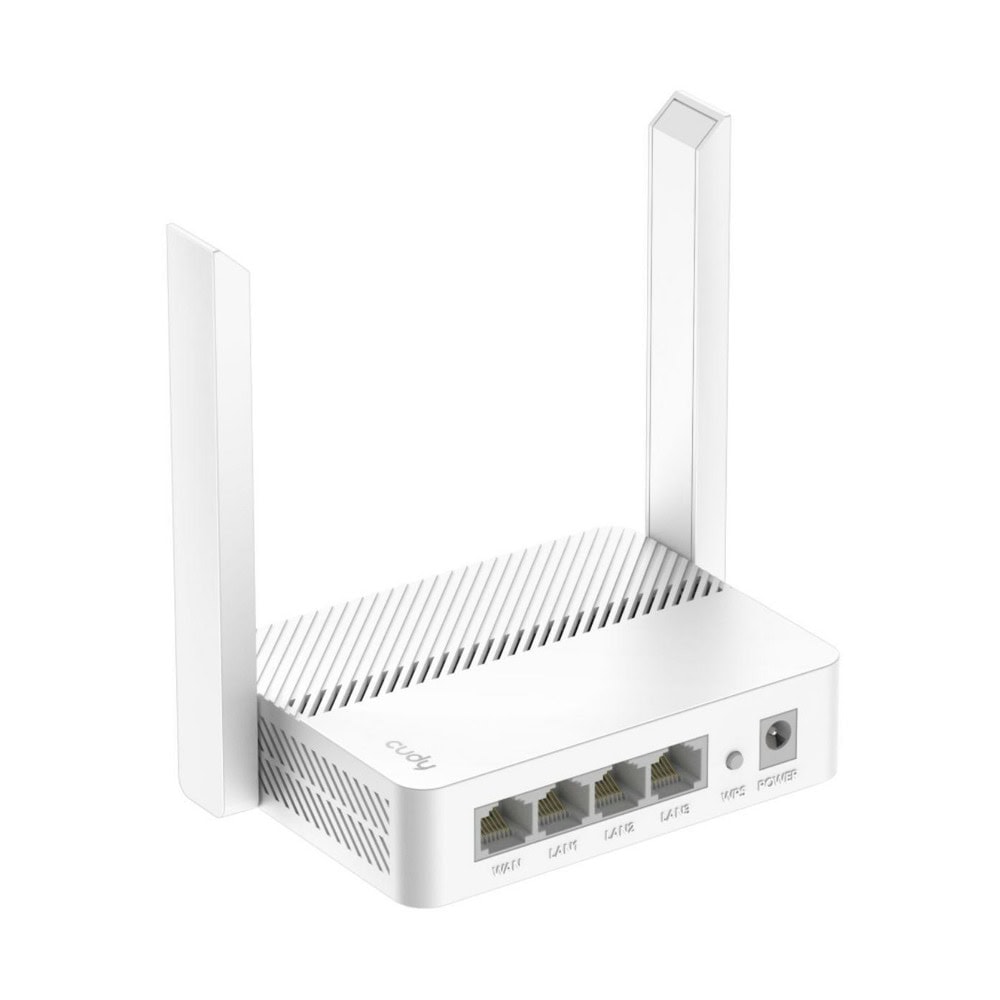

Рутер Cudy WR300, 300Mbps, 2.4GHz (300Mbps), Wireless N, 3x 10/100Mbps LAN, 1x 10/100Mbps WAN, 2x външни антени

id 305236 Код: NTWRCUDYWR300EUV10
  • Доставка приблизително от 10.10.26 до 17.10.26

16.99 €

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / ВъпросиДокументация



Perfect for a 100 Mbps Broadband

Shares with Wired Devices Flawlessly

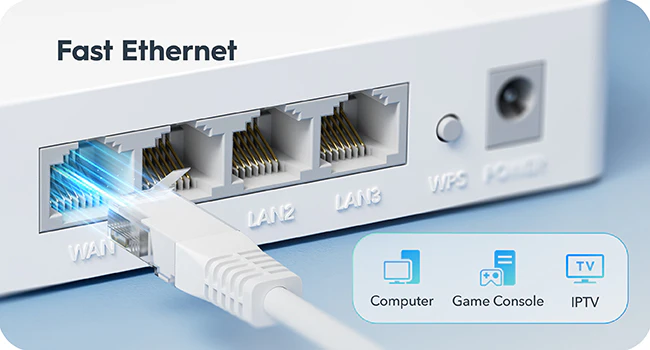

One WAN port plus three LAN ports let you connect multiple devices via stable Ethernet cable without needing another network switch.

Connects 30 Devices Wirelessly

Enjoy high-speed WiFi together when your friends come with ample WiFi capacity. 2×2 MIMO enables devices to use both antennas to improve the experience.

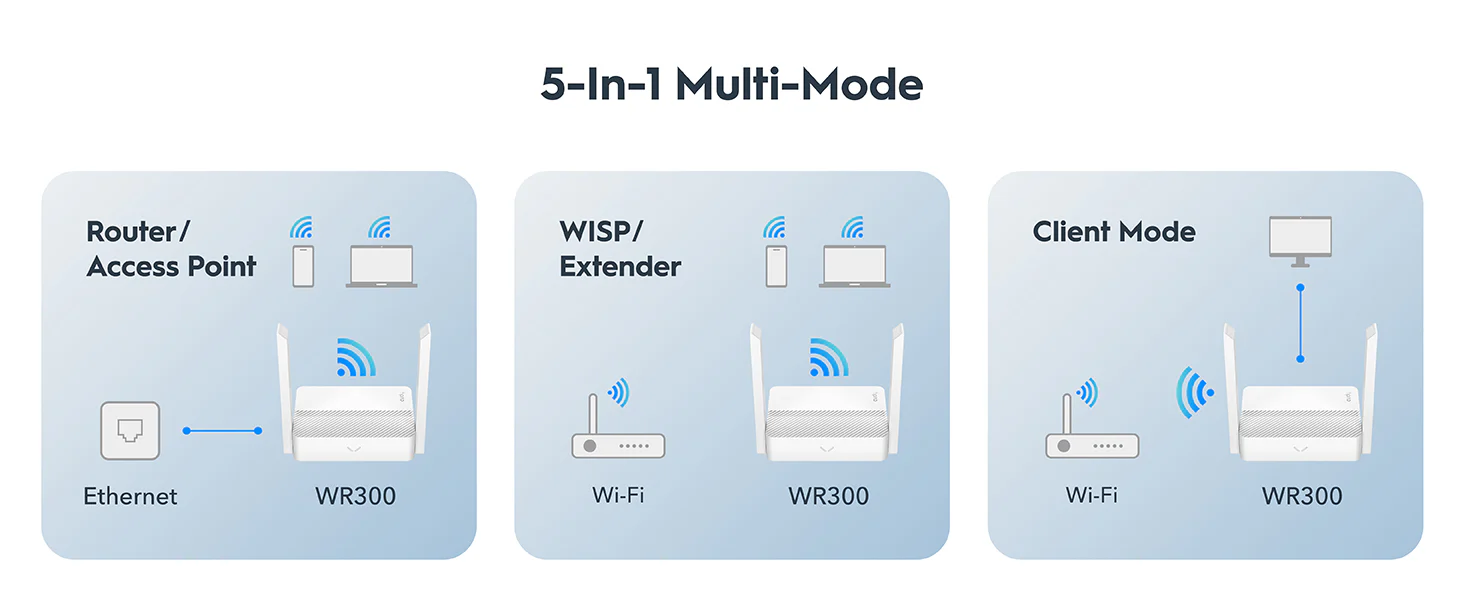

No matter whether you want to connect to a public network expand a trusted network, or even use it as a Wi-Fi adapter (client) for your wired devices. It adapts to multiple scenarios like a breeze.



Easy to Use

An intuitive setup wizard guides you to config your new network.

Wi-Fi Schedule

Set a bedtime and a domain blacklist to regulate your children's online behaviour.

WireGuard VPN Client

Allows you to connect multiple devices at once to your private or commercial VPN.

Cudy Mesh Satellite

Works as a Mesh node with other Cudy Mesh device to enable fast roaming when moving between Wi-Fi zones.



Specifications



Hardware Specs

CPUCPU Details580 MHz Single-Core, MIPS24KEC
Memory/StorageFlash/ROM8 MB (64 Mbit ) NOR
 DDR/RAM64 MB (512 Mbit) DDR2
Wireless2.4 GHz Wi-Fi Speed300 Mbps
 2.4 GHz Wi-Fi Streams2 Spatial Streams
 Wi-Fi Antennas2× Fixed
 FEM or PA/LNA2.4 GHz: 2× Internal
 Range PerformanceMax: 130 m (427 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
 Wall PerformanceOne wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 10 cm (4'')

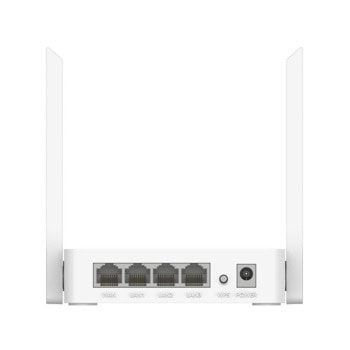

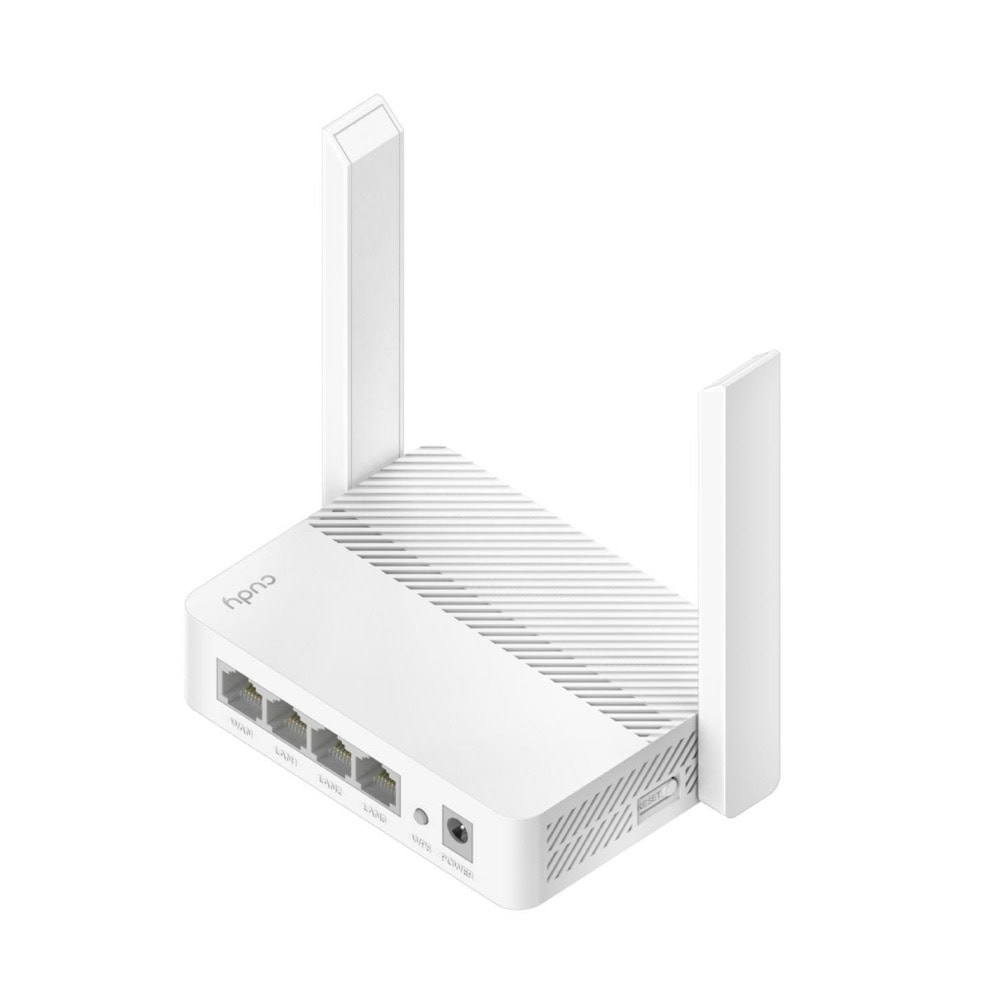

Interfaces10/100 Mbps RJ45 Ports4
 Ethernet Notes1× WAN port, the rest are LAN ports
 LEDSystem
 Physical Buttons
  • WPS Button
  • Reset Button
 Power InterfacesDC Jack
PowerPower MethodsDC
 Power Input5V⎓1A
 Power Adapter NoteInput: 100-240V~, 50/60Hz
Output: 5V⎓1A
ReliabilityEnvironment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
CertificationsFCC, CE
MechanicalInstallationDesktop
 DimensionMain Part:
118×80×27.5 mm
4.65×3.15×1.08 inches
Antenna:


 Product Weight120 g (4.23 oz.)



Software Specs

WirelessWi-Fi StandardsWi-Fi 4
 Max Wi-Fi Modulation64-QAM
 Max Capacity64
 Recommended Client Upper Limit30
 Max Wi-Fi Channel Width40 MHz
 Wi-Fi SecurityWPA/WPA2/WPA3
 Guest Network2.4 GHz
 WPSTrue
GeneralOperation Modes
  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client
 MeshCudy Mesh
 Mesh Backhaul
  • Wireless Backhaul
  • Wired Backhaul
 WAN Mode
  • DHCP
  • Static IP
  • PPPOE
  • PPTP
  • L2TP
NetworkQoSPer-User Rate Limiting
 DHCP
  • Address Reservation
  • DHCP Client List
  • Server
 IP VersionsIPv4/IPv6
 IPv6 Protocols
  • Relay
  • Dynamic (SLAAC/DHCPv6)
  • Static (Fixed IP)
  • Passthrough
  • 464XLAT
  • MAP-E
  • DS-Lite
 IPTV/VLAN
  • Bridge
  • Tag VLAN
  • VoIP VLAN
  • IPTV VLAN
 TTL Customization
  • Extend
  • Spoof
  • Custom
 IGMP
  • IGMP Proxy
  • IGMP Snooping
 Forwarding
  • Port Forwarding
  • Port Triggering
  • UPnP
  • DMZ
 Firewall
  • SPI Firewall
  • DoS Protection
  • Block PING
 Application Layer Gateway
  • IPSec Passthrough
  • L2TP Passthrough
  • PPTP Passthrough
  • FTP Passthrough
  • TFTP Passthrough
  • H323 Passthrough
  • SIP Passthrough
  • RTSP Passthrough
UtilitiesVPN Client
  • Wireguard
  • PPTP
  • L2TP
 DNS Options
  • DNS over TLS
  • Manual DNS
  • Rebind Protection
  • Override Clients' DNS
 DNS over TLS Providers
  • Cloudflare
  • Google
  • Quad9
  • Custom
 Wake on LANTrue
 Online DetectionTrue
ManagementParental Controls
  • Profiles Settings
  • Offline Time
  • Online Time
  • Pause the Internet
  • Web Filter
 All Devices Management
  • Wi-Fi Time Schedule
  • MAC Filter
  • IP/MAC Binding
 Per-Devices Management
  • Internet On/Off
  • VPN On/Off
  • Online Time Schedule
  • Device Rename
 Content Management
  • Domain Filter
  • IP Filter
SystemLED ControlTrue
 Local Control Method
  • Config Web Page
  • App Control
 Remote Control Method
  • Config Page via HTTPS
  • TR069/TR098/TR111/TR143/TR181
 Firmware UpgradeLocal Update
 Reliability
  • Timed Reboot
  • Backup and Restore
 Diagnostic Tools
  • Diagnosis
  • Ping
  • Traceroute
  • NSLookup
  • System Log
 Languages
  • English
  • Bengali
  • Catalan
  • Czech
  • German
  • Greek
  • Spanish
  • French
  • Hebrew
  • Croatian
  • Hungarian
  • Italian
  • Japanese
  • Khmer
  • Korean
  • Dutch
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese
  • Simplified Chinese
  • Traditional Chinese
DashboardPanel
  • Internet Status
  • Mesh Status
  • Devices Management
  • WAN Status
  • LAN Status
  • WISP Status
  • Wi-Fi Status
  • VPN Status
  • DHCP Server Status
  • System Version
 Charts
  • Mesh Topology
  • Internet Speed
  • WISP Speed
  • Wi-Fi Speed




    Виж още Рутери Безжични Cudy
    Виж всички Рутери Безжични в категорията
    Документация
    Технически характеристики
    Безжична скорост:  300 Mbps
    Wi-Fi Стандарт:  Wi-Fi 4 (802.11n)
    LAN портове:  3 x 100 Mbps
    WAN портове:  1 x 100 Mbps
    Честота:  2.4 GHz
    Антени:  2 Външни
    USB портове:  Няма
    3G/4G:  Не
    Преносим:  Не
    Други:  Няма
    Жична скорост:  10/100 Mbps
