Name: Рутер Cudy P2, 4G/5G, 3000Mbps, 2.4GHz (574Mbps)/5GHz (2402Mbps), Wireless AX, 2x 10/100/1000Mbps LAN, 1x Nano SIM, 4 вътрешни антени
Brand: Cudy
SKU: NTWRCUDYP2
Price: 189.04 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

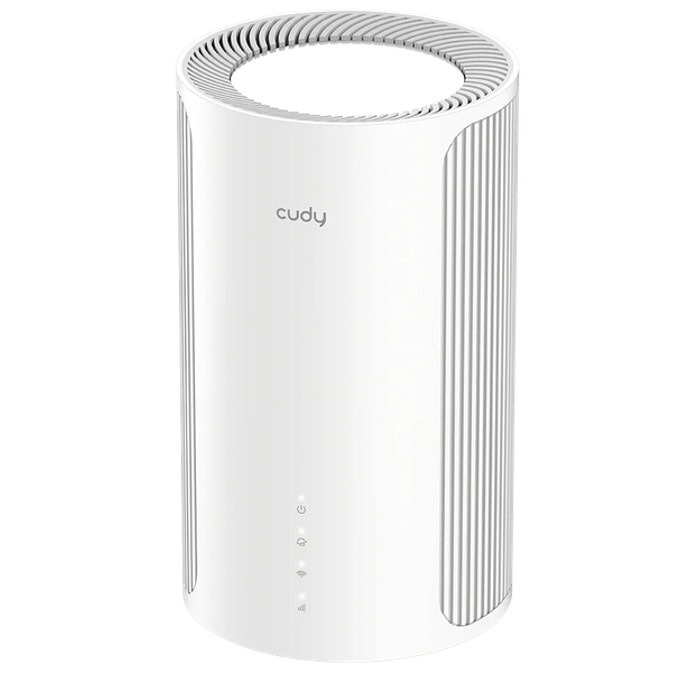

Cudy P2

A 5G WiFi 6 router with a max 2.6 Gbps download speed. It features one SIM slot, a high-capacity AX3000 WiFi 6 for high-speed internet. The ISP clients can add a RJ11 port for VoIP/VoNR service.

5G Rel. 15 with Max 2.6 Gbps DL 1
5G/4G Dual Connectivity, 4×4 MIMO
4-Stream Dual-Band Wi-Fi 6
2402 Mbps + 574 Mbps Wi-Fi 2
2× Gigabit Ethernet Ports
1× Nano SIM Slot
Cudy Mesh, VPN Server and Client
Cudy App, Cloud Control

Connect and Boost with Ease

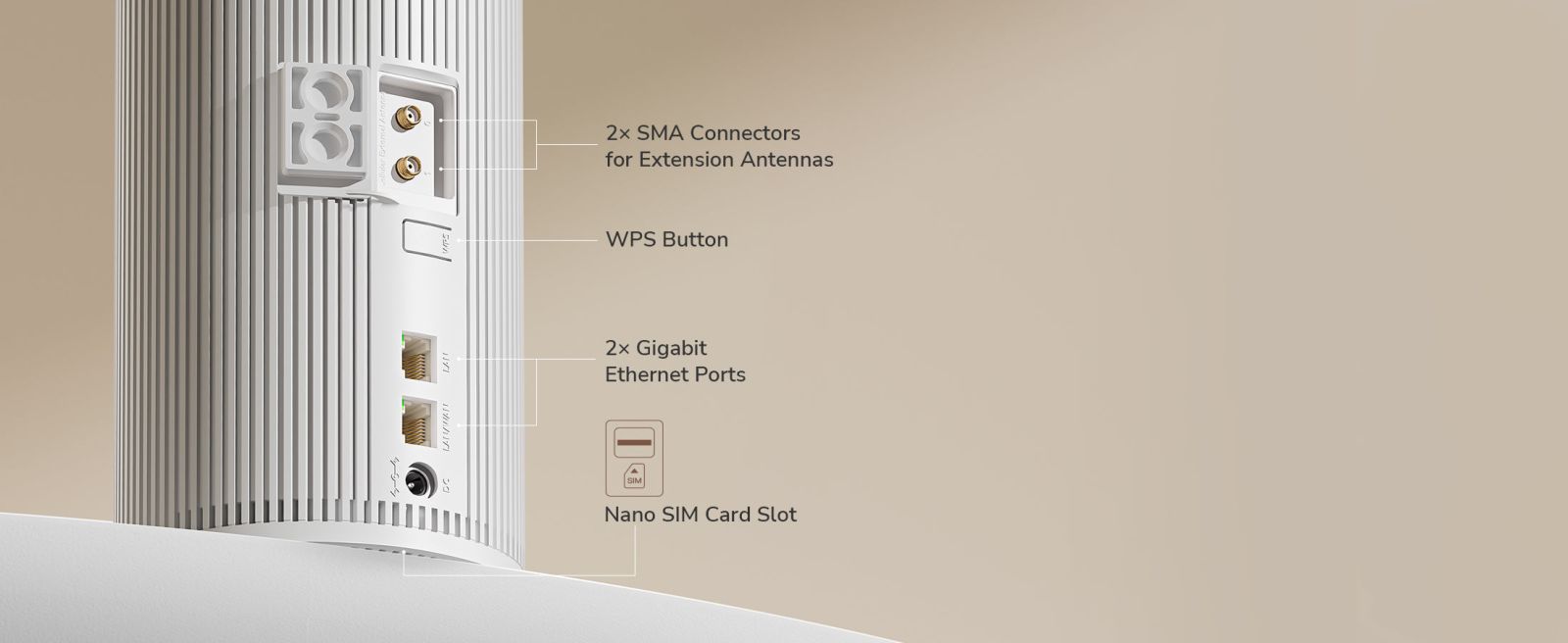

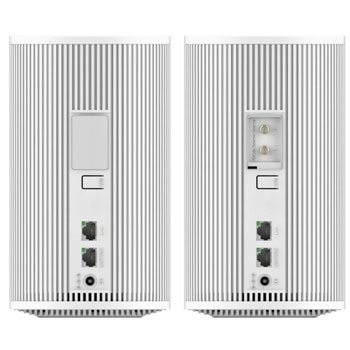

Two Gigabit Ethernet ports provide stable wired network sharing. Two SMA connectors allow you to install customized extension cellular antennas.

Hadware

Specification	Details
CPU Details	1.3 GHz Dual-Core, ARM Cortex-A53
Flash/ROM	128 MB (1 Gbit) NAND
DDR/RAM	256 MB (2 Gbit) DDR3
Cellular Standards	• 5G Rel. 15• DL 4G Cat. 12/ UL 4G Cat. 13
Wide Bandwidth	100 MHz
Cellular Antennas	4× Internal, 2× SMA Connectors for Customized Antennas
Detachable Cellular Antennas Connector	SMA Female
SIM Options	• 1× Nano SIM Slot• eSIM (Optional for ISP Orders)
Available Versions	EU
Suitable Regions	Europe, Middle East, Africa, Asia-Pacific, Latin America
Max DL Speed	2.6 Gbps (NSA), 2 Gbps (SA)
Max UL Speed	650 Mbps (NSA), 1 Gbps (SA)
Advanced	5G+4G Dual Connectivity, DL 4×4, UL 2×2 MIMO
Cellular Bands	5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/66/77/78LTE-FDD: B1/2/3/4/5/7/8/20/28/38/40/41/66WCDMA: B1/2/5/8
5 GHz Wi-Fi Speed	2402 Mbps
2.4 GHz Wi-Fi Speed	574 Mbps
5 GHz Wi-Fi Streams	2 Spatial Streams
2.4 GHz Wi-Fi Streams	2 Spatial Streams
Wi-Fi Antennas	Internal
Beamforming	svg
FEM or PA/LNA	• 5 GHz: 3× Internal• 2.4 GHz: 2× Internal
Range Performance	Max: 170 m (558 ft)Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance	Two wooden walls with thickness < 10 cm (4'')One concrete wall with thickness < 20 cm (7'')
Physical Buttons	• WPS Button• Reset Button
Gigabit RJ45 Ports	2
Ethernet Notes	1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
FXS Ports	1× RJ11 (VoNR/VoLTE) (Optional)
LED	• Power• Internet• Wi-Fi• Cellular• Link/ACT of Each Ethernet Port
Power Input Type	DC Jack
Power Methods	DC
Power Input	12V⎓1.5A
Power Adapter In the Box	Input: 100-240V~, 50/60HzOutput: 12V⎓1.5A
Power Output	TBD
Max Power Consumption (W)	13.2W
Idle Power Consumption (W)	TBD
EMC	ESD: Contact: 4kV; Air: 8kV
Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)Operating Humidity: 10% ~ 90% non-condensingStorage Humidity: 5% ~ 90% non-condensing
Certifications	FCC, CE
Dimension	Φ116×202 mmΦ4.57×7.95 inches
Product Weight	650.8 g (22.96 oz.)
Installation	Desktop

Software

Subcategory	Specification
Wi-Fi Standards	Wi-Fi 6
Max Wi-Fi Modulation	1024-QAM
Wi-Fi Efficiency	• OFDMA• MU-MIMO• BSS Color
Max Capacity	256
Recommended Client Upper Limit	100
Wi-Fi Channel Width	Auto/20/40/80/160 MHz
Wi-Fi Security	WPA/WPA2/WPA3
Guest Network	2.4 GHz, 5 GHz
WPS	svg
Operation Modes	• Cellular Router• Wi-Fi Router
Mesh	Cudy Mesh Main
Mesh Backhaul	• Wireless Backhaul• Wired Backhaul
Cellular APN	• Band Select (Band Lock)• Cellular Mode Select• Data Roaming• APN Profile• Manual APN Profile• MBN• MTU Value
Cellular Mode	• 5G NSA Only• 5G SA Only• 4G Only• Auto
WAN Mode	• DHCP• Static IP• PPPOE• L2TP• PPTP
Internet Failover Sequence	• WAN• WISP• Cellular
QoS	Per-User Rate Limiting
DHCP	• Address Reservation• DHCP Client List• Server
IP Versions	IPv4/IPv6
IPv6 Protocols	• Relay• Dynamic (SLAAC/DHCPv6)• Static (Fixed IP)• Passthrough• 464XLAT• MAP-E• DS-Lite
Multicast	svg
IPTV/VLAN	• Bridge• Tag VLAN
TTL Customization	• Extend• Spoof• Custom
IGMP	• IGMP Proxy• IGMP Snooping
Forwarding	• Port Forwarding• Port Triggering• UPnP• DMZ
Firewall	• SPI Firewall• DoS Protection• Block PING
Application Layer Gateway	• IPSec Passthrough• L2TP Passthrough• PPTP Passthrough• FTP Passthrough• TFTP Passthrough• H323 Passthrough• SIP Passthrough• RTSP Passthrough
VPN Server	• WireGuard• OpenVPN• IPsec• Zerotier• PPTP• L2TP
VPN Client	• WireGuard• OpenVPN• IPsec• Zerotier• PPTP• L2TP
DNS Options	• DNS over TLS• Manual DNS• Rebind Protection• Override Clients' DNS
DNS over TLS Providers	• Cloudflare• Google• Quad9• Custom
Wake on LAN	svg
Online Detection	svg
Parental Controls	• Profiles Settings• Offline Time• Online Time• Pause the Internet• Web Filter
All Devices Management	• Wi-Fi Time Schedule• MAC Filter• IP/MAC Binding
Per-Devices Management	• Internet On/Off• VPN On/Off• Online Time Schedule• Device Rename
Content Management	• Domain Filter• IP Filter
LED Control	svg
Local Control Method	• Config Web Page• App Control
Remote Control Method	• Config Page via HTTPS• App Control• TR069/TR098/TR111/TR143/TR181
Firmware Upgrade	• Local Update• App (Over the Air)• Online Update
Diagnostic Tools	• Diagnosis• Ping• Traceroute• NSLookup• System Log

Виж още Рутери Безжични Cudy
Виж всички Рутери Безжични в категорията

Документация

Технически характеристики

Безжична скорост:	3000 Mbps
Wi-Fi Стандарт:	Wi-Fi 6 (802.11ax)
LAN портове:	2 x 1000 Mbps
WAN портове:	Няма Mbps
Честота:	2.4 + 5 GHz
Антени:	4 Вътрешни
USB портове:	Няма
3G/4G:	4G/5G
Преносим:	Не
Други:	Слот за SIM карта
Жична скорост:	10/100/1000 Mbps
